artesyn™.

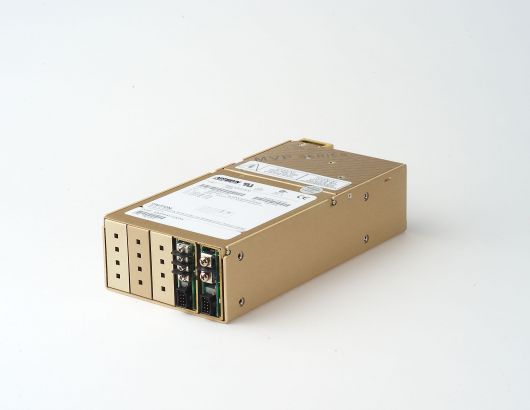

iMP4 Series
Active
750 to 1158 W Configurable AC-DC Power Supplies
The iMP4 series is an AC input to DC output configurable power supply system consisting of a microprocessor-controlled PFC front end providing five slots that accept intelligent DC-DC converter modules with single, dual or triple outputs ranging from 2 V to 60 V. Single output modules come in four power ranges that can be mixed and matched and connected in parallel or series to obtain thousands of output combinations customized to any application. User-configurable functions include current limit and output sequencing, as well as input and output OK signals and indicators. Capable of delivering up to 1100 W and with up 15 isolated outputs, the iMP4 series carries full medical safety approvals and is an extremely flexible and versatile multi-output power solution.
These digitally controlled power supplies feature a PMBus®-compliant I2C serial interface that enables parameters such as the voltage, current limit and enable/inhibit status of individual outputs to be programmed via an intuitive user GUI. The serial interface also allows remote monitoring of voltage, current and temperature.
These digitally controlled power supplies feature a PMBus®-compliant I2C serial interface that enables parameters such as the voltage, current limit and enable/inhibit status of individual outputs to be programmed via an intuitive user GUI. The serial interface also allows remote monitoring of voltage, current and temperature.
Eigenschaften
- Current Share on all outputs greater than 10A
- Field Demonstrated MTBF to 550K Hours
- Industrial Shock/Vib (>50G's)
- Industrial Temp Range (40 to 70C)
- Intelligent I2C control
- Isolated 5V @ 1A Standby Output
- Remote Sense on all outputs greater than 2A
- Input Range 85-264 VAC; 120-350 VDC
- Frequency 47-63 Hz
- Inrush Current 40A Peak (Soft Start)
- Efficiency 85% typical depending on configuration
- Power Factor 0.99 typ @ full case load
- Turn-on Time AC 2,0 sec; Inhibit 150mS
- EMI Filter CISPR 22/EN55022 Level B
- Leakage Current 300uA Max
- Radiated EMI CISPR 22/EN55022 Level B
- Holdover Storage 20 mSec min
- ACOK >5mS early warning
- Input Fuse 16A
- Margining +/-4-6% of Nominal
- Programming Accuracy +/- 5%
- Factory Set Point Accuracy +/- 1%
- Adjust Range +/-10% Manual; Full Range Programmable
- Overall Regulation 0.4% or 20mV max
- Ripple RMS 0.1%; P-P 1.0% to 20MHz
- Dynamic Response <2% or 100mV, 25% load step
- Reverse Voltage Protection 100% of rated output
- Recovery Time To within 1% in <300uSec
- Remote Sense Compensates up to 0.5V
- Single Wire Parallel Share within 2% of total rated load
- DCOK +/-5% of nominal - Programmable
- Safety Meets EN60950 and EN60601
- Output/Output Isolation >1 Megohm, 500V
- Module Switching Frequency 250kHz accepts external sync signal
Vorteile
- ACOK signal
- Active PFC
- Configurable Output Sequencing
- Digital monitor of Voltage, Current and Temp (Both Input and Output)
- Downloadable GUI
- EMI Conducted and Radiated to Class B
- External Switching Frequency Sync Input
- Field Replacable Intelligent Fan
- Full Medical Approval
- Global DCOK and Inhibit/Enable (Logic Programmable)
- Margin and Remote Voltage Programming
- Module DCOK and Inhibit (Logic Programmable)
- Optional Conformal Coating
- Optional Extended holdup module
- Optional extra holdup module
- Optional VME Timing and System DCOK/Reset Module
- Overload Protection on all outputs
- Programmable voltage, current limit, fan speed, Foldback or Constant Current operation
- Voltage Adjustment on all outputs (Manual or Programmable)
- OVP Programmable
- OCP Programmable
- Thermal Protection OTP/OTW Programmable
Spezifikationen
| Ausgangsleistung (W): | 1100 |
|---|---|
| Länge (Zoll): | 10 |
| Breite (Zoll): | 5 |
| Höhe (Zoll): | 2.4 |
| Montage Typ: | Configurable |
| Minimaler Ausgangsstrom (A): | 0 |
| Maximaler Ausgangsstrom (A): | 220 |
| Ausgangsspannungsbereich (V): | 2V to 60V |
Einführung in ConfigPro
Der revolutionäre Online-Stromkonfigurator von Advanced Energy
Mit über 3 Millionen konfigurierbaren Stromversorgungskombinationen optimiert dieser Stromlösungsalgorithmus die Kosten und führt Sie zur idealen Lösung für die konfigurierbaren Stromversorgungsfamilien MP, IMP, IVS und MICROMP (UMP).
Los geht's
Zubehör
iMP Software Package
The iMP software is designed to make the iMP Power Supply Unit (PSU) accessible to the user. It is intended to provide information gathered from the PSU and interactive controls to the basic capabilities of iMP power supply.
Technische Dokumentation
Technische Videos
iMP4-4NE0-00-A Adjust V1V2 via iMP GUI
Aug. 1, 2017
The iMP series is an AC input to DC output configurable power system consisting of a microprocessor-controlled PFC front end providing seven slots that accept intelligent DC-DC converter modules with single, dual or triple outputs ranging from 2 V to 60 V. Single output modules come in four power ranges that can be mixed and matched and connected in parallel or series to obtain thousands of output combinations customized to any application. This video shows how to trim output voltage of dual-output module using iMP GUI.
