SL Power™

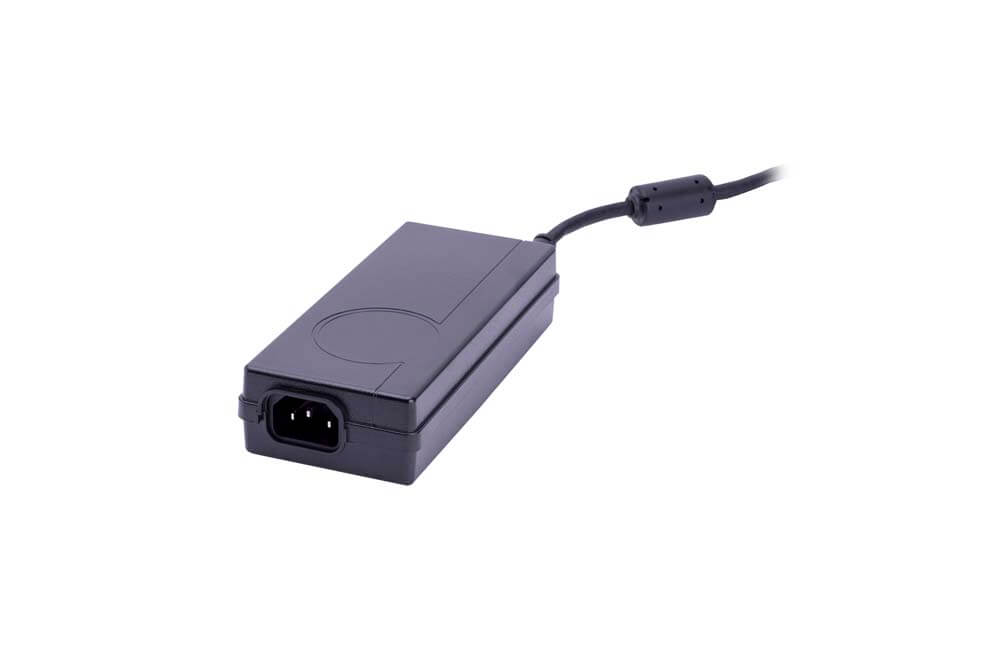

TE90 Series
Active
90 W Single Output External Power
Advanced Energy’s SL Power TE90 series of desktop and wall-plug AC-DC external power adapter comprises four output models. All models feature industrial safety approvals and accept a universal input of 90 to 264 VAC. These compact switch-mode power supplies feature output overvoltage, overtemperature, overload protection, with short-circuit protection on all output models. TE90 series power adapters provide up to 90 W of output power with IP22 rated enclosure and meets DoE Efficiency Level VI Requirements.
Eigenschaften
- Up to 90 W of AC-DC Power
- Universal Input 90 to 264 VAC Input Range
- >500,000 Hours MTBF
Vorteile
- A high-performance power supply designed for Test and Measurement and Industrial applications
- Ideal for applications that are used in environments where AC mains power may be noisy or unstable and equipment shutdown is not an option
- Great EMI, EMC, and noise performance ensures easy integration into the end equipment
- Meets DoE Efficiency Level VI Requirements
- Desktop Style
- Meets “Heavy Industrial” Levels of EN61000 EMC Requirements
- Meets EN55022/CISPR22, FCC Part 15.109 Class B Conducted & Radiated Emissions
- EN/IEC/cUL62368-1 update in progress
- E-cap life of >7 years
- 3 Year Warranty
- IP22 Rated Enclosure
Spezifikationen
| Ausgangsleistung (W): | 90 |
|---|---|
| Länge (Zoll): | 5.9 |
| Breite (Zoll): | 2.58 |
| Höhe (Zoll): | 1.34 |
| Montage Typ: | External Adapter |
| Minimaler Ausgangsstrom (A): | 3.75 |
| Maximaler Ausgangsstrom (A): | 7.5 |
| Ausgangsspannungsbereich (V): | 12V to 24V |
