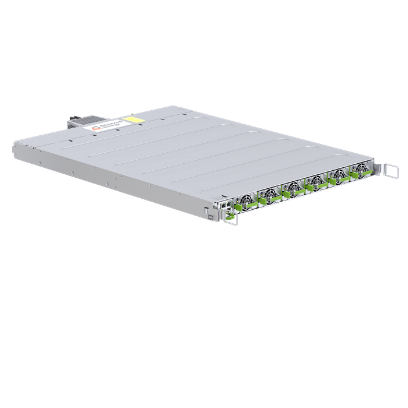

ORv3 HPR Power Supply Unit (PSU)
Active
5.5 kW Power Supply Unit
Advanced Energy's 5.5 kW ORv3 HPR PSU is a single phase input AC-DC power supply that operates from AC power with a nominal input voltage range of 200 to 277 VAC, 50/60Hz and has an output of 50VDC at 110A.
The ORv3 HPR PSU reduces power losses with a leading peak efficiency that approaches 98%. And, because the ORv3 HPR PSU offers very high pulse load capability and a higher power factor in response to dynamic loading it smooths out the data center peak pulse power requirements for GPU applications. This means less burden on the AC power infrastructure of your data center.
The current-sharing mode allows the hot-swappable PSU modules and shelves to be paralleled to achieve high power in n + 1 or n + n redundant configurations. Multiple shelves can be connected in parallel, enabling rack power levels in excess of 100kW.
The ORv3 HPR PSU reduces power losses with a leading peak efficiency that approaches 98%. And, because the ORv3 HPR PSU offers very high pulse load capability and a higher power factor in response to dynamic loading it smooths out the data center peak pulse power requirements for GPU applications. This means less burden on the AC power infrastructure of your data center.
The current-sharing mode allows the hot-swappable PSU modules and shelves to be paralleled to achieve high power in n + 1 or n + n redundant configurations. Multiple shelves can be connected in parallel, enabling rack power levels in excess of 100kW.
Eigenschaften
• Peak Efficiency greater than 97.5%
• Highly accurate droop + active current sharing
• Hot swappable
• Cooling with internal fan with speed control
• Modbus/PMBus communication with interface for monitoring and control
• Black box fault logging
• Highly accurate droop + active current sharing
• Hot swappable
• Cooling with internal fan with speed control
• Modbus/PMBus communication with interface for monitoring and control
• Black box fault logging
Vorteile
• Industry leading efficiency. This helps reduce operating expenses and reduces the burden on cooling infrastructure
• Very high reliability. This results in a very low failure rate
• Top rated customer support
• Very high reliability. This results in a very low failure rate
• Top rated customer support
Spezifikationen
| Ausgangsleistung (W): | 5500 |
|---|---|
| Eingangsspannung (V): | 0 to 305 |
| Länge (Zoll): | 25.2 |
| Breite (Zoll): | 2.89 |
| Höhe (Zoll): | 1.57 |
| Montage Typ: | Shelf |
| Minimaler Ausgangsstrom (A): | 0 |
| Maximaler Ausgangsstrom (A): | 112 |
