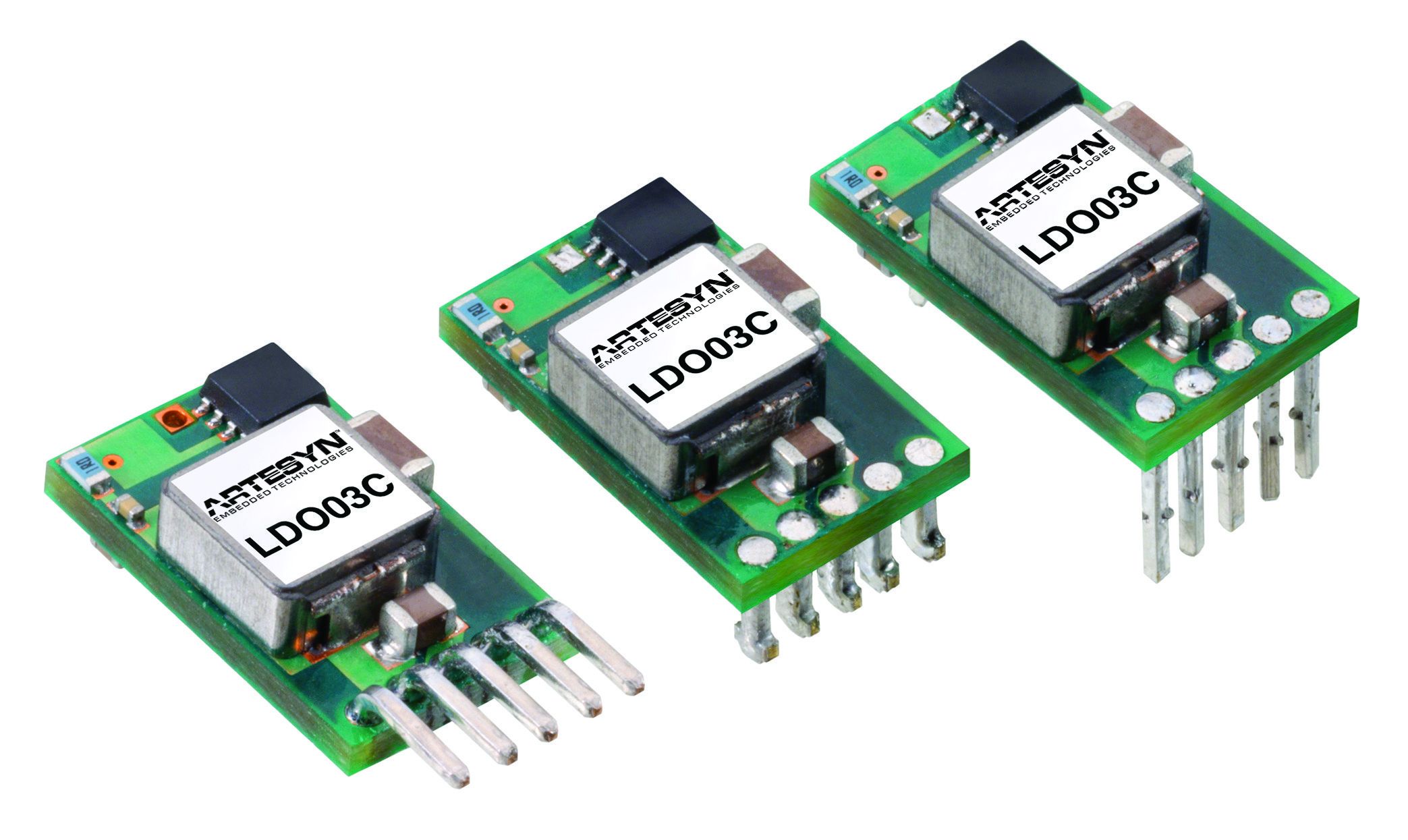

LDO03C Series
Active
15 W (3 A) Non-Isolated DC-DC Converters
The LDO03C series non-isolated DC-DC converter is designed for cost- and space-sensitive applications. It has a wide 3 to 13.8 VDC input range and offers a 0.59 to 5.1 VDC adjustable output that accommodates a wide variety of silicon power needs. Capable of delivering up to 3 A, the converter has a typical efficiency of 90%. A remote enable facility is provided as standard and remote ‘power good’ indication is available as an option. LDO03C series of 15 W DC-DC converters offer a choice of through-hole horizontal, through-hole vertical, and surface mounting.
Eigenschaften
- High Efficiency up to 90%
- Wide input voltage range: 3 to 13.8Vdc
- Wide output voltage trim / adjustability: 0.59 to 5.1Vdc
- Input Range 3 to 13.8 VDC
- Wide Output Trim 0.59 to 5.1 VDC
Vorteile
- Current sink capability for termination applications
- Excellent transient response
- No added input or output capacitors needed for ripple current capability or stability
- Remote on/off
- Through Hole or Surface Mount (suffix "S") termination
- Vertical (suffix "V") or Horizontal (suffix "H") Mounting
Spezifikationen
| Ausgangsleistung (W): | 15 |
|---|---|
| Länge (Zoll): | 0.61 |
| Breite (Zoll): | 0.37 |
| Höhe (Zoll): | 0.292 |
| Montage Typ: | BMP; SMT &Through Hole |
| Minimaler Ausgangsstrom (A): | 3 |
| Maximaler Ausgangsstrom (A): | 3 |
| Ausgangsspannungsbereich (V): | 0.59V to 5.1V |
