artesyn™.

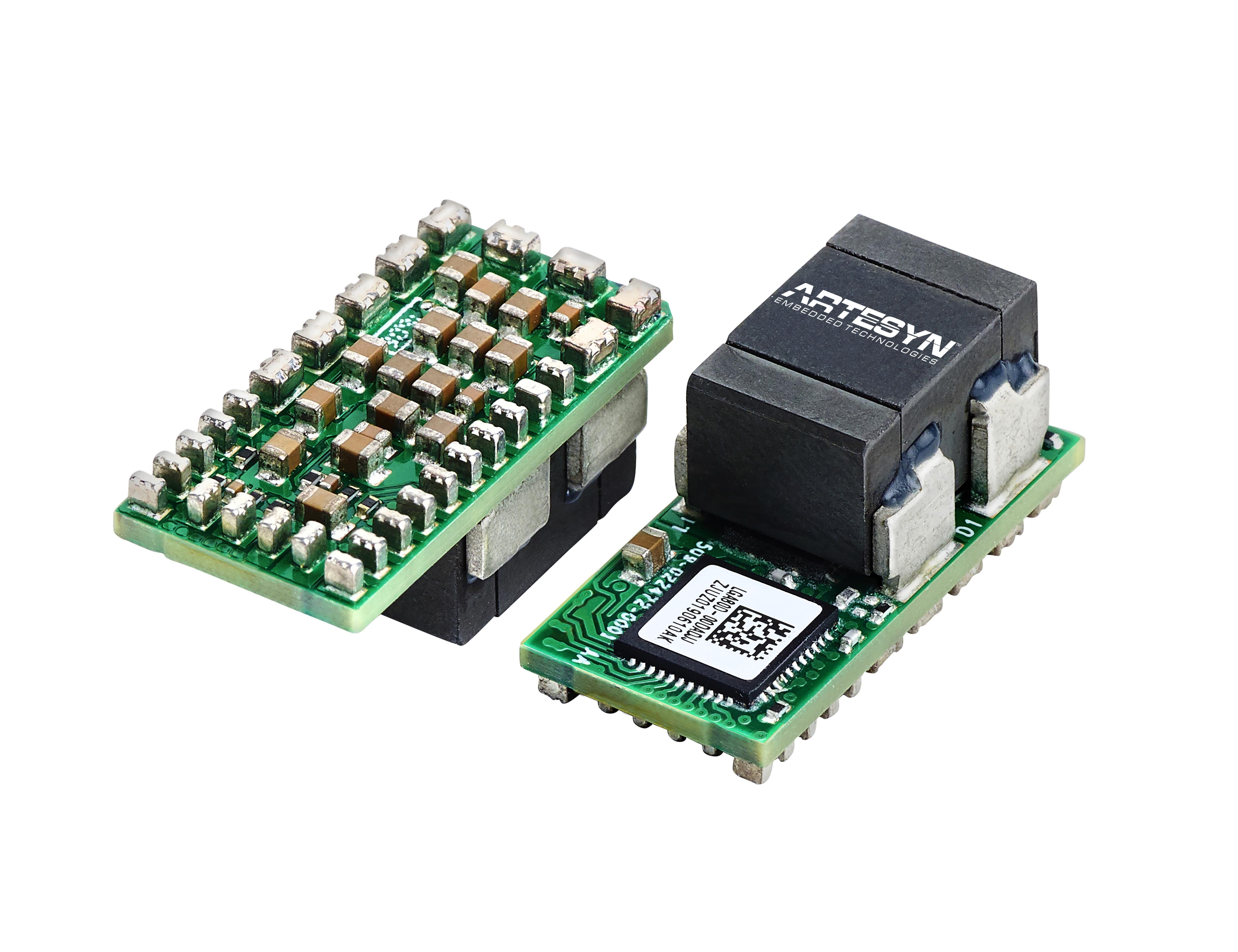

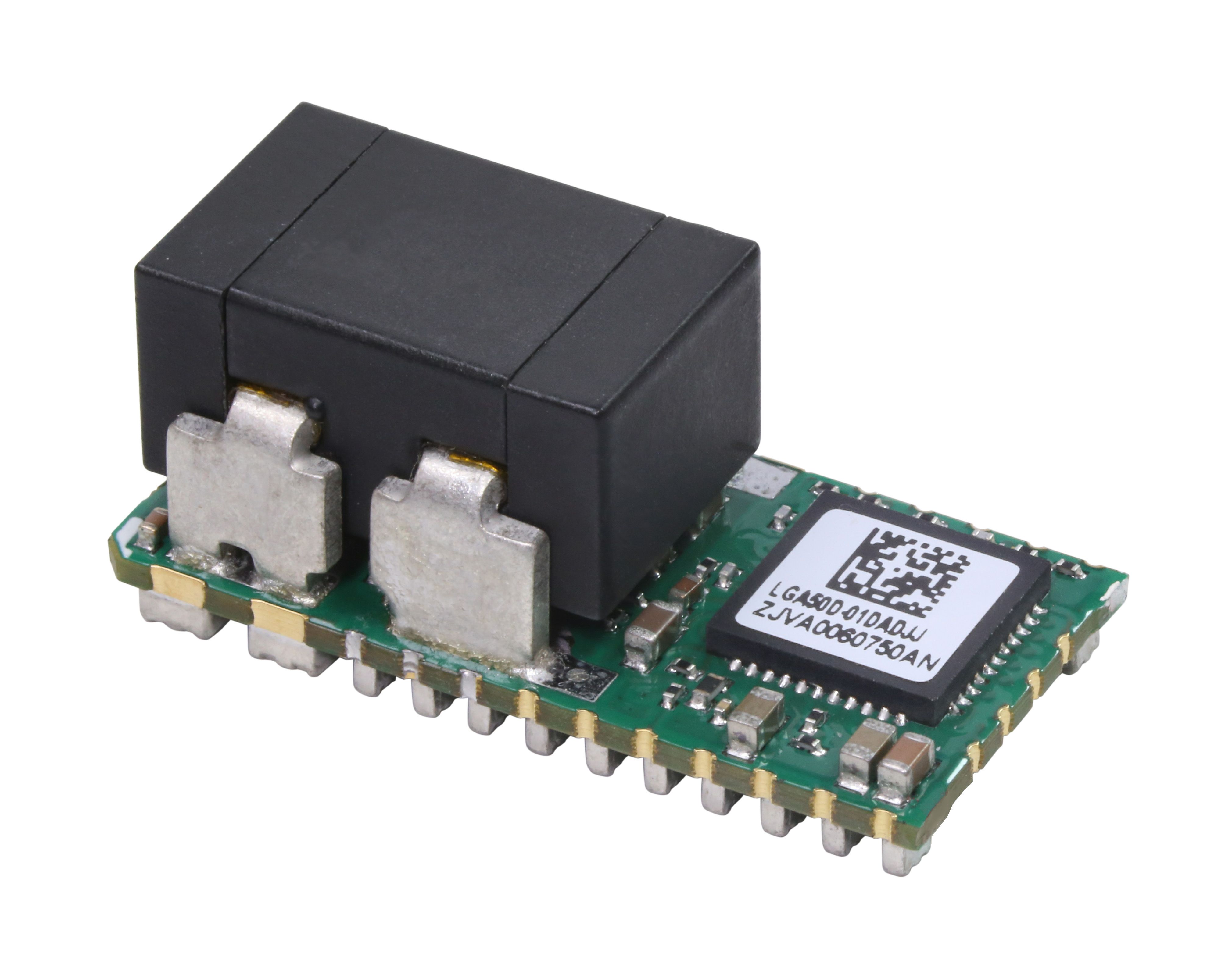

LGA50D Series
Active
100 W Digital Non-Isolated DC-DC Converters

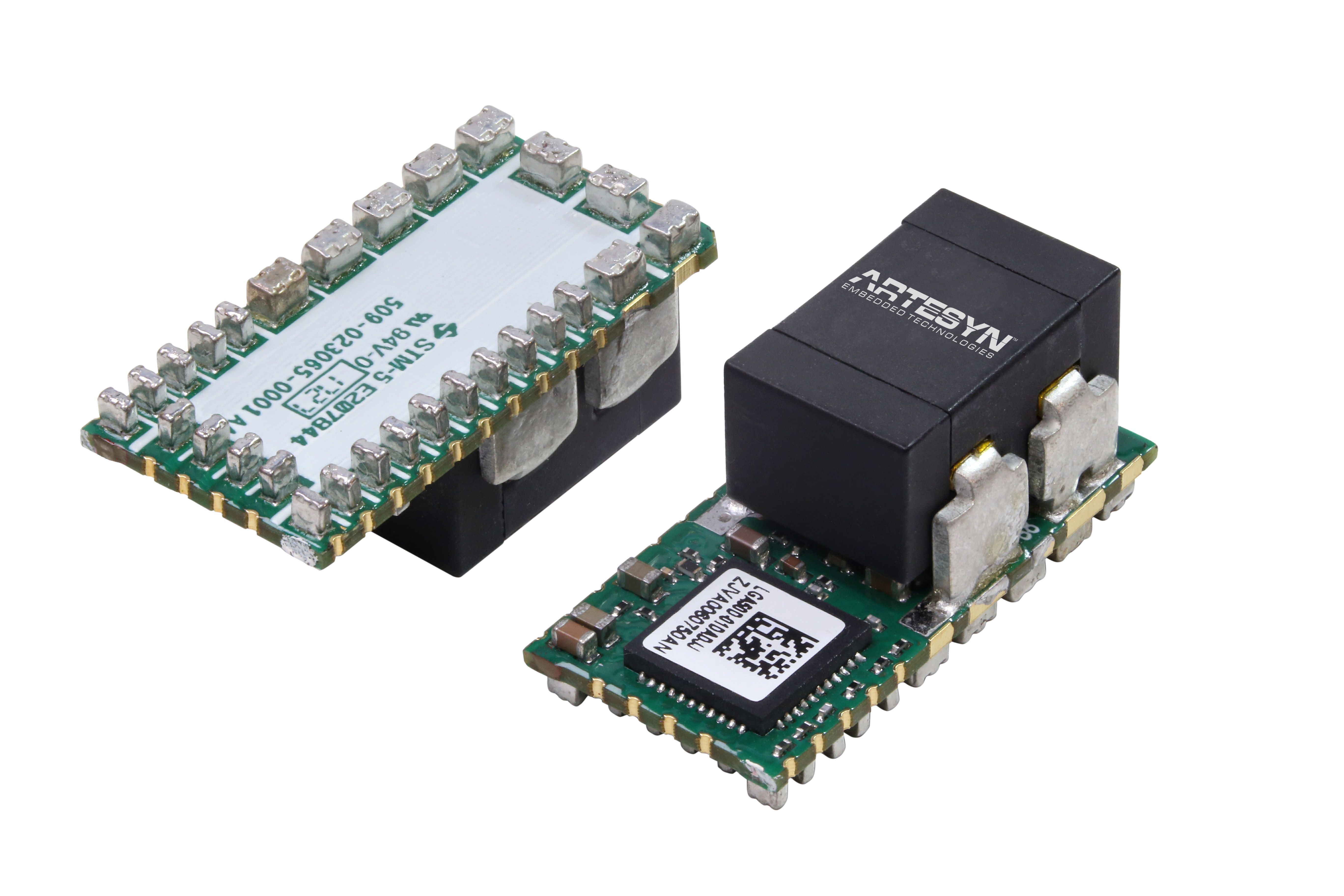

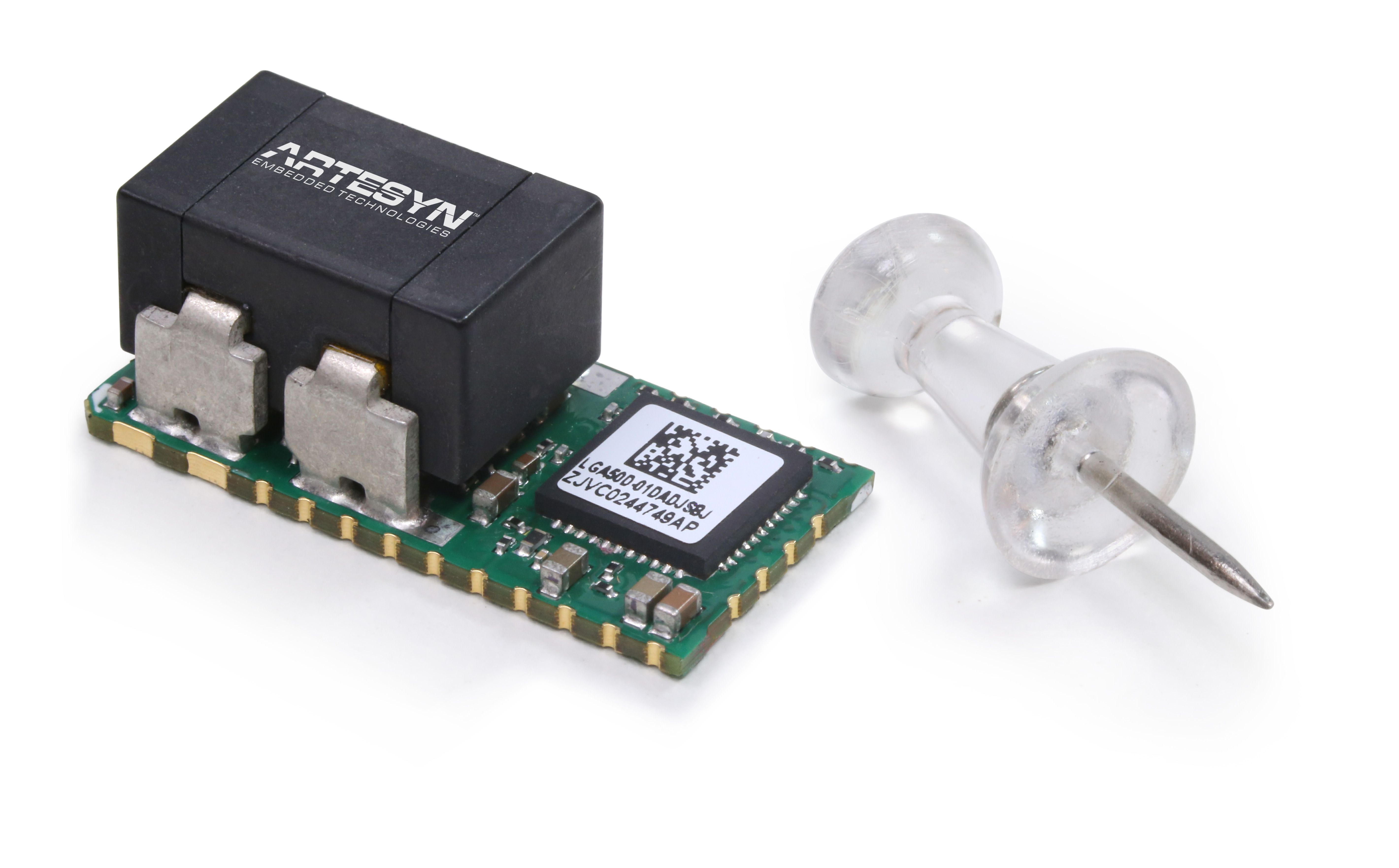

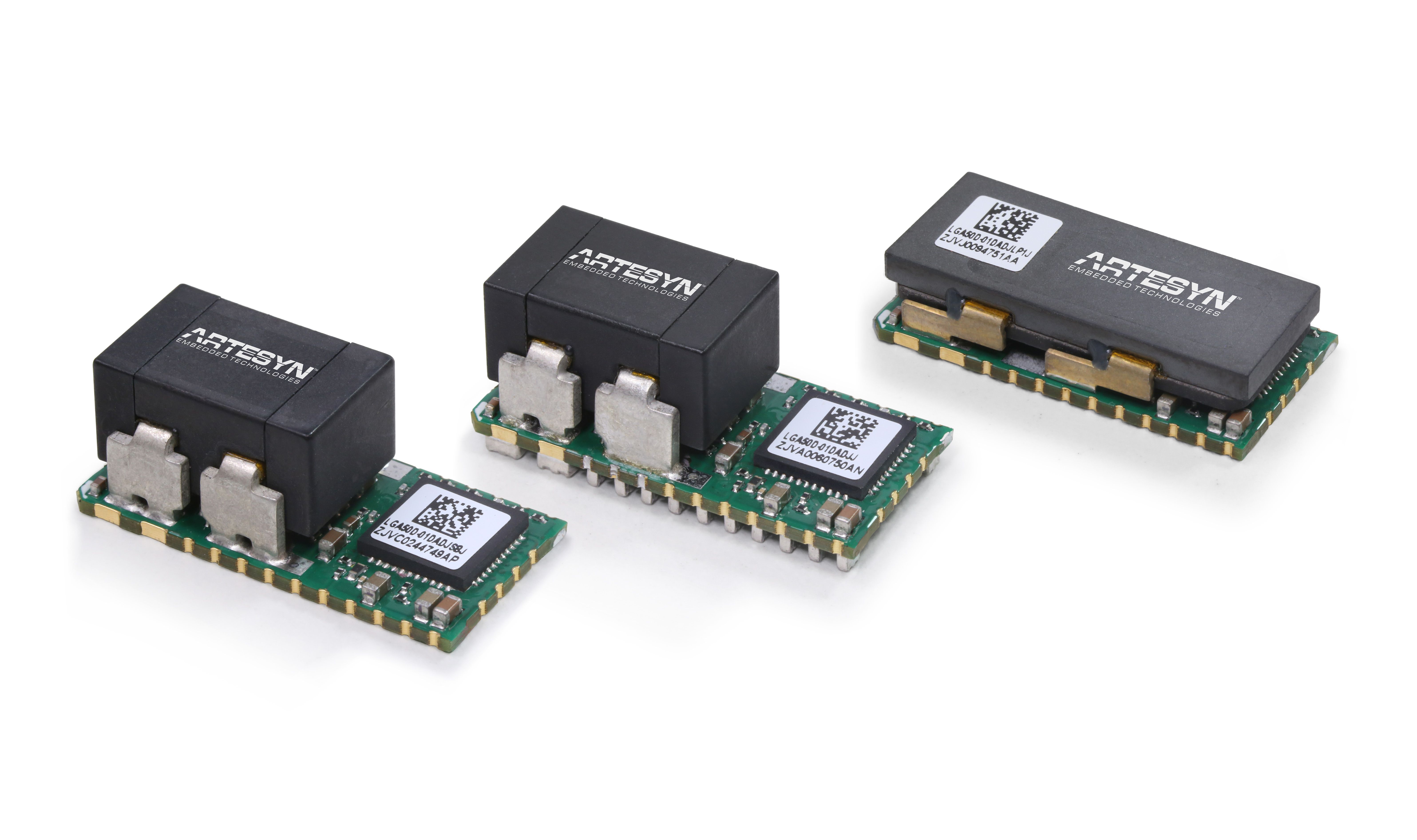

Designed for cost and space-sensitive applications, the LGA50D series of non-isolated DC-DC converters offers dual outputs configurable as two independent 25 A, 50 W outputs or single 50 A, 100 W. You can parallel up to four units to generate a higher current-rated rail up to 200 A. The input voltage range is rated at 7.5 to 14 VDC and output 0.6 to 5.2 VDC adjustable via PMBus or external resistor with maximum efficiency of 95.5%. With a footprint of 1 x 0.5 inches (25.4 x 12.5 mm), the LGA50D is available in three form factors, including a low-profile version. The series withstands reflow oven temperatures for surface-mount application via block-pin or LGA terminations and is available in tape-and-reel packaging.
Eigenschaften
- 100W Point of Load converter
- High efficiency up to 95.5%
- IPC9592B compliant
- Possible to stack up to 8 phases (4 units) for 1 rail of 200 A
- Small size 1" x 0.5" x 0.48" (LxWxH)
- MTBF 50M hours (SR-332, iss-3, method 1, case1)
- Input voltage 7.5Vdc to 14Vdc
- Power 100W maximum
- Output voltage 0.6V to 5.2V JJ and JSBJ version
- Output voltage 0.6V to 3.3V JLPJ version
- Output 50A in Single O/P config
- Output 25A per channel in Dual O/P config
- Mechanical 1inch by 0.5inch by 0.5inch (JJ version)
- Mechanical 1inch by 0.4inch by 0.5inch (JSBJ version)
- Mechanical 1inch by 0.4inch by 0.5inch (JSBJ version)

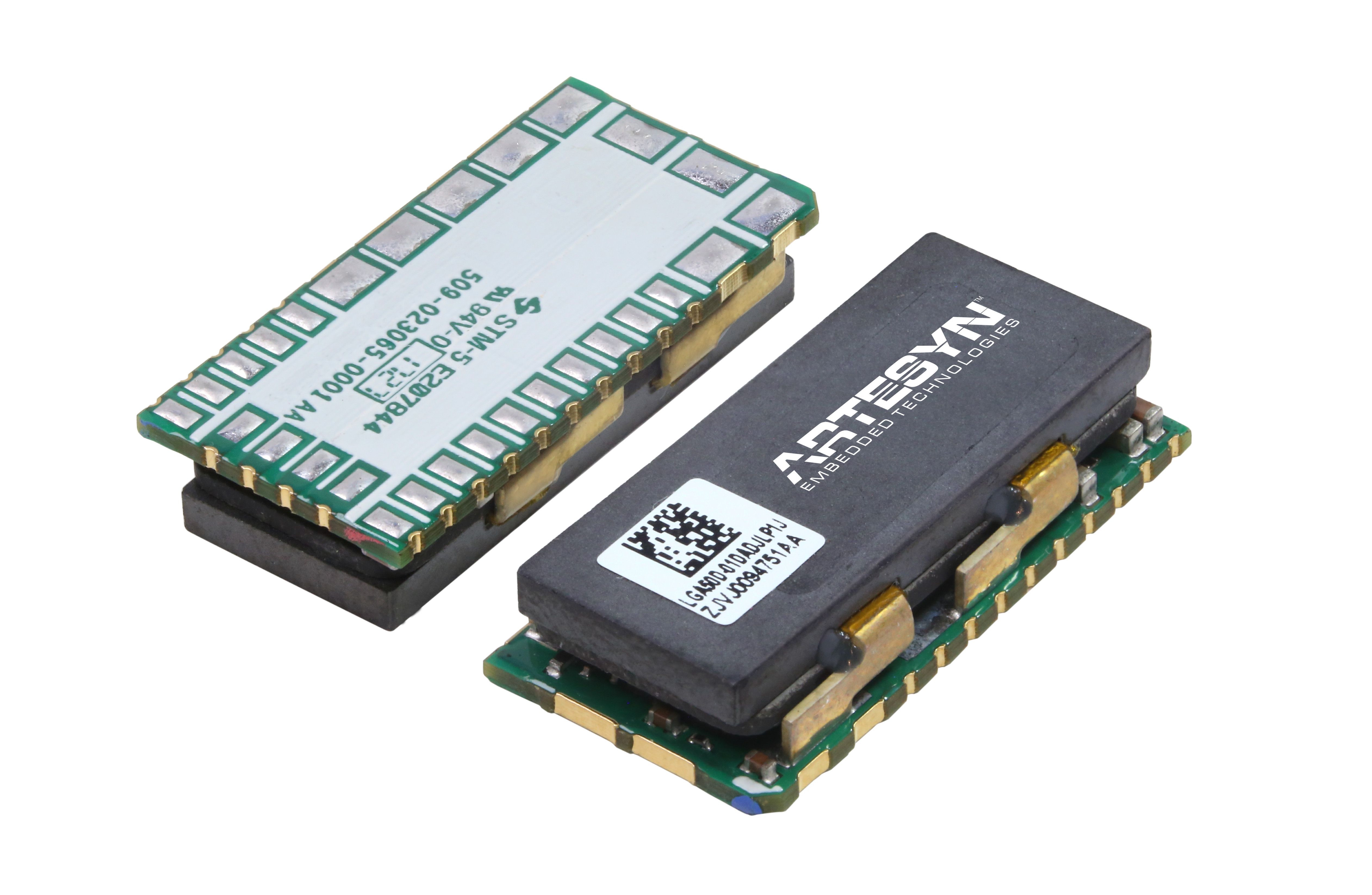

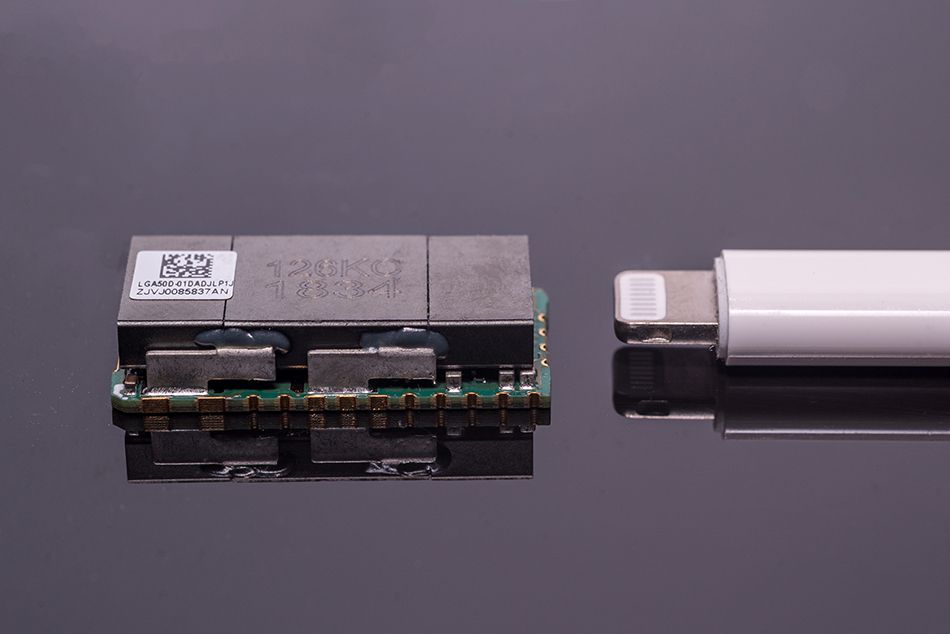

- Mechanical 1inch by 0.21inch by 0.5inch (JLPJ version)
- Efficiency 95.5% (at 5V output)
- Switching frequency 457Khz per phase nominal
- Warranty 2 years
- Ambient Temperature -40 to +85 degC
Vorteile
- Analog or digital control
- Dual or single output configuration possible
- Evaluation kit is available
- Excellent transient response
- Exceptional power density
- No minimum load requirement
- Reflow compatible
- Supports PMBus
- Tape and reel packaging
- Two year warranty
- Wide operating temperature range
- Control Digital control by PMBus
- Control resistor control and configuration
- Isolation Non-isolated

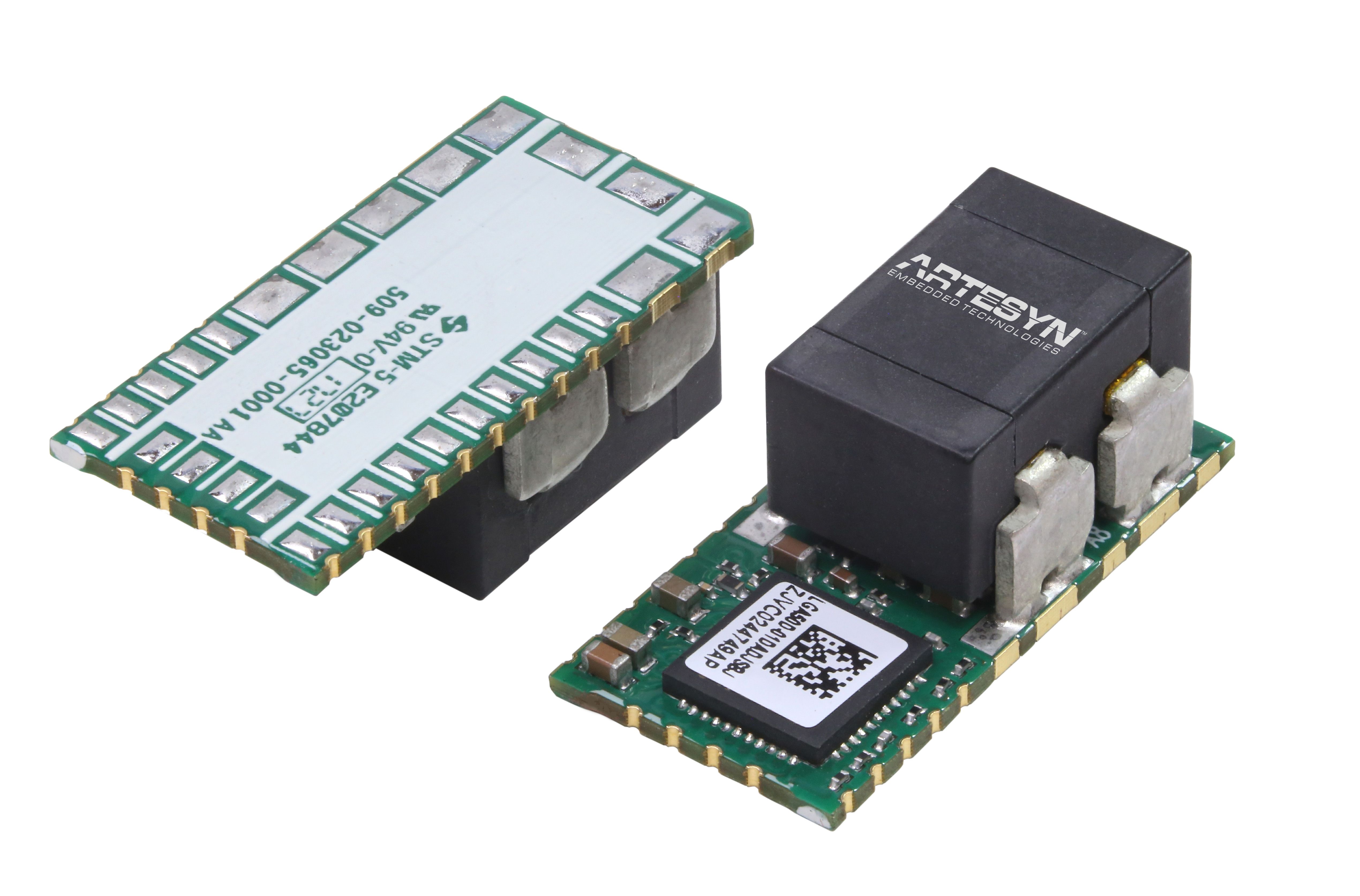

- Mechanical LGA termination (JSBJ and JLPJ versions)
- Mechanical Block pin termination (JJ version)
- Mechanical LGA termination (JSBJ and JLPJ versions)
Spezifikationen
| Ausgangsleistung (W): | 100 |
|---|---|
| Länge (Zoll): | 1 |
| Breite (Zoll): | 0.5 |
| Höhe (Zoll): | 0.5 |
| Montage Typ: | BMP; SMT |
| Minimaler Ausgangsstrom (A): | 14 |
| Maximaler Ausgangsstrom (A): | 50 |
| Ausgangsspannungsbereich (V): | 0.6V to 5.2V |
Zubehör

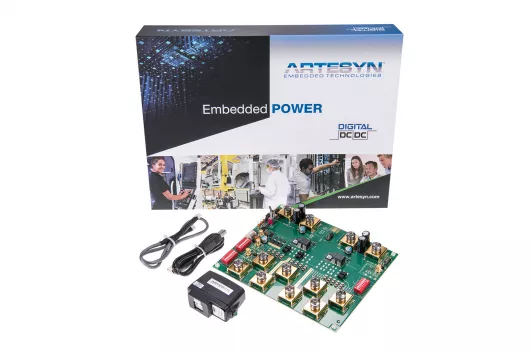

LGA50D Evaluation Kit

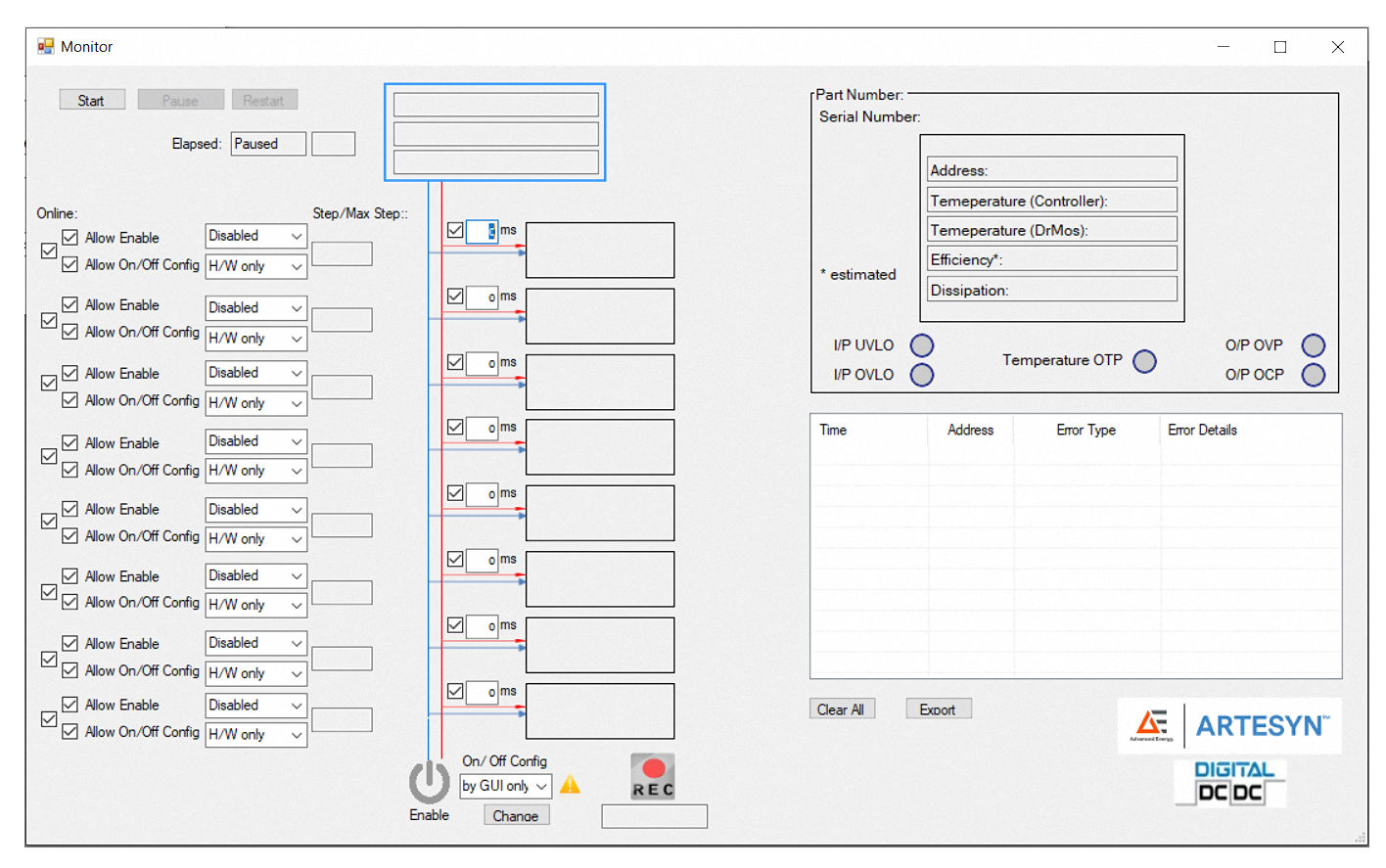

Advanced Energy’s LGA50D evaluation kit gives you the ability to connect the demonstration board to a USB socket on a PC, with the PMbus interface, dongle and cable provided in the kit and control and monitor the LGA50D units as they would be used in an application.
Technische Dokumentation
Product Information Documents
Safety & Compliance Certificates
Engineering Resources
Technische Videos
LGA50D Product Training Module
Jan. 10, 2019
The LGA50D is a surface-mount, non-isolated DC-DC converter with two independently controllable channels rated at up to twenty-five amps for each channel. It offers the user an extremely high power conversion density when application space is at a premium. The LGA50D can be controlled and monitored by digital communication via the standard PMBus commands but, if this is not required, it can be configured with external resistors. The two outputs can also be connected to give a single output rated up to fifty amps.
This presentation provides an overview to the LGA50D unit including a review of the features and benefits. It will also highlight the widely configurable nature of the device as well as discussing possible target markets and applications.
