artesyn™.
LGA80D Series
Active
Digital Dual Output Non-Isolated Converter

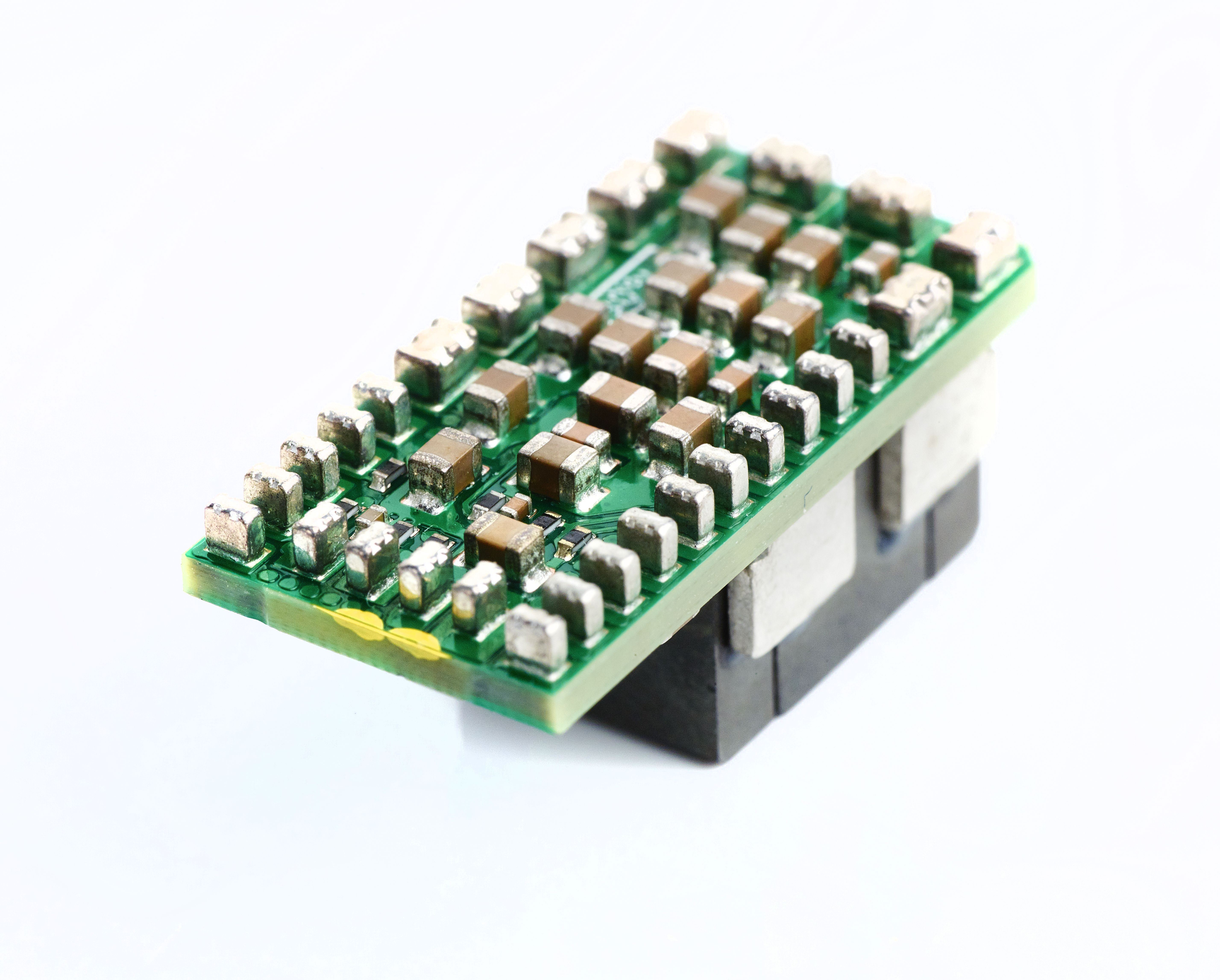

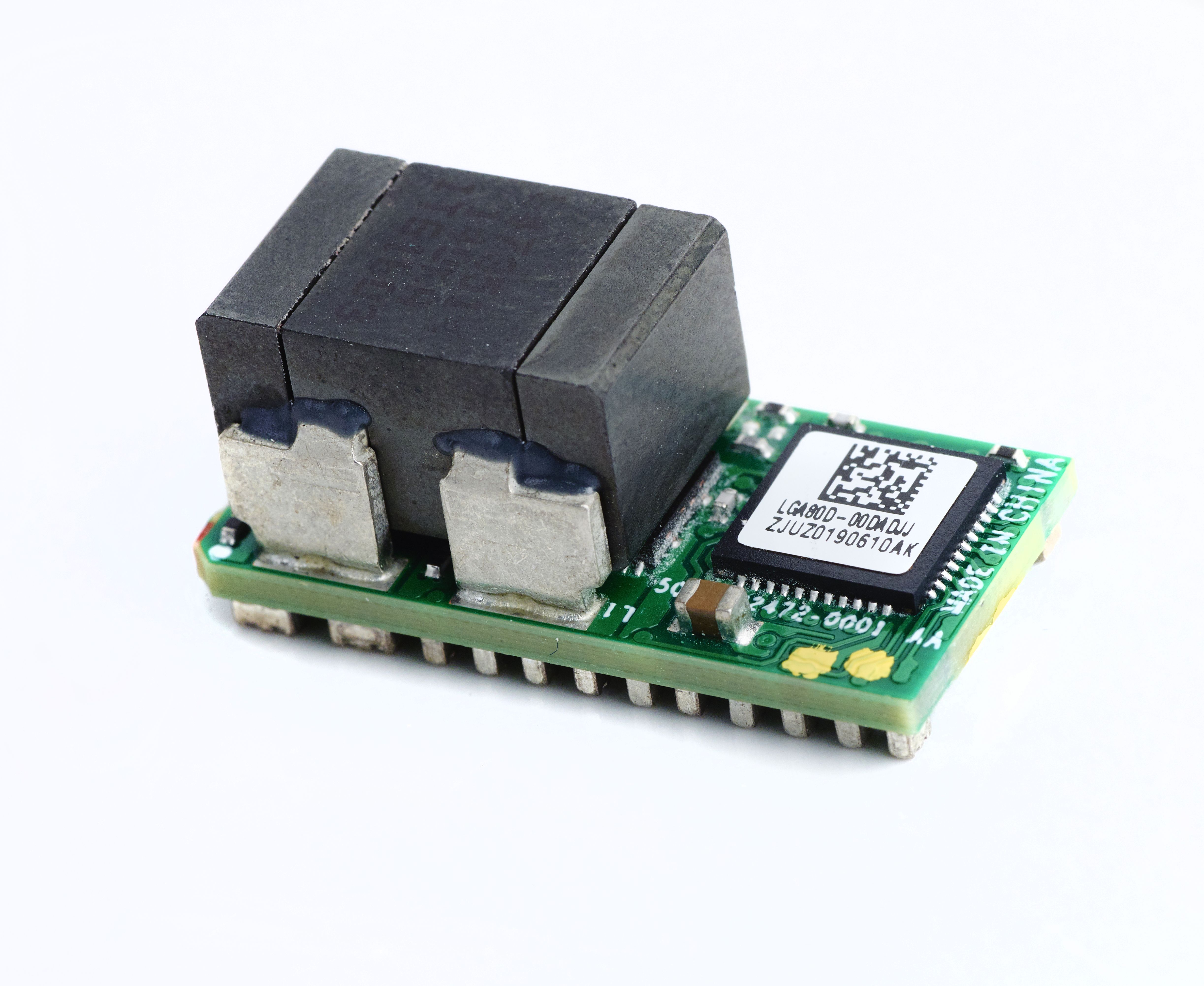

The LGA80D non-isolated DC-DC converter series is designed for cost- and space-sensitive applications. The dual-output converters offer configurable two independent 40 A, 100 W or single 80 A, 200 W outputs. The series allows paralleling of up to four units to obtain a power rail up to 320 A. Input voltage range is 7.5 to 14 VDC and output 0.6 to 5.2 VDC adjustable via PMBus or external resistor with maximum efficiency of 95.5%. With a footprint of 1 x 0.5 inches (25.4 x 12.5 mm), the LGA80D withstands reflow oven temperatures for surface-mount application and is available in tape-and-reel packaging.
Eigenschaften
- 200W Point of Load converter
- High efficiency up to 95.5%
- IPC9592B compliant
- Possible to stack up to 8 phases (4 units) for 1 rail of 320 A

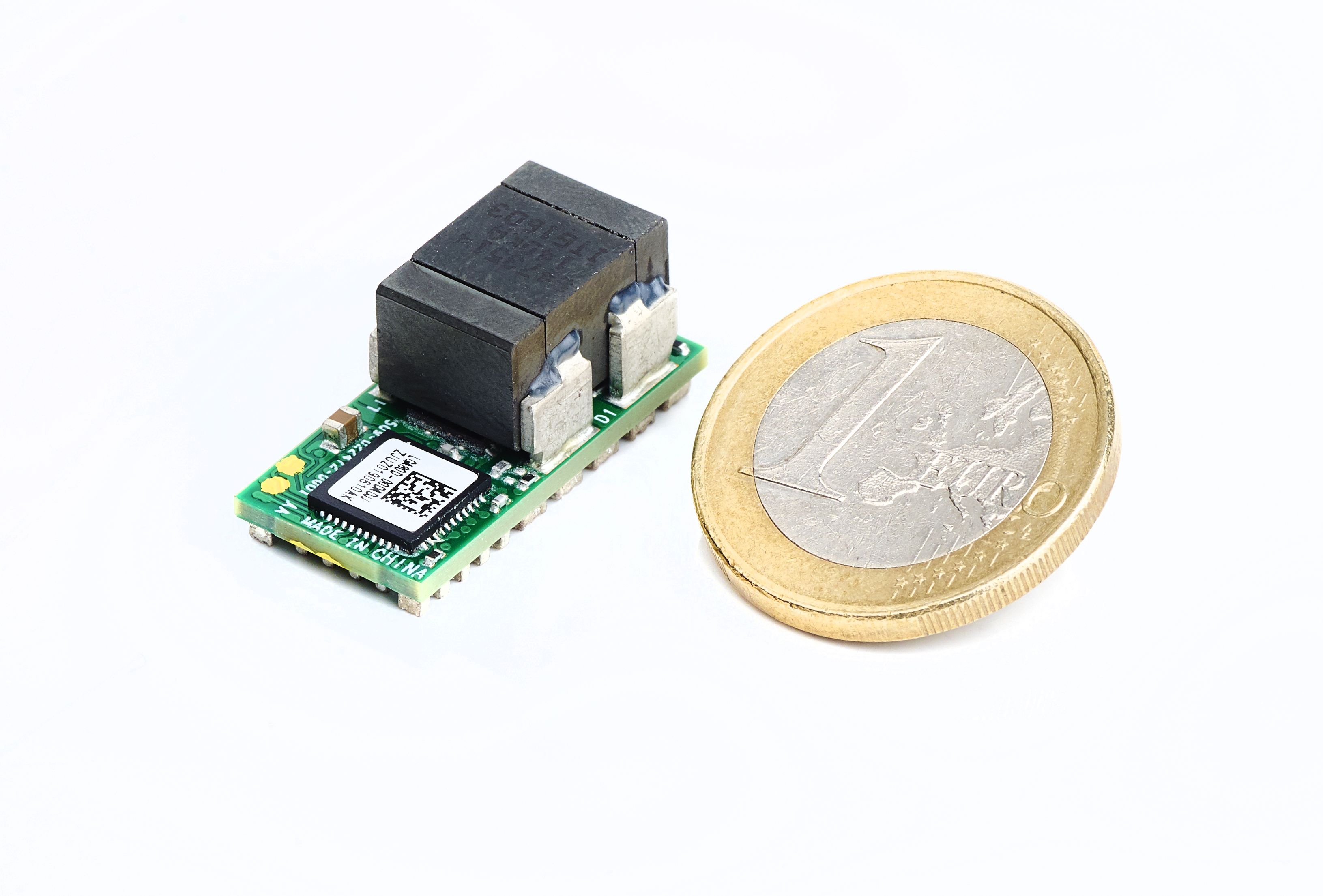

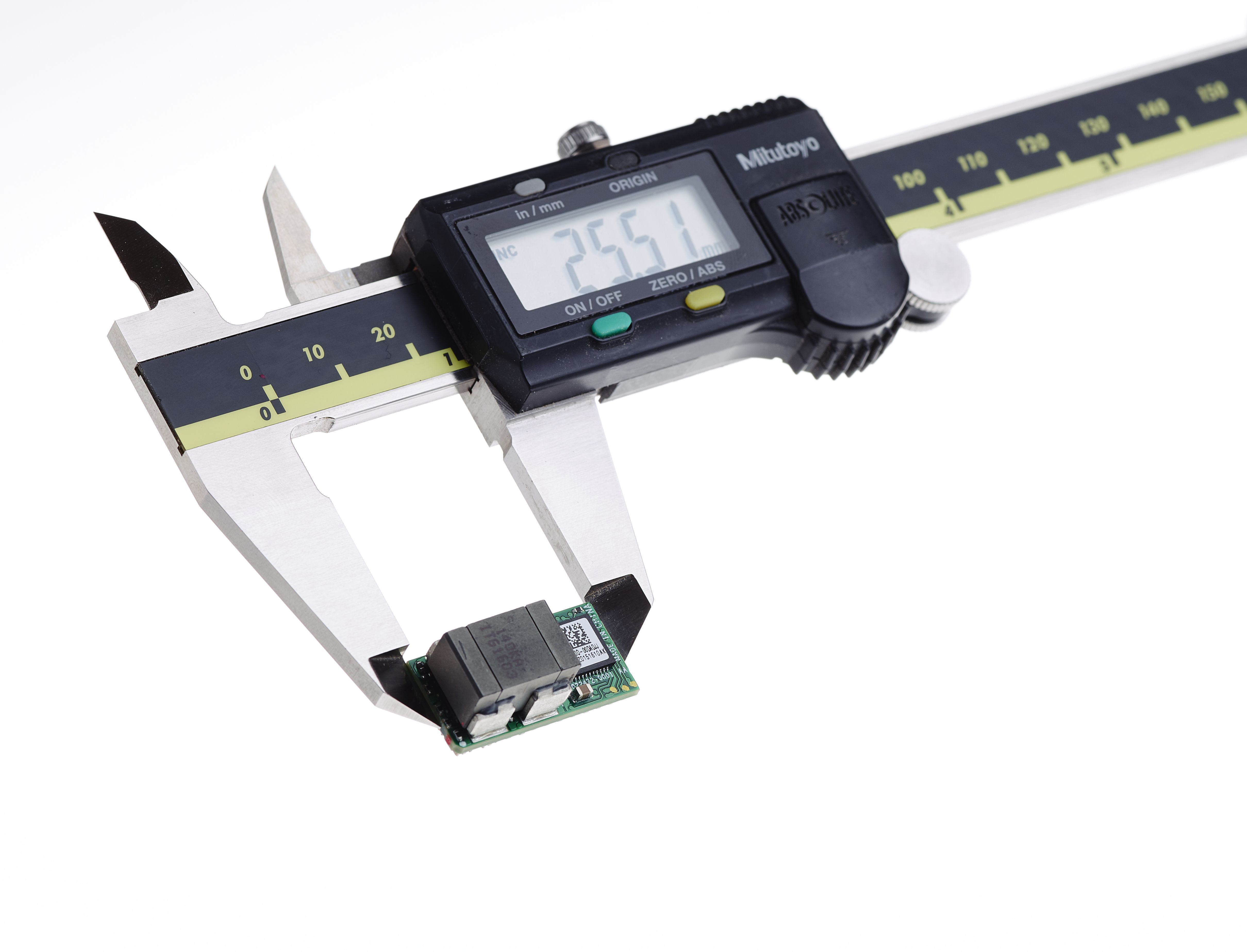

- Small size 1" x 0.5" x 0.48" (LxWxH)
- Input voltage 7.5Vdc to 14Vdc
- Power 200W maximum
- Output voltage 0.6V to 5.2V
- Output 80A at Single O/P config
- Output 40A per channel in Dual O/P config
- Mechanial 1inch by 0.5inch by 0.5inch
- MTBF 50M hours (SR-332, iss-3, method 1, case1)
- Efficiency 95.5% (at 5V output)
- Switching frequency 457Khz per phase nominal
- Warranty 2 years
- Ambient Temperature -40 to +85 degC
Vorteile
- Analog or digital control
- Dual or single output configuration possible

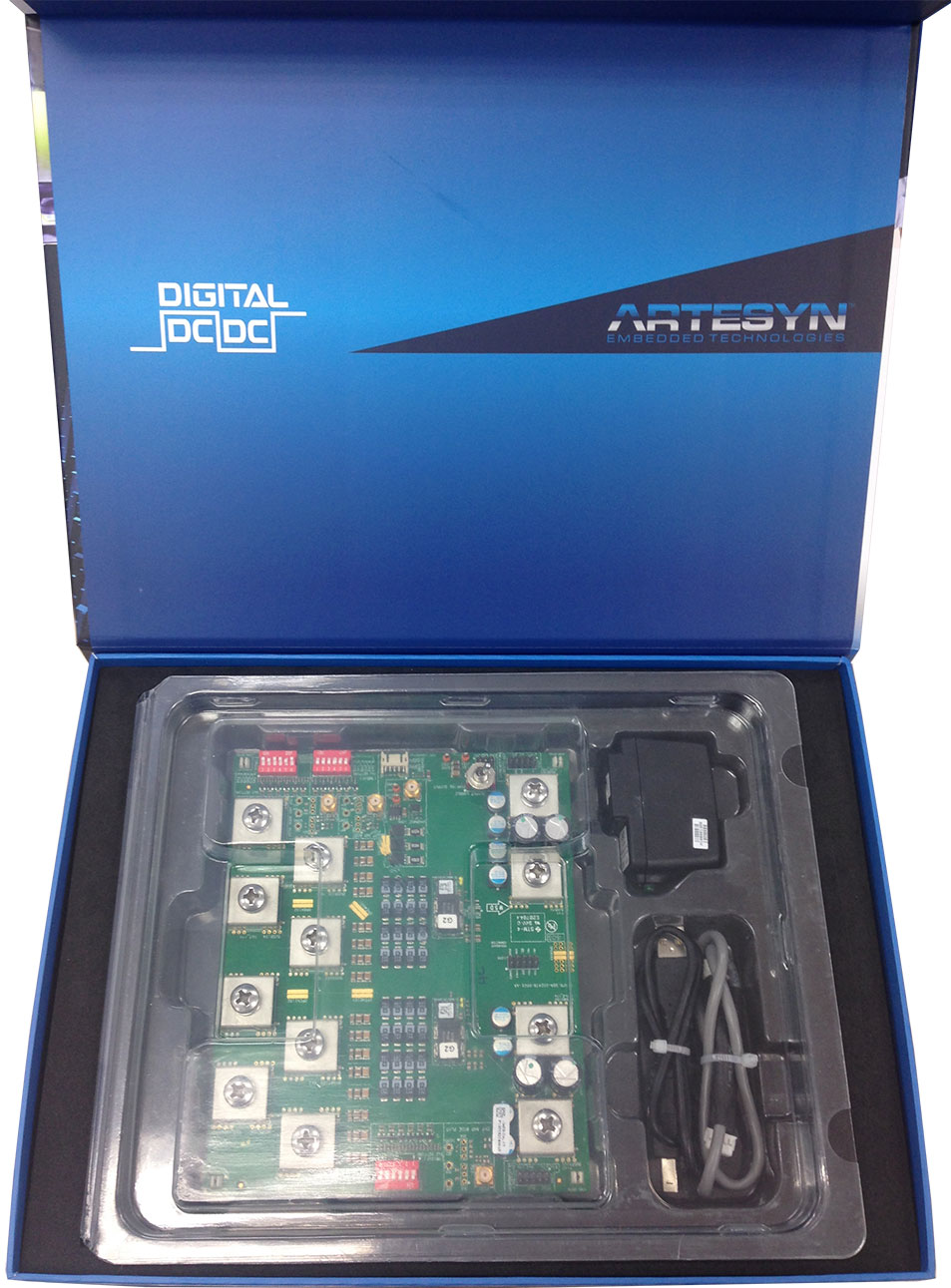

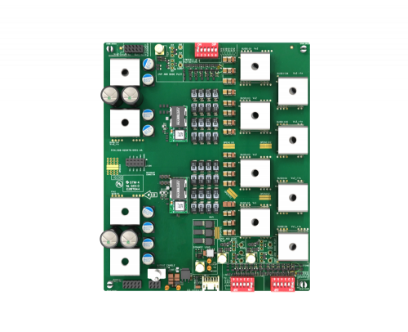

- Evaluation kit is available
- Excellent transient response
- Exceptional power density
- No minimum load requirement
- Reflow compatible
- Supports PMBus
- Tape and reel packaging
- Two year warranty
- Wide operating temperature range
- Control resistor control and configuration
- Control Digital control by PMBus
- Isolation Non-isolated
- Mechanical Surface-mount reflow compatible unit
- Mechanical Block-pin terminations
Spezifikationen
| Ausgangsleistung (W): | 200 |
|---|---|
| Länge (Zoll): | 1 |
| Breite (Zoll): | 0.5 |
| Höhe (Zoll): | 0.5 |
| Montage Typ: | BMP; SMT |
| Minimaler Ausgangsstrom (A): | 20 |
| Maximaler Ausgangsstrom (A): | 80 |
| Ausgangsspannungsbereich (V): | 0.6V to 5.2V |
Zubehör
Technische Dokumentation
Product Information Documents
Safety & Compliance Certificates
Engineering Resources
Technische Videos
LGA80D Non-isolated DC-DC Converter
Juni 14, 2016
The Artesyn LGA80D dc-dc module offers one of the highest current density ratings in the industry and market-leading efficiency of 95.5% typical. With a footprint of just 1 x 0.5 inches or 25.4 x 12.5mm, this innovative non-isolated unit offers two independent and configurable 40 amp, 100 watt outputs, which can also be combined to a single configurable 80 amp, 200 watt output. Design engineers can also generate higher current rated rails by connecting up to 4 units in parallel so that up to 320 amps can be supplied as a single power rail.
Both analog control and digital control functions are enabled on this unit, so the LGA80D can be controlled with resistors or controlled and monitored by using the industry-standard PMBus digital interface. Applications such as graphics, data or video processing, using high power devices, such as server processors, FPGAs, supercomputers, network, storage and telecom equipment, can benefit from the current density, efficiency and flexibility of control of Artesyn’s LGA80D digital dc-dc converter.
