artesyn™.

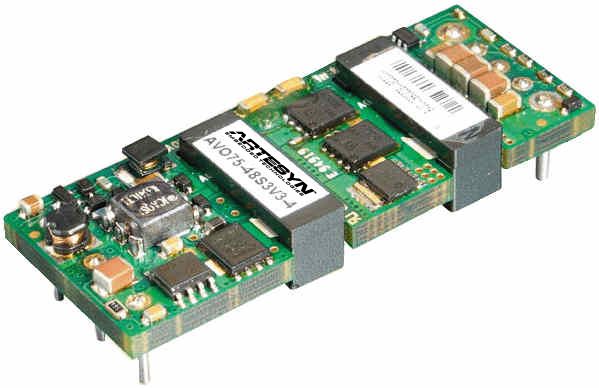

AVO75 Series
Active
75 W Eighth-Brick Isolated DC-DC Converters
The AVO75 series of eighth-brick isolated DC-DC converters comprises six single output models offering fully regulated voltages of 1.2 V, 1.8 V, 2.5 V, 3.3 V, 5.0 V or 12.0 V, which can deliver up to 25 A and up to 75 W of output power, depending on the model. They have a wide 2:1 input range of 36 to 75 VDC and are designed primarily for use with standard 48 V telecommunications equipment supplies. AVO75 series converters have a typical efficiency of 91% and accommodate an ambient operating temperature range of -40 to 85˚C. Their open-frame design is optimized for forced air or conduction cooling and an aluminum baseplate option is available for enhanced thermal performance.
Eigenschaften
- Delivers up to 25A output current
- full load at 55°C at 1m/s (200LFM) for 5Vo
- Trim function: +10%/20%
- Ultra high efficiency: 92% at 5V full load
- Input voltage 36VDC to 75VDC
- output voltage 1.2V to 12V
- Isolation 1500Vdc Isolation
Vorteile
- Basic isolation
- CNT function
- High power density
- Improved thermal performance:
- Low output noise
- Remote sense
- RoHS compliant
- Enable Positive or Negative enable
- insulation basic insulation
- Mechanical Open frame or baseplate
Spezifikationen
| Ausgangsleistung (W): | 75 |
|---|---|
| Länge (Zoll): | 2.28 |
| Breite (Zoll): | 0.9 |
| Höhe (Zoll): | 0.34 |
| Montage Typ: | BMP; Through Hole |
| Minimaler Ausgangsstrom (A): | 6 |
| Maximaler Ausgangsstrom (A): | 25 |
| Ausgangsspannungsbereich (V): | 1.2V to 12V |
