PMX18-CS-02-01 Power Sensor Calibration Systems
Active
Complete 9kHz to 18GHz Power Sensor Calibration System including Signal Generator, VNA, 2505A, 1830A, and accessories

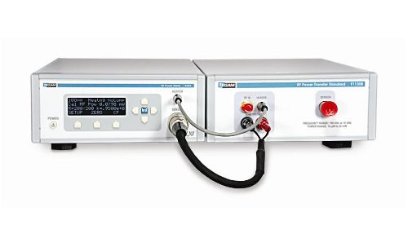

Built around the proven TEGAM 2505A RF Power Standard and 1830A RF Power Meter, the PMX18-CS leverages TEGAM’s 30+ years of RF power measurement expertise into a turnkey system designed to increase your RF power sensor calibration capability and throughput. The PMX18-CS simplifies the tedious process of power sensor calibration, providing cost-effective calibrations in a fraction of the time required for manual calibrations.

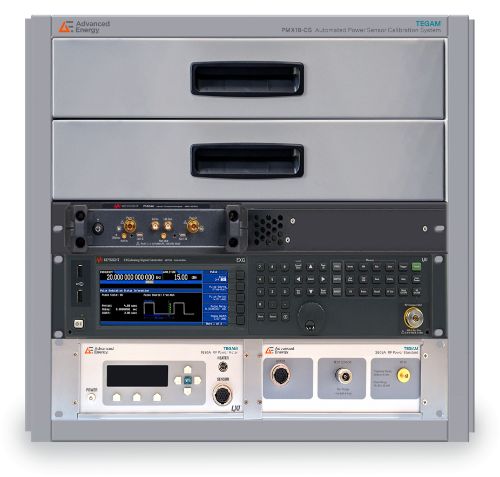

Packaged in a compact benchtop rack cabinet, the PMX18-CS includes the hardware, accessories, and tools necessary to perform automated calibrations for a broad range of power sensors from Keysight, Rohde & Schwarz, Ladybug, Anritsu, and more. PS-Cal® power sensor calibration automation software is included, making the PMX18-CS ideal for both experienced and new calibration technicians alike.
Packaged in a compact benchtop rack cabinet, the PMX18-CS includes the hardware, accessories, and tools necessary to perform automated calibrations for a broad range of power sensors from Keysight, Rohde & Schwarz, Ladybug, Anritsu, and more. PS-Cal® power sensor calibration automation software is included, making the PMX18-CS ideal for both experienced and new calibration technicians alike.
Eigenschaften
- Calibrate RF power sensors from 9kHz to 18GHz
- 0.01 to 10 mW typical usable range (-20 to +10dBm)
- Compact Benchtop Rack Cabinet (Approximately 22Wx23Hx24D)
- PS-Cal Automation Software included
- Calibrate sensors from multiple manufacturers
- Onsite training available
- Turnkey system, includes Generator, VNA, Software, Power Meter and RF Power Standards
- Lowest total uncertainty
- Accurate and Repeatable RF power standards
- Assembled in the USA
Vorteile
- Achieve high level power sensor calibrations
- Quickly enable productivity with automated software and training
- One system calibrates a multiple sensors from various manufacturers
Spezifikationen
| Calibration Factor Accuracy (typical): | +/-(0.7 to 1.0)% from 9 kHz to 18 GHz |
|---|---|
| Frequency Range: | 9 kHz to 18 GHz |
| Power Meters Included: | 1830A |
| Power Range: | 0.01 to 10 mW (-20 to +10 dBm) |
| Reflection Magnitude (typical): | 0.03 to 0.07 from 9 kHz to 18 GHz |
| RF Impedance (nominal): | 50 Ohms |
| Sensor Connector Type: | N- female |
| Sensor Type: | Thermistor |
