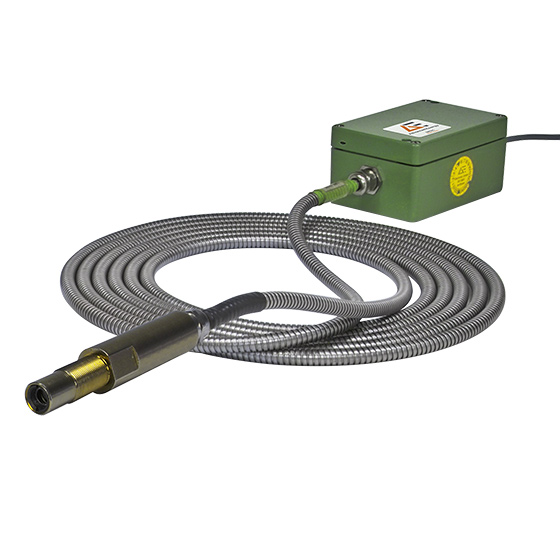

Impac IS 50-LO/GL Series Pyrometers
Fiber optics pyrometer for non-contact temperature measurement of molten glass. Temperature range 600 to 1800 °C.
The Impac® IS 50-LO/GL digital pyrometer, primarily employed for temperature measurement in glass tanks, working-end forehearths, and feeder applications, also finds utility in measuring brickwork temperatures in regenerators and tanks. With the two-wire technique at its core, the instrument merges the high accuracy of digital signal processing with the simplicity of two-wire connection and operation. Notably, the inclusion of a robust fiber optic cable, extending up to 30 meters, ensures its functionality in ambient temperatures up to 250 °C, eliminating the need for cooling and broadening its range of application.
Eigenschaften
- Adjustable emissivity directly on the device
- Adjustable response time and subrange via interface
- Optional integrated air purge with Inconel or ceramic sighting tubes
- Standard fiber optic cable of 5 m with optional lengths available: 10, 15, and 30 m
Vorteile
- Achieve high accuracy due to output digital linearization
- Select from different sighting tubes (ceramic or Inconel) to optimally adapt to applications
- Operate the instrument in ambient temperatures up to 250°C without cooling
- Easily install by separating the optical head and converter from the fiber optic
Spezifikationen
| Betriebstemperaturbereich (°C): | 600 to 1800 °C |
|---|---|
| Spektralbereich (µm): | 0.8 to 1.1 |
| Messunsicherheit (°C): | From 03% oR + 1 °C |
| Optik (mm): | Fixed optics |
| FOV (minimale Punktgröße) (mmm): | Min. 110:1 (9) |
| Ausrichten / Sichten: | None |
| Schnittstelle / Ausgang (mA): | 0/4 to 20 mA |
| Belichtungszeit t90 (ms): | 250 ms |
Zubehör
Impac Other Electrical
Other Electrical Accessories Compatible With Impac Pyrometers
Impac DA 4000
Digital LED Display With 2-Wire Supply Voltage
Impac Mechanical Accessories
Other Mechanical Accessories Compatible With Impac Pyrometers
Impac MultiTempLogger
Multi-Channel Measuring Data Logging Software Supplementary downloads only; contact sales for software
Impac Power Supplies
Impac Pyrometer DC and AC Power Supply Units
Impac PI 6000 Controller
Extremely Fast, Digital, and Programmable PID Controller
Impac DA 6000
Digital LED Display With 2-Wire Supply Voltage
