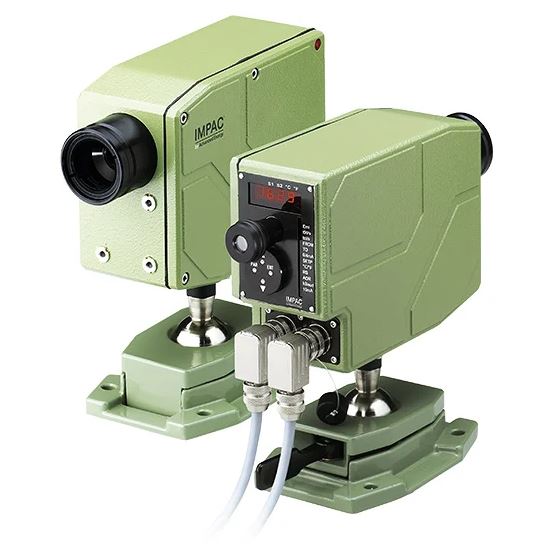

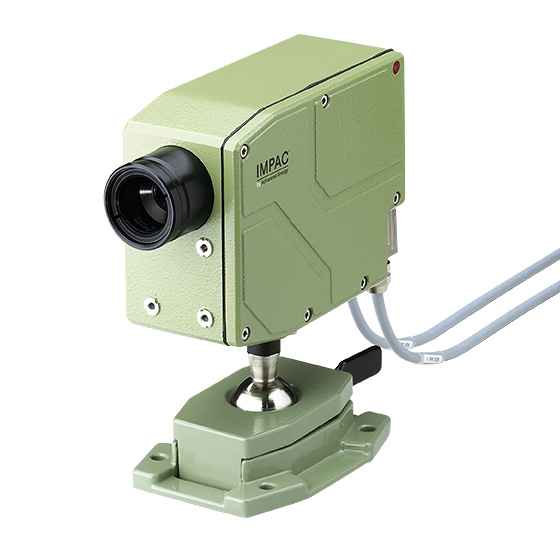

Impac 12 Series Pyrometers
Very robust high-end pyrometers for measurements on metals, ceramics, graphite etc. Various optics and integrated scanner option available. Temperature ranges between 250 and 3500 °C.
The Impac® IS 12 and IGA 12 series, offering high precision, swift response, and fully digital operations, are ideal for non-contact temperature measurements on metals, ceramics, graphite, and other materials, within a range of 250 to 3500 °C. The series also includes special versions with integrated scanners (IS 12-S and IGA 12-S), which enable adjustable beam movement up to 4°. What's more, the IS 12-Al and IS 12-Al/S have been specifically crafted for measuring temperatures on aluminum.
Eigenschaften
- Fixed and focusable optics
- Switchable interfaces RS232 or RS485 (IS 12, IS 12-S, IGA 12, IGA 12-S, IS 12-Al)
- Built-in digital display (IS 12, IS 12-S, IGA 12, IGA 12-S, IS 12-Al)
- Short response times:
- < 1 ms (IS 12, IS 12-S, IGA 12, IGA 12-S)
- < 1.5 ms, adjustable up to 10 s (IS 12-AI)
- 10 ms, adjustable up to 10 s
- Small spot sizes
Vorteile
- Achieve extremely high accuracy and repeatability
- Optimally match instruments to the right applications
- Select parameters via keys or directly via push buttons
- Achieve exactly alignment of the pyrometers with a thru-lens view finder or laser targeting light
- Digitally and quickly process signals
Spezifikationen
| Betriebstemperaturbereich (°C): | 250 and 3500 °C (17 ranges in between) |
|---|---|
| Spektralbereich (µm): | 0.7 and 1.8 (2 ranges in between) |
| Messunsicherheit (°C): | From 0.3% oR + 1 °C |
| Optik (mm): | Fixed optics, Focusable optics |
| FOV (minimale Punktgröße) (mmm): | Min 900:1 (0.1) |
| Ausrichten / Sichten: | Laser targeting or through lens sighting |
| Schnittstelle / Ausgang (mA): | 0/4 to 20 mA |
| Belichtungszeit t90 (ms): | 1 ms |
