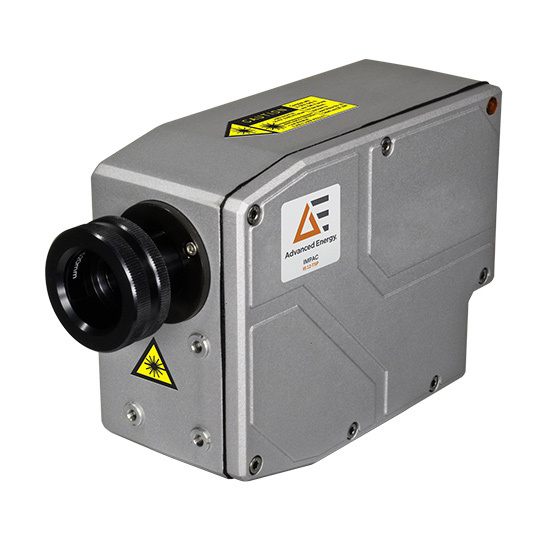

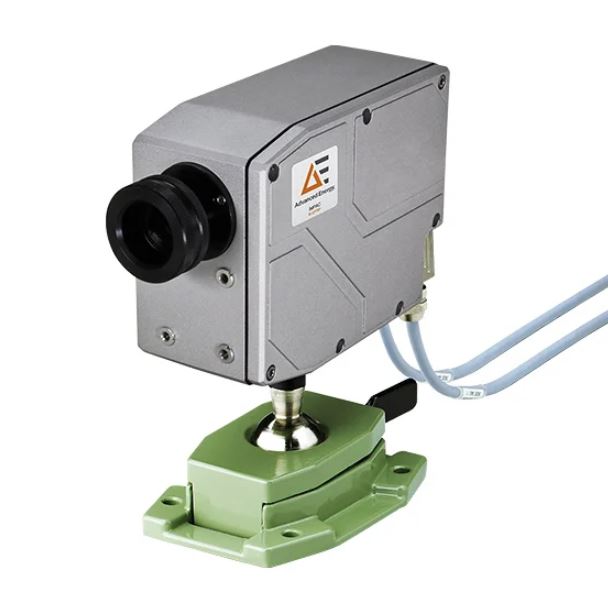

Impac 12-TSP Series Pyrometers
Extremely precise Transfer Standard Pyrometers for exact inspection of calibration sources. Temperature ranges between 200 and 3000 °C.
The Impac® IS 12-TSP and IGA 12-TSP represent exceptionally precise transfer standard pyrometers, designed to inspect calibration sources. Their detectors are thermostatically controlled, lending them high precision and making measurements largely independent of surrounding temperature variations, while achieving a resolution of 0.01 °C. Available across a wide temperature range of 200 to 3000 °C and in various spectral ranges, these pyrometers can be flexibly utilized with calibration sources that check pyrometers with silicon or indium gallium arsenide detectors.
Eigenschaften
- Temperature ranges between 200 and 3000°C
- Resolution of only 0.01°C

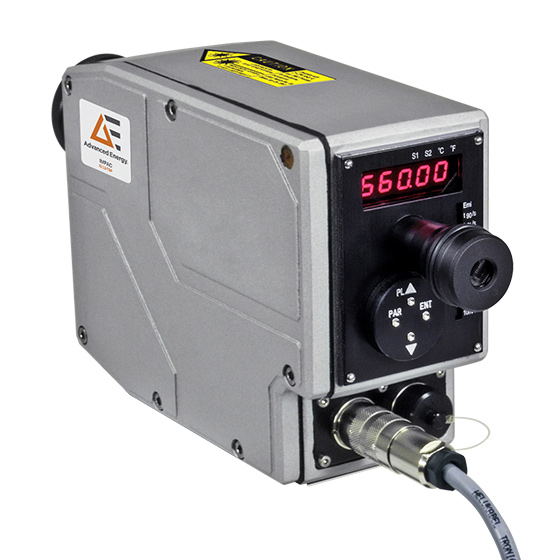

- Built-in, five-digit LED display
- Digital interface
- Focusable optics
Vorteile
- Accurately inspect your calibration sources
- Use with calibration sources with which pyrometers with silicon or indium gallium arsenide detectors can be checked
- Achieve high precision
- Ensure that temperature values, as stipulated by national institutes, can be transferred to your own calibration sources to guarantee traceability to the ITS90 international temperature scale
- Guarantee adherence to high technical specifications
Spezifikationen
| Betriebstemperaturbereich (°C): | 200 and 3000 °C (7 ranges in between) |
|---|---|
| Spektralbereich (µm): | 0.65 and 1.57 (3 ranges in between) |
| Messunsicherheit (°C): | From 0.15% oR + 1 °C |
| Optik (mm): | Focusable optics |
| FOV (minimale Punktgröße) (mmm): | Min 400:1 (0.7) |
| Ausrichten / Sichten: | Laser targeting or through lens sighting |
| Schnittstelle / Ausgang (mA): | 0/4 to 20 mA |
| Belichtungszeit t90 (ms): | Multiple specifications. Please refer to Datasheet. |
