Sekidenko 4100T Series
Active
Multi-Channel, Non-Contact Optical Fiber Temperature Pyrometer with Configurable Wavelength Range

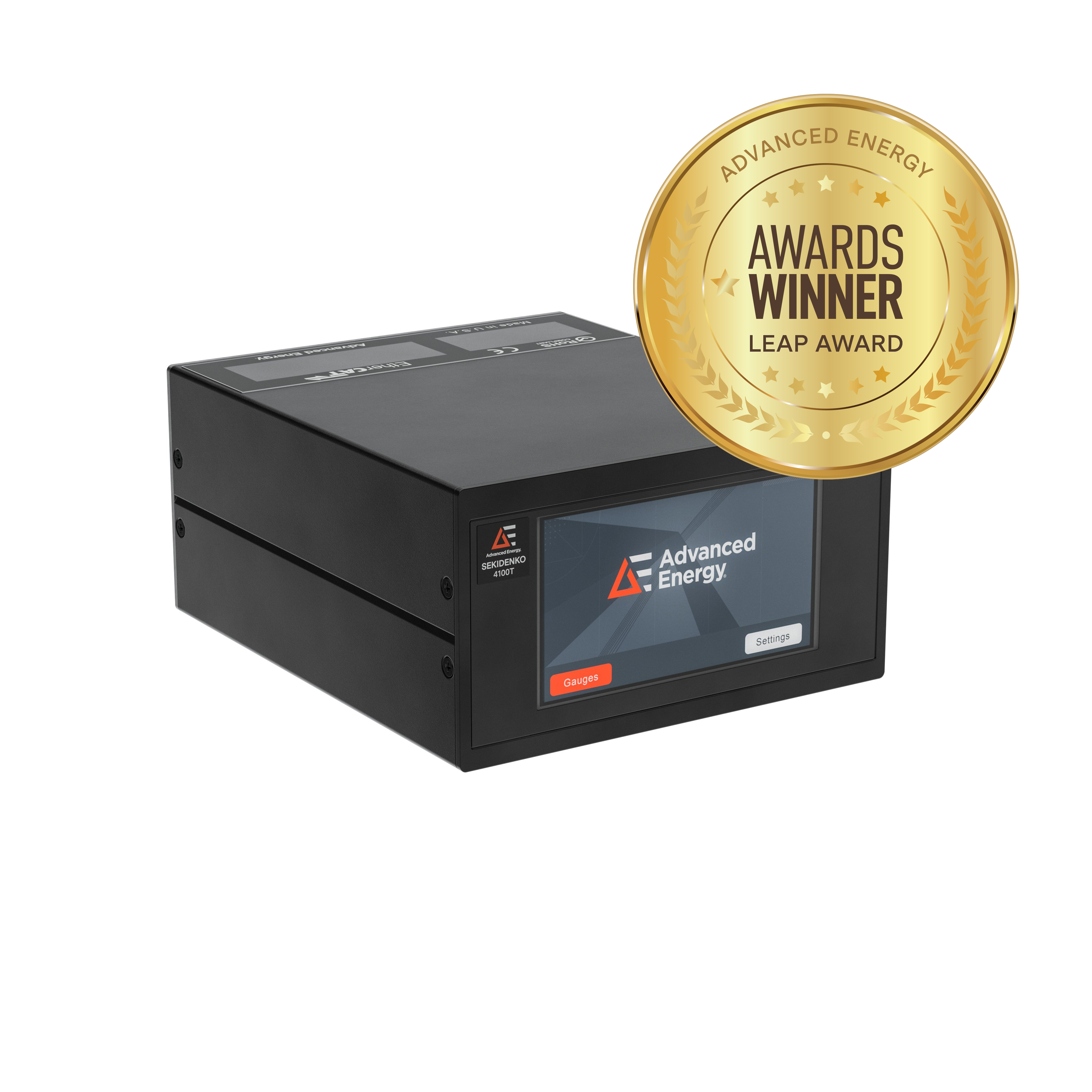

The Sekidenko 4100T multi-channel, non-contact optical fiber temperature pyrometer measures an object’s emitted infrared energy and converts it into usable temperature data (degrees °F or °C) with temperature ranges between 60 to 3500°C (140 to 6332°F). The pyrometer is configurable to a variety of measurement wavelengths based on target materials, process temperature ranges, and working distances. The multi-channel feature allows for use of up to four measurement channels with separate optical sensors connected by fiber optic cables. The new touch screen display enables users to easily adjust settings without the need for a laptop.
Eigenschaften
- In-situ, non-contact temperature measurement employing lensed optical sensors or sapphire light pipe sensors
- Industry-leading temperature and read rates
- Highly flexible, module-based platform architecture
- Full I/O and external trigger/synchronization suite
- Multiple wavelengths within one instrument
Vorteile
- Improves temperature measurement accuracy for critical processes
- Minimizes variation and enhances repeatability
- Increased productivity, yield, and throughput
- Adapts to meet the functional and mechanical requirements of unique applications
- Increases stability and reliability across multiple chambers and substrate materials
Spezifikationen
| Betriebstemperaturbereich (°C): | 60 to 3500 |
|---|---|
| Spektralbereich (µm): | UV to 2300 |

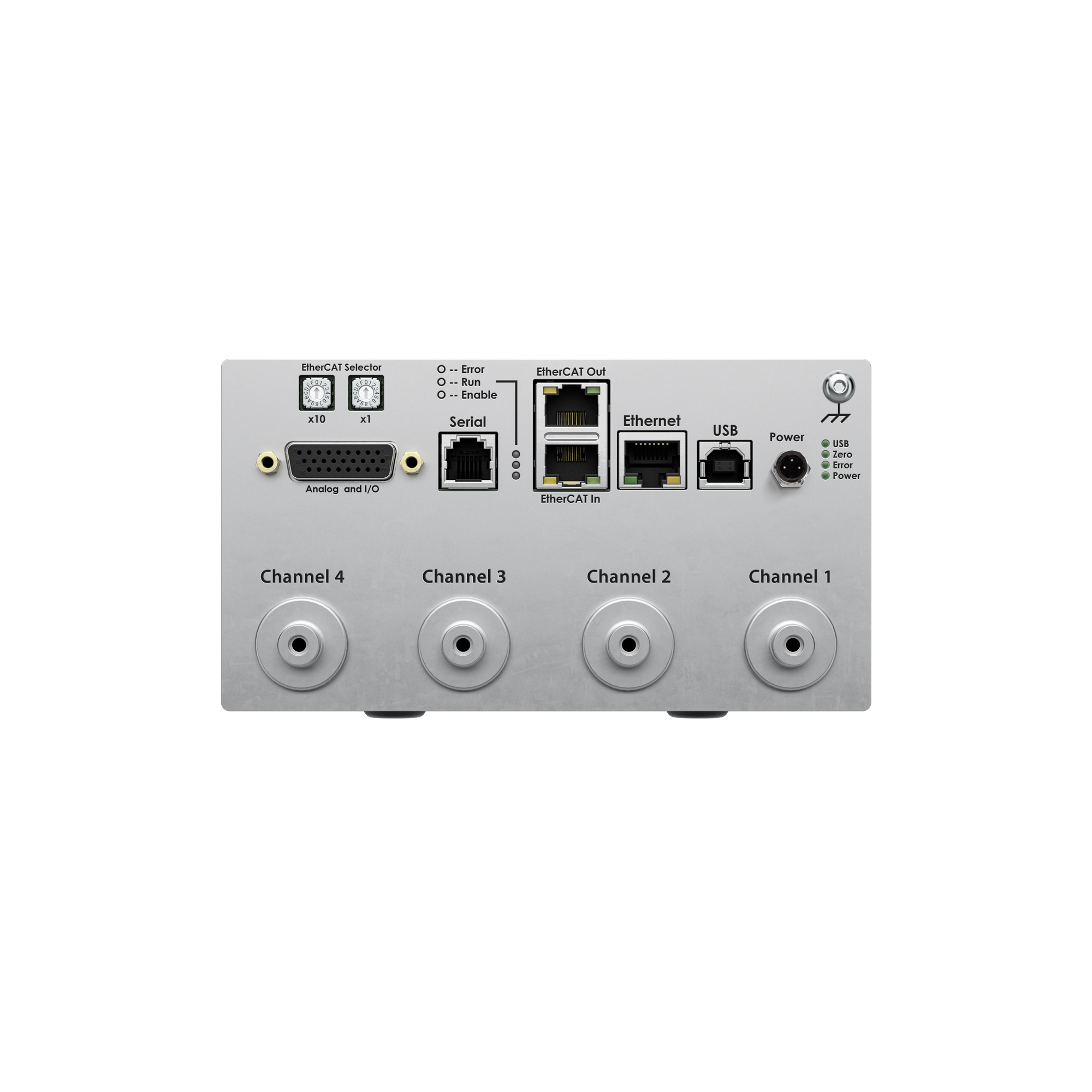

| Schnittstelle / Ausgang (mA): | RS-232, RS-485, USB, Ethernet, and EtherCAT |
| Genauigkeit: | ±1.5 °C |
| Gewicht (kg): | 1.31 |
| Wellenlängen-Wiederholbarkeit (pm): | ±0.1 |
Technische Dokumentation
Technische Videos
Revolutionized Thermal Measurement: AE’s 4100T Pyrometer
Juli 17, 2024
The Advanced Energy 4100T pyrometer stands at the pinnacle of innovation in thermal measurement technology, offering unmatched accuracy, reliability, and efficiency for advanced industrial applications. Designed as a multi-channel, non-contact optical fiber temperature pyrometer, the 4100T series is the ideal solution for environments demanding precise temperature control. By integrating the 4100T pyrometer into their processes, industrial and semiconductor manufacturers can achieve greater efficiency, improved product quality, and significant cost savings.
