CSU1300AP Series

Active

1300 W CRPS-Type Power Supply

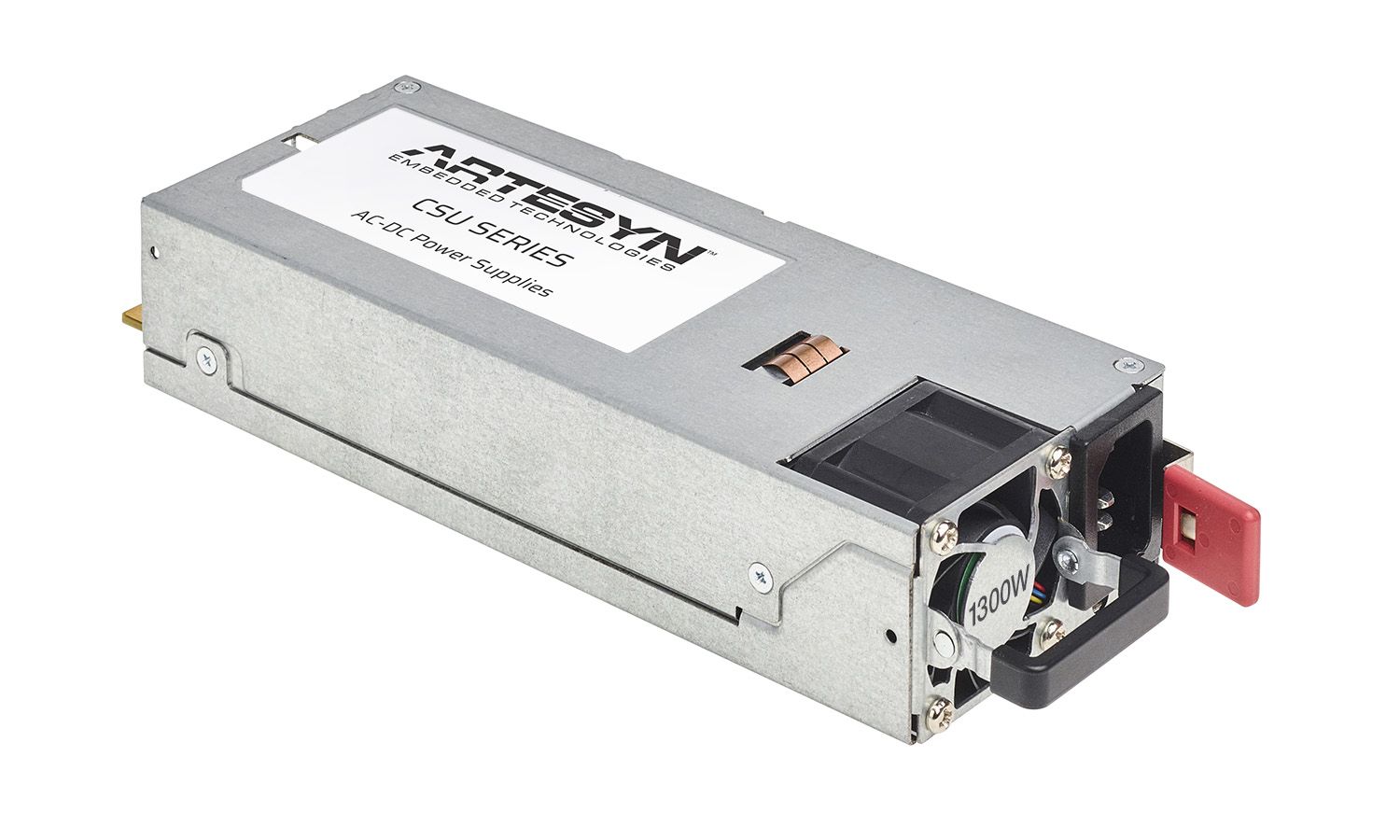

The CSU1300AP power supply is housed in a 1U high rack-mount enclosure measuring just 2.89 x 7.28 inches (73.5 x 185.0 mm). This form factor is significantly narrower and shorter than that of similarly rated earlier generation power supplies, freeing up valuable system space. The CSU1300AP power supply is fully digital and compatible with Advanced Energy's universal PMBus^® graphical user interface, allowing control via an integral I2C interface using the industry-standard PMBus communications protocol. Each power supply generates a main output of 12 VDC for feeding downstream DC-DC converters in systems using distributed power architectures.

Features

100°C Baseplate temperature
1300W output power
48VDC Input
Unencapsulated 2.3" x 2.4" x 0.50" pkg.
Input Range 90-264 VAC
Input Frequency 47 - 63 Hz
Hold-up Time 12 ms
Power Factor >0.98 at 50% load
Input Range 165-320 VDC
Output Ripple 120 mVp-p
Load Sharing Active load sharing with 5.0% at full load
Output Power 1300W continuous

Benefits

Enable (on/off)
Industry standard pinout
Output loadsharing
Thermal protection
Trim feature, both rails
Efficiency Platinum level
Remote On/Off Active Low
Alert Active Low
Protection OVP, OCP, Short Circuit, OTP
Power Good Active High

Specifications

Output Power (W):	1300
Length (Inches):	7.28
Width (Inches):	2.89
Height (Inches):	1.57
Mounting Type:	Rack-mount
Minimum Output Current (A):	0
Maximum Output Current (A):	106.2
Output Voltage Range (V):	11.4V to 12.8V
Minimum Output Power (W):	0
Maximum Output Power (W):	1300
Minimum Input Voltage (V):	90
Maximum Input Voltage (V):	264
Warranty (Years):	2

All Specifications Collapse Specifications

Stock Check

Model Number Samples Buy	Min. Voltage (V)	Max. Voltage (V)	Current (A)	Nominal Voltage (V)	Number of Outputs	Samples	Buy
CSU1300AP-3-600 Active, In Stock Request Buy	11.6	12.8	106.56	12.2	2	Request	Buy

Technical Documentation

Title	Type
5G Brochure - Chinese Version (2 MB)	Catalog
5G Brochure - English Version (2 MB)	Catalog
5G Brochure - Japanese Version (2 MB)	Catalog
CRPS Brochure - Chinese Version (5 MB)	Catalog
CRPS Brochure - English Version (8 MB)	Catalog
Data Center Power Solutions Brochure_Chinese Version (3 MB)	Catalog
Data Center Power Solutions Brochure_English (9 MB)	Catalog
CSU1300AP Datasheet (855 KB)	Data Sheet
CSU1300AP Technical Reference Note (4 MB)	Technical Reference

Compare

Model	CSU1300AP	DS1100SLPE-3
Output Power (W)	1300	1100
Input Voltage (V)
Operating Temperature (°C)
Length (Inches)	7.28	12.66
Width (Inches)	2.89	2.15
Height (Inches)	1.57	1.57
Output Voltage Range (V)	11.4V to 12.8V	3.14V to 12V
