artesyn™

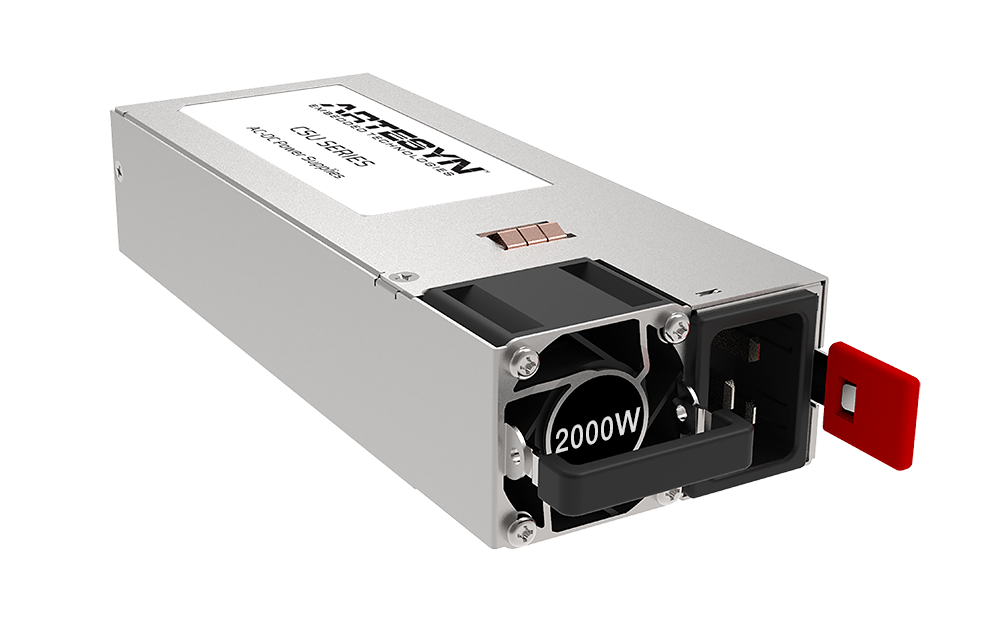

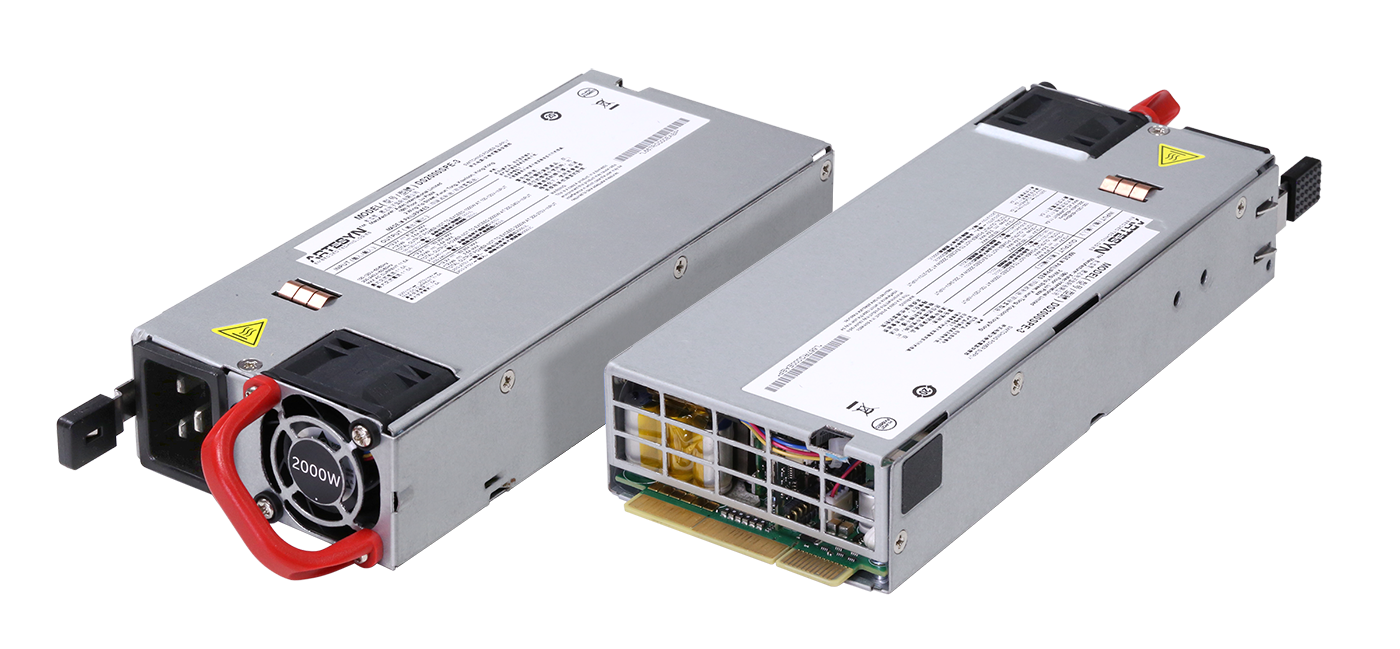

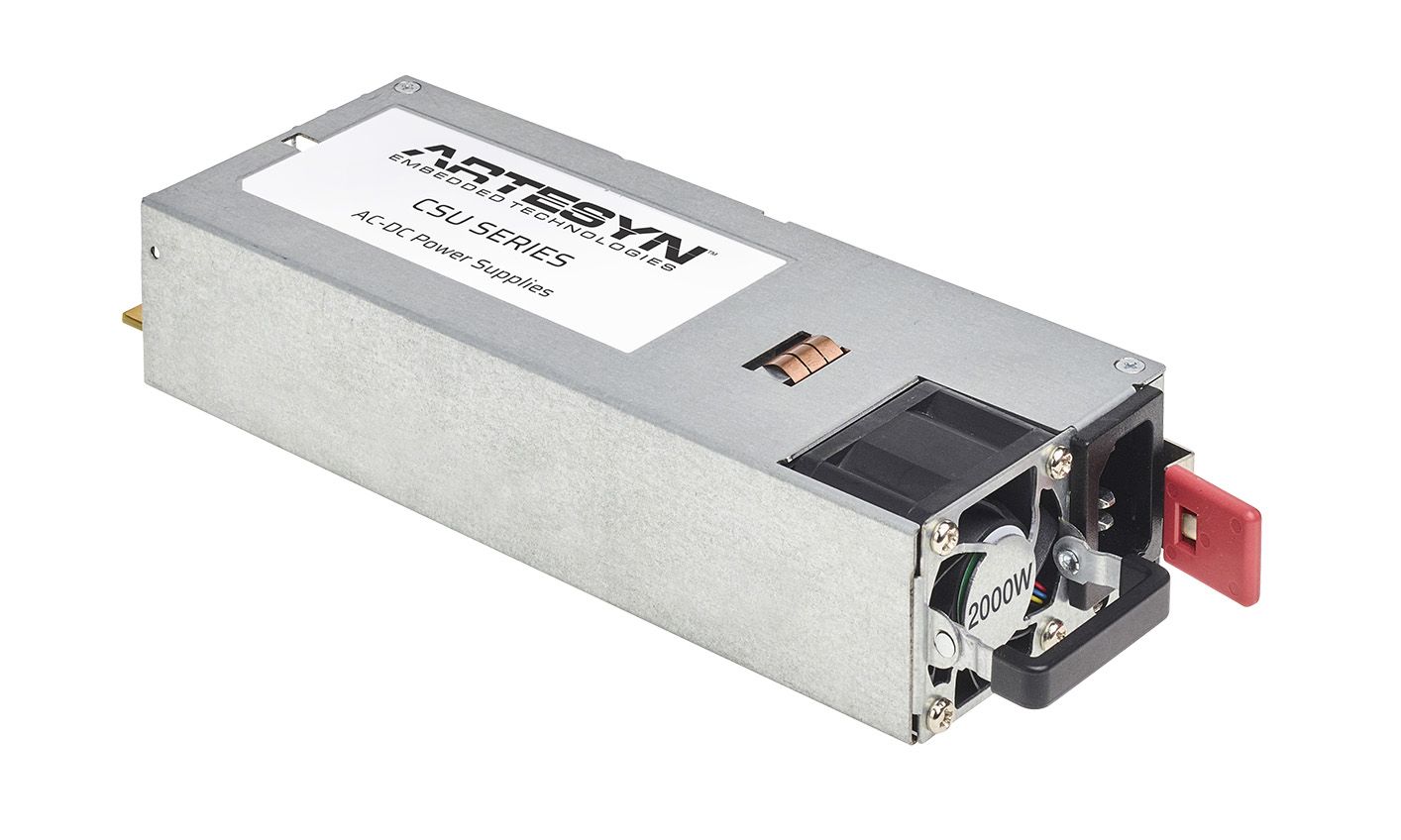

CSU2000AP Series
Active
2000 W CRPS-Type Power Supply
The CSU2000AP power supply is housed in a 1U high rack-mount enclosure measuring just 2.89 x 7.28 inches (73.5 x 185.0 mm). The latest power-switching technology and high-density component packaging techniques enable a significantly narrower and shorter form factor than similarly rated earlier-generation power supplies — freeing up valuable system space. This form factor conforms to the standard market's Common Redundant Power Supplies. The CSU2000AP power supply is fully digital and compatible with Advanced Energy's universal PMBus® GUI, allowing control via an integral I2C interface using the industry-standard PMBus communications protocol. The power supply delivers a main output of 12 VDC and a standby output of 12 VDC that can deliver 163.9 A and 3.5 A, respectively.
Features
- 12.0 V housekeeping
- 2000W output power
- EN61000 Immunity
- High efficiency (94% @ 230 VAC) 50% load
- IEC C14 AC inlet and IEC C20 AC inlet options available
- Input Range 90-264 VAC
- Input Frequency 47 - 63 Hz
- Hold-up Time 11 ms
- Power Factor >0.98 at 50% load
- Input Range 165-320 VDC
- Output Power 2000W continuous
- Output Ripple 120 mVp-p
- Load Sharing Active load sharing with 5.0% at full load
Benefits
- EMI Class A
- Hotswap
- Internal OR'ing
- Low iTHD
- N+N redundant
- Variable speed smart fan
- Efficiency Platinum level
- Remote On/Off Active Low
- Protection OVP, OCP, Short Circuit, OTP
- Power Good Active High
- Alert Active Low
Specifications
| Output Power (W): | 2000 |
|---|---|
| Length (Inches): | 7.28 |
| Width (Inches): | 2.89 |
| Height (Inches): | 1.57 |
| Mounting Type: | Rack-mount |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 163.9 |
| Output Voltage Range (V): | 11.4V to 12.8V |
Accessories
Universal PMBus GUI Software Package
The all new universal PMBus GUI software package provides power engineers with a simple – yet functionally powerful – user interface that delivers world-class control flexibility over their digitally controlled power conversion products.
