artesyn™
CSU550AP Series
Active
550 W CRPS-Type Power Supply

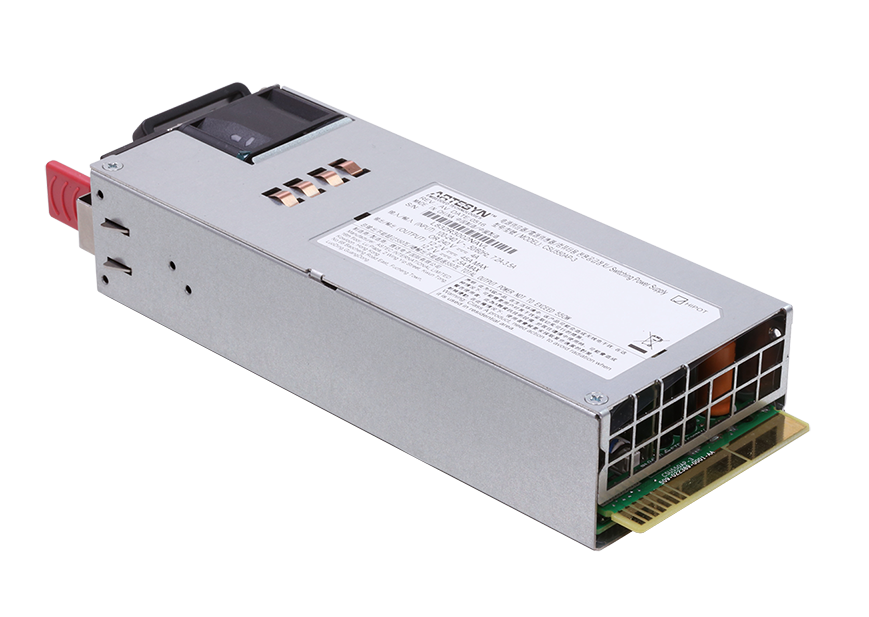

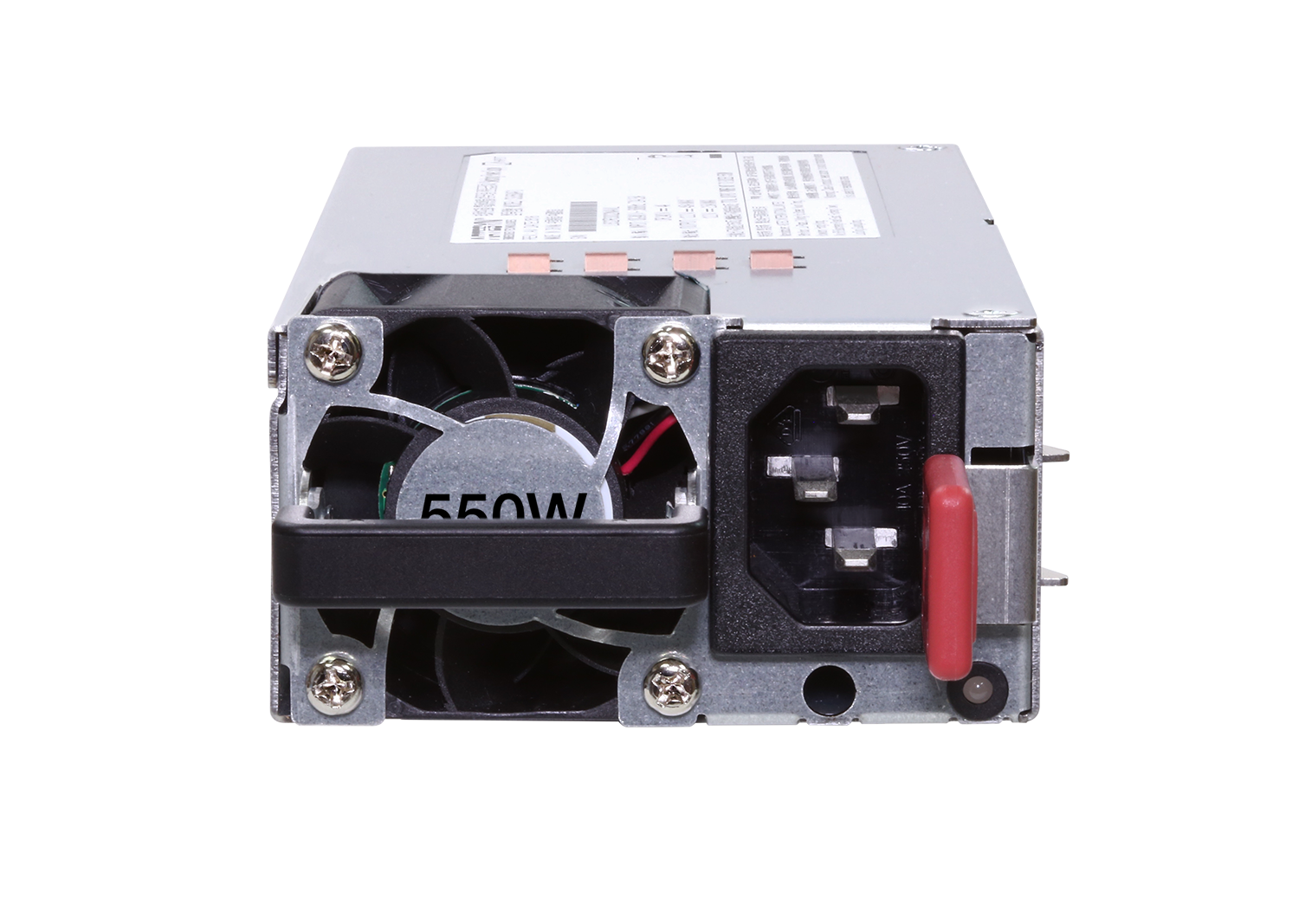

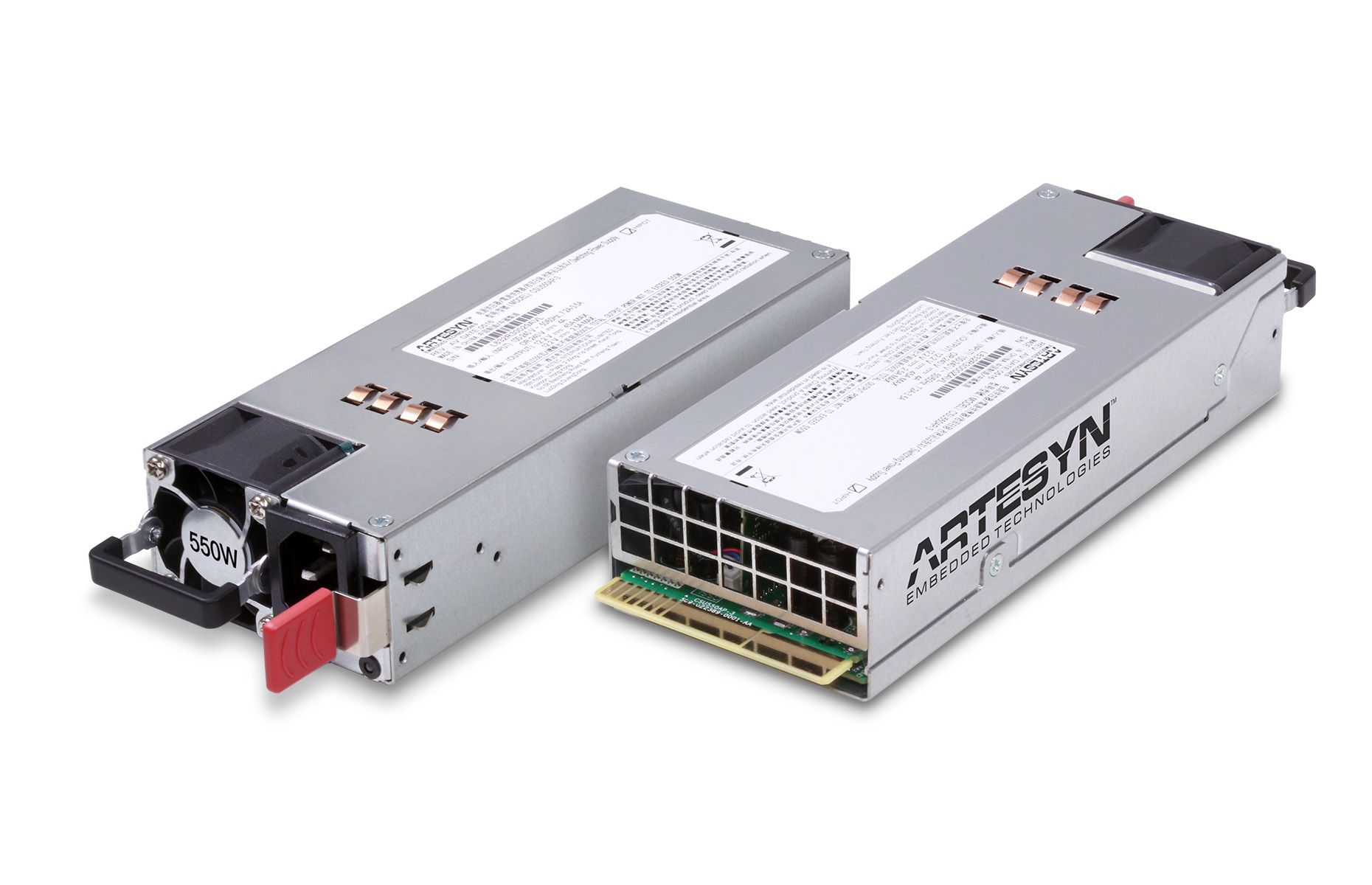

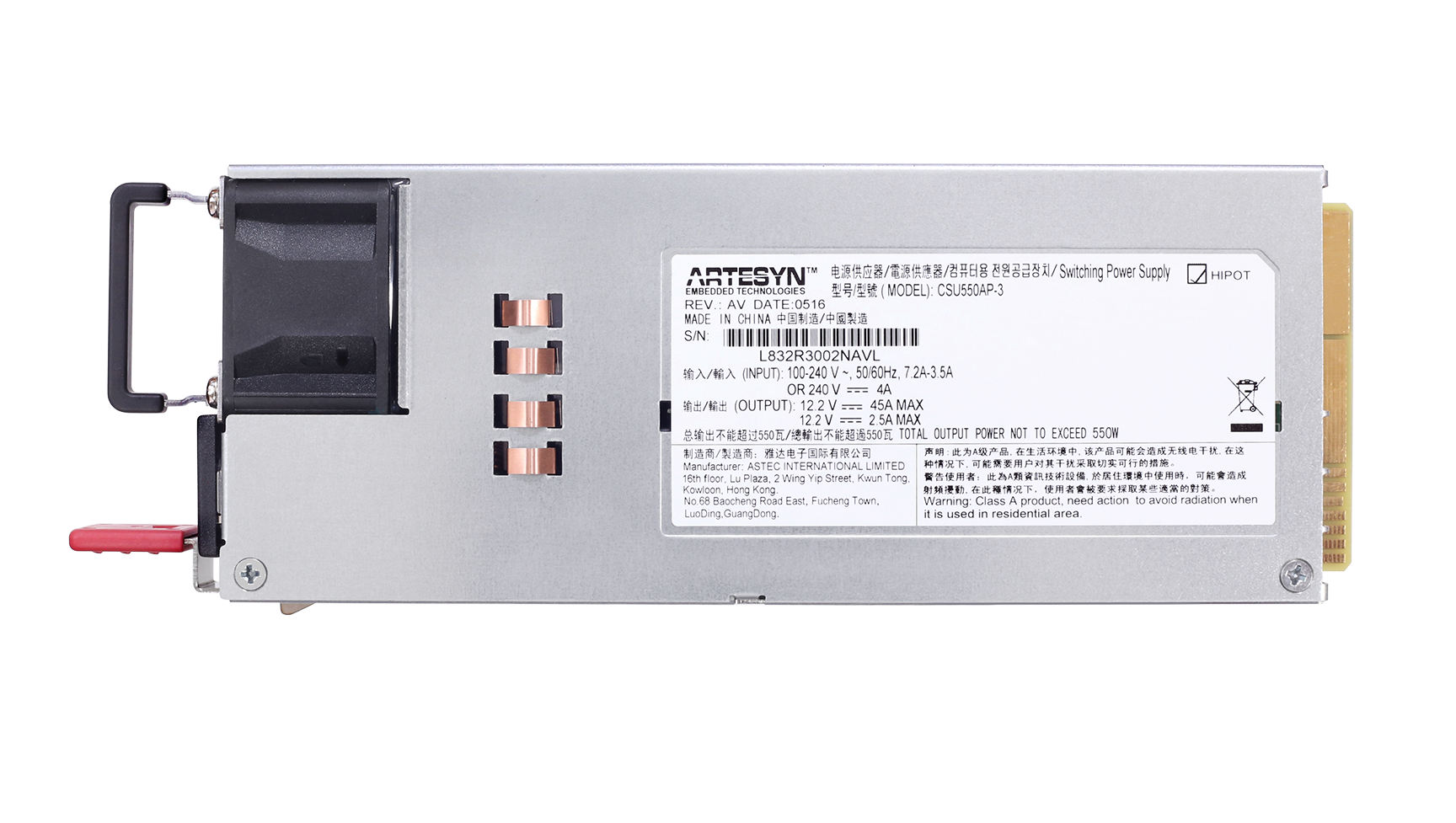

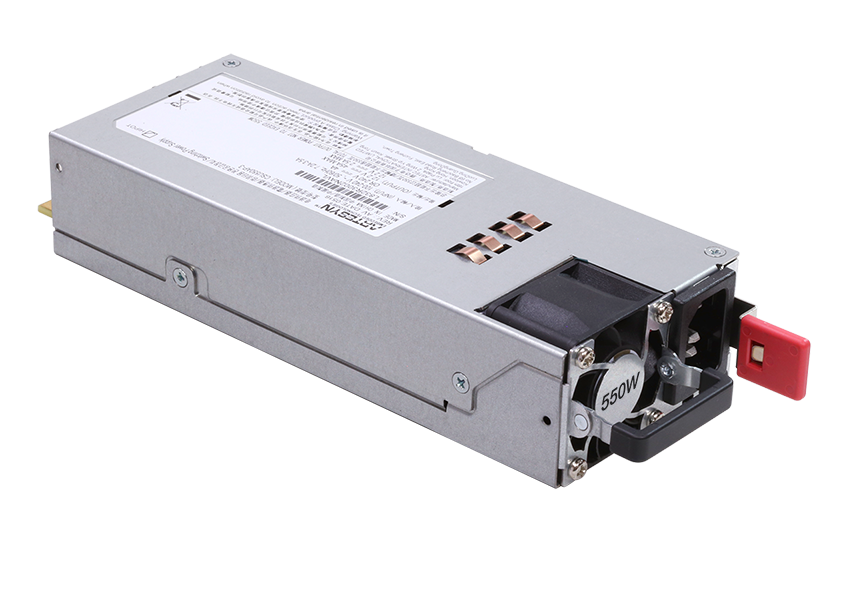

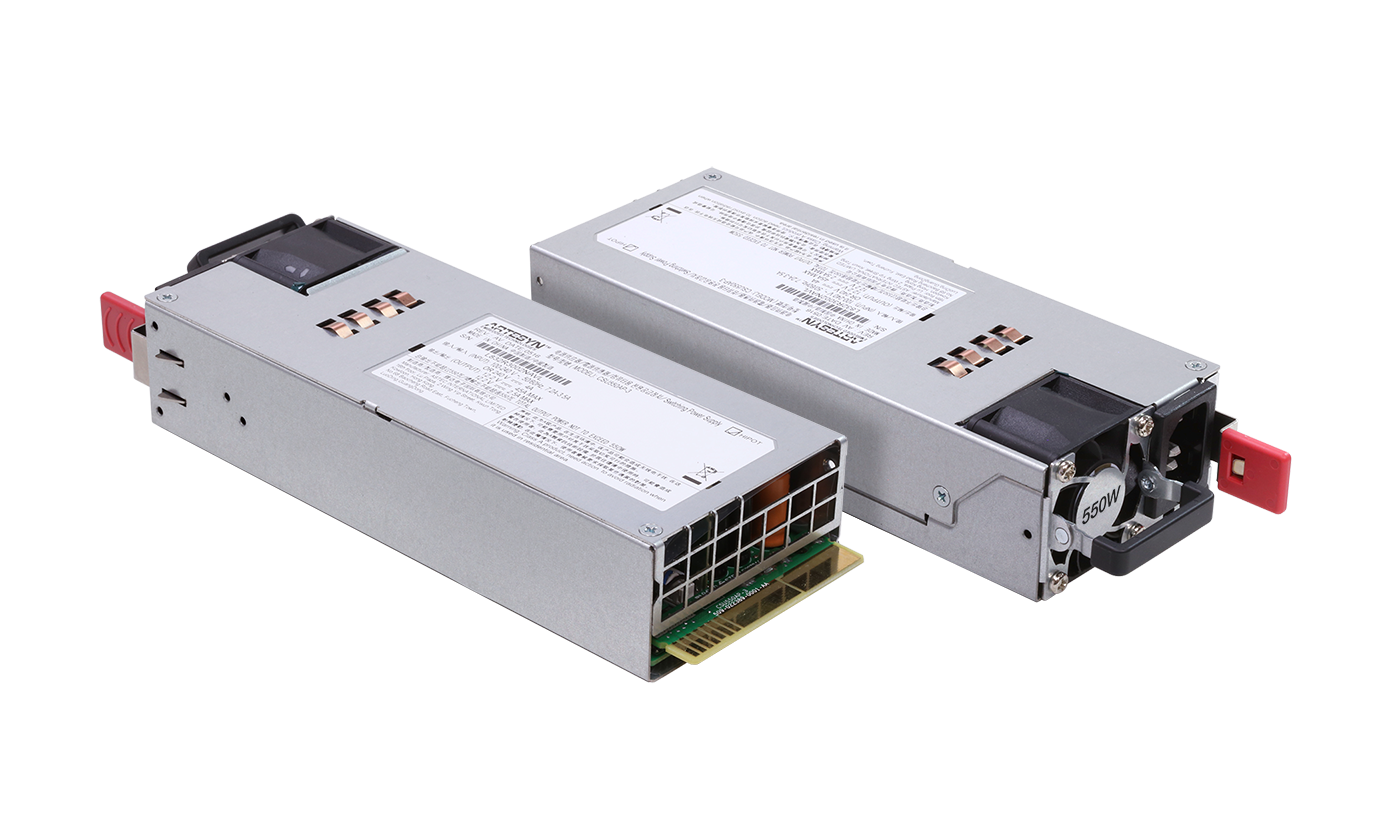

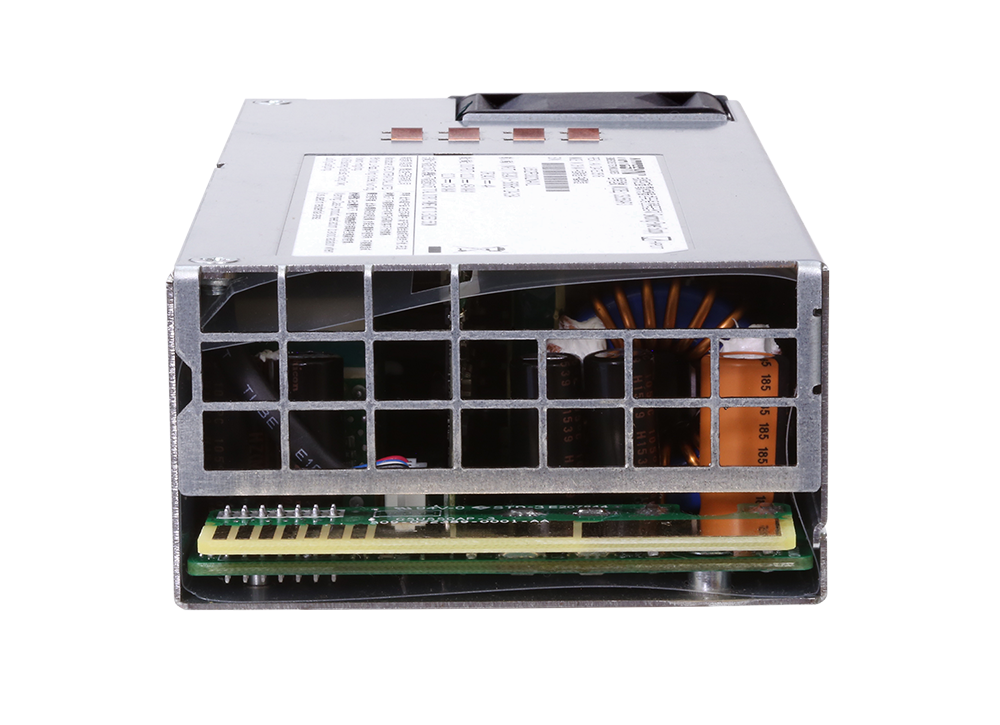

The CSU550AP power supply is housed in a 1U high rack-mount enclosure measuring just 2.89 x 7.28 inches (73.5 x 185.0 mm). This form factor is significantly narrower and shorter than that of similarly rated earlier-generation power supplies, freeing up valuable system space. This form factor conforms to the standard market's Common Redundant Power Supplies. The CSU550AP power supply is fully digital and compatible with Advanced Energy's universal PMBus® graphical user interface, allowing control via an integral I2C interface using the industry-standard PMBus communications protocol.
Features
- 100°C Baseplate temperature
- 48VDC Input
- 550W output power
- Unencapsulated 2.3" x 2.4" x 0.50" pkg.
- Input Range 90-264 VAC
- Input Frequency 47 - 63 Hz
- Efficiency 94% peak
- Hold-up Time 10 ms
- Power Factor 0.98
- Input Range 165-405 VDC
- Output Ripple 120 mVp-p
- Load Sharing Active load sharing with 5.0% at full load
- Output Power 12V/45A and 12VSB/2.5A, 500W continuous
Benefits
- Enable (on/off)
- Industry standard pinout
- Output loadsharing
- Thermal protection
- Trim feature, both rails
- Remote On/Off Active Low
- Alert Active Low
- Protection OVP, OCP, Short Circuit, OTP
- Power Good Active High
Specifications
| Output Power (W): | 550 |
|---|---|
| Length (Inches): | 7.28 |
| Width (Inches): | 2.89 |
| Height (Inches): | 1.57 |
| Mounting Type: | Rack-mount |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 45 |
| Output Voltage Range (V): | 11.4V to 12.6V |
Technical Documentation
Technical Videos
CSU550 GUI via Aardvark manual
Aug 1, 2017
The CSU550AP power supply is housed in a 1U high rack-mount enclosure measuring just 2.89 x 7.28 inches (73.5 x 185.0 mm). This form factor is significantly narrower and shorter than that of similarly rated earlier generation power supplies — freeing up valuable system space — and is achieved by use of the latest power switching technology and high density component packaging techniques. This form factor conforms to the standard market's Common Redundant Power Supplies. This video shows how to control and monitor CSU550 via GUI developed by Artesyn.
