artesyn™
DS750PED-3 Series
Active
750 W Front End AC-DC Power Supplies

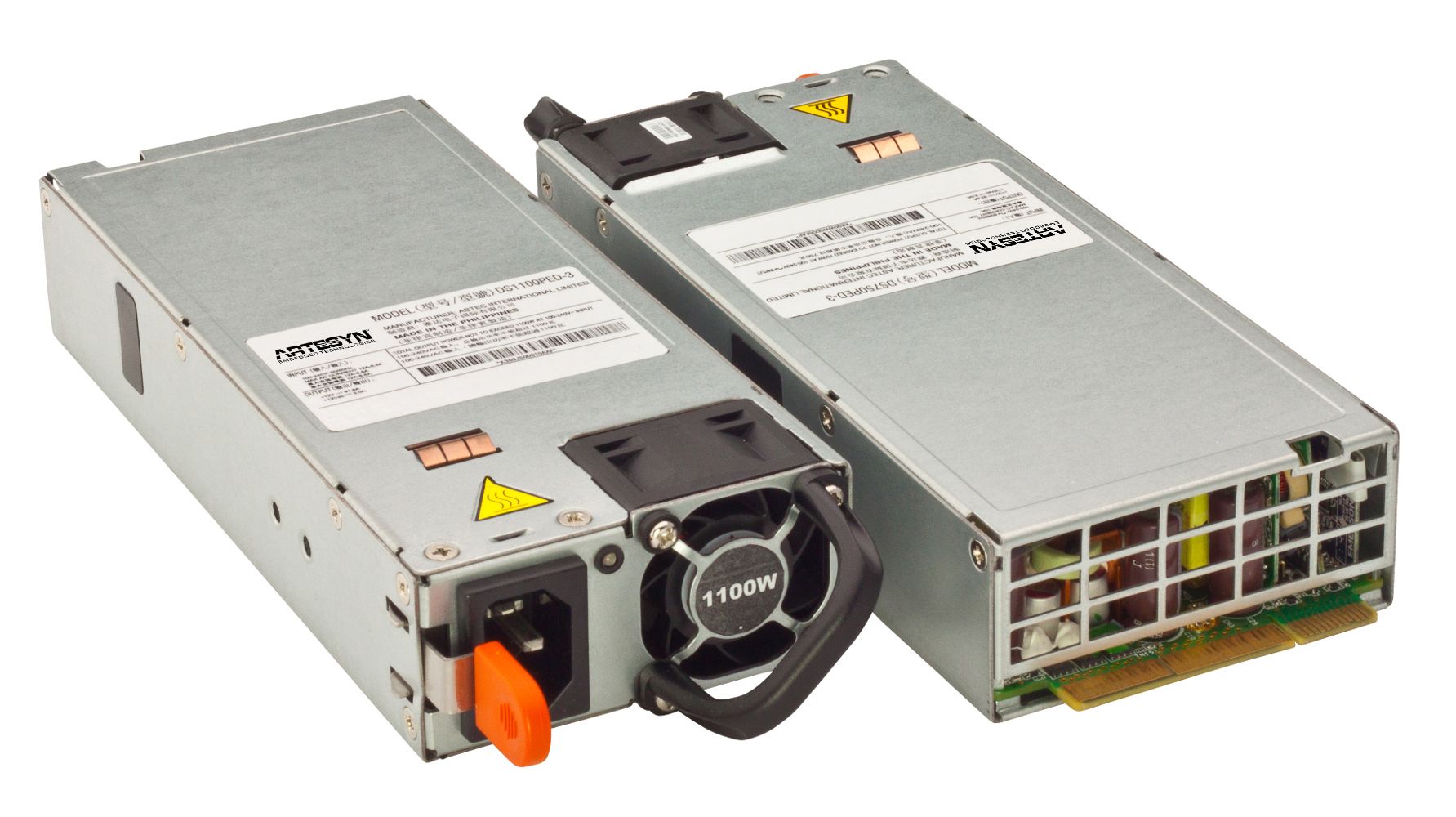

The DS750PED-3 series bulk front-end AC-DC power supply accepts a wide range of 90 to 264 VAC input and provides a main 12 V output plus a 12 V standby output. Rated at 750 W, it is an 80 Plus Platinum power supply with a peak conversion efficiency of 94%. Housed in a 1U high rack-mounting enclosure with a short form factor that frees up system space, the DS750PED-3 has a high power density of 16 W per cubic inch. This series comes in two airflow versions – DC-connector to AC-connector and vice versa. The DS1100PED-3 power supply is hot pluggable and ideal for fault-tolerant, N+1 and N+N redundant applications.
Features
- Input Range 90-264 VAC
- Input Frequency 47 - 63 Hz
- Efficiency 94% peak
- Hold-up Time 10 ms
- Power Factor 0.98
- Output Power 12V/62.5A and 12VSB/3.0A, 750W continuous
- Load Sharing Active load sharing with 6% at full load
- Output Ripple 120 mVp-p
Benefits
- Protection OVP, OCP, Short Circuit, OTP
- Remote On/Off Active Low
- Power Good Active High
- PS Interrupt Active Low
Specifications
| Output Power (W): | 750 |
|---|---|
| Length (Inches): | 7.736 |
| Width (Inches): | 3.4 |
| Height (Inches): | 1.574 |
| Mounting Type: | Rack-mount |
| Minimum Output Current (A): | 0.5 |
| Maximum Output Current (A): | 62.5 |
| Output Voltage Range (V): | 11.4V to 12.6V |
Accessories
Universal PMBus GUI Software Package
The all new universal PMBus GUI software package provides power engineers with a simple – yet functionally powerful – user interface that delivers world-class control flexibility over their digitally controlled power conversion products.
Technical Documentation
Technical Videos
DS Short Series AC-DC Power Supplies part 1
May 2, 2017
The latest Artesyn DS series AC-DC power supplies in the short form factor are designed to provide a scalable input power conversion solution for computing, storage and networking equipment that uses
Artesyn DS Short Series power supplies generate a main payload output of 12 Vdc for feeding downstream dc-dc converters in systems using distributed power architectures, together with a 12 Vdc standby output for power management circuitry.
The range is housed in an industry-standard 1U high by 86mm wide form factor with individual power ratings from 500 to 2,000 watts and a roadmap for higher power models.

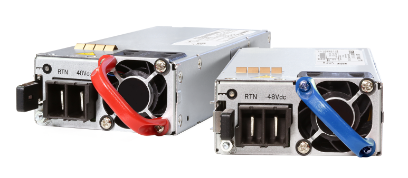

Many of the models in this range are available with AC or DC input options, which means you can specify the same power supply for deployment in environments from enterprises, traditional data centers, -48Vdc data centers or telecom central offices.
The DC input option can also be used to power redundant equipment powered from battery backups.
With a power density up to 50 W/in3 and efficiency ranging from 90 to 94% peak, you can be confident that you are getting a best-in-class power conversion solution whichever model in the range you select.
