artesyn™

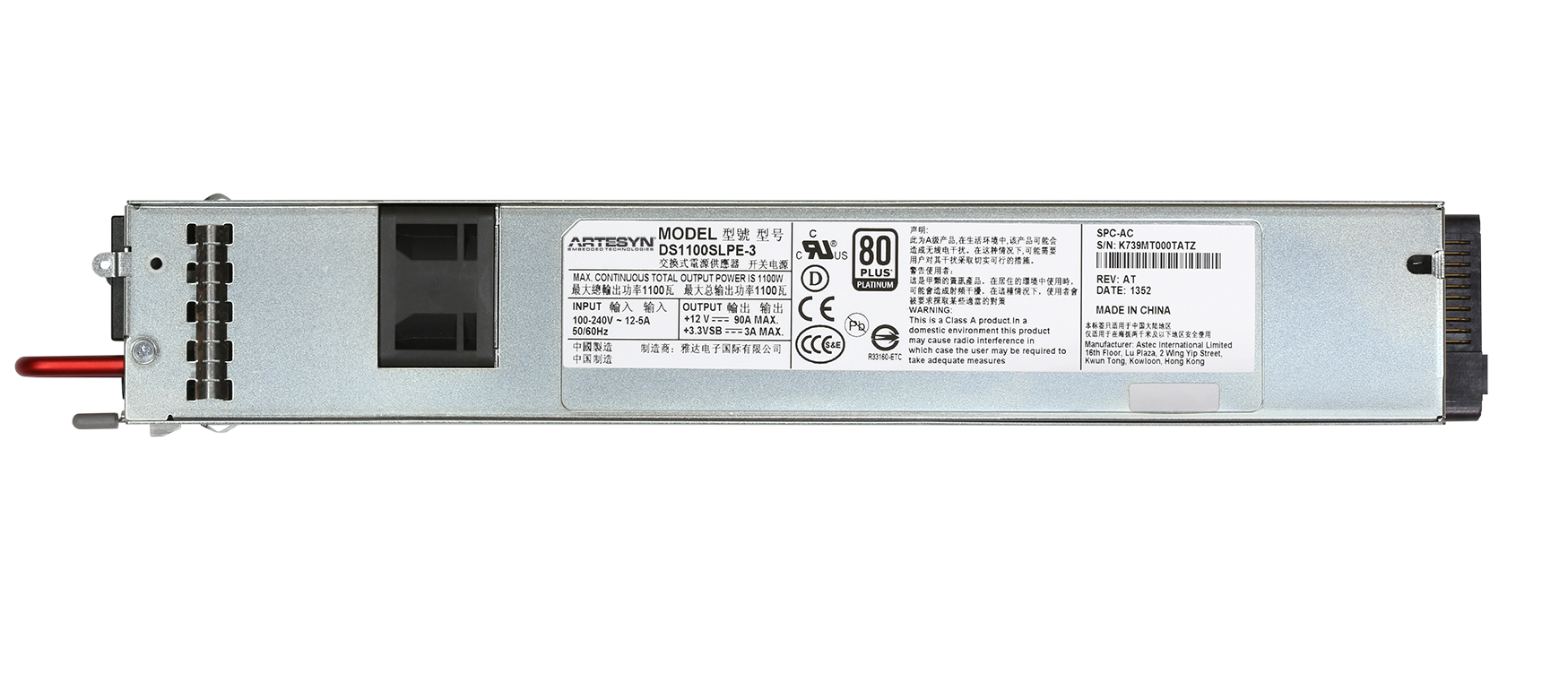

DS1100SLPE-3 Series
Active
1100 W Front End AC-DC Power Supplies

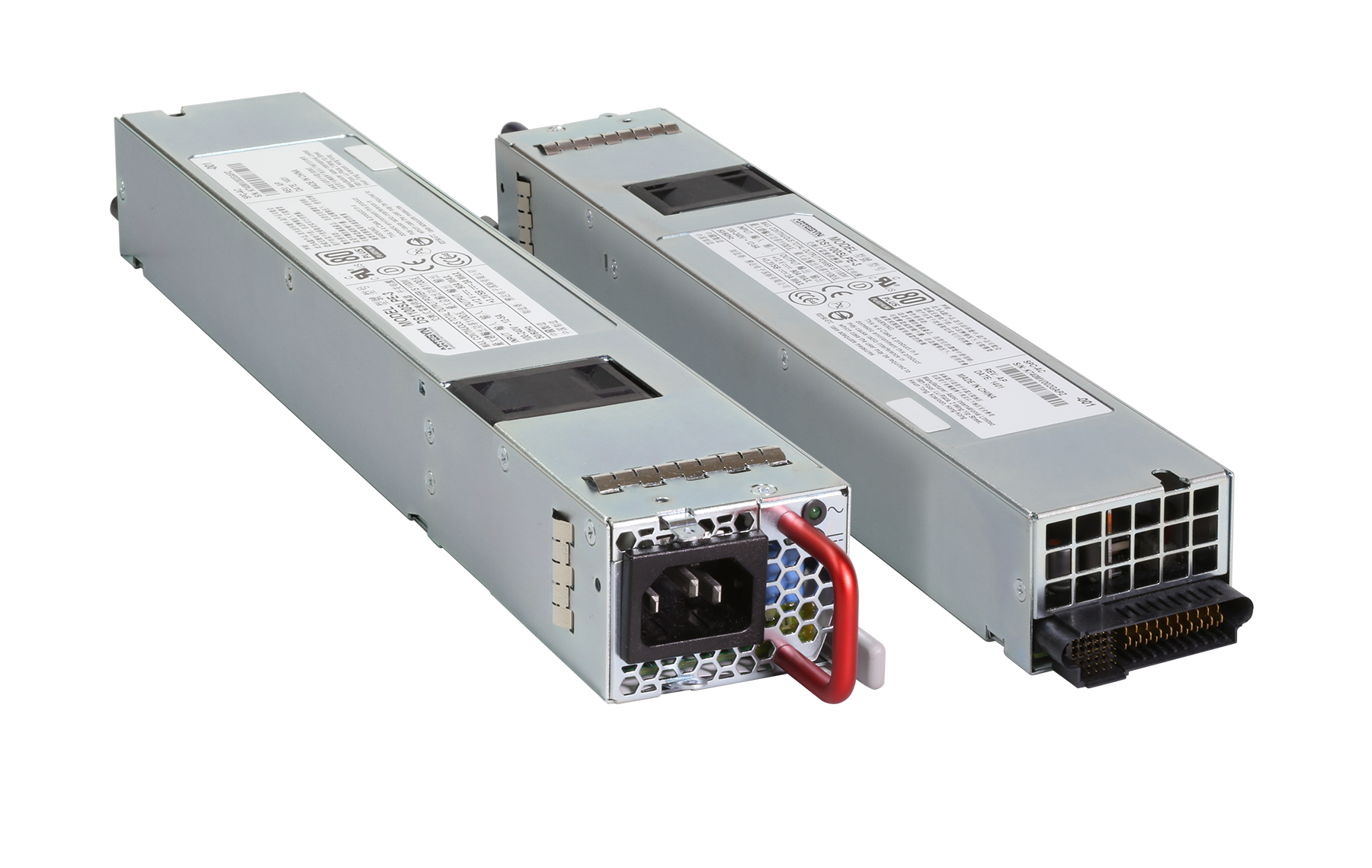

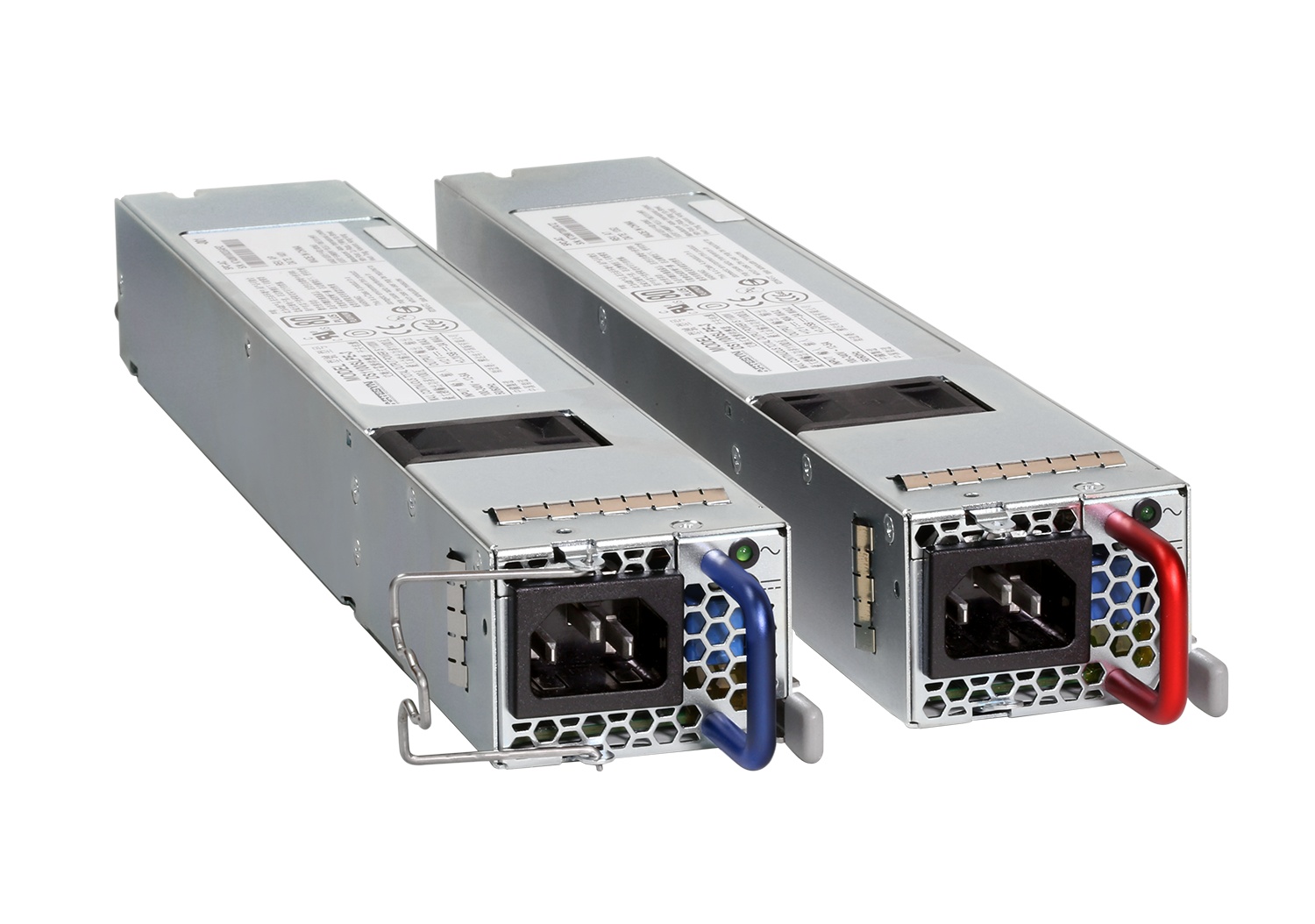

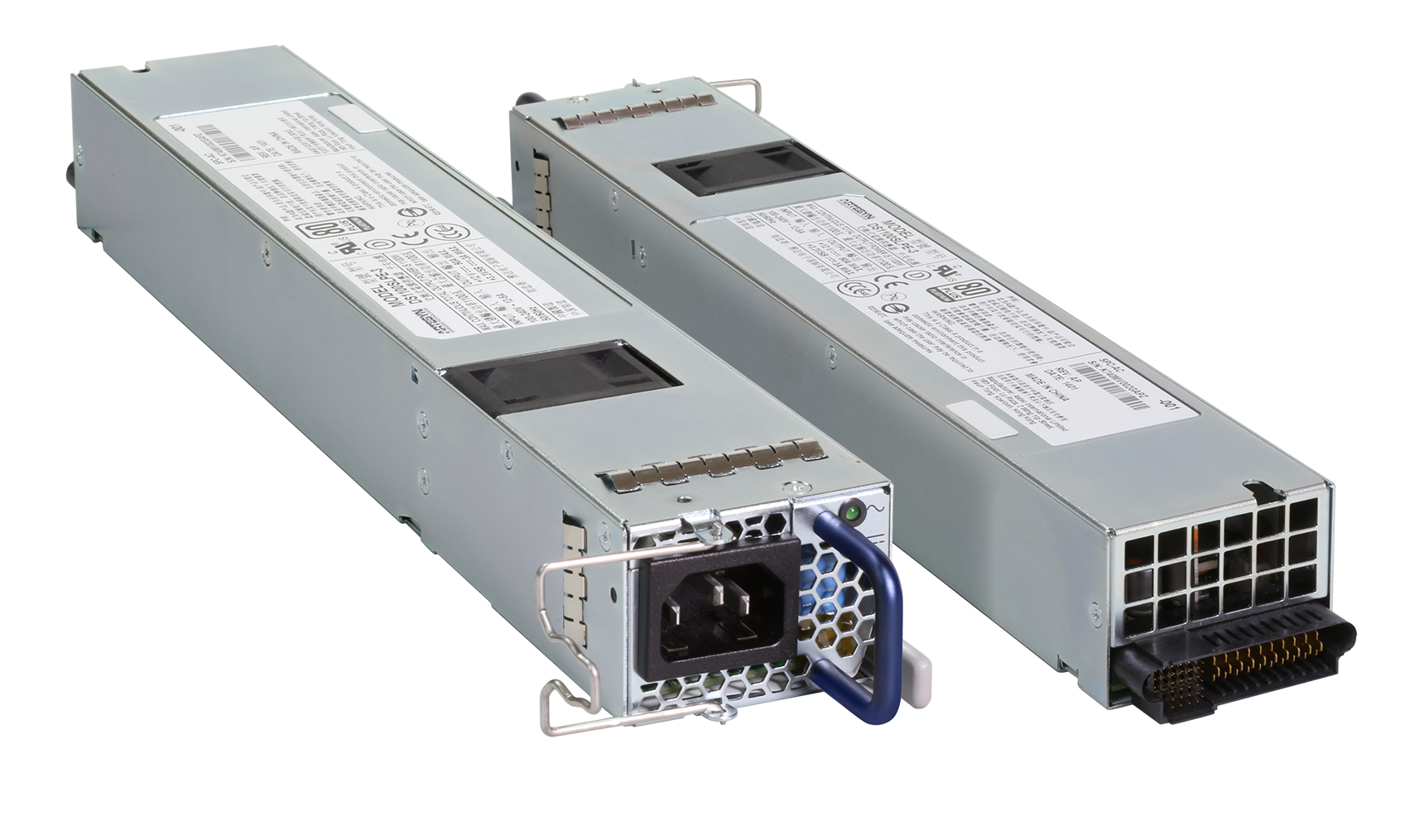

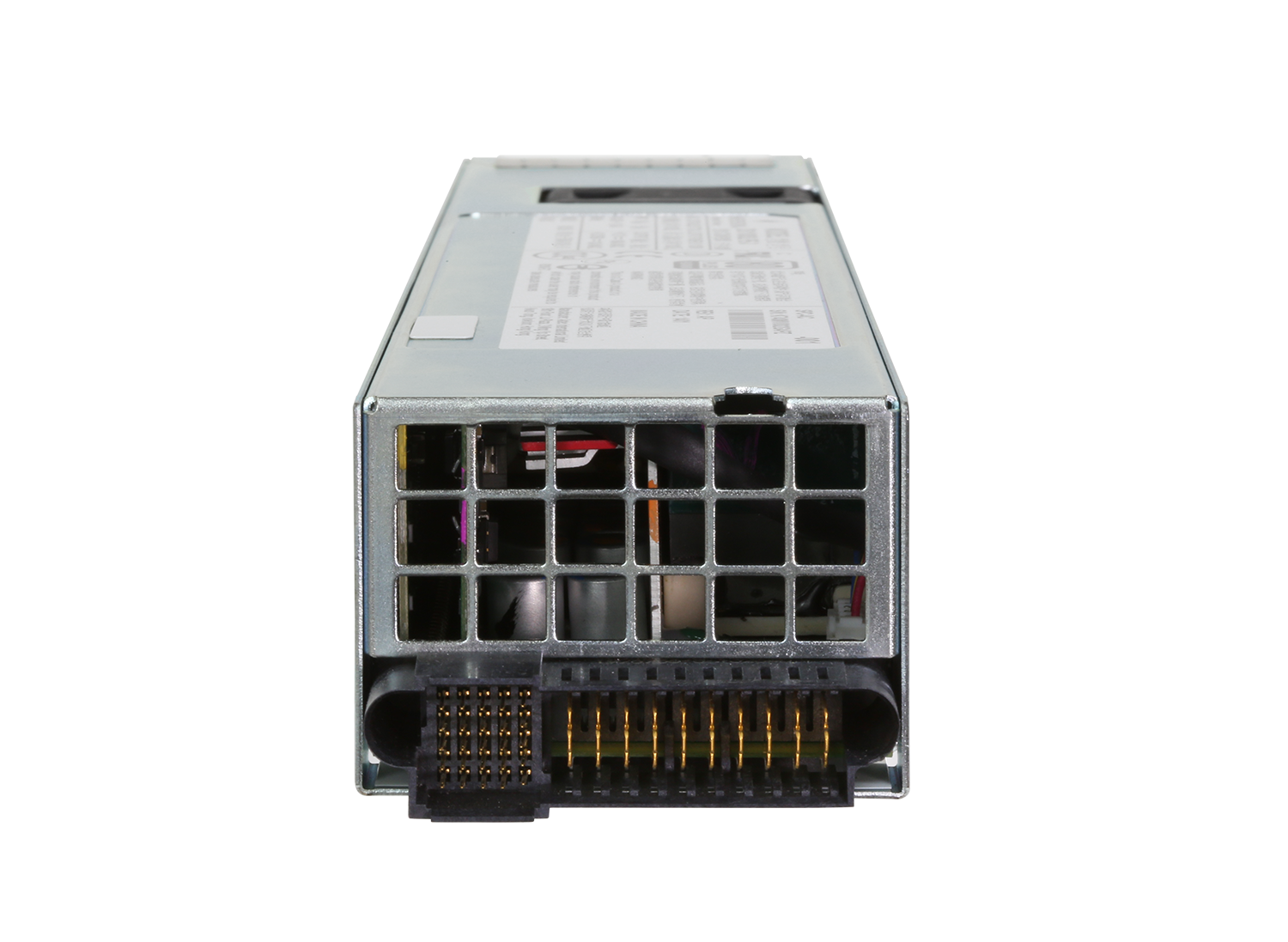

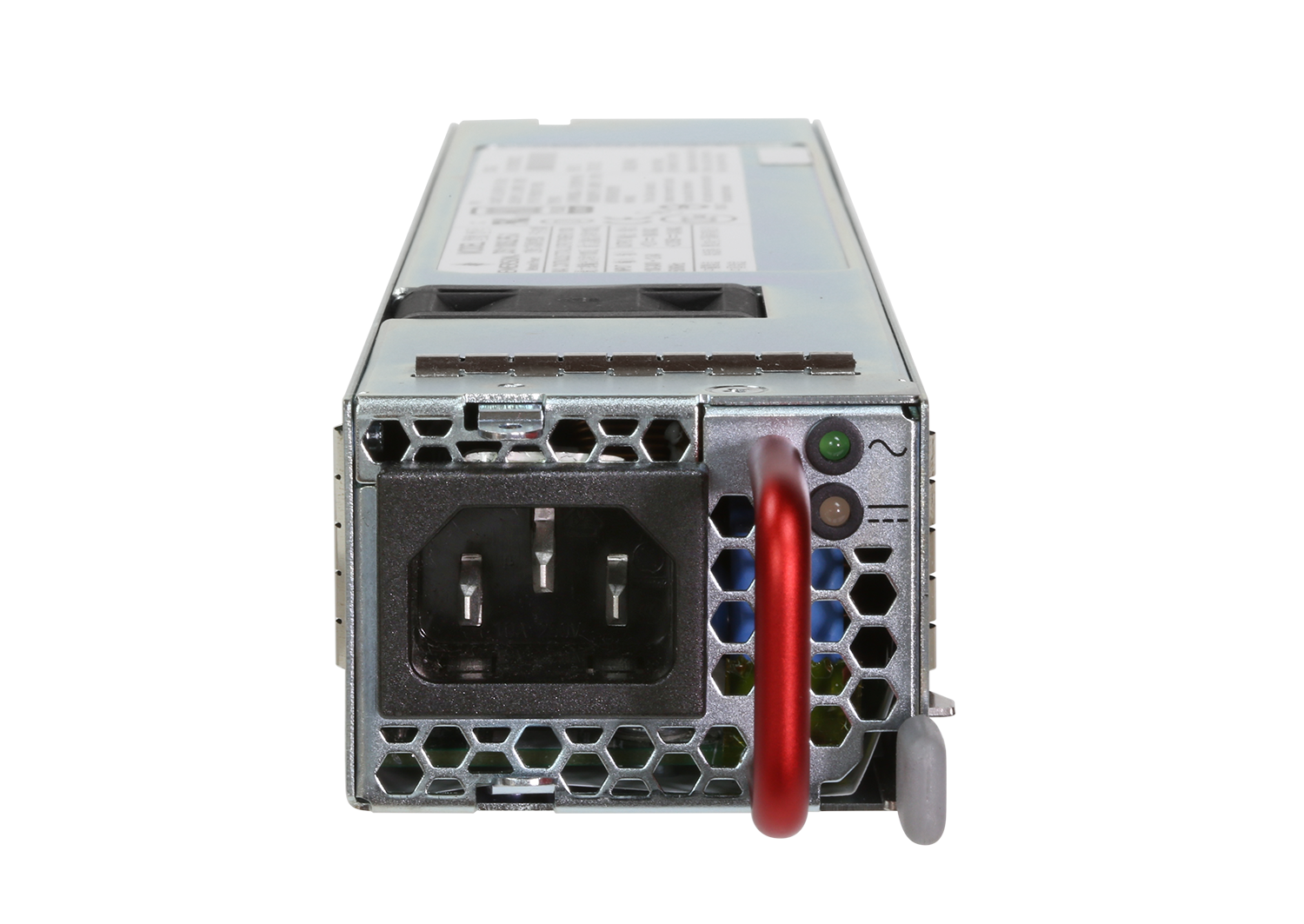

The DS1100SLPE series bulk front-end AC-DC power supply accepts a wide range of 90 to 264 VAC input and provides a main 12 V output plus a 3.3 V standby output. Rated at 1100 W it is an 80 Plus Platinum supply with a high peak efficiency of 94%. With an industry-standard 1U x 2.1-inch rack-mounting package housing, the power supply is ideal for space-constrained applications. This series comes in two airflow versions – DC-connector to AC-connector and vice versa. The main 12 V output can deliver up to 90 A and stays within regulation down to zero load, making it perfect for feeding downstream DC-DC converters in systems that use distributed power architectures (DPA). Active current sharing enables multiple supplies paralleled for high-current applications without additional components.
Features
- Input Range 90-264 VAC
- Input Frequency 47 - 63 Hz
- Efficiency 94% peak
- Hold-up Time 16 ms
- Power Factor 0.98 typical
- Output Power 12V/90A and 3.3VSB/3.0A
- Load Sharing Active load sharing with 6% at full load
- Output Ripple 120 mVp-p
Benefits
- Protection OVP, OCP, Short Circuit, OTP
- Remote On/Off Active Low
- Power Good Active High
- PS Interrupt Active Low
Specifications
| Output Power (W): | 1100 |
|---|---|
| Length (Inches): | 12.66 |
| Width (Inches): | 2.15 |
| Height (Inches): | 1.57 |
| Mounting Type: | Rack-mount |
| Minimum Output Current (A): | 0.5 |
| Maximum Output Current (A): | 90 |
| Output Voltage Range (V): | 3.14V to 12V |
Accessories
Universal PMBus GUI Software Package
The all new universal PMBus GUI software package provides power engineers with a simple – yet functionally powerful – user interface that delivers world-class control flexibility over their digitally controlled power conversion products.
Technical Documentation
Compare
| Model | DS1100SLPE-3 | CSU1300AP |
|---|---|---|
| Output Power (W) | 1100 | 1300 |
| Input Voltage (V) | ||
| Operating Temperature (°C) | ||
| Length (Inches) | 12.66 | 7.28 |
| Width (Inches) | 2.15 | 2.89 |
| Height (Inches) | 1.57 | 1.57 |
| Output Voltage Range (V) | 3.14V to 12V | 11.4V to 12.8V |
