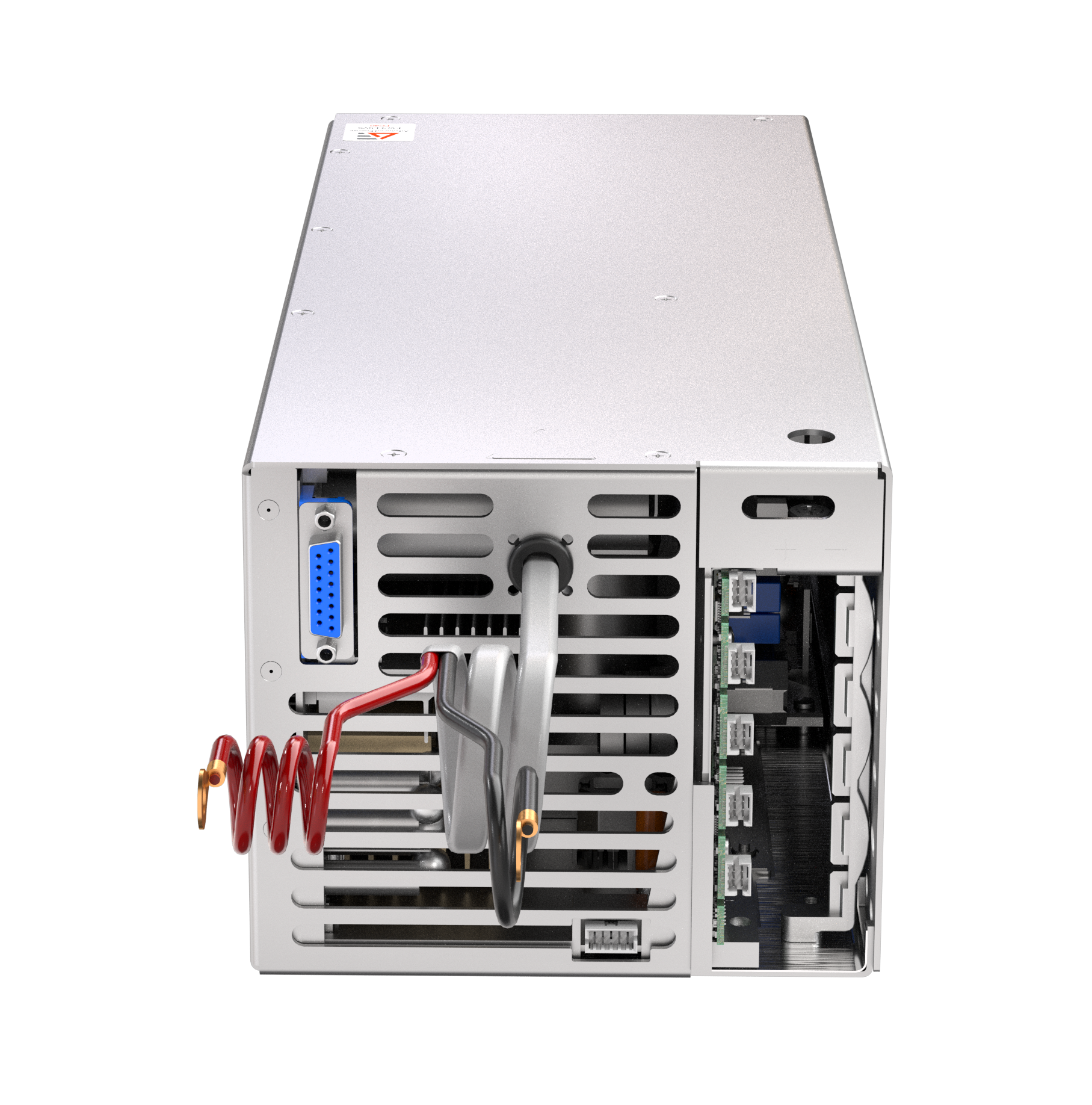

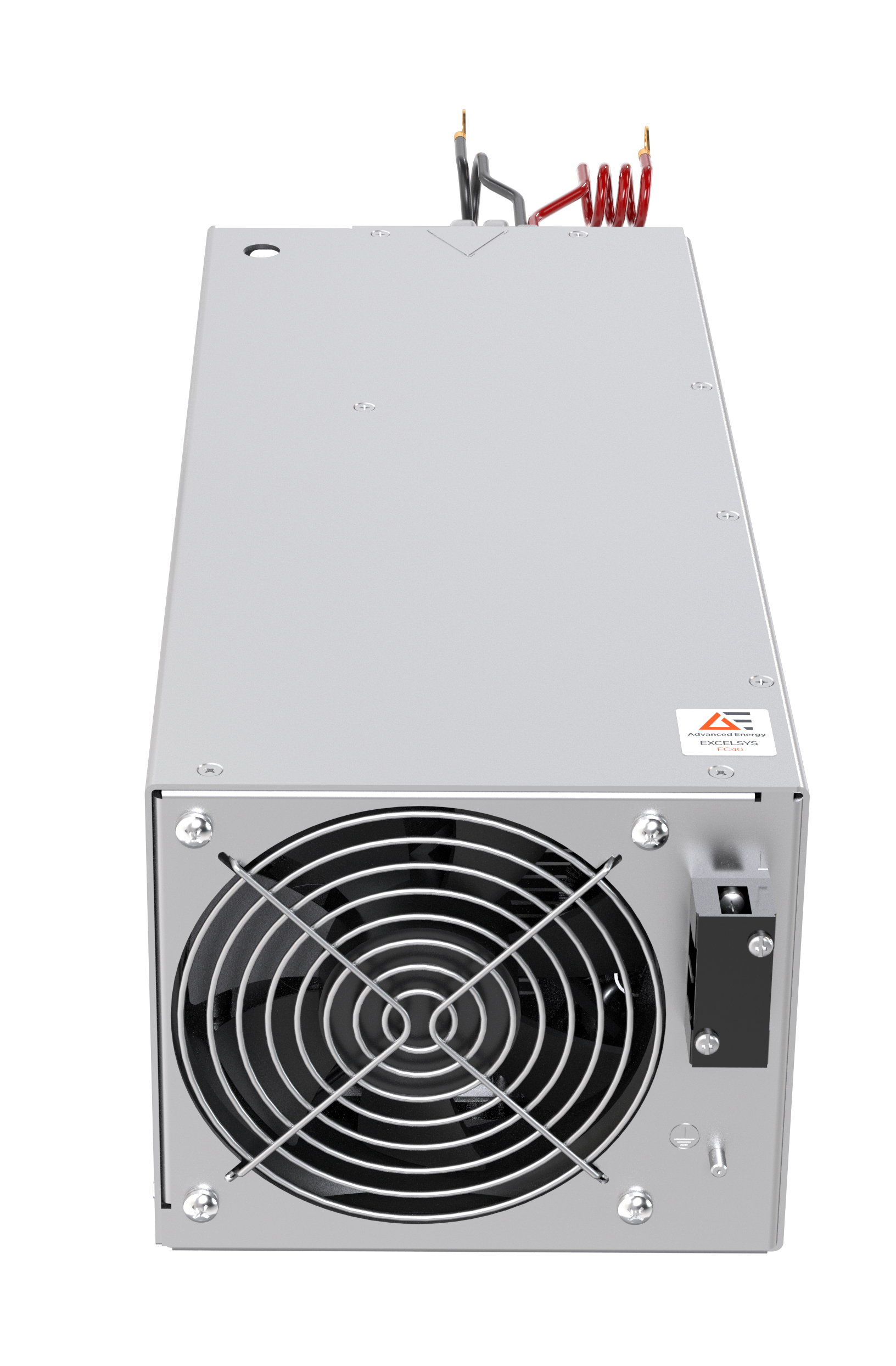

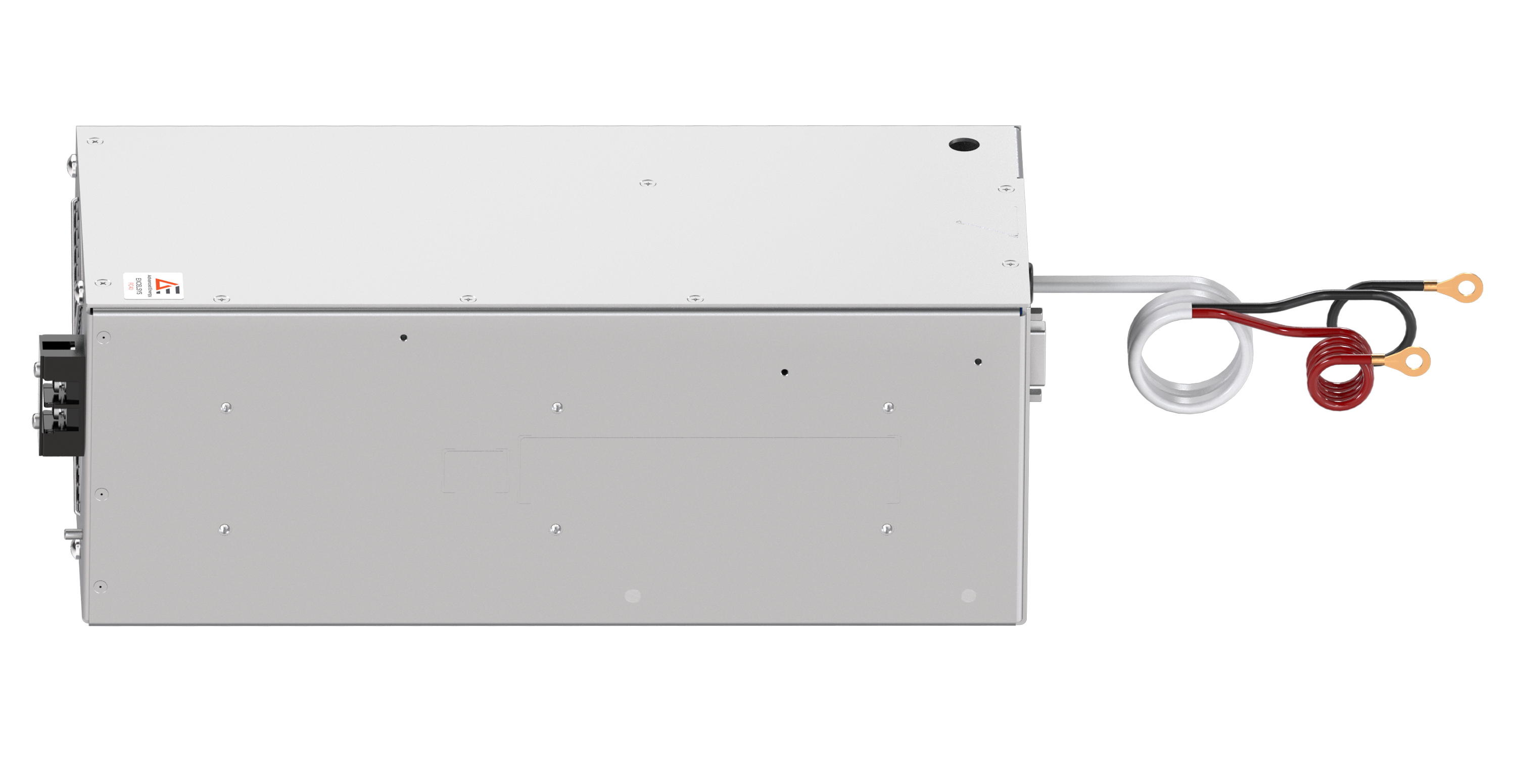

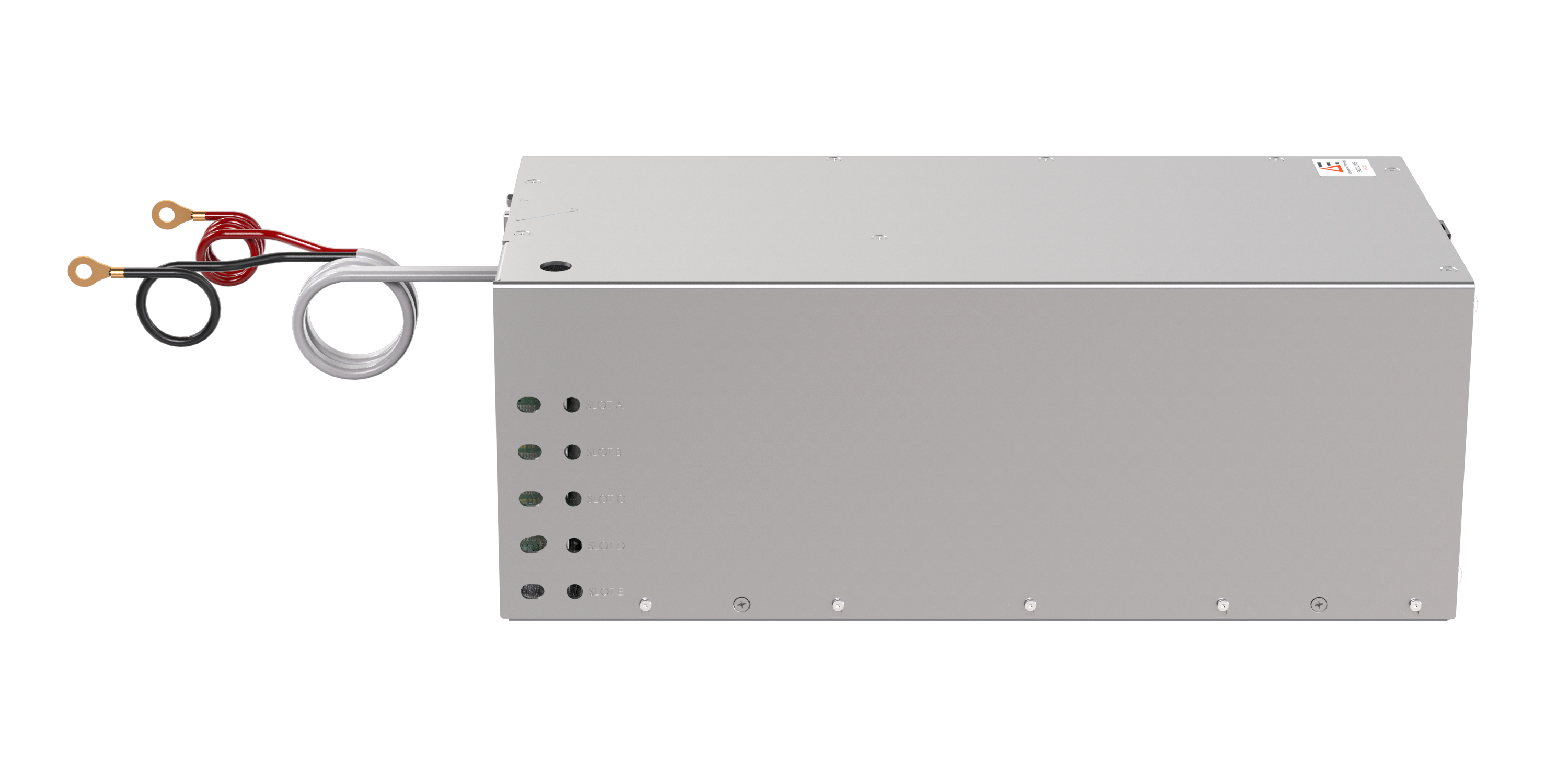

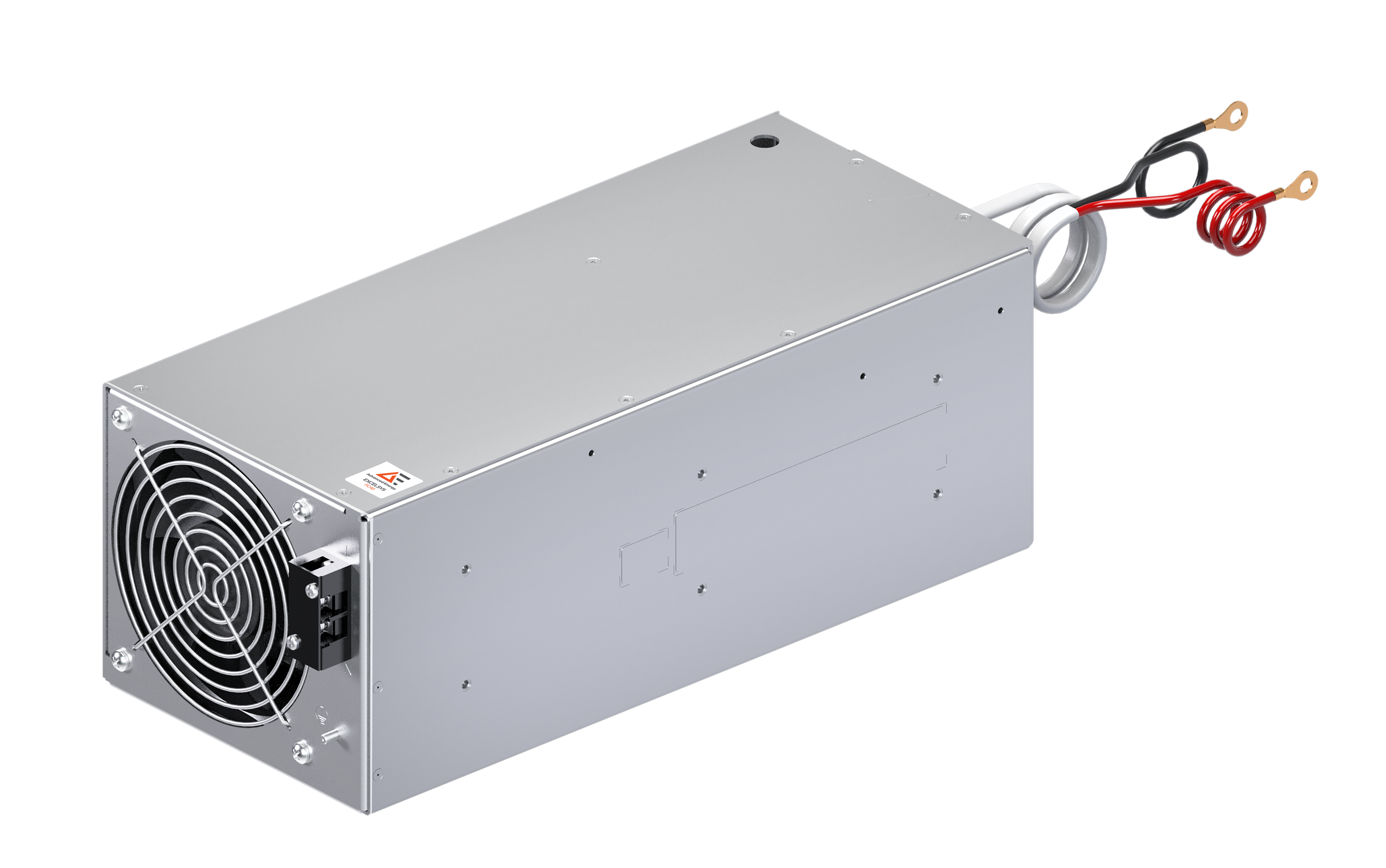

FC4000
Active
High Voltage 4 kJ Capacitor Charger and Low Voltage Power Supply in One Package. Up to 4800 W Total Power.
The FC4000 can be used as a standalone capacitor charger, and if needed, various low voltage modules can be added system power. Low voltage modules can be connected in parallel and in series for applications that require higher voltage and current requirements. The FC4000 has a unique built in intelligent control for capacitor charging, higher charge rates and power limit control. There is also added control and monitoring capability via the analog and PMBus digital intelligent control system. The FC4000 improves end users time to market by simplifying EMI and low leakage current approvals needed at end applications. It also has IEC60101-1 3rd edition and IEC60101-1-2 4th edition (EMC) safety agency approval.
Features
- Capacitor Charger
- Up to 4000 W and 0 to 1000 VDC
- Constant Power Charging from 250 V to 1000 V
- Excellent pulse to pulse repeatability and user power limit control
- Analog and digital control and monitoring features.
- AC-DC power supply
- Up to 800 W.
- Up to 10 isolated low voltage outputs.
- Serial and Parallel outputs for higher voltages or current.
- Analog and digital control and monitoring features.
- High power density
Benefits
- Full safety agency approvals
- High power density - up to 4 kW capacitor charger power and up to 800 W low voltage power in one unit
- Programmable charge rates with power limit control and excellent pulse to pulse repeatability
- Low current leakage and EMI solution for end users - improved time to market
- Intelligent Digital Power: Access maximum flexibility with analog and digital control and monitoring
Specifications
| Output Power (W): | 0 to 4800 |
|---|---|
| Length (Inches): | 13.7 |
| Width (Inches): | 6.02 |
| Height (Inches): | 5.2 |
| Mounting Type: | Chasis Mount |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 10 |
| Output Voltage Range (V): | 0 to 1000 |
