artesyn™

iMP Medical Series

Active

Up to 1500 W Configurable Power System

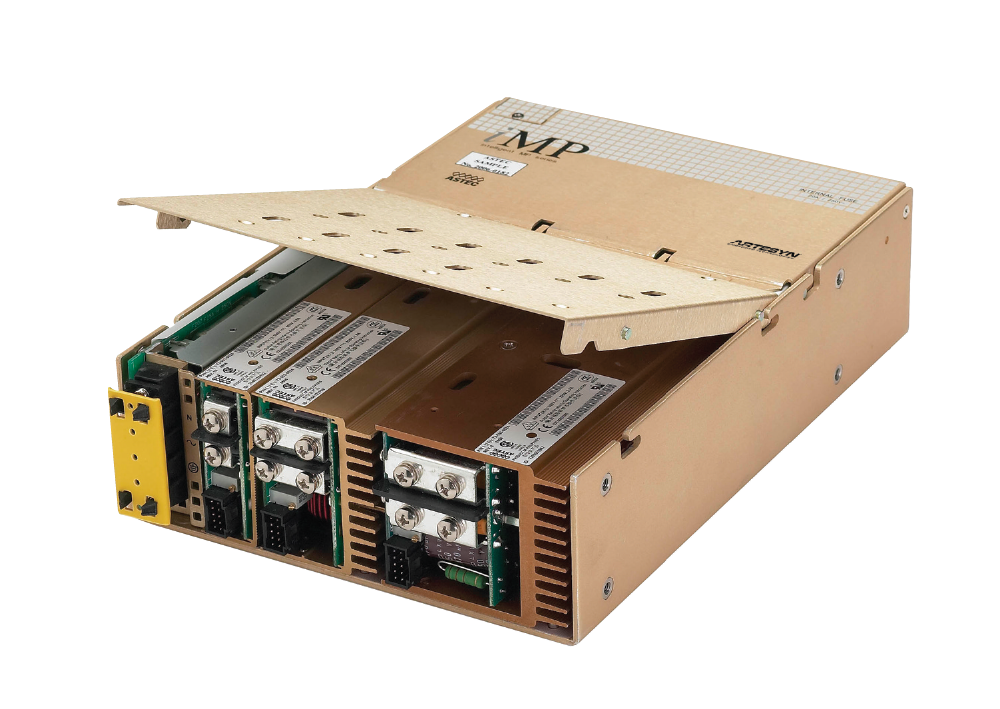

Advanced Energy's Artesyn iMP series is an AC input to DC output configurable power system consisting of a microprocessor-controlled PFC front end providing seven slots that accept intelligent DC-DC converter modules with single, dual or triple outputs ranging from 2 V to 60 V. Single output modules come in four power ranges that can be mixed and matched and connected in parallel or series to obtain thousands of output combinations customized to any application.

Features

  • Full medical EN60601 approval
  • Intelligent I2C control
  • Voltage adjustment on all outputs (manual or I2C)
  • Configurable input and output OK signals and indicators
  • Configurable inhibit/enable
  • Configurable output UP/DOWN sequencing
  • Configurable current limit (foldback or constant current)
  • High power density (8.8 W/cu-in)
  • Intelligent fan (speed control/fault status)
  • Downloadable GUI from the website
  • Customer-provided air option
  • uP controlled PFC input with active inrush protection
  • I2C monitor of voltage, current, and temp
  • Programmable voltage, current limit, inhibit/enable through I2C
  • Optional extended hold-up module (SEMI F47 compliance)
  • Increased power density to 50% over standard MP
  • External switching frequency sync input
  • Optional conformal coating
  • Industrial temp range (-40ºC to 70ºC)
  • No preload required
  • Industrial shock/vibration (> 50G’s)

Benefits

  • ACOK signal
  • Active PFC
  • Configurable Output Sequencing
  • Digital monitor of Voltage, Current and Temp (Both Input and Output)
  • Downloadable GUI
  • EMI Conducted and Radiated to Class B
  • External Switching Frequency Sync Input
  • Field Replacable Intelligent Fan
  • Full Medical Approval
  • Global DCOK and Inhibit/Enable (Logic Programmable)
  • Margin and Remote Voltage Programming
  • Module DCOK and Inhibit (Logic Programmable)
  • Optional Conformal Coating
  • Optional Extended holdup module
  • Optional VME Timing and System DCOK/Reset Module
  • Overload Protection on all outputs
  • Programmable voltage, current limit, fan speed, Foldback or Constant Current operation
  • Voltage Adjustment on all outputs (Manual or Programmable)
  • OVP Programmable
  • OCP Programmable
  • Thermal Protection OTP/OTW Programmable

Specifications

Output Power (W): Up to 1500W
Length (Inches): 0
Width (Inches): 0
Height (Inches): 0
Mounting Type: Configurable
Minimum Output Current (A): 0
Maximum Output Current (A): 0
Output Voltage Range (V): 2V to 60V
All Specifications Collapse Specifications

Introducing ConfigPro

Advanced Energy’s Revolutionary Online Power Configurator

With over 3 million configurable power supply combinations, this power solution algorithm optimizes cost and guides you to the ideal solution for MP, IMP, IVS, and MICROMP (UMP) configurable power supply families.
Get Started

Technical Documentation

Title Type
iMP Series Data Sheet (3 MB) Data Sheet
Installation instructions (97 KB) Installation Note
Installation Notes English (172 KB) Installation Note
Installation Notes French (188 KB) Installation Note
Installation Notes German (179 KB) Installation Note
API Library Example for Labview (724 KB) Operating Instructions
DLL Driver and User's Manual (76 KB) Operating Instructions
iMP DLL GUI Example (323 KB) Operating Instructions
iMP1 Operating/Installation Instructions (334 KB) Operating Instructions
iMP4 Operating/Installation Instructions (341 KB) Operating Instructions
iMP8 Operating/Installation Instructions (424 KB) Operating Instructions

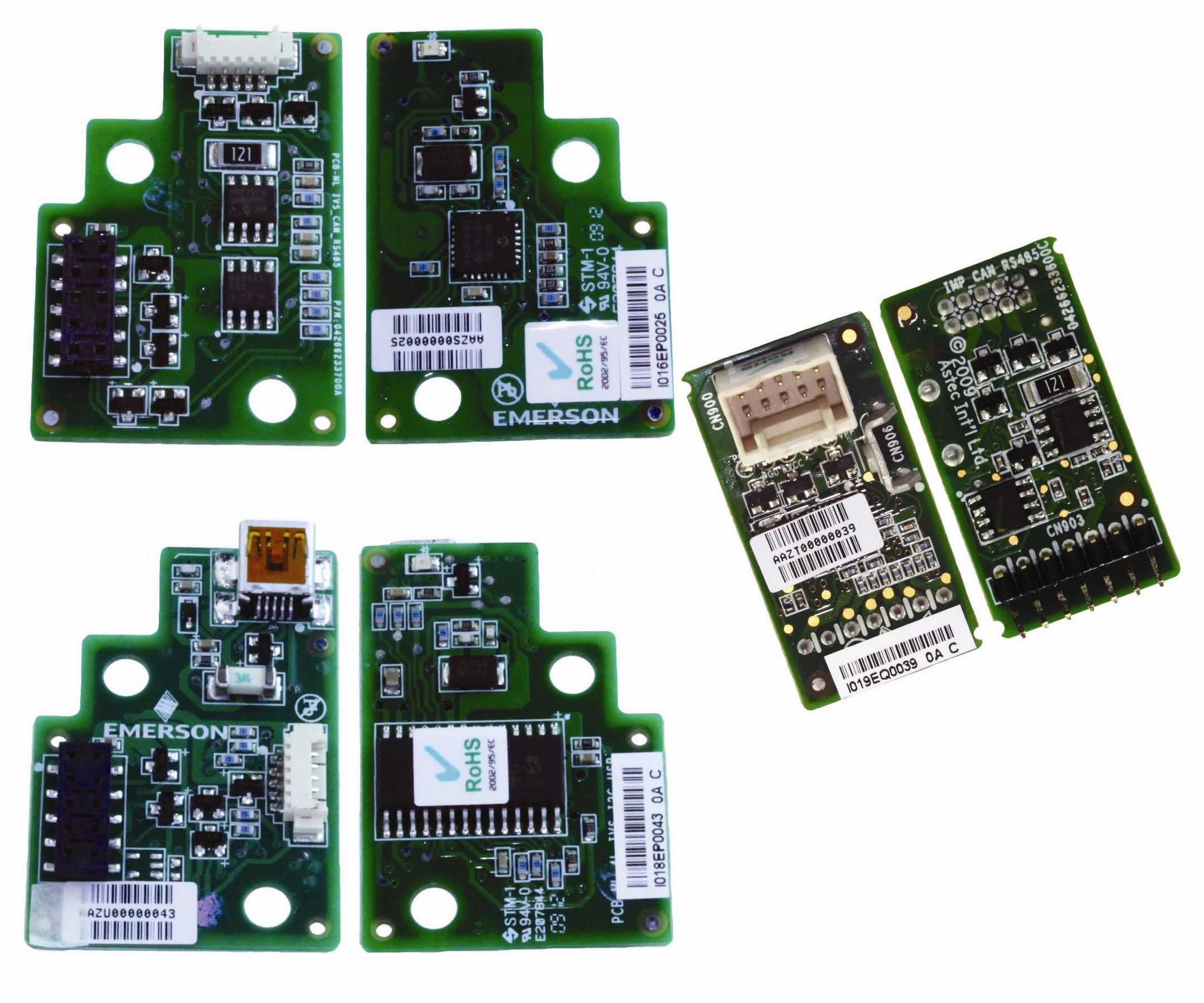

CAN / RS485 Interface Adapter (2 MB) Technical Reference
iMP GUI Software Technical Reference Note (2 MB) Technical Reference
iMP Programming (614 KB) Technical Reference
iMP Protocol (780 KB) Technical Reference
iMP Series I2C Clock Stretching & Timeout Reference Note (674 KB) Technical Reference
iMP Series I2C Protocol (780 KB) Technical Reference
iMP Series Technical Reference Note (11 MB) Technical Reference
iMP User's Manual (65 KB) Technical Reference
Marketing Bulletin_MP Series (603 KB) Technical Reference
Marketing Bulletin_MP Series End of Life (584 KB) Technical Reference
Understanding the real benefits of flexibility and configurability in power systems design - Chinese Version (1 MB) White Paper
Understanding the real benefits of flexibility and configurability in power systems design - English Version (809 KB) White Paper
Understanding the real benefits of flexibility and configurability in power systems design - Korean Version (1 MB) White Paper
