Ultimod Series

Active

Modular Power Supplies With High Efficiency and High Reliability

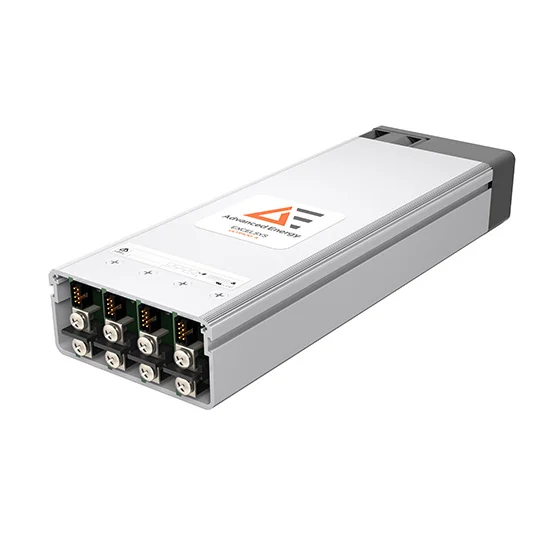

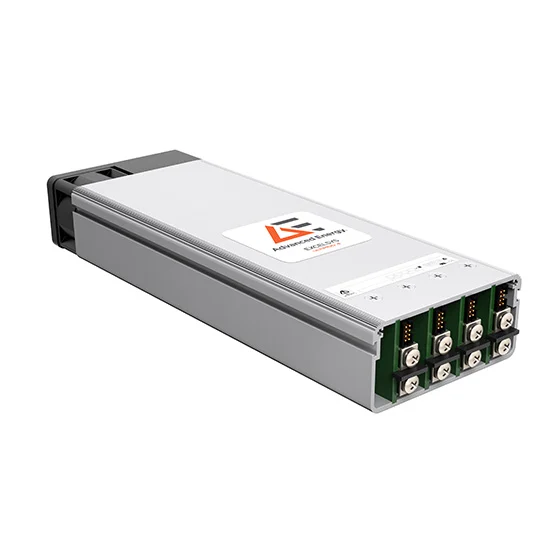

Advanced Energy's Excelsys Ultimod AC-DC modular power supplies combine high reliability, efficiency, and user flexibility to provide low-cost solutions for medical, life science, and industrial applications. The Ultimod series is available in two package sizes. The UX4 offers up to 600 W and accommodates up to four powerMods, and the UX6 delivers up to 1200 W and takes a maximum of six powerMods. With up to 12 isolated output voltages, you can parallel the outputs for higher current and series connect them for voltages as high as 348 VDC. Housed in a compact 1U form factor, the Ultimod comes with IEC 60601-1 (3rd Edition) and IEC 60950 (2nd Edition) safety approvals and SEMI F47 compliance.

Features

92% efficiency
Five-year warranty
SEMI F47 compliant
Up to 12 isolated DC outputs
Low acoustic noise for noise-sensitive applications

Benefits

High Power Density: Up to 1200 W output power in a compact 1U form factor
Full Safety Agency Approvals: UL/EN60950 (second edition) and UL/EN60601-1 (third edition) compliant
User- and Field-Configurable: Suite of output signals and user-configurable functions increase design-in flexibility
High Reliability and Efficiency: 92% efficiency guarantees increased system reliability

Specifications

Output Power (W):	600 to 1200
Length (Inches):	10
Width (Inches):	5
Height (Inches):	1.75
Mounting Type:	Base/Side Mounting
Output Voltage Range (V):	1 to 348
Minimum Output Power (W):	600
Maximum Output Power (W):	1200
Minimum Input Voltage (V):	85
Maximum Input Voltage (V):	264

All Specifications Collapse Specifications

Stock Check

Model Number Samples Buy	Efficiency (%)	Min. Voltage (V)	Max. Voltage (V)	Current (A)	Nominal Voltage (V)	Max Output Power (W)	Number of Outputs	Samples	Buy
UX4 Active, In Stock UltiMod 600W Standard/Medical powerPac, 4 Slots, must be used with powerMods Request Buy	89	85 VAC Input	264 VAC Input			600	8	Request	Buy
UX4-02 Active, In Stock UltiMod 600W Standard/Medical powerPac, Reverse fan, 4 Slots, must be used with powerMods Request Buy	89	85 VAC Input	264 VAC Input			600	8	Request	Buy
UX4-04 Active, In Stock UltiMod 600W Standard/Medical powerPac, Low Leakage, 4 Slots, must be used with powerMods Request Buy	89	85 VAC Input	264 VAC Input			600	8	Request	Buy
UX4-06 Active, In Stock UltiMod 600W Standard/Medical powerPac, Reverse Fan, Low Leakage, 4 Slots, must be used with powerMods Request Buy	89	85 VAC Input	264 VAC Input			600	8	Request	Buy
UX6 Active, In Stock UltiMod 1200W Standard/Medical powerPac, 6 Slots, must be used with powerMods Request Buy	90	85 VAC Input	264 VAC Input			1200	12	Request	Buy
UX6-02 Active, In Stock UltiMod 1200W Standard/Medical powerPac, Reverse fan, 6 Slots, must be used with powerMods Request Buy	90	85 VAC Input	264 VAC Input			1200	12	Request	Buy
UX6-04 Active, In Stock UltiMod 1200W Standard/Medical powerPac, Low Leakage, 6 Slots, must be used with powerMods Request Buy	90	85 VAC Input	264 VAC Input			1200	12	Request	Buy
UX6-06 Active, In Stock UltiMod 1200W Standard/Medical powerPac, Reverse Fan, Low Leakage, 6 Slots, must be used with powerMods Request Buy	90	85 VAC Input	264 VAC Input			1200	12	Request	Buy
UX6D0 Active, In Stock UltiMod 1200W Standard/Medical powerPac, Cable input, 6 Slots, must be used with powerMods Request Buy	90	85 VAC Input	264 VAC Input			1200	12	Request	Buy
Xg1 Active, In Stock PowerMod 1.5V-3.6V/50A , must be used with Xgen/UltiMod powerPac Request Buy	90	1.5	3.6	50	2.5	125	1	Request	Buy
Xg2 Active, In Stock PowerMod 3.2V–6.0V/40A , must be used with Xgen/UltiMod powerPac Request Buy	90	3.2	6	40	5	200	1	Request	Buy
Xg3 Active, In Stock PowerMod 6.0V-15.0V/20A , must be used with Xgen/UltiMod powerPac Request Buy	90	6	15	20	12	240	1	Request	Buy
Xg4 Active, In Stock PowerMod 12.0V-30.0V/10A , must be used with Xgen/UltiMod powerPac Request Buy	90	12	30	10	24	240	1	Request	Buy
Xg5 Active, In Stock PowerMod 28.0V-58.0V/6A , must be used with Xgen/UltiMod powerPac Request Buy	90	28	58	6	48	288	1	Request	Buy
Xg7C Active, In Stock PowerMod 5.0V-28.0V/5A , Conformal Coated, must be used with Xgen/UltiMod powerPac Request Buy	90	5	28	3	24	120	1	Request	Buy
Xg8C Active, In Stock PowerMod Dual 5.0V-28.0/3A , Conformal Coatedmust be used with Xgen/UltiMod powerPac Request Buy	90					144	2	Request	Buy
XgA Active, In Stock PowerMod 10.8V-15.6V/12.5A , must be used with Xgen/UltiMod powerPac Request Buy	90	10.8	15.6	12.5	12	150	1	Request	Buy
XgAC Active, In Stock PowerMod 10.8V-15.6V/12.5A , Conformal Coated, must be used with Xgen/UltiMod powerPac Request Buy	90	10.8	15.6	12.5	12	150	1	Request	Buy
XgB Active, In Stock PowerMod 19.2V-26.4V/8.3A , must be used with Xgen/UltiMod powerPac Request Buy	90	19.2	26.4	8.3	24	200	1	Request	Buy
XgC Active, In Stock PowerMod 28.8V-39.6V/5.6A , must be used with Xgen/UltiMod powerPac Request Buy	90	28.8	39.6	5.6	24	200	1	Request	Buy
XgCC Active, In Stock PowerMod 28.8V-39.6V/5.6A , Conformal Coated, must be used with Xgen/UltiMod powerPac Request Buy	90	28.8	39.6	5.6	24	200	1	Request	Buy
XgD Active, In Stock PowerMod 38.5V-50.4V/4.2A , must be used with Xgen/UltiMod powerPac Request Buy	90	38.5	50.4	4.2	48	200	1	Request	Buy
XgE Active, In Stock PowerMod 5.0V-28.0V/5A , must be used with Xgen/UltiMod powerPac Request Buy	90	5	28	3	24	120	1	Request	Buy
XgEC Active, In Stock PowerMod 5.0V-28.0V/5A , Conformal Coated, must be used with Xgen/UltiMod powerPac Request Buy	90					144	2	Request	Buy
XgF Active, In Stock PowerMod Dual 5.0V-28.0/3A , must be used with Xgen/UltiMod powerPac Request Buy	90					144	2	Request	Buy
XgGC Active, In Stock PowerMod 1.5V-3.6V/40A , Conformal Coated, must be used with Xgen/UltiMod powerPac Request Buy	90	1.5	3.6	50	2.5	100	1	Request	Buy
XgHC Active, In Stock PowerMod 3.2V–6.0V/36A , Conformal Coated, must be used with Xgen/UltiMod powerPac Request Buy	90	3.2	6	40	5	180	1	Request	Buy
XgMC Active, In Stock PowerMod Wide Trim 1.0V-6.0V, Conformal Coated, must be used with Xgen/UltiMod powerPac Request Buy	90	1	6	40	5	200	1	Request	Buy
XgNC Active, In Stock PowerMod Wide Trim 1.0V-15.0V, Conformal Coated, must be used with Xgen/UltiMod powerPac Request Buy	90	1	15	20	12	240	1	Request	Buy
XgP Active, In Stock PowerMod Wide Trim 1.0V-30.0V, must be used with Xgen/UltiMod powerPac Request Buy	90	1	30	10	24	240	1	Request	Buy
XgPC Active, In Stock PowerMod Wide Trim 1.0V-30.0V, Conformal Coated, must be used with Xgen/UltiMod powerPac Request Buy	90	1	30	10	24	240	1	Request	Buy
XgQ Active, In Stock PowerMod Wide Trim 1.0V-58.0V, must be used with Xgen/UltiMod powerPac Request Buy	90	1	58	6	48	288	1	Request	Buy
XgQC Active, In Stock PowerMod Wide Trim 1.0V-58.0V, Conformal Coated, must be used with Xgen/UltiMod powerPac Request Buy	90	1	58	6	48	288	1	Request	Buy
XgR Active, In Stock PowerMod Reactive Load 12.0V-30.0V, must be used with Xgen/UltiMod powerPac Request Buy	90	12	30	10	24	240	1	Request	Buy
XgRC Active, In Stock PowerMod Reactive Load 12.0V-30.0V, Conformal Coated, must be used with Xgen/UltiMod powerPac Request Buy	90	12	30	10	24	240	1	Request	Buy
XgT Active, In Stock PowerMod Reactive Load 28.0-58.0V, must be used with Xgen/UltiMod powerPac Request Buy	90	28	58	6	48	288	1	Request	Buy
XgTC Active, In Stock PowerMod Reactive Load 28.0-58.0V, Conformal Coated, must be used with Xgen/UltiMod powerPac Request Buy	90	28	58	6	48	288	1	Request	Buy
XP1 Active, In Stock Xgen/UltiMod Parallel Links Request Buy								Request	Buy
XS1 Active, In Stock Xgen/UltiMod Series Links Request Buy								Request	Buy

Accessories

CoolXPMBus GUI

The CoolX series PMBus interface facilitates operating parameter communications (e.g. output voltage, output current, and internal temperature) with other PMBus enabled devices.

Technical Documentation

Title	Type
Audible Noise in Switch Power Supply Application Note (199 KB)	Application Note
Driving Halogen Lamps Application Note (275 KB)	Application Note
Interpretation of MTBF Application Note (273 KB)	Application Note
Low Leakage Medical Power Supplies Application Note (242 KB)	Application Note
Medical Imaging Application Note (261 KB)	Application Note
Methods of Protection, MOOPs and MOPPs on the Xgen and UltiMod Platforms Application Note (169 KB)	Application Note
Reinforced Isolation Testing on a Power Supply Application Note (3 MB)	Application Note
Semi F47-0706 Compliance: Voltage Sag Immunity Application Note (96 KB)	Application Note
Thermal Management Application Note (180 KB)	Application Note
Using the UltiMod to Charge Capacitors for Laser Driving Applications Report Application Note (852 KB)	Application Note
Using the Xgen and UltiMod Platforms in Harsh Environments and the Use of Conformal Coating Application Note (158 KB)	Application Note
Vtrim and Paralleling Application Note (478 KB)	Application Note
Embedded Power (5 MB)	Brochure
Low Voltage Medical Power Supplies Brochure (1 MB)	Brochure
Medical Power Supplies Brochure (11 MB)	Brochure
Rapid Modification & Value-Added Engineering Solutions (2 MB)	Brochure
DIN-Rail Bracket (998 KB)	Data Sheet
UltiMod and Xgen 2x Standard 2x Dual IEC STEP File (15 MB)	Drawing
UltiMod and Xgen 3x Standard 3x Dual IEC Hi-Speed Fan STEP File (17 MB)	Drawing
UltiMod and Xgen 3x Standard 3x Dual IEC STEP File (16 MB)	Drawing
UltiMod and Xgen 4-Slot STEP File (2 MB)	Drawing
UltiMod and Xgen 4x Standard IEC Hi-Speed Fan STEP File (5 MB)	Drawing
UltiMod and Xgen 4x Standard Scew Terminal STEP File (5 MB)	Drawing
UltiMod and Xgen 6-Slot STEP File (2 MB)	Drawing
UltiMod and Xgen 6x Standard IEC Hi-Speed Fan STEP File (7 MB)	Drawing
UltiMod and Xgen Xmod 1 STEP File (301 KB)	Drawing
Xg 8 Modules STEP File (10 MB)	Drawing
AC/DC Modular Designer Manual (4 MB)	Manual
Ultimod Instruction Manual (1 MB)	Manual
CoolX Pmbus GUI (275 KB)	Software
Designing for a Medical Application: Choosing the Right Power Partner White Paper (238 KB)	White Paper
Redundant Power Supplies in Mission-Critical Applications White Paper (671 KB)	White Paper

Compare

Model	Ultimod	CoolX1000	Coolx600
Length (Inches)	10	10	8.5
Width (Inches)	5	6.5	4.5
Height (Inches)	1.75	1.539	1.539
Maximum Output Power (W)	1200	1000	600
