artesyn™
CSU2000ADC Series
Active
2000 W Distributed Power

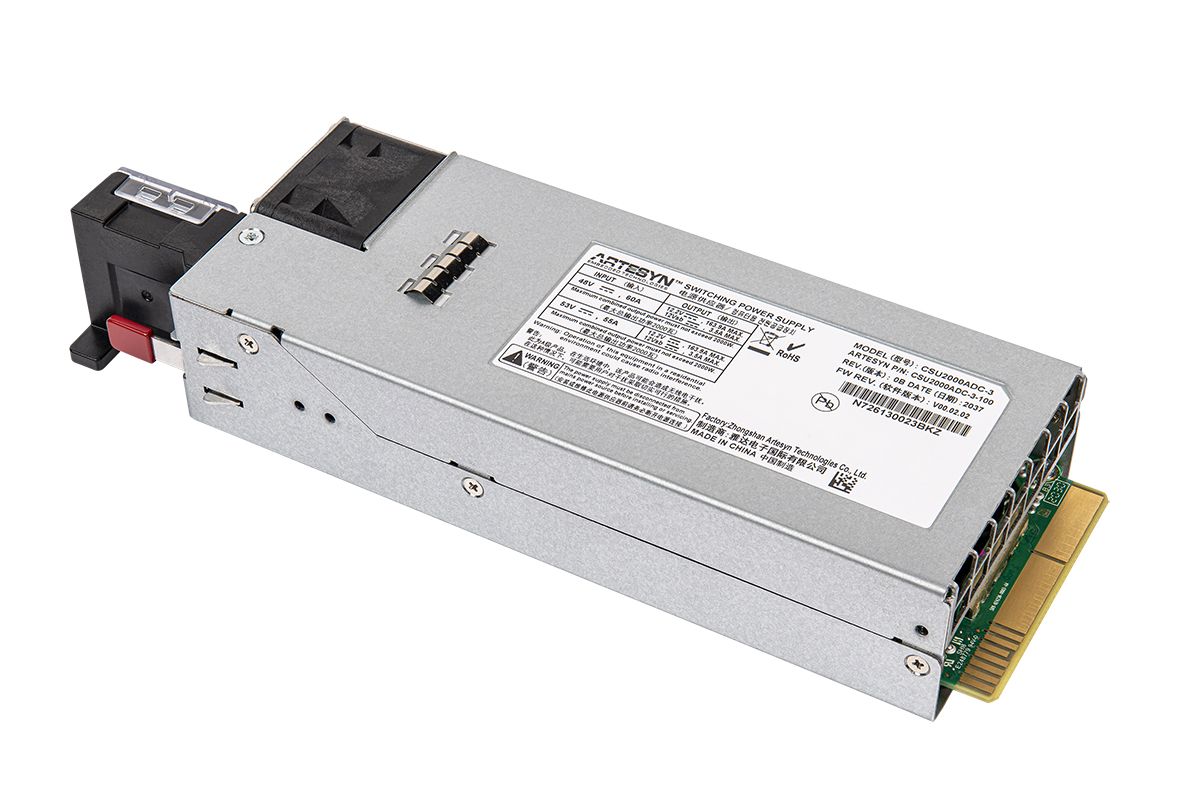

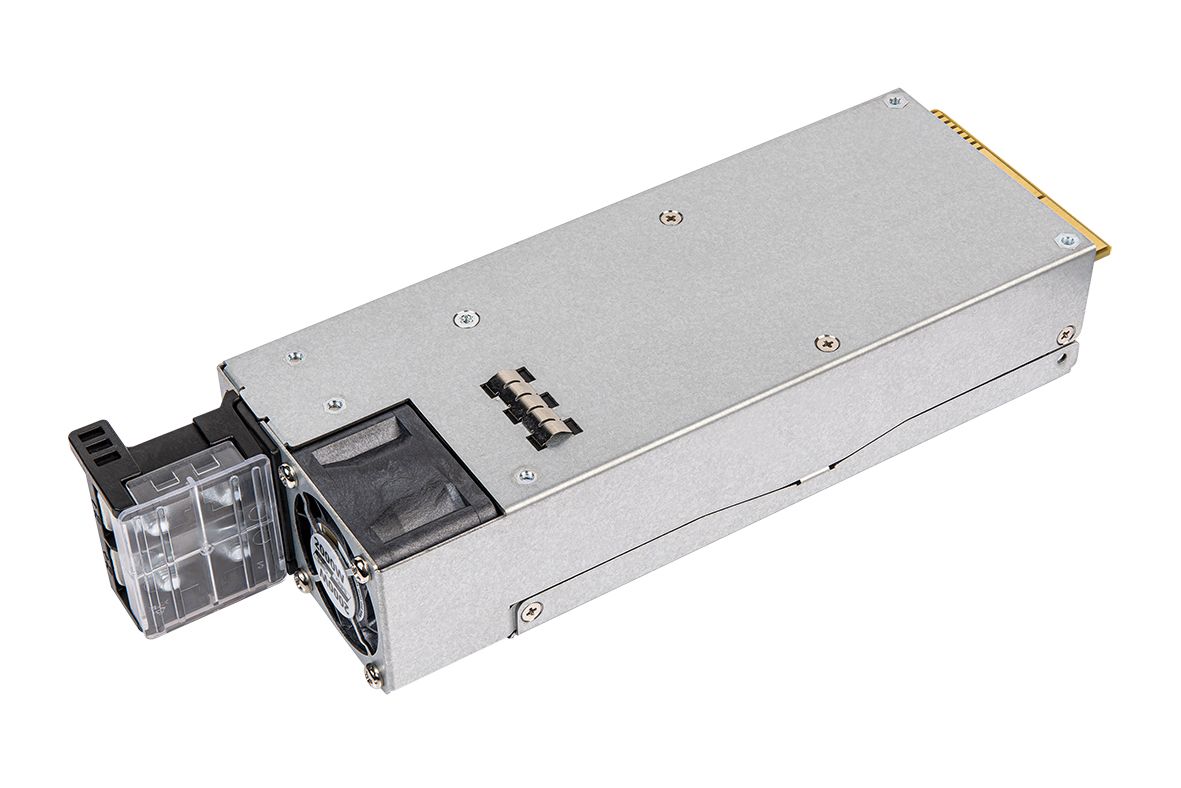

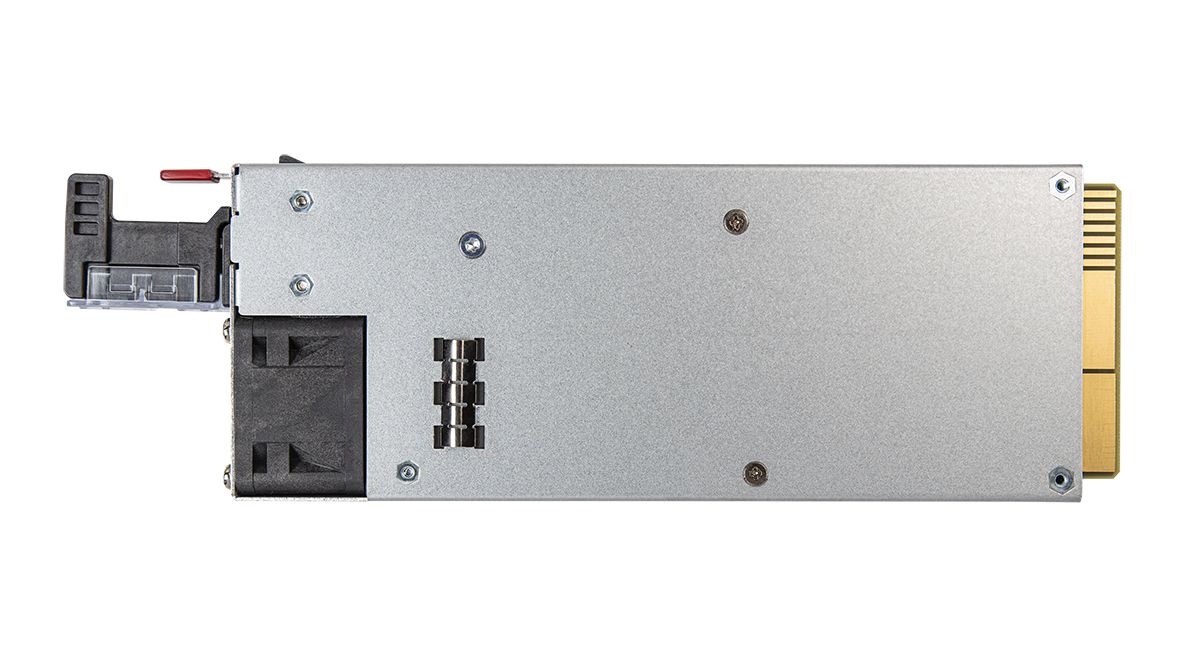

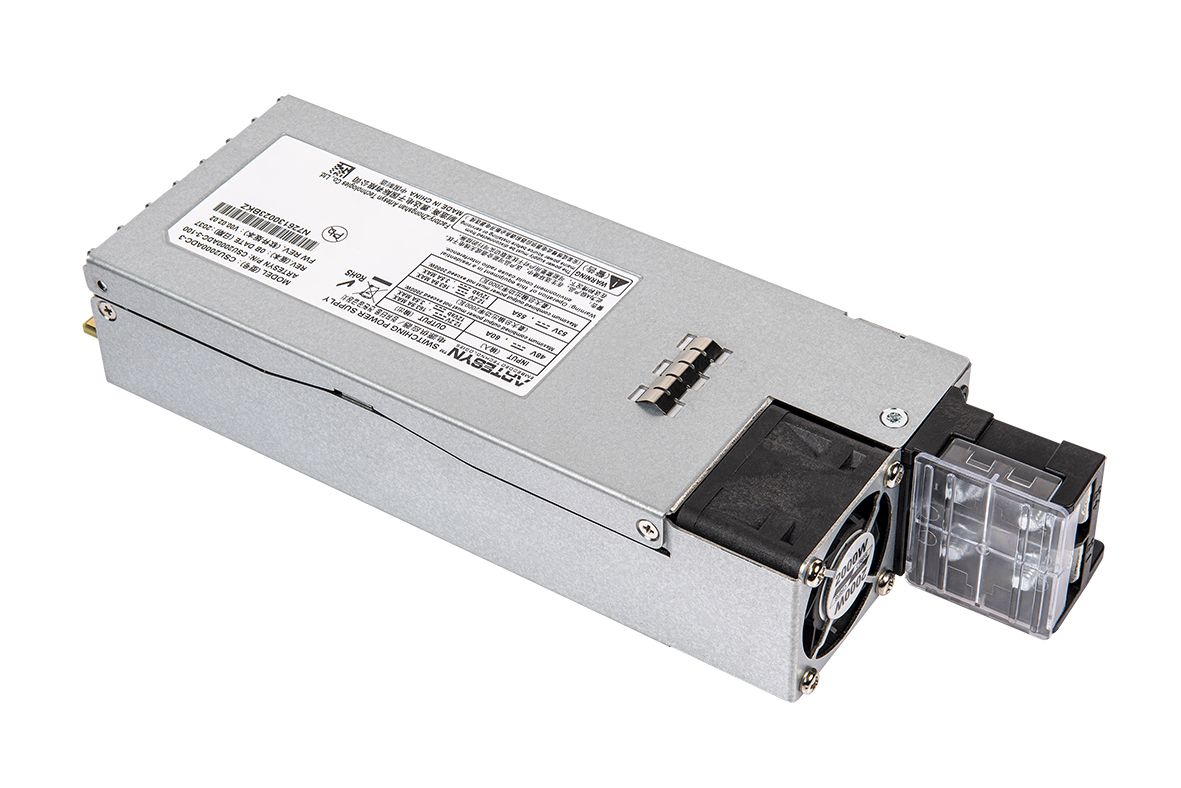

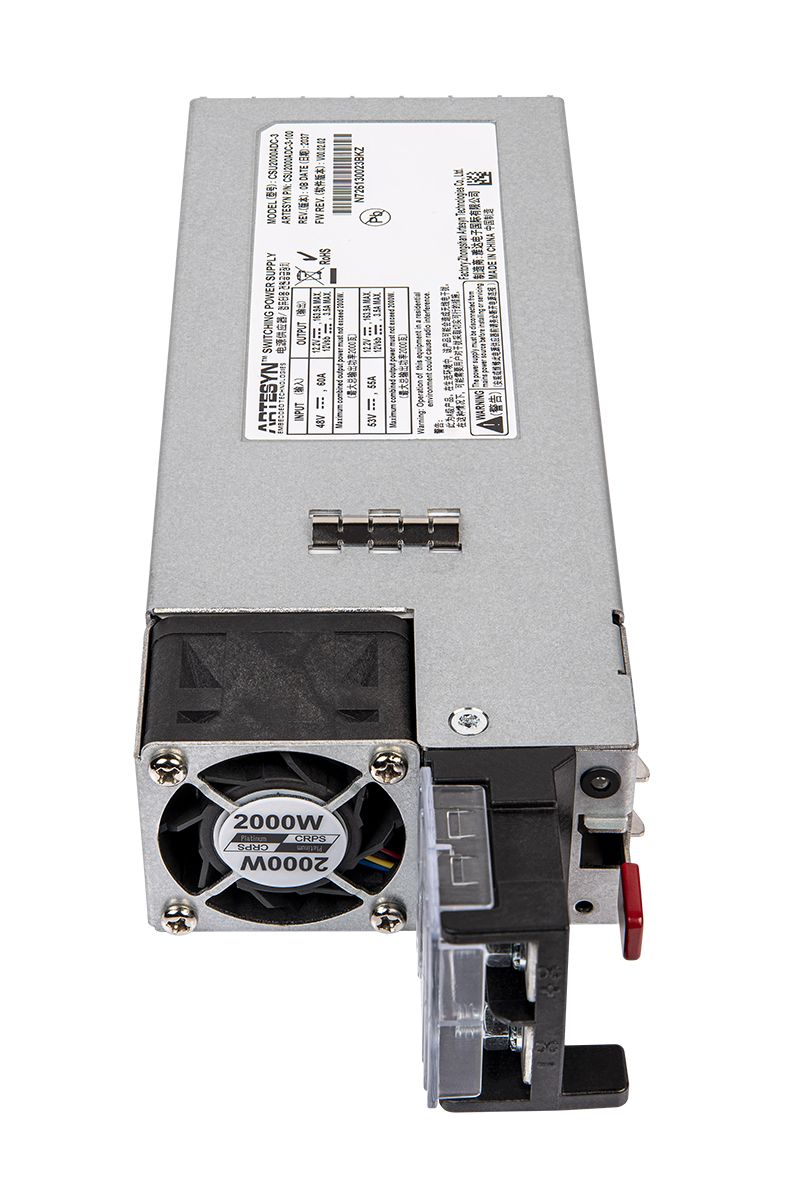

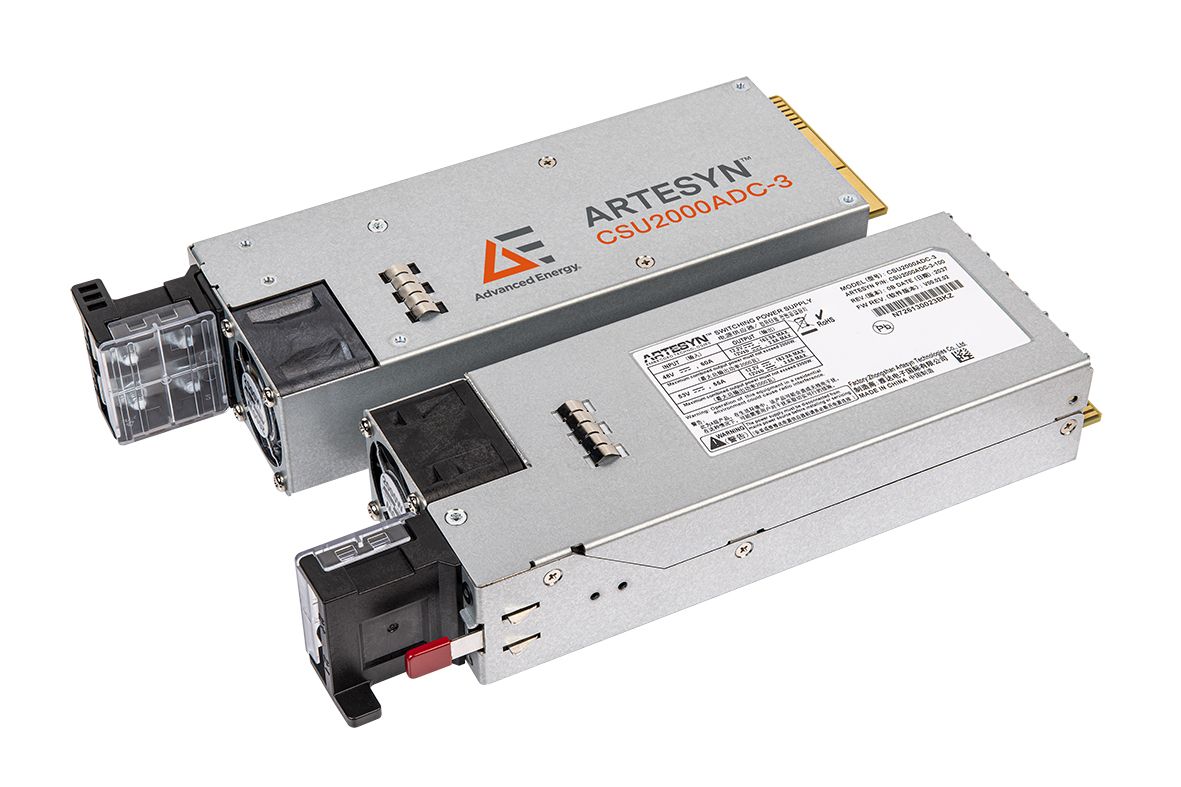

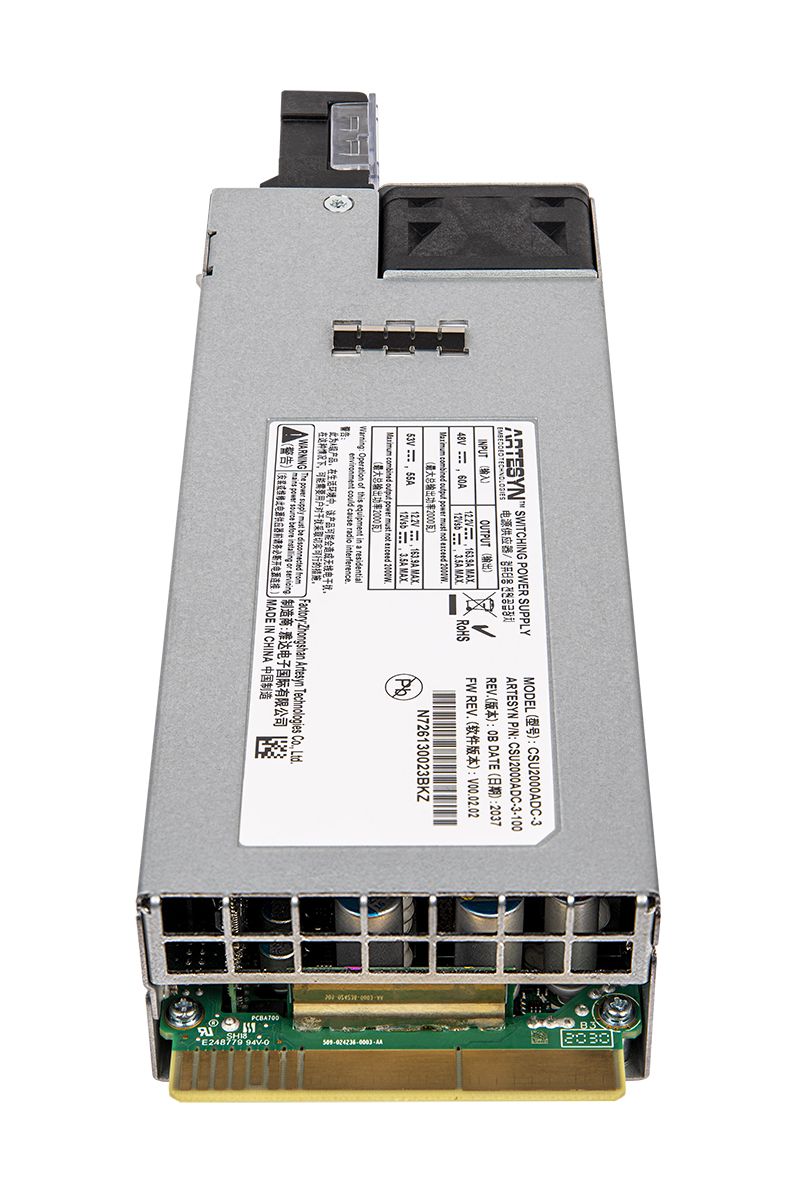

Advanced Energy's Artesyn CSU2000ADC is housed in the industry standard 1U x 73.5 x 185 mm form factor featuring -48 VDC input voltage. This DC-DC power supply belongs to the CRPS family of products, and matches the mechanical form and fit of Advanced Energy's AC-DC power supplies. The common form, fit, and function for all products in the family provides a path for power capacity flexibility, future proofing your system designs.
Features
- 1U power supply
- 2000 W output power
- High density design: 62 W/in3
- N+M redundant N+M ‰¤ 4
- Input Range -40 to -72Vdc
- Main Output 12.2 V
- Main Output Current 163.90 A
- Standby Output 12.0 V
- Standby Output Current 3.5 A
- Max Continuous Power 2000W
- Load Sharing Active load sharing within 6% of full load rating
Benefits
- Accurate input power reporting
- Active current sharing
- Compatible with Artesyn"™s Universal
- Full digital control
- High power and short form factor
- Hotpluggable
- Inrush current control
- PMBus GUI
- PMBus® compliant
- Reverse airflow option
- Uses twohole terminal lugs to handle high input current
- Power Good Active High
- Remote Enable Active Low
- Digital Communication PMBus
Specifications
| Output Power (W): | 2000 |
|---|---|
| Length (Inches): | 7.28 |
| Width (Inches): | 2.89 |
| Height (Inches): | 1.57 |
| Mounting Type: | Rack-mount |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 163.9 |
| Output Voltage Range (V): | 11.4V to 12.8V |
Accessories

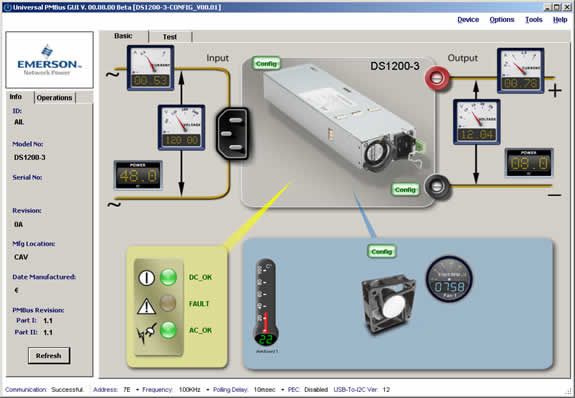

Universal PMBus GUI Software Package
The all new universal PMBus GUI software package provides power engineers with a simple – yet functionally powerful – user interface that delivers world-class control flexibility over their digitally controlled power conversion products.
