artesyn™

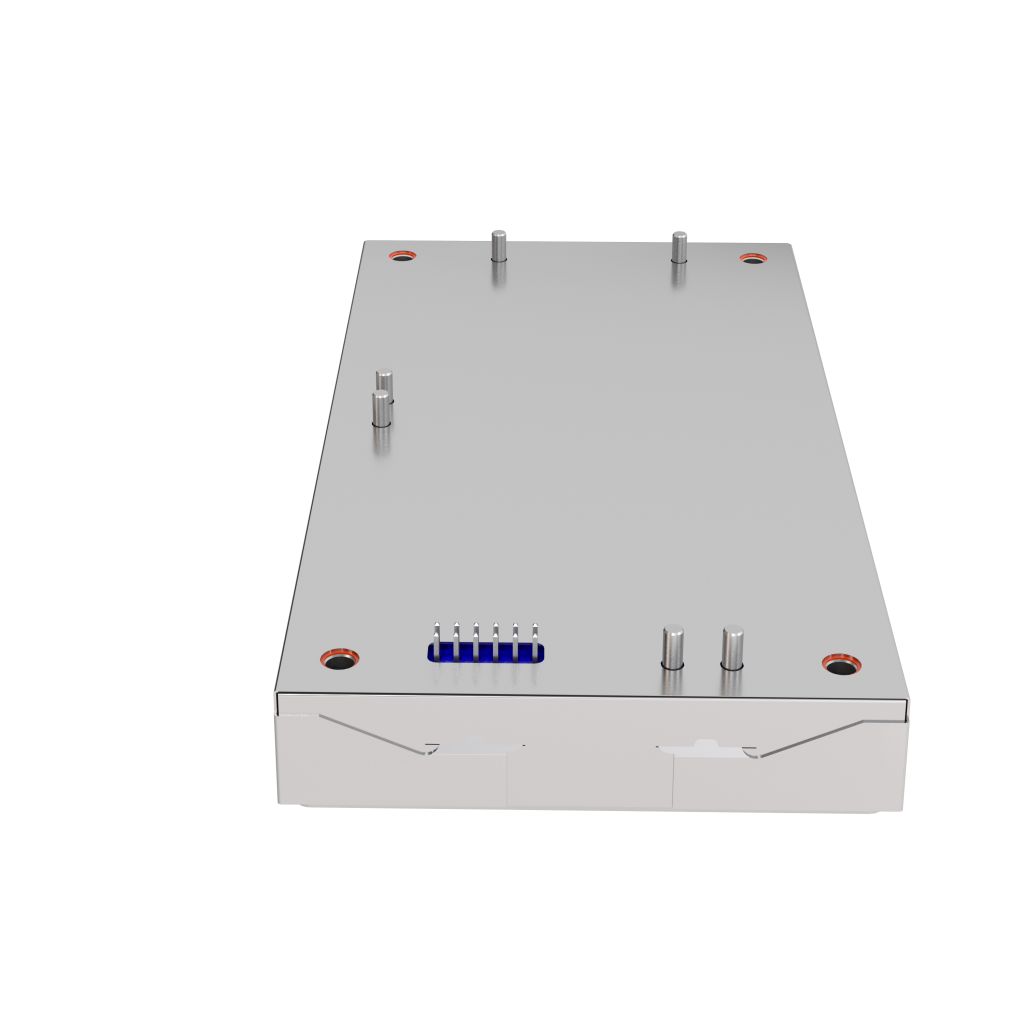

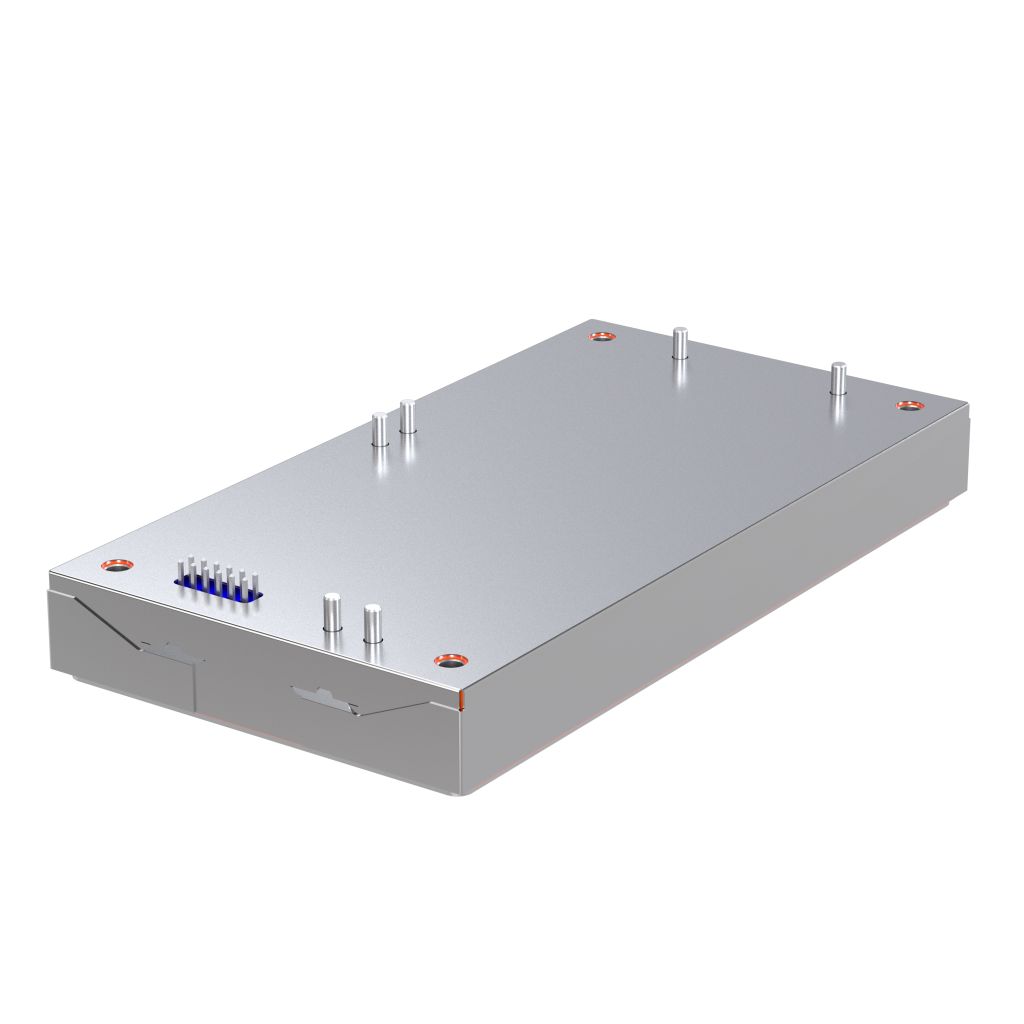

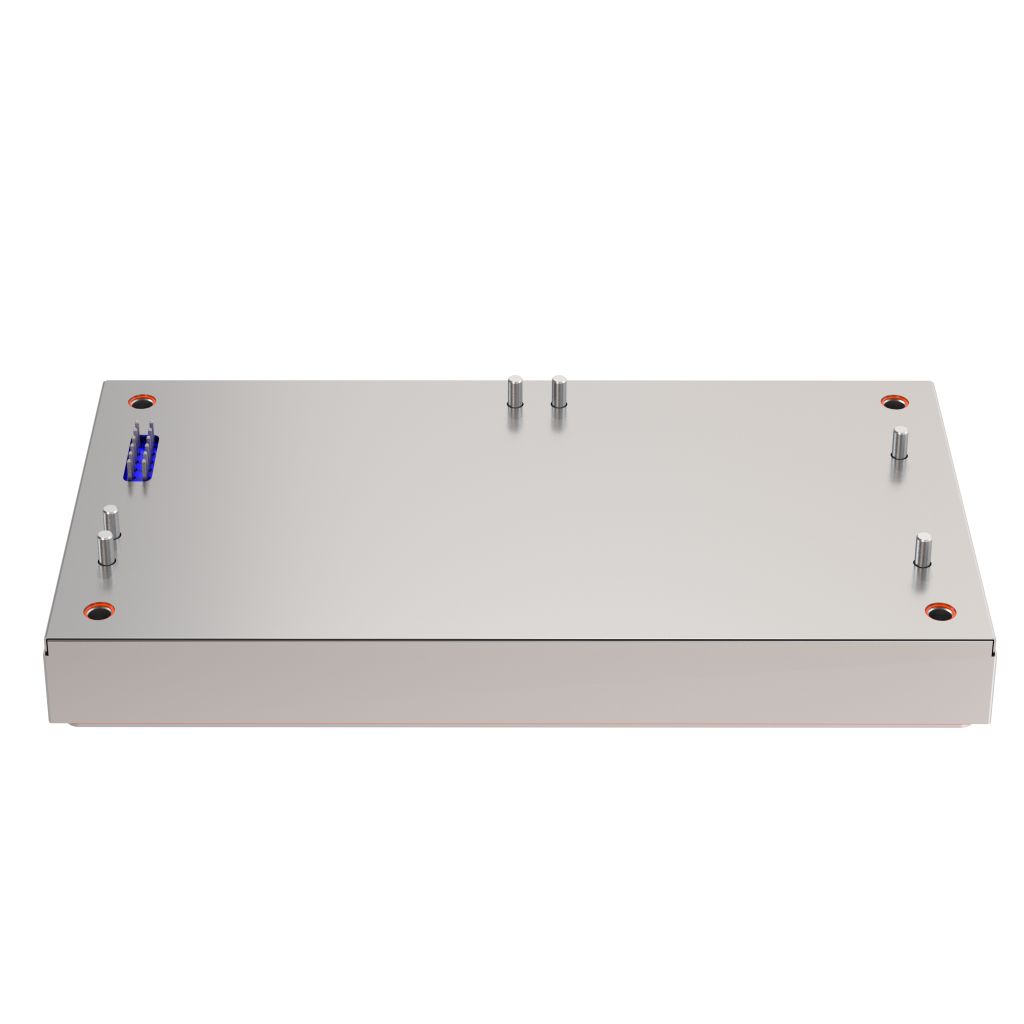

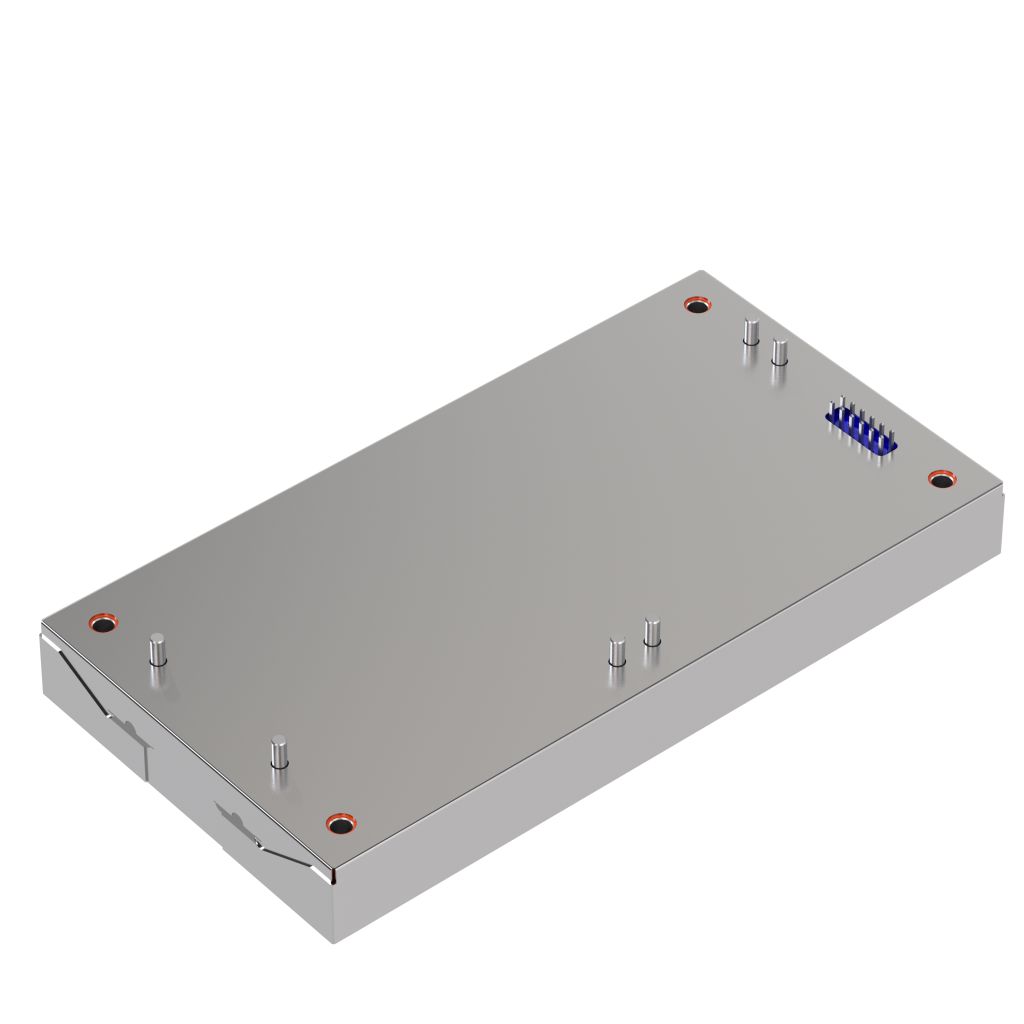

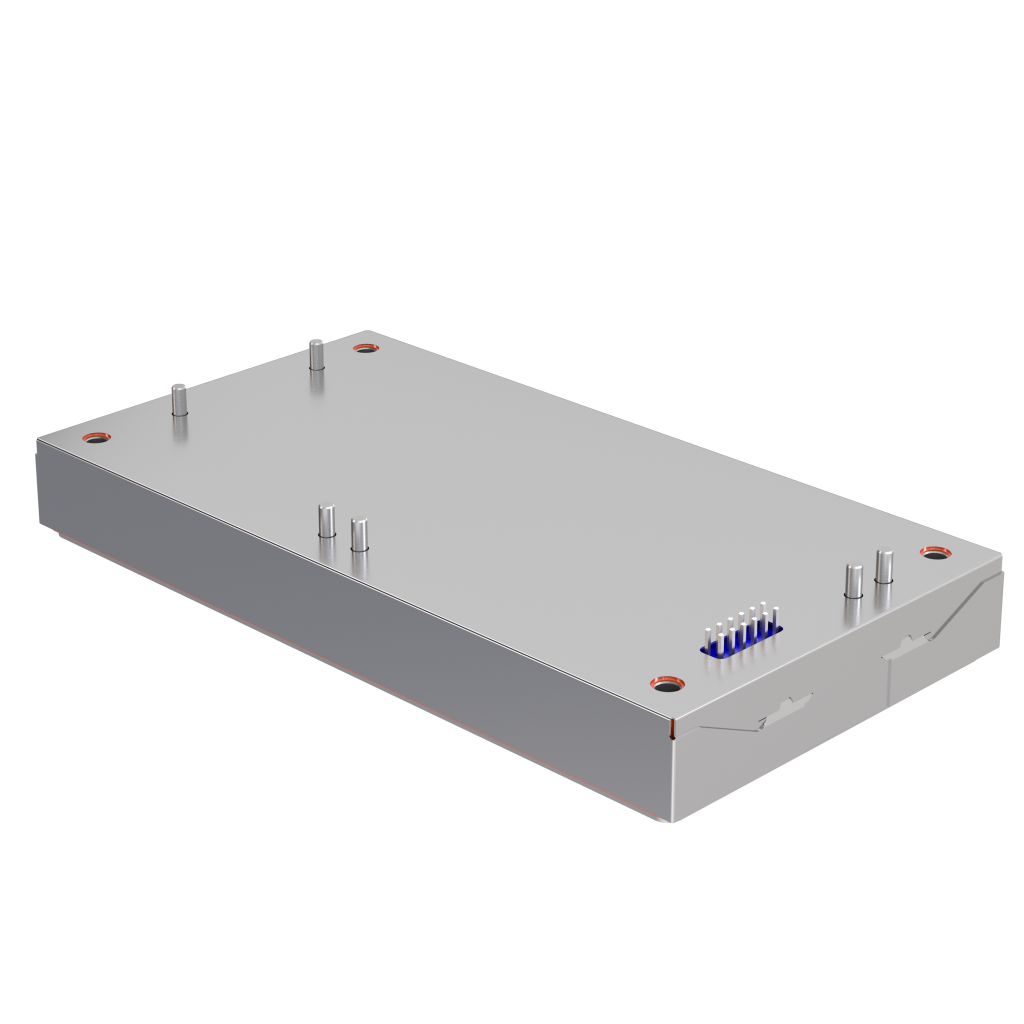

AIF500-CASE-KIT for Radiated-EMI Noise Screening
Active
Protect external circuitry from EMI. The AIF-CASE-KIT includes both an insulator sheet and an EMI shield to use in conjunction with any AIF500-prefix full-brick sized modules. The kit provides radiated-EMI noise screening for any circuitry in close proximity to any AIF500 module. Both the insulator and screen are to be fitted on assembly of the unit to the host application PCB.
Features
- Metal casing kit for all variants of AIF500 AC-DC bricks
- Shield and insulator provided
- Insulator material 94VTM-0
- To be placed before soldering
- Provides additional radiated EMI screening function
Benefits
- Improves Radiated EMI performance of the AIF500 modules
- Prevents EMI from manifesting in external equipment by isolating EMI with a metal shield
- Reduces the emissions from the unit and prevents them from being absorbed by surrounding tracks and components
Specifications
| Length (Inches): | 4.6 |
|---|---|
| Width (Inches): | 2.42 |
| Height (Inches): | 0.5 |
| Mounting Type: | BMP Case |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 0 |
| Minimum Output Power (W): | 0 |
| Maximum Output Power (W): | 0 |
