AIQ00ZPFC Series
Active
Quarter Brick PFC Modules

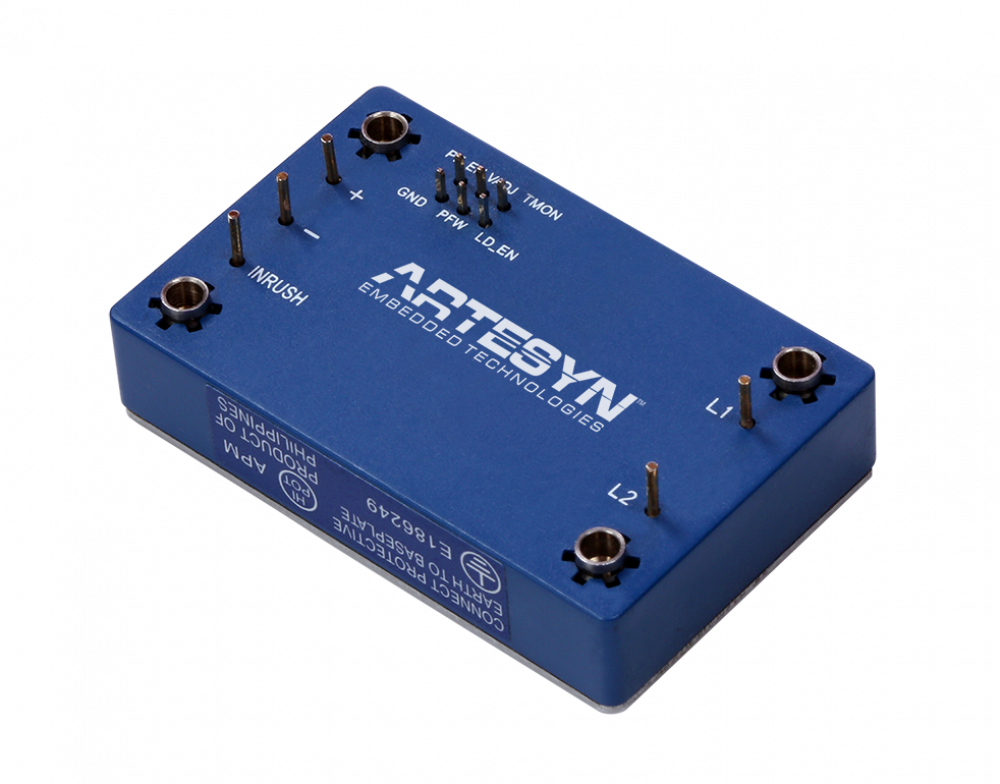

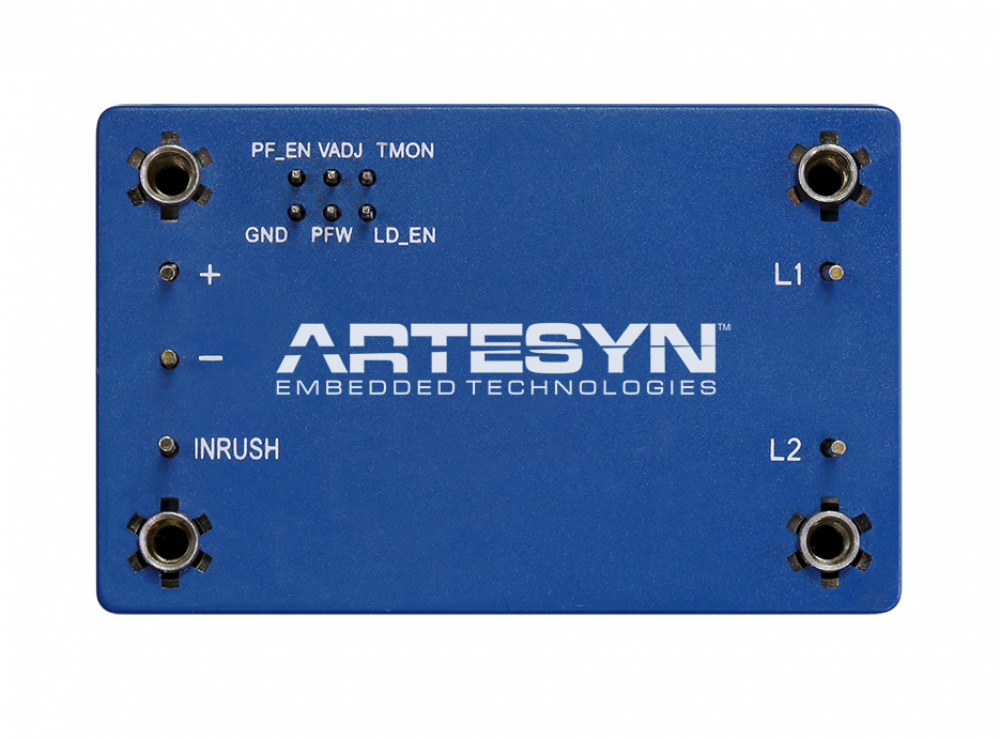

The AIQ00ZPFC series quarter-brick power factor correction module accepts a 100 to 122 VAC input and presents a unity power factor. It accommodates AC supply frequencies in the range 360 to 800 Hz. Rated at 75 W, the module offers a power conversion efficiency of up to 90% and provides a typical output voltage of 393 VDC. Based on an encapsulated design that incorporates a thermal baseplate, the AIQ00ZPFC series PFC module accommodates a baseplate operating temperature range of -20 to 100˚C. The module has an industry-standard 1.45 x 2.27 inch (36.8 x 57.9 mm) footprint and an installed height of only 0.54 inch (13.9 mm). Advanced Energy’ AIQ00ZPFC series PFC modules comply with the RTCA-DO-160 avionics standard.
Features
- 100°C baseplate operating temperature
- Civil/Aviation supply frequency range 360800 Hz
- High efficiency up to 90%
- RTCADO 160 Compliant
- Up to 75 W output power
Benefits
- Enable output to control DCDC Converter
- Internal active switch bypassing external inrush current components
- Negative enable function
- Unity power factor
Specifications
| Output Power (W): | 75 |
|---|---|
| Input Voltage (V): | 100 to 122 |
| Operating Temperature (°C): | -20 to +100 |
| Length (Inches): | 2.3 |
| Width (Inches): | 1.45 |
| Height (Inches): | 0.5 |
| Mounting Type: | BMP; Through Hole |
| Minimum Output Current (A): | 0 |
