SL Power™

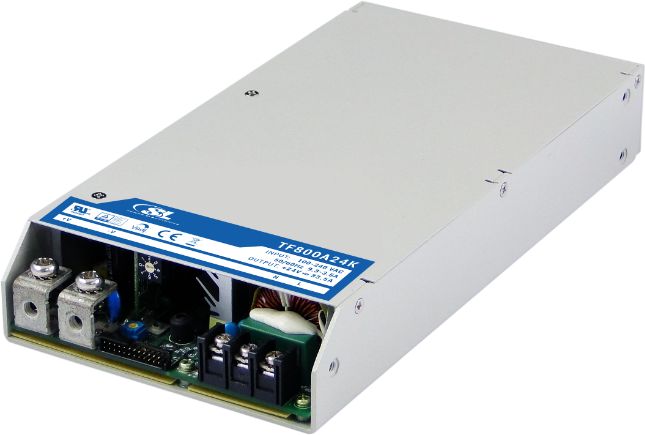

TF800 Series
Active
800 W Single Output Industrial Grade
Advanced Energy’s SL Power TF800 series of industrial grade AC-DC fan-cooled power supply comprises seven output models. All models feature industrial safety approvals and accept a universal input of 90 to 264 VAC. These compact switch-mode power supplies feature output overvoltage, overtemperature, overload protection, with short-circuit protection on all output models. TF800 series power supplies provide up to 800 W of output power with remote setting multiple PSU and global control function.
Features
- 800 W Fan-cooled (Load & Temperature Controlled)
- Programmable output Voltage (0% to 105%)
- Programmable output Current (0% to 105%)
- Selectable +5 V / 0.5 A or +9 V / 0.3 A auxiliary output
Benefits
- Certified to EN/IEC/cUL62368-1
- PMBus and Control Functionality
- Digital Monitoring Features
- Forced current sharing at parallel operation
- Constant current limit
- Remote setting multiple PSU via RS232, RS485 & I²C
- Power OK signal
- Remote ON / OFF, Remote sense function
- Protection: OVP, OLP, OTP, Fan failure
Specifications
| Output Power (W): | 800 |
|---|---|
| Length (Inches): | 9.8 |
| Width (Inches): | 5 |
| Height (Inches): | 1.6 |
| Mounting Type: | Embedded PSU |
| Minimum Output Current (A): | 13.4 |
| Maximum Output Current (A): | 66.7 |
| Output Voltage Range (V): | 12V to 60V |
Technical Documentation
Technical Videos
TF Series High Power
Feb 13, 2024
Advanced Energy’s SL Power TF family was designed for power-hungry applications such as automatic test, semiconductor test, and industrial imaging just to name a few. These applications require power supplies that are flexible, compact, and reliable, beyond simple considerations of input and output.
