artesyn™
AD24 (Level VI) Series
Active
24 W AC-DC Power Adapters

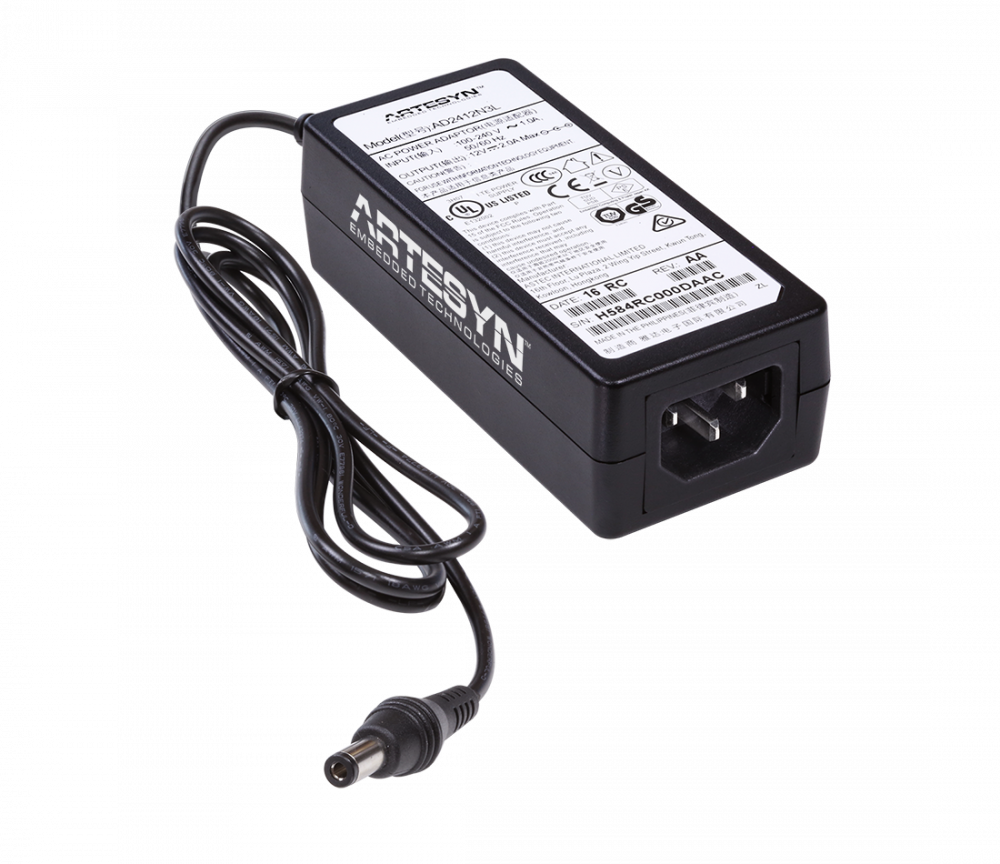

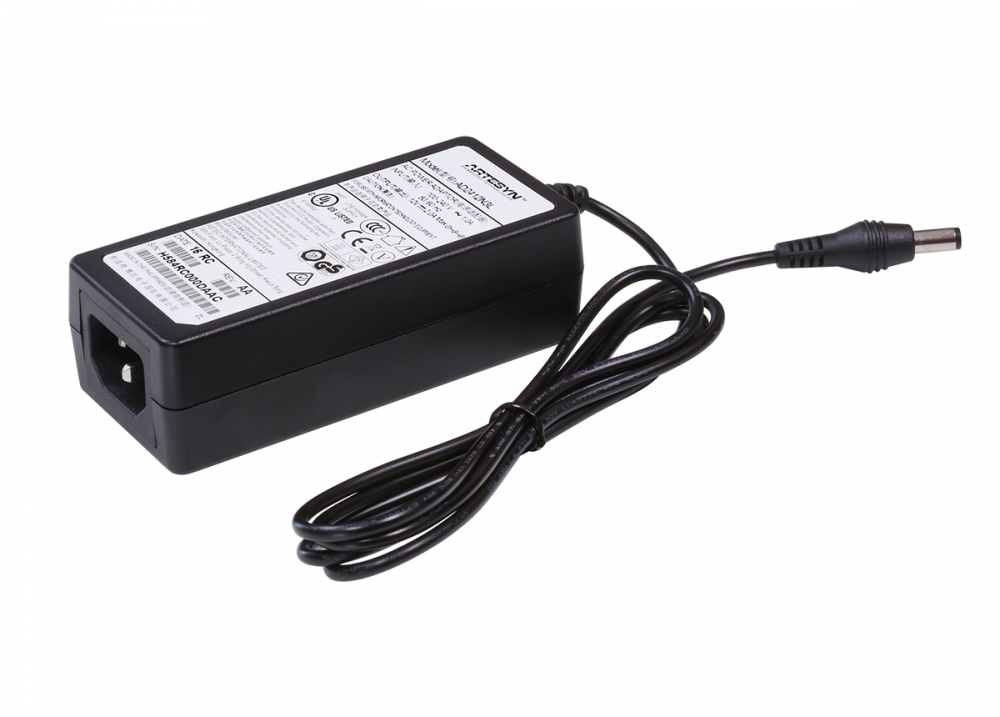

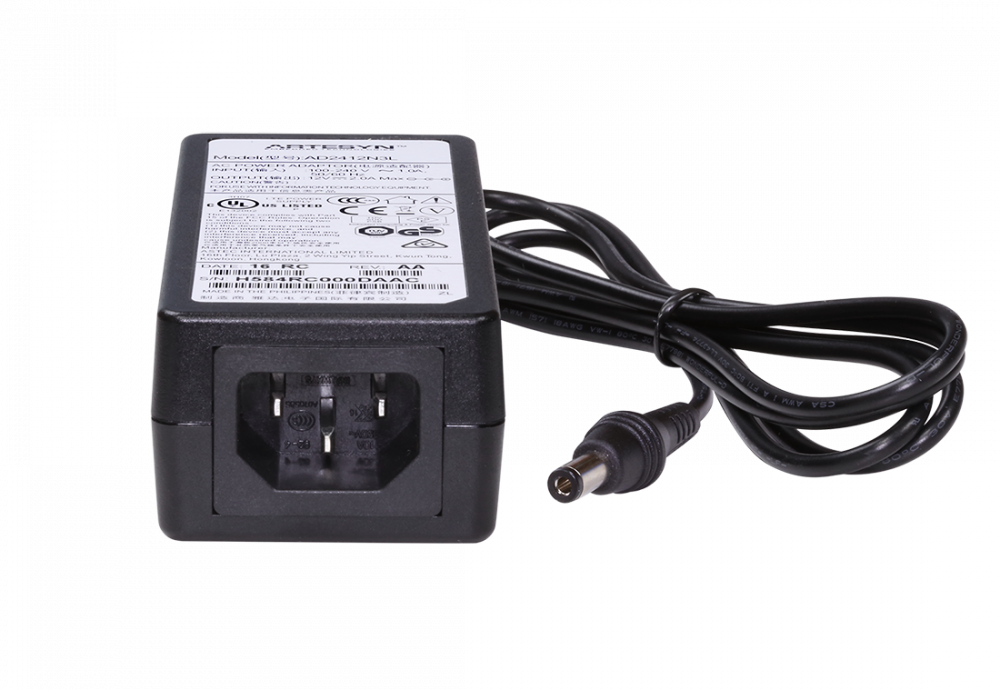

The new AD2412N3L-VI is a freestanding external 24 W AC-DC power adapter that uses high efficiency (87% typical) switch-mode technology to comply with European CoC v.5 Tier 2 and Department of Energy Level VI efficiency standards. It provides a flexible power solution with a compact form factor for a wide variety of portable and desktop applications including instrumentation, telecommunications, test and measurement systems and computer peripherals. The AD2412N3L-VI has a fully regulated 12 VDC output that can deliver up to 2 A. Standard features include an AC input fuse and an LED power indicator. Other features include protection against overvoltage and overcurrent conditions. The operating temperature range is extended down to -20°C, making it suitable for more demanding application environments.
Features
- Built in EMI filter (CISPR 22 Class B)
- Complies with European CoC v.5 Tier 2 & US DoE Level VI efficiency requirements
- EN6100032 compliant
- IEC320 AC input receptacle 3 pin (type C14)
- Meets K.21 ITUT Enhanced Surge requirement
- Operating temperature range 20 °C to +50 °C ambient
Benefits
- AC input fuse
- CE Mark EMC & LVD
- Fully regulated output
- High efficiency
- High MTBF
- LED power good indicator
- Overcurrent, overvoltage, and thermal protections
- Universal AC input
Specifications
| Output Power (W): | 24 |
|---|---|
| Length (Inches): | 4.13 |
| Width (Inches): | 1.89 |
| Height (Inches): | 1.3 |
| Mounting Type: | External Adapter |
| Minimum Output Current (A): | 0.1 |
| Maximum Output Current (A): | 2 |
| Output Voltage Range (V): | 12V to 12V |
