SL Power™

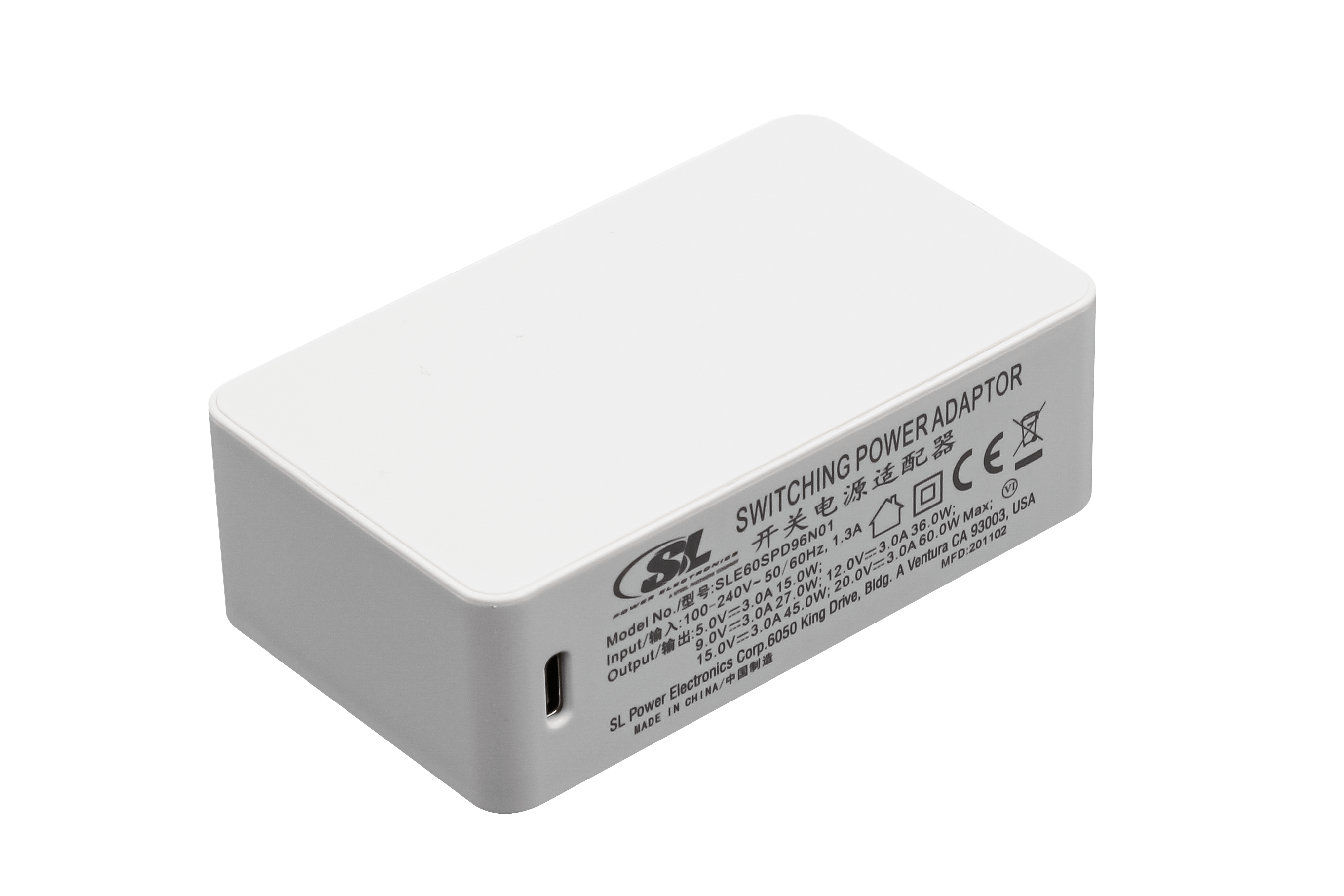

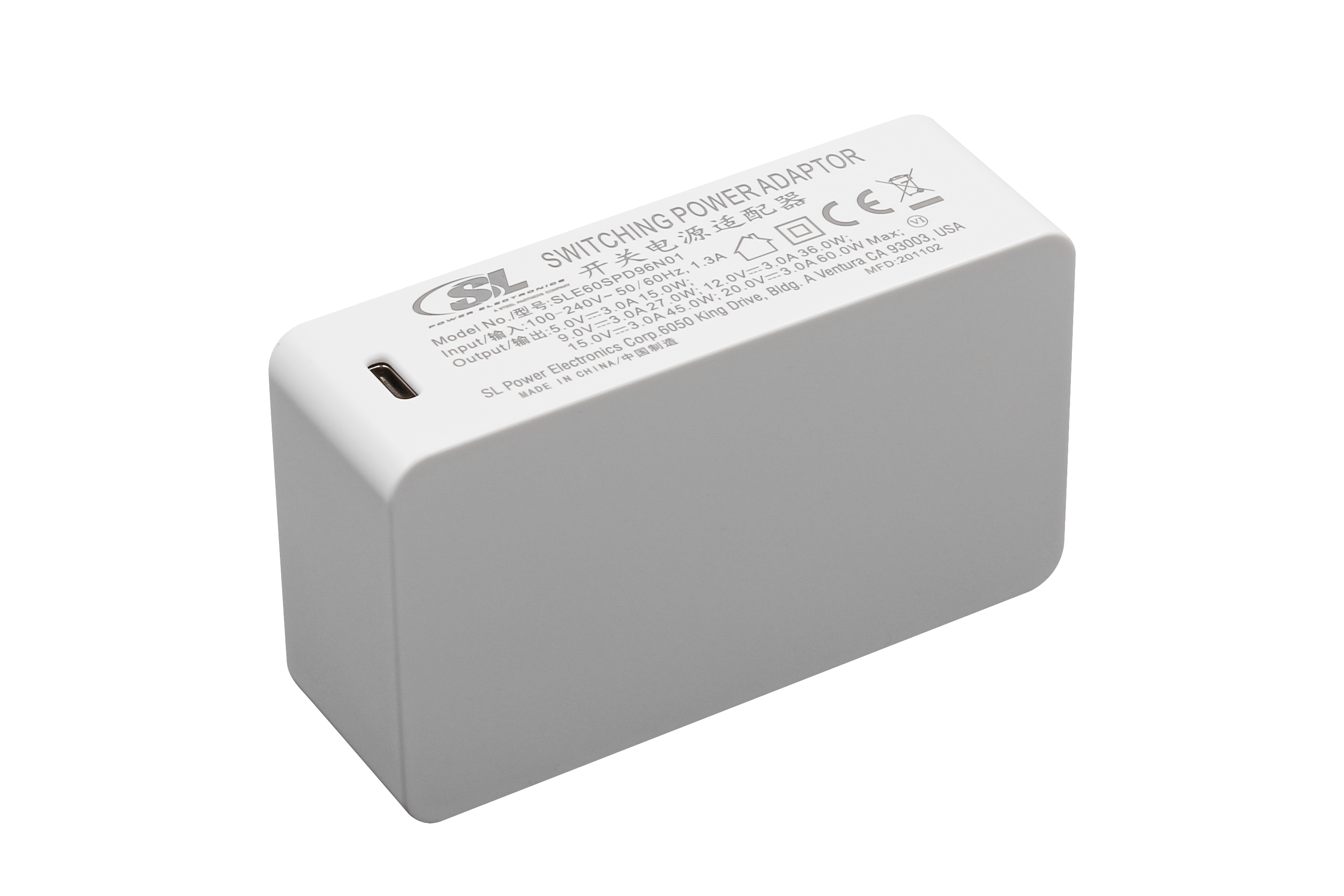

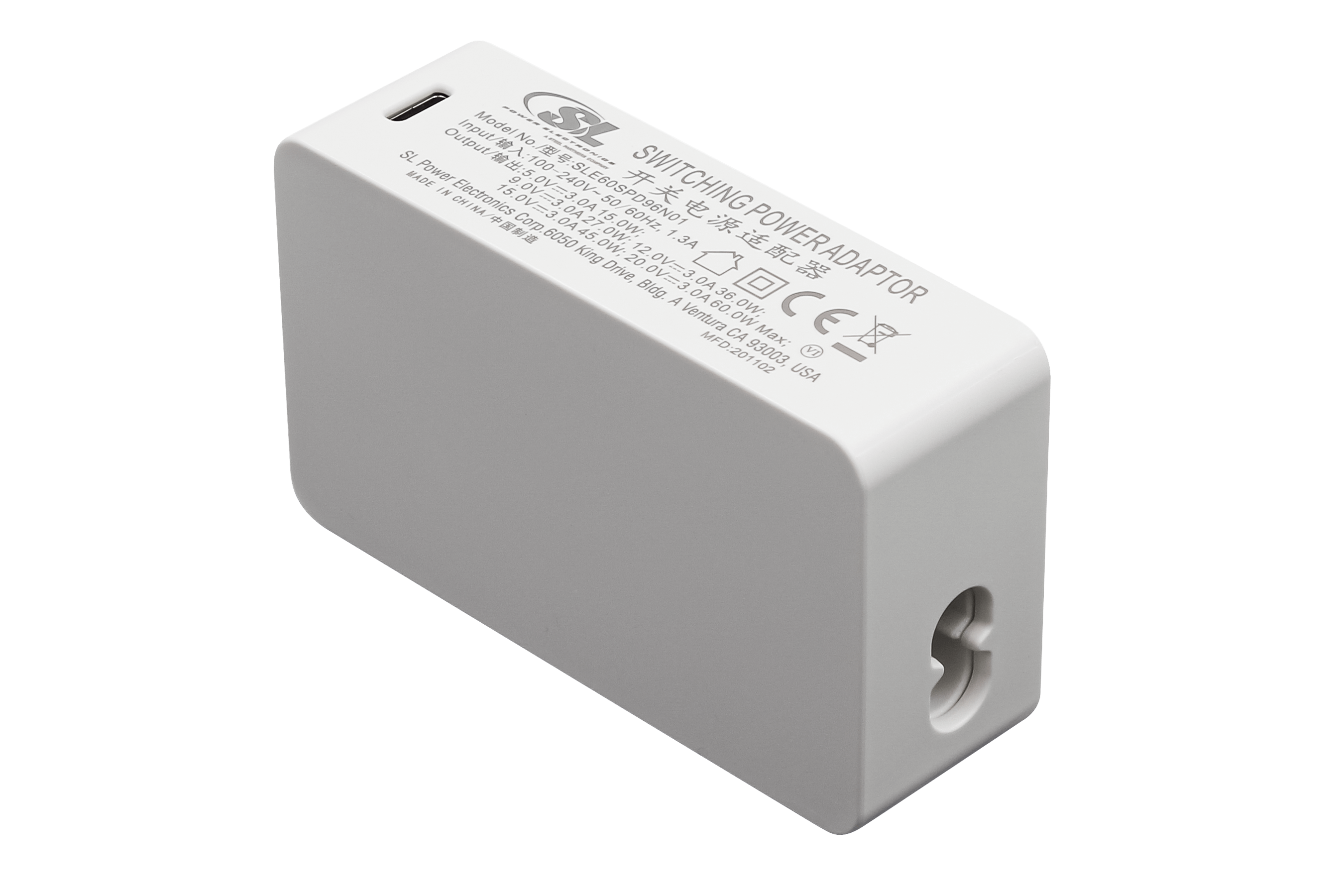

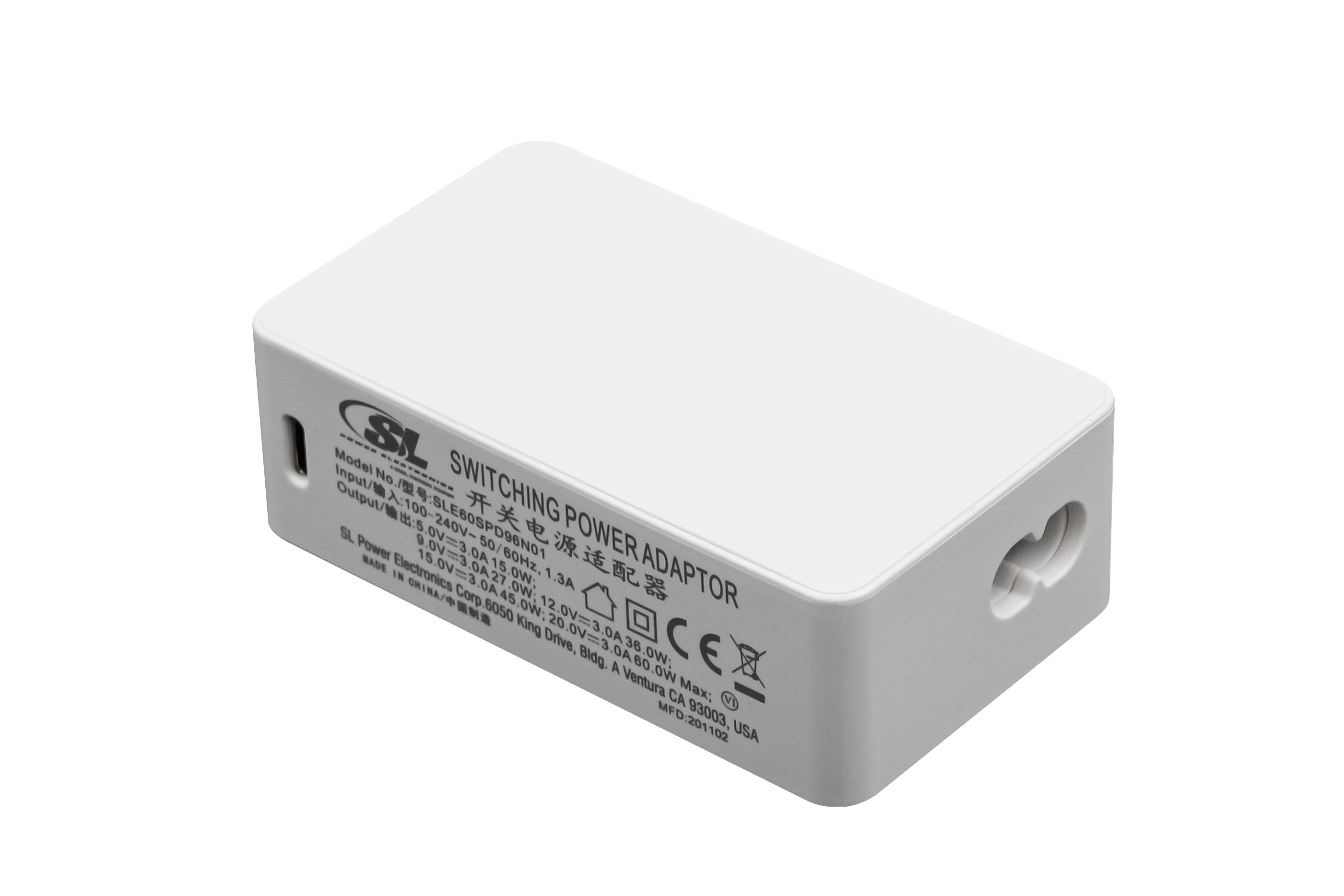

SLE60 Series
Active
60 W Single Output Medical / Industrial Grade
Advanced Energy's SL Power SLE60PD series AC-DC power adapters feature both medical and ITE safety approvals. It delivers up to 60 W output with USB-C PD (Power Delivery), and meets Department of Energy Level VI and European Code of Conduct V5 Tier 2 Directive efficiency standards.
Features
- ≤0.15 W Standby Power
- 5 V, 9 V, 15 V, 20 V Outputs, Up to 60 W
- 5000 m Operating Altitude
- Low Leakage Current ≤100 μA
Benefits
- Medical & ITE Safety Approvals
- CoC V5 Tier 2(2016)
- 2 x MOPP Input to Output Isolation
- Suitable for Medical Equipment Up to Class BF
- AC Inlet IEC60320 C 8 (c. II)
- DOE Efficiency Level VI
Specifications
| Output Power (W): | 60 |
|---|---|
| Length (Inches): | 3.46 |
| Width (Inches): | 2.02 |
| Height (Inches): | 1.1 |
| Mounting Type: | External Adapter |
| Minimum Output Current (A): | 3 |
| Maximum Output Current (A): | 3 |
| Output Voltage Range (V): | 5V to 20V |

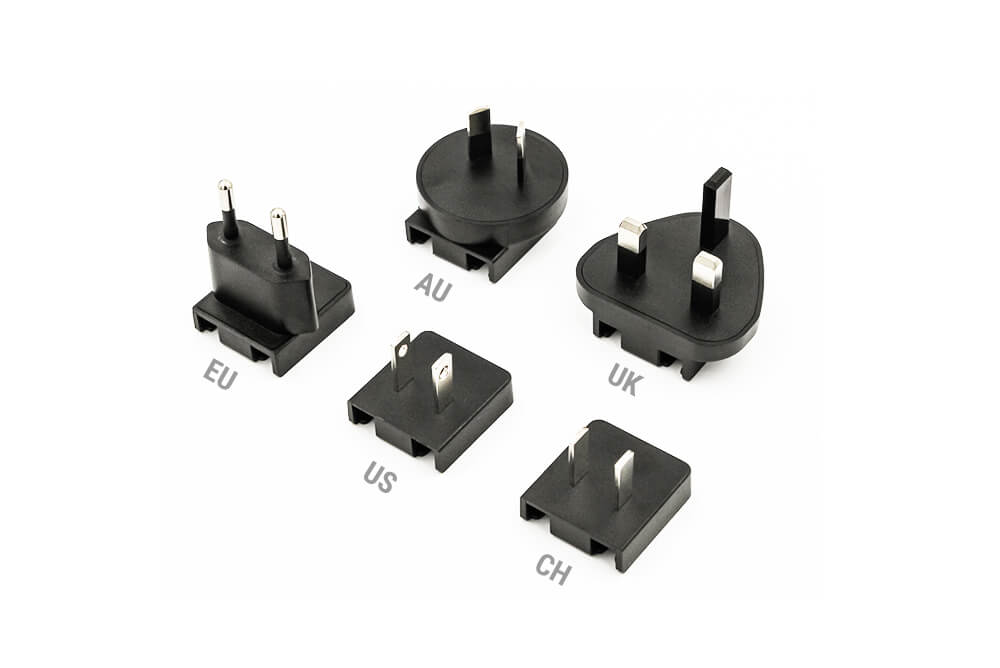

Accessories
Technical Documentation
