SL Power™
SLE90 Series
Active

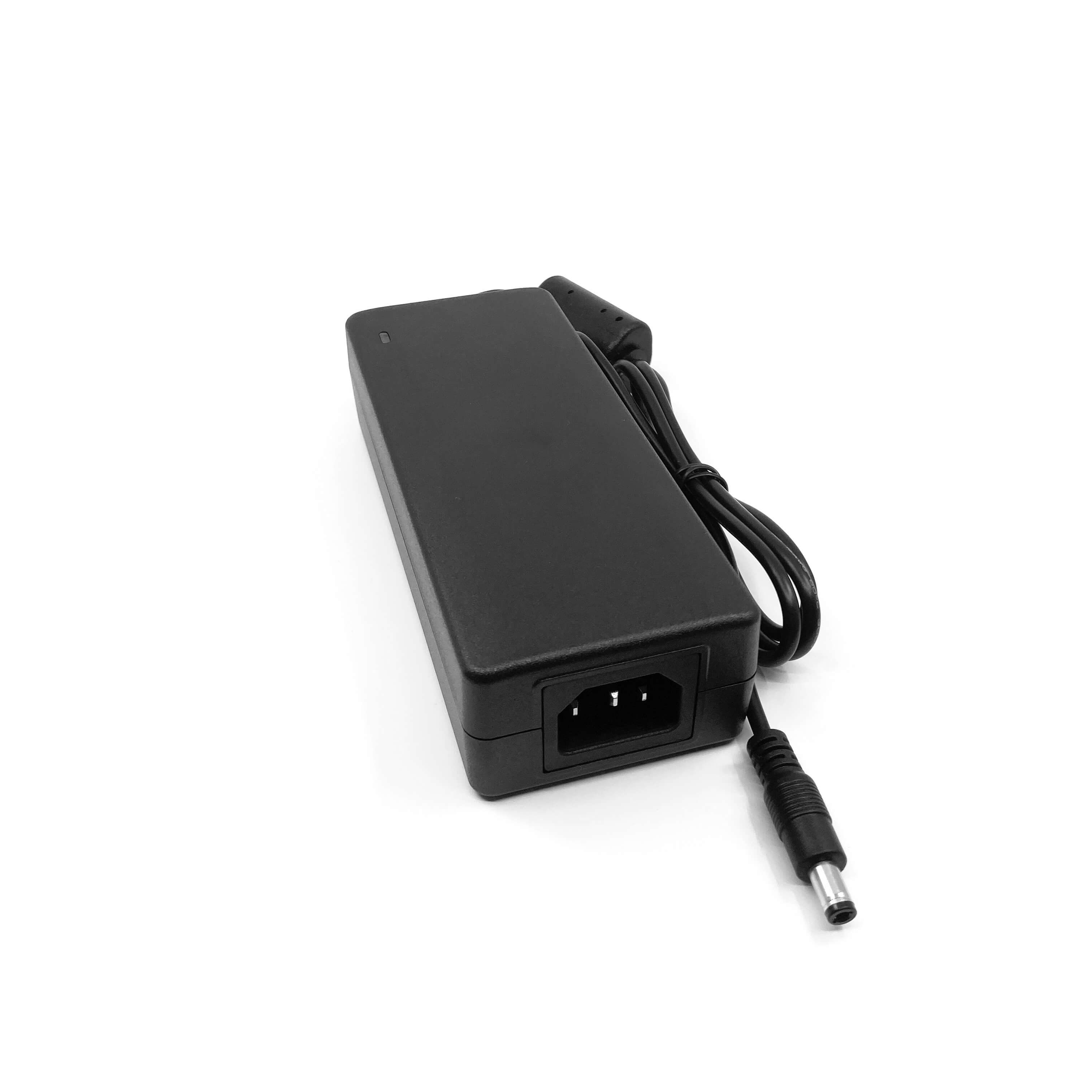

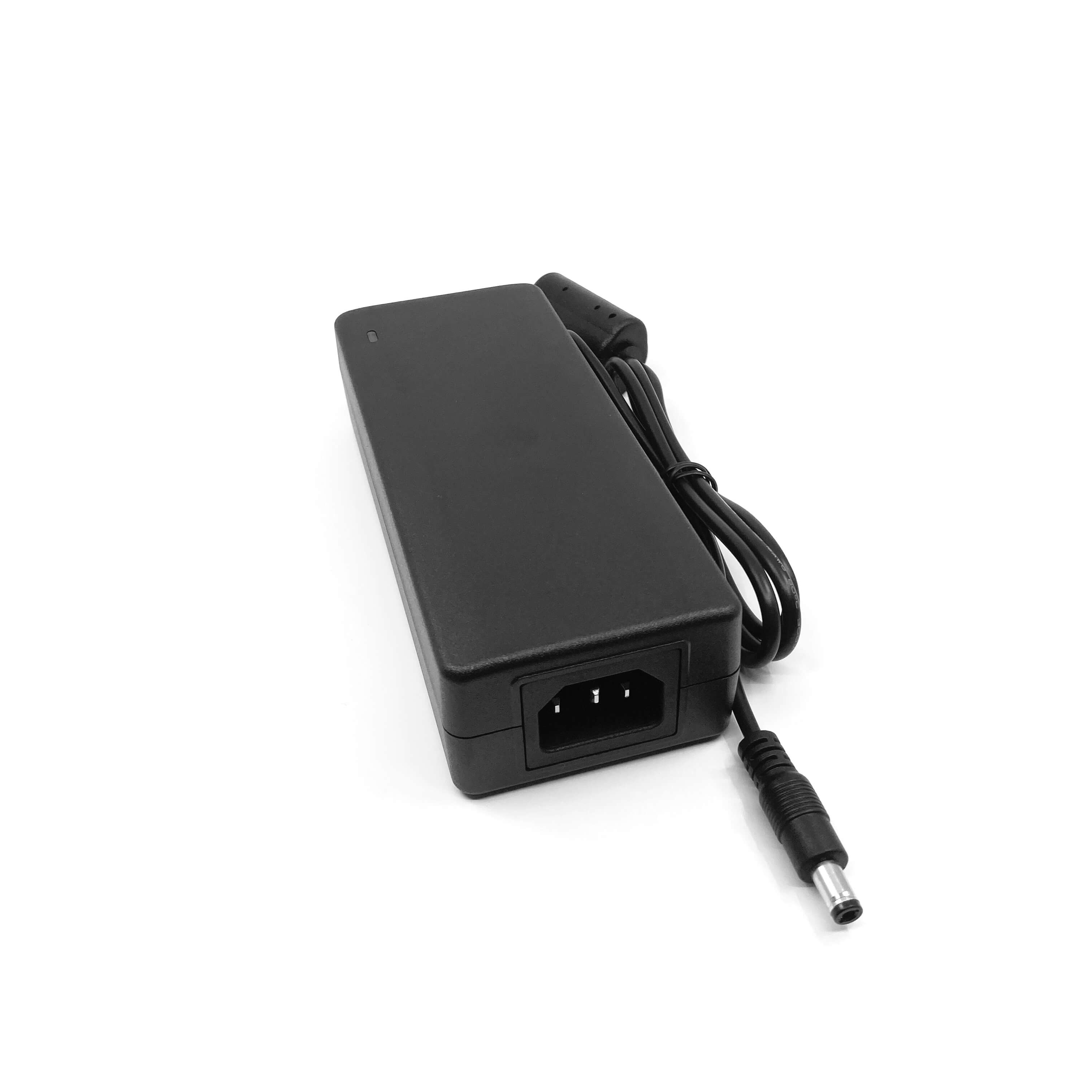

90 W Single Output External Power Adapters
Advanced Energy's SL Power SLE90 series AC-DC power adapters feature both medical and ITE safety approvals. It meets Department of Energy Level VI and European Code of Conduct V5 Tier 2 Directive efficiency standards.
Features
- Low Leakage Current ≤50 μA
- ≤0.075 W Standby Power
- 12 V to 48 V Outputs, Up to 90 W
- 5000 m Operating Altitude
Benefits
- Medical & ITE Safety Approvals
- 2 x MOPP Input to Output Isolation
- Suitable for Medical Equipment Up to Class BF
- DOE Efficiency Level VI
- CoC V5 Tier 2(2016)
- AC Inlet IEC60320 C8 (Class II) or C14 (Class I) input
Specifications
| Output Power (W): | 90 |
|---|---|
| Length (Inches): | 5.7 |
| Width (Inches): | 2.3 |
| Height (Inches): | 1.41 |
| Mounting Type: | External Adapter |
| Minimum Output Current (A): | 1.9 |
| Maximum Output Current (A): | 7 |
| Output Voltage Range (V): | 12V to 48V |
Technical Documentation
