SL Power™
TE30 Series
Active
20 W to 30 W Single Output External Power

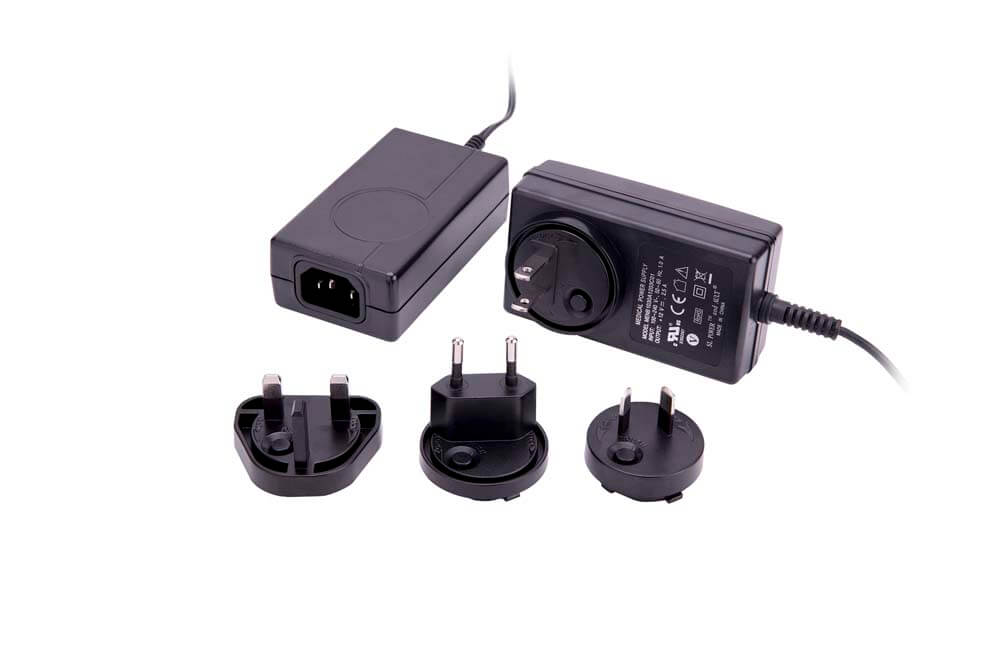

Advanced Energy’s SL Power TE30 series of desktop and wall-plug AC-DC external power adapter comprises seven output models. All models feature industrial safety approvals and accept a universal input of 90 to 264 VAC. These compact switch-mode power supplies feature output overvoltage, overtemperature, overload protection, with short-circuit protection on all output models. TE30 series power adapters provide up to 31.9 W of output power with IP22 rated enclosure and meets DoE Efficiency Level VI Requirements.
Jump to section
Features
Specifications
Stock Check
Accessories
Technical Documentation
Support
Back to top
Features
- Up to 30 W of AC-DC Power
- Universal Input 90 to 264 VAC Input Range
- >1,000,000 Hours MTBF
Benefits
- A high performance power supply designed for Test and Measurement and Industrial applications
- Ideal for applications that are used in environments where AC mains power may be noisy or unstable and equipment shutdown is not an option
- Great EMI, EMC, and noise performance ensures easy integration into the end equipment
- Meets DoE Efficiency Level VI Requirements
- No load input power
- Desktop and Wall-Plug versions
- Meets “Heavy Industrial” Levels of EN61000 EMC Requirements
- Meets EN55022/CISPR22, FCC Part 15.109 Class B Conducted & Radiated Emissions
- EN/IEC/cUL62368-1 update in progress
- E-cap life of >8 years
- 3 Year Warranty
- IP22 Rated Enclosure
Specifications
Output Power (W): | 30 |
---|---|
Length (Inches): | 3.78 |
Width (Inches): | 2.13 |
Height (Inches): | 1.23 |
Mounting Type: | External Adapter |
Minimum Output Current (A): | 0.63 |
Maximum Output Current (A): | 4 |
Output Voltage Range (V): | 5V to 48V |
Minimum Output Power (W): | 20 |
Maximum Output Power (W): | 31.9 |
Minimum Input Voltage (V): | 90 |
Maximum Input Voltage (V): | 264 |
Warranty (Years): | 3 |
Stock Check
Model Number
Samples
Buy
|
3D Models | Min. Voltage (V) | Max. Voltage (V) | Current (A) | Nominal Voltage (V) | Number of Outputs | Samples | Buy |
---|---|---|---|---|---|---|---|---|
TE30A0503B01
Active, In Stock
5V @ 4.0A Class II Wall-Plug Interchangable Blades
|
5 | 5 | 4 | 5 | 1 | Request | Buy | |
TE30A0503F01
Active, In Stock
5V @ 4.0A Class I Desktop C14
|
5 | 5 | 4 | 5 | 1 | Request | Buy | |
TE30A0503N01
Active, In Stock
5V @ 4.0A Class II Desktop C8
|
5 | 5 | 4 | 5 | 1 | Request | Buy | |
TE30A1203B01
Active, In Stock
12V @ 2.50A Class II Wall-Plug Interchangable Blades
|
12 | 12 | 2.5 | 12 | 1 | Request | Buy | |
TE30A1203F01
Active, In Stock
12V @ 2.50A Class I Desktop C14
|
12 | 12 | 2.5 | 12 | 1 | Request | Buy | |
TE30A1203N01
Active, In Stock
12V @ 2.50A Class II Desktop C8
|
12 | 12 | 2.5 | 12 | 1 | Request | Buy | |
TE30A1503B01
Active, In Stock
15V @ 2.0A Class II Wall-Plug Interchangable Blades
|
15 | 15 | 2 | 15 | 1 | Request | Buy | |
TE30A1503F01
Active, In Stock
15V @ 2.0A Class I Desktop C14
|
15 | 15 | 2 | 15 | 1 | Request | Buy | |
TE30A1503N01
Active,
Contact Us
15V @ 2.0A Class II Desktop C8
|
15 | 15 | 2 | 15 | 1 | Contact Us | Buy | |
TE30A1803B01
Active, In Stock
18V @ 1.67A Class II Wall-Plug Interchangable Blades
|
18 | 18 | 1.67 | 18 | 1 | Request | Buy | |
TE30A1803F01
Active, In Stock
18V @ 1.67A Class I Desktop C14
|
18 | 18 | 1.67 | 18 | 1 | Request | Buy | |
TE30A1803N01
Active, In Stock
18V @ 1.67A Class II Desktop C8
|
18 | 18 | 1.67 | 18 | 1 | Request | Buy | |
TE30A2403B01
Active, In Stock
24V @ 1.33A Class II Wall-Plug Interchangable Blades
|
24 | 24 | 1.33 | 24 | 1 | Request | Buy | |
TE30A2403F01
Active, In Stock
24V @ 1.33A Class I Desktop C14
|
24 | 24 | 1.33 | 24 | 1 | Request | Buy | |
TE30A2403N01
Active, In Stock
24V @ 1.33A Class II Desktop C8
|
24 | 24 | 1.33 | 24 | 1 | Request | Buy | |
TE30A4803B01
Active, In Stock
48V @ 0.63A Class II Wall-Plug Interchangable Blades
|
48 | 48 | 0.63 | 48 | 1 | Request | Buy | |
TE30A4803F01
Active, In Stock
48V @ 0.63A Class I Desktop C14
|
48 | 48 | 0.63 | 48 | 1 | Request | Buy | |
TE30A4803N01
Active, In Stock
48V @ 0.63A Class II Desktop C8
|
48 | 48 | 0.63 | 48 | 1 | Request | Buy |
Accessories
Technical Documentation
Title | Type |
---|---|
TE30 3D File (2 MB) | 3D Model |
TE Series App Note (1 MB) | Application Note |
TE30 Series Datasheet (927 KB) | Data Sheet |
TE30 (40) HT DEMKO Certificate (143 KB) | Demko Certificate |
TE30 Series Demko Certificate (130 KB) | Demko Certificate |
TE30 RoHS Certificate (53 KB) | RoHS Certificate |
EU Declaration of Conformity (63 KB) | Safety Certificate |
TE30 (40) HT CB Certificate Class I (77 KB) | Safety Certificate |
TE30 (40) HT CB Certificate Class II (78 KB) | Safety Certificate |
TE30 (40) HT UL CofA (129 KB) | Safety Certificate |
TE30 Series CB Certificate (106 KB) | Safety Certificate |
TE30 Series UL Certificate (54 KB) | Safety Certificate |
Connector Options (2 MB) | Technical Reference |
