SL Power™
TE60 Series
Active
60 W Single Output External Power

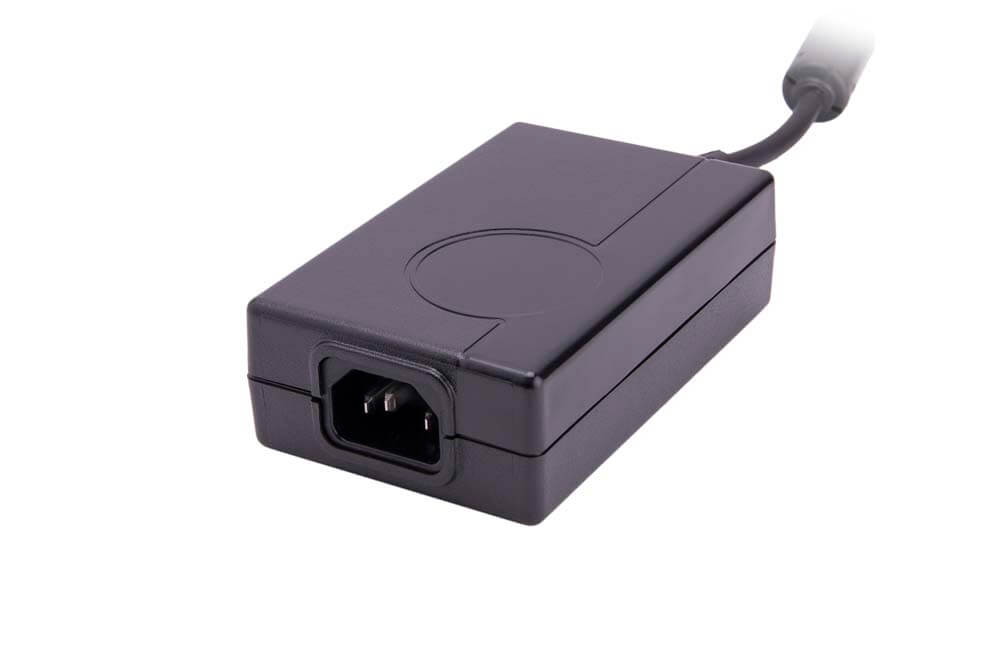

Advanced Energy’s SL Power TE60 series of desktop and wall-plug AC-DC external power adapter comprises seven output models. All models feature industrial safety approvals and accept a universal input of 90 to 264 VAC. These compact switch-mode power supplies feature output overvoltage, overtemperature, overload protection, with short-circuit protection on all output models. TE60 series power adapters provide up to 64.8 W of output power with IP22 rated enclosure and meets DoE Efficiency Level VI Requirements.
Features
- Up to 60 W of AC-DC Power
- Universal Input 90 to 264 VAC Input Range
- >900,000 Hours MTBF
Benefits
- A high performance power supply designed for Test and Measurement and Industrial applications
- Ideal for applications that are used in environments where AC mains power may be noisy or unstable and equipment shutdown is not an option
- Great EMI, EMC, and noise performance ensures easy integration into the end equipment
- Meets DoE Efficiency Level VI Requirements
- No load input power
- Desktop Style
- Meets “Heavy Industrial” Levels of EN61000 EMC Requirements
- Meets EN55022/CISPR22, FCC Part 15.109 Class B Conducted & Radiated Emissions
- E-cap life of >8 years
- 3 Year Warranty
- IP22 Rated Enclosure
- Approved to EN/IEC/UL62368-1
Specifications
| Output Power (W): | 60 |
|---|---|
| Length (Inches): | 4.25 |
| Width (Inches): | 2.67 |
| Height (Inches): | 1.29 |
| Mounting Type: | External Adapter |
| Minimum Output Current (A): | 1.35 |
| Maximum Output Current (A): | 7 |
| Output Voltage Range (V): | 5V to 48V |
Technical Documentation
