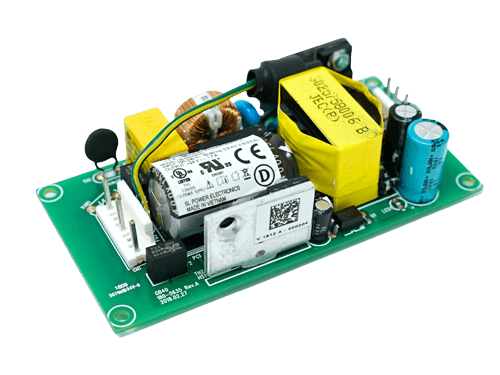

SL Power™
GB40 Series
Active
40 W Single Output Medical and Industrial Grade
Advanced Energy’s SL Power GB40 is a superior performance 40 W AC -DC converter, designed for medical/industrial applications. It is highly efficient (meets DOE level VI) and can effortlessly integrate in any system that requires 40 W of convection cooled power. All models are CE marked to low voltage directive and approved to CSA/EN/IEC/UL62368-1 and CSA/EN/IEC/UL60601-1 3.1 Edition. It meets Heavy Industrial and IEC60601-1-2 4th Edition Levels of EMC and meets Class B Radiated & Conducted Emissions with margin. The GB40 is offered in both Class I and Class II input.
Features
- 40 W Open Frame and PCB-mount Power Supply
- 2.0” x 4.0” x 1.0” package
- Universal Input 90 to 264 VAC
- <0.1 W no load input power
- >1,000,000 hours MTBF
Benefits
- Approved to EN/IEC/UL62368-1
- Approved to CSA/EN/IEC/UL60601-1, 3rd Edition
- Meets Class B Radiated & Conducted EMI with margin
- Meets Heavy Industrial and IEC60601-1-2 4th Edition Levels of EMC
- E-Cap life of >7 years
- 3-year warranty
Specifications
| Output Power (W): | 40 |
|---|---|
| Length (Inches): | 4 |
| Width (Inches): | 2 |
| Height (Inches): | 0.97 |
| Mounting Type: | Embedded PSU |
| Minimum Output Current (A): | 0.83 |
| Maximum Output Current (A): | 5 |
| Output Voltage Range (V): | 5V to 48V |
Technical Documentation
.png?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=500)
