TLP150 Series

Active

100 to 150 W AC-DC Power Supplies

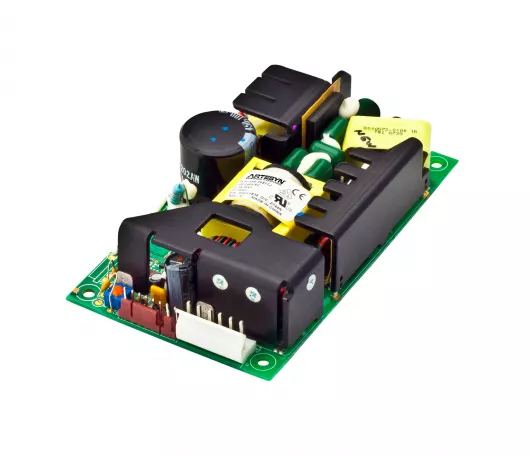

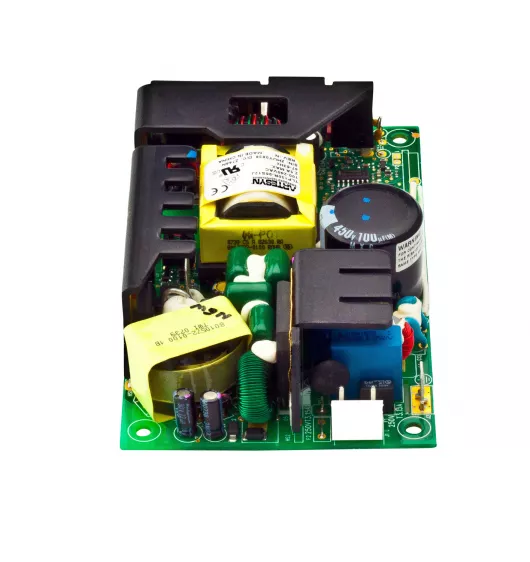

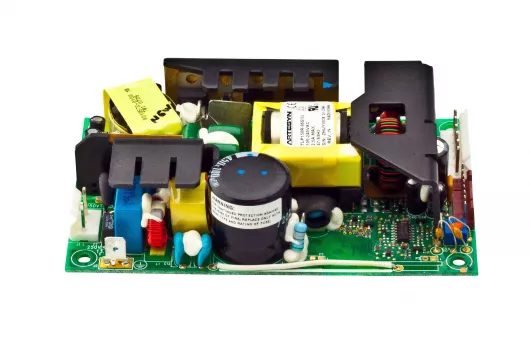

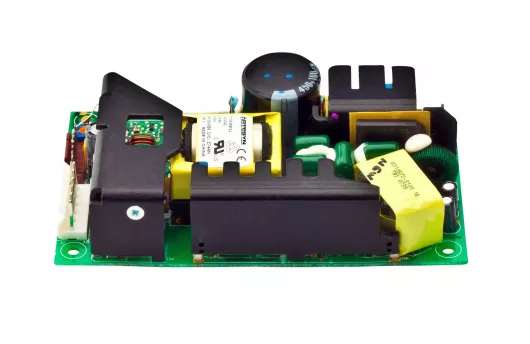

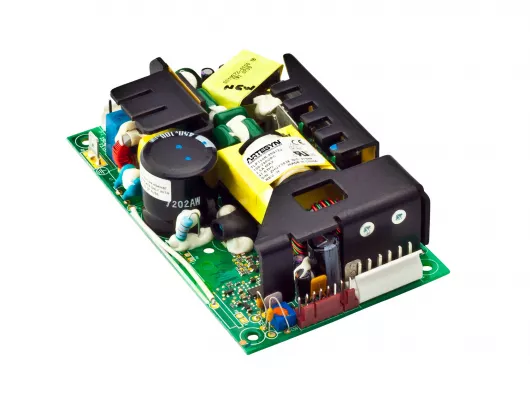

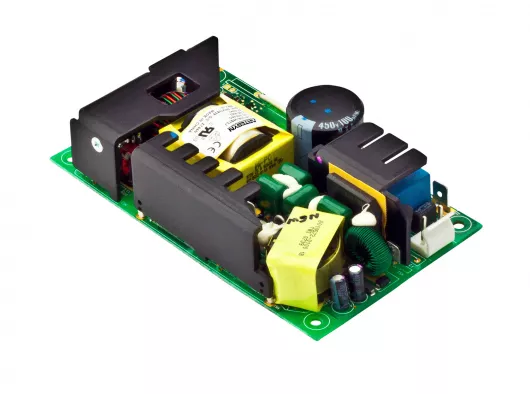

The TLP150 series of open-frame AC-DC power supplies comprises four single-output models, offering voltages of 12 V, 24 V, 36 V or 48 V. Each model also provides 12 V fan and 5 V standby outputs. All four models accept a universal input of 85 to 264 VAC. Comprehensive overcurrent, overvoltage and overtemperature protection is provided as standard. Additional features include main output remote sense, active current sharing and integrated control and monitoring facilities. TLP150 series power supplies provide 100 W of output power with free air convection cooling and 150 W with 200 LFM of forced air. Less than 1U high, they are ideal for systems that implement distributed power architectures (DPA) and point-of-load (POL) schemes, as well as for powering electromechanical devices and non-patient contact and non-patient critical medical applications.

Features

  • 12 V fan output
  • 150 W on main channel with only 200 LFM
  • 5 V standby output (optional)
  • Active PFC and EN6100032 compliant
  • Compliance to EN55022B conducted noise standard
  • Low profile fits 1U applications
  • Input voltage 85 - 264 Vac
  • Frequency 47 - 63 Hz
  • Surge Current 264 Vac (cold start), 40 A max.
  • Safety ground leakage current 264 Vac, 50 Hz, 1 mA
  • Input current 120 Vac @ 250 W (1.8 A), 230 Vac @ 250 W (0.8)
  • Adjustment Range ± 10%
  • Total regulation ± 3% main output, ± 5% auxiliary outputs
  • Transient response 5% main output

Benefits

  • Active current sharing
  • Integrated control and monitoring features
  • Integrated Oring diode
  • Overcurrent, overvoltage and overtemperature protection
  • RoHS compliant
  • Two year warranty

Specifications

Output Power (W): 150
Length (Inches): 5
Width (Inches): 3
Height (Inches): 1.25
Mounting Type: Embedded PSU
Minimum Output Current (A): 0
Maximum Output Current (A): 12.5
Output Voltage Range (V): 10.8V to 52.8V
All Specifications Collapse Specifications

Stock Check

Model Number
Efficiency (%) Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
TLP150R-96S12FJ Active, In Stock 81 10.8 13.2 12.5 12 1 Request Buy
TLP150R-96S12J Active, In Stock 81 10.8 13.2 12.5 12 1 Request Buy
TLP150R-96S24FJ Active, In Stock 81 21.6 26.4 6.3 24 1 Request Buy
TLP150R-96S24J Active, In Stock 81 21.6 26.4 6.3 24 1 Request Buy
TLP150R-96S36J Active, In Stock 32.4 39.6 4.2 36 1 Request Buy
TLP150R-96S48FJ Active, Contact Us 81 43.2 52.8 3.2 48 1 Contact Us Buy
TLP150R-96S48J Active, In Stock 81 43.2 52.8 3.2 48 1 Request Buy
