SL Power™

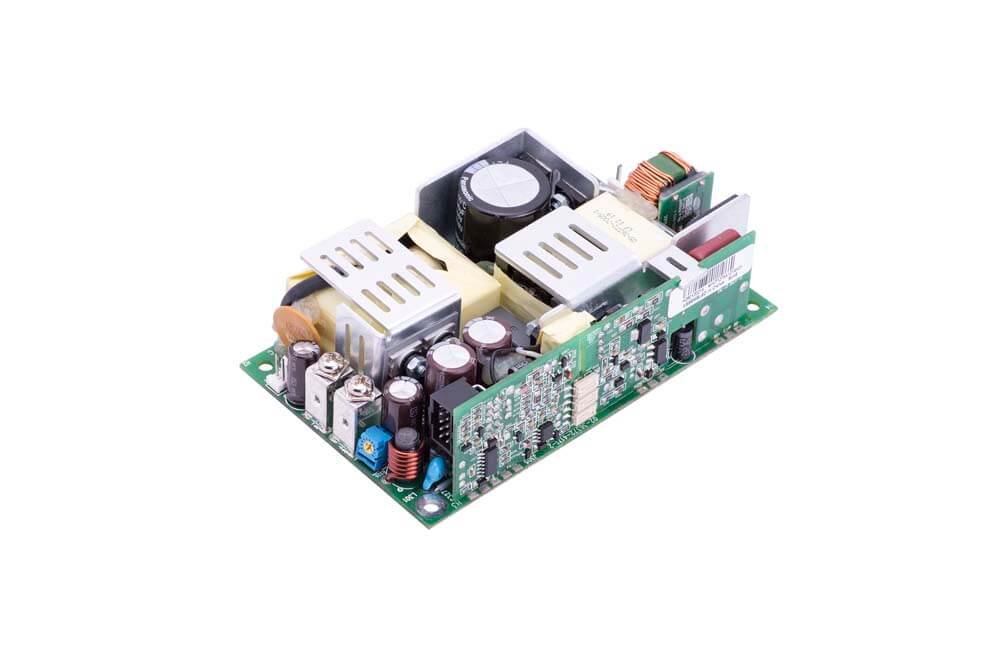

MINT1275 Series
Active
275 W Single Output Medical Grade
Advanced Energy’s SL Power MINT1275 series is approved to EN/IEC/UL 60601-1, 3rd edition, with isolation levels which satisfy the 2MOPP requirements. The MINT1275 series is ideal for portable medical devices, and many other applications where medical certifications, power density and cost are critical. The MINT1275 series operates at universal input range of 90 to 264 VAC and wide temperature range -10 to 70 ºC, delivering full rated output power up to +50 ºC. In addition, these models feature Power Good and DC OK signals.
Features
- 3” x 5” x 1.4” Package
- Up to 275 W of AC-DC Power
- Universal Input 90 to 264 VAC
- 5 V standby and 12 V fan outputs
- Efficiency 92% typical
Benefits
- Ideal for 1U Applications
- Class I and Class II versions
- Approved to CSA/EN/IEC/UL60601-1, 3rd Edition, 2 x MOPP Isolation
- Forced Current Share
- Inhibit, Power Fail, Output OK Signals
- 3 Year Warranty
- RoHS Compliant
Specifications
| Output Power (W): | 275 |
|---|---|
| Length (Inches): | 5 |
| Width (Inches): | 3 |
| Height (Inches): | 1.38 |
| Mounting Type: | Embedded PSU |
| Minimum Output Current (A): | 3.21 |
| Maximum Output Current (A): | 15 |
| Output Voltage Range (V): | 12V to 56V |
