SL Power™

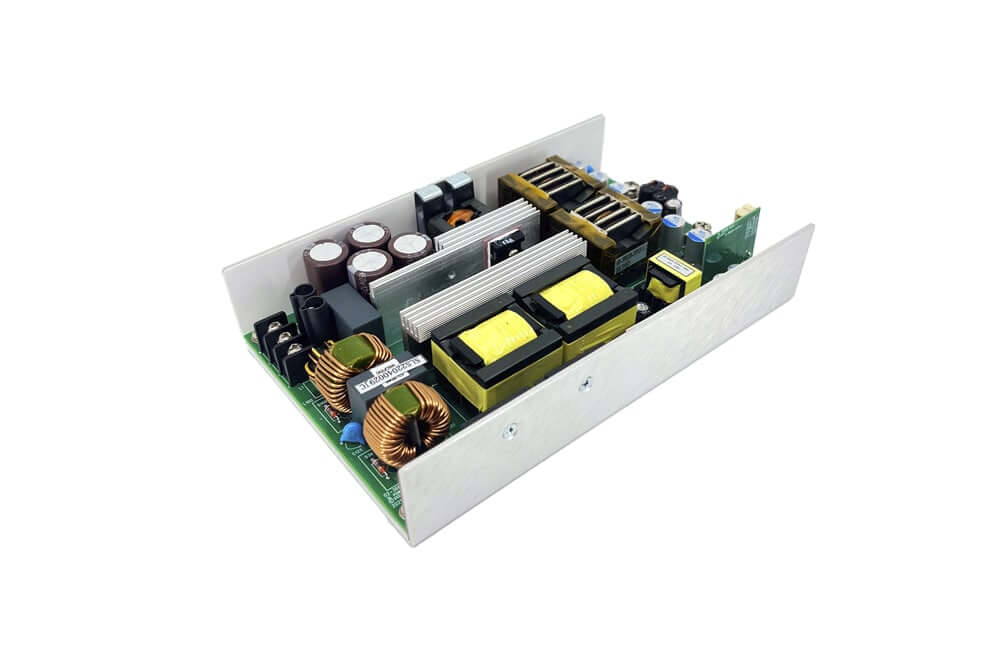

NGB800 Series
Active
800 W Single Output Medical & Industrial Grade
Advanced Energy’s SL Power NGB800 series of open-frame AC-DC power supplies features ITE and medical safety approvals. The series offers a choice of four single output models, with voltages of 12 V, 15 V, 24 V, or 48 V. Each model also provides an isolated 12 V fan output, and 5 V standby output. NGB800 series power supplies provide 800 W of output power and provide industry leading convection power ratings.
Features
- Output Power of 800 W with airflow
- 650 W Convection Cooled
- -20ºC to 80ºC Operating Temperature Range
- 5” X 8” X 1.6” Size
- Less than 100 uA Leakage Current
- Universal 85 to 264 VAC Input Range
Benefits
- UL/CSA/IEC/IEC60601-1, IEC62368-1 Approved
- Meets 4th Edition/Heavy Industrial EMC
- Class I Input versions available
- Meets Class B Emissions Levels
- 7+ Years Electrolytic Capacitor Life
- 3 Years Warranty
Specifications
| Output Power (W): | 800 |
|---|---|
| Length (Inches): | 8 |
| Width (Inches): | 5 |
| Height (Inches): | 1.6 |
| Mounting Type: | Embedded PSU |
| Minimum Output Current (A): | 16.7 |
| Maximum Output Current (A): | 57.5 |
| Output Voltage Range (V): | 12V to 48V |
