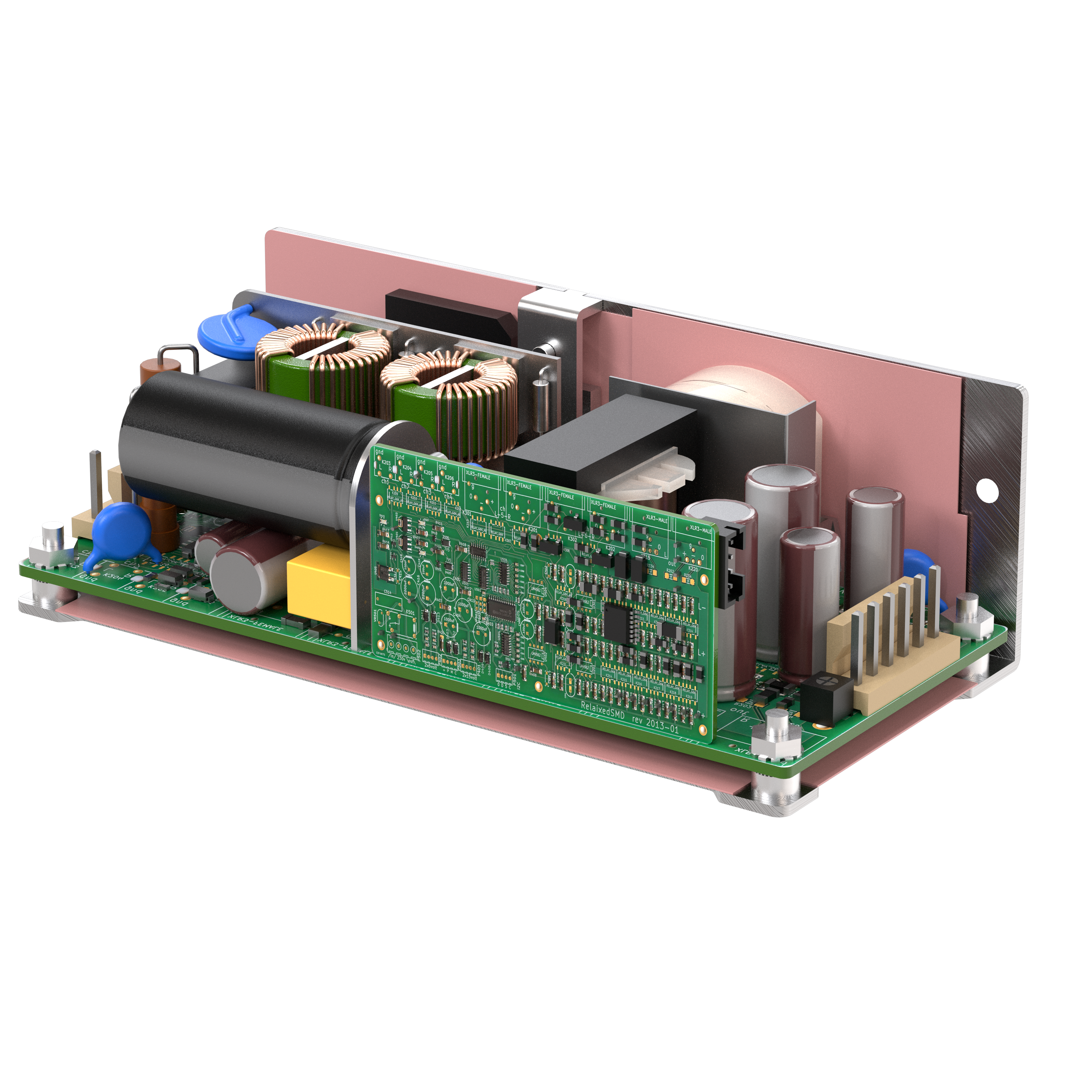

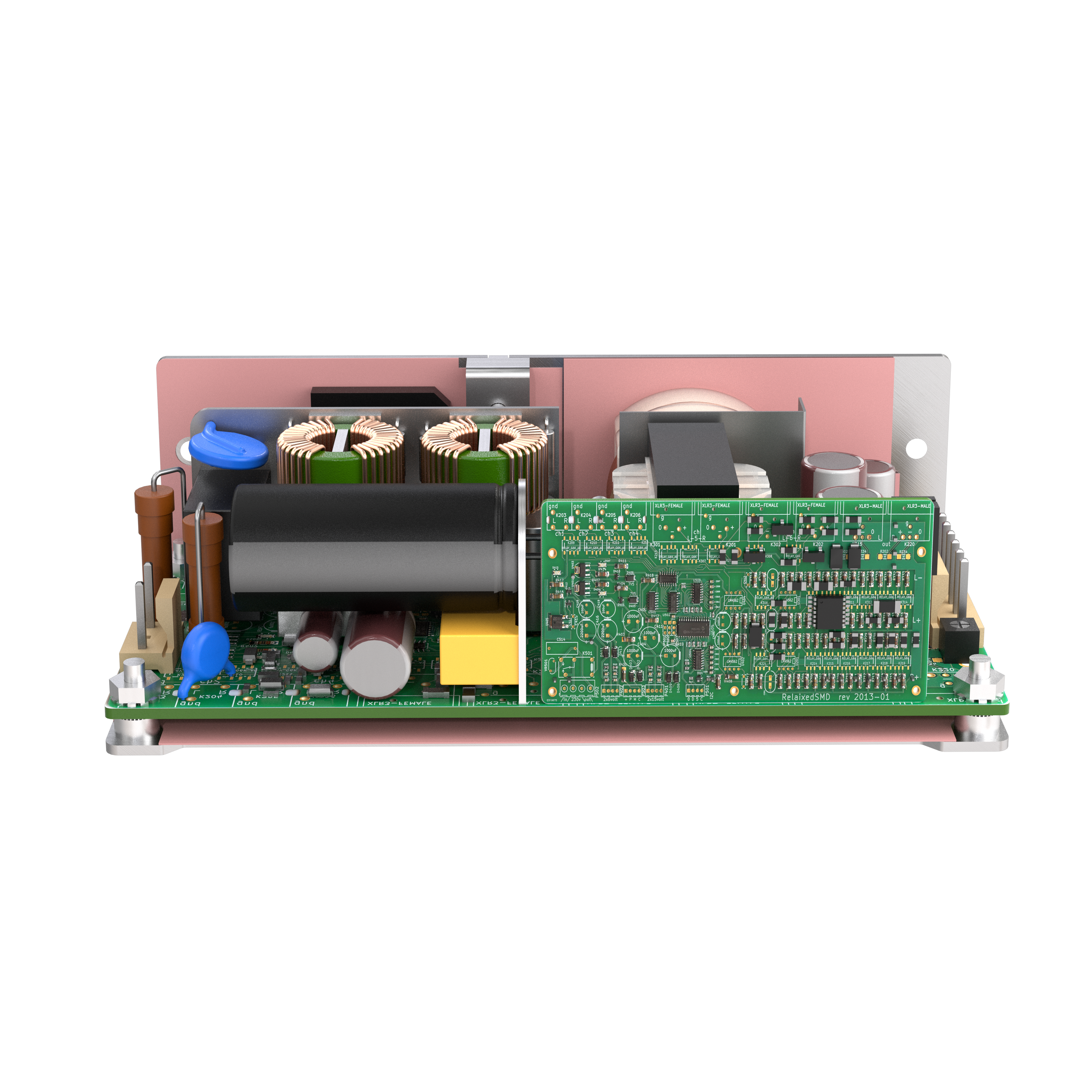

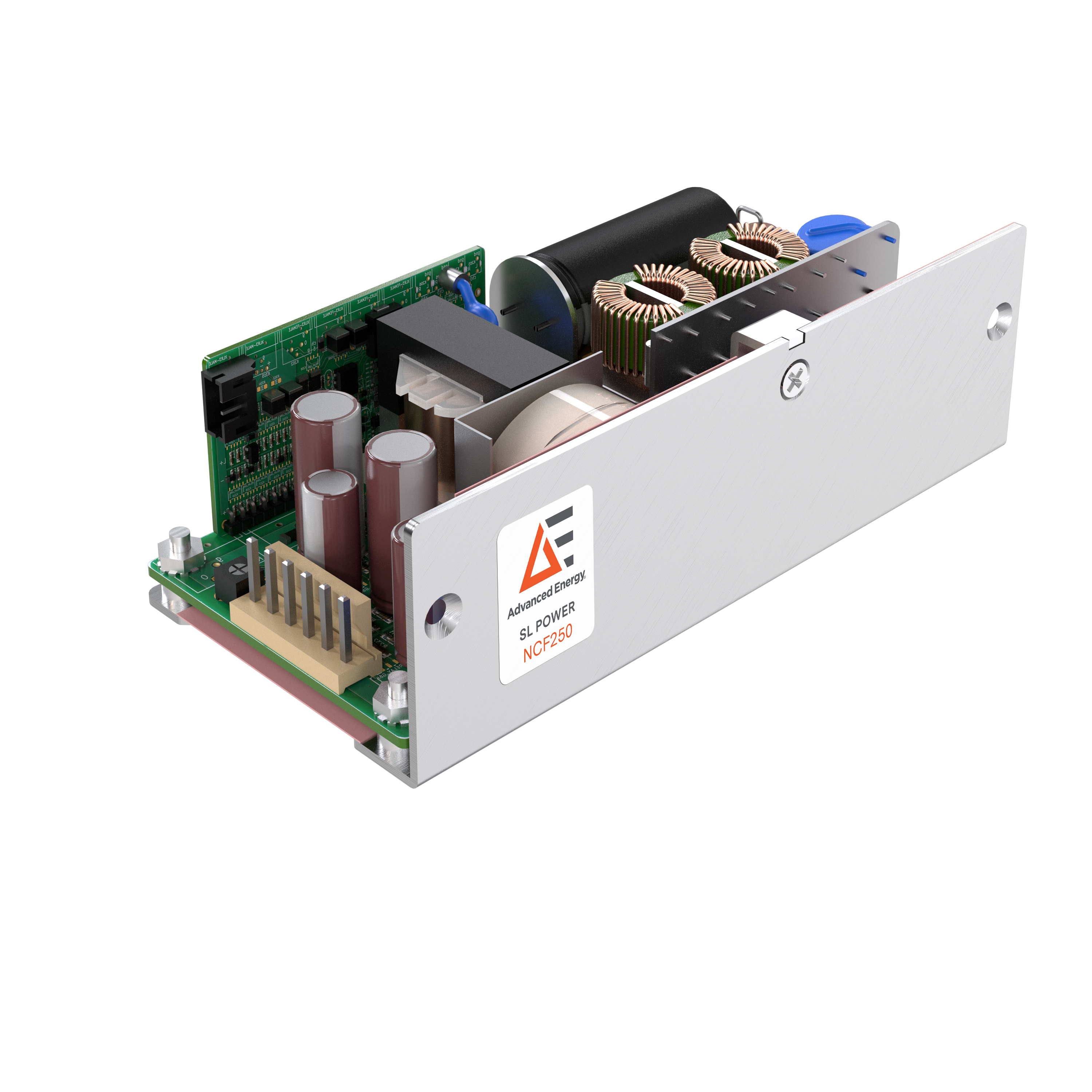

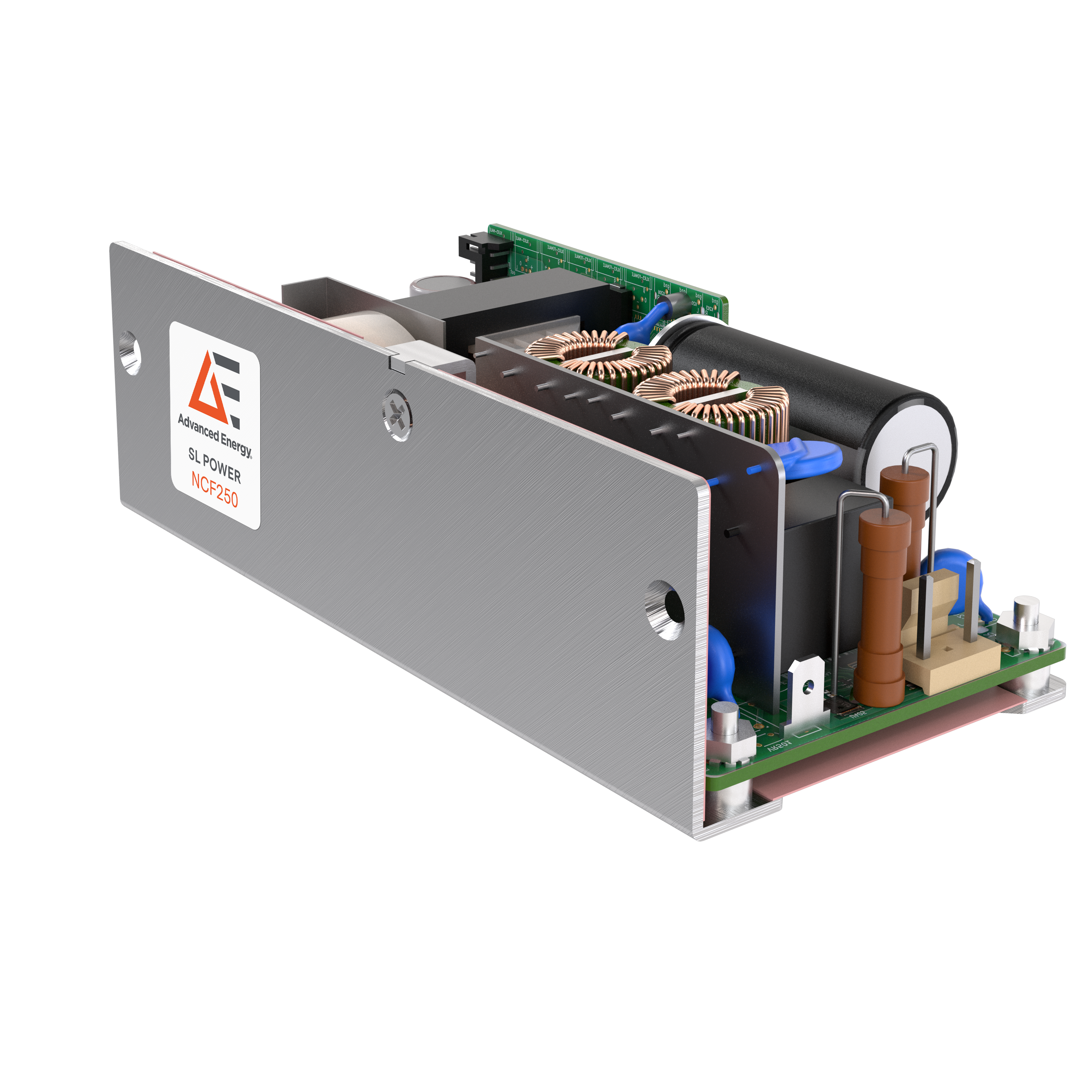

NCF250 Series
Active
250 W CF Rated Medical Power Supply
Advanced Energy’s SL Power NCF250 series are CF rated medically approved AC-DC power supplies for critical medical applications needing low leakage current. They are available with a nominal main output of 12 V, 15 V, 24 V, or 48 V and also offer a 5 kV defibrillator withstand. NCF250 series power supplies provide up to 250 W of output power with air flow and a universal input voltage of 85 to 264 VAC. All models have output overvoltage, short circuit and overload protection and a 2.3 x 5.0 x 1.5 inch form factor.
Features
• CF Rated with Less than 10 μA Leakage Current
• 5 kV Defibrillator Withstand
• Up to 250 W with Airflow
• Up to 175 W Convection Cooled
• 2.3”W x 5.0”L x 1.5”H Form Factor
• Universal Input 85 to 264 VAC
• 5 kV Defibrillator Withstand
• Up to 250 W with Airflow
• Up to 175 W Convection Cooled
• 2.3”W x 5.0”L x 1.5”H Form Factor
• Universal Input 85 to 264 VAC
Benefits
• Meets Class B Emissions Levels
• 7+ Years Electrolytic Capacitor Life
• Meets IEC60601-1-2 4th Edition EMC
• Class I Input
• RoHS Compliant
• REACH Compliant
• 3 Year Warranty
• 7+ Years Electrolytic Capacitor Life
• Meets IEC60601-1-2 4th Edition EMC
• Class I Input
• RoHS Compliant
• REACH Compliant
• 3 Year Warranty
Specifications
| Output Power (W): | 250 |
|---|---|
| Length (Inches): | 5 |
| Width (Inches): | 2.4 |
| Height (Inches): | 1.6 |
| Mounting Type: | L Chassis |
| Minimum Output Current (A): | 3.6 |
| Maximum Output Current (A): | 19.1 |
| Output Voltage Range (V): | 12V to 48V |
Featured Resources
Technical Documentation
Product Information Documents
New
Safety & Compliance Certificates
New
Engineering Resources
New
Technical Videos
NCF250 Series of CF Rated Medical Power Supplies
Mar 26, 2025
Advanced Energy’s SL Power NCF250 series are CF rated medically approved AC-DC power supplies for critical medical applications needing low leakage current. They are available with a nominal main output of 12 V, 15 V, 24 V, or 48 V and also offer a 5 kV defibrillator withstand. NCF250 series power supplies provide up to 250 W of output power with air flow and a universal input voltage of 85 to 264 VAC. All models have output overvoltage, short circuit and overload protection and a 2.3 x 5.0 x 1.5 inch form factor.
Close Popup
Compare
| Model | NCF250 | NCF150 | NCF660 |
|---|---|---|---|
| Output Power (W) | 250 | 150 | 660 |
| Length (Inches) | 5 | 4 | 7 |
| Width (Inches) | 2.4 | 2 | 4 |
| Height (Inches) | 1.6 | 1.2 | 1.6 |
| Mounting Type | L Chassis | Chasis Mount | U channel |
| Minimum Output Current (A) | 3.6 | 0 | 9.1 |
| Maximum Output Current (A) | 19.1 | 3 | 46.2 |
| Minimum Output Power (W) | 145 | 120 | 440 |
| Maximum Output Power (W) | 250 | 150 | 660 |
| Maximum Input Voltage (V) | 264 | 264 | 264 |
| Warranty (Years) | 3 | 3 | 3 |
