NCF660
Active

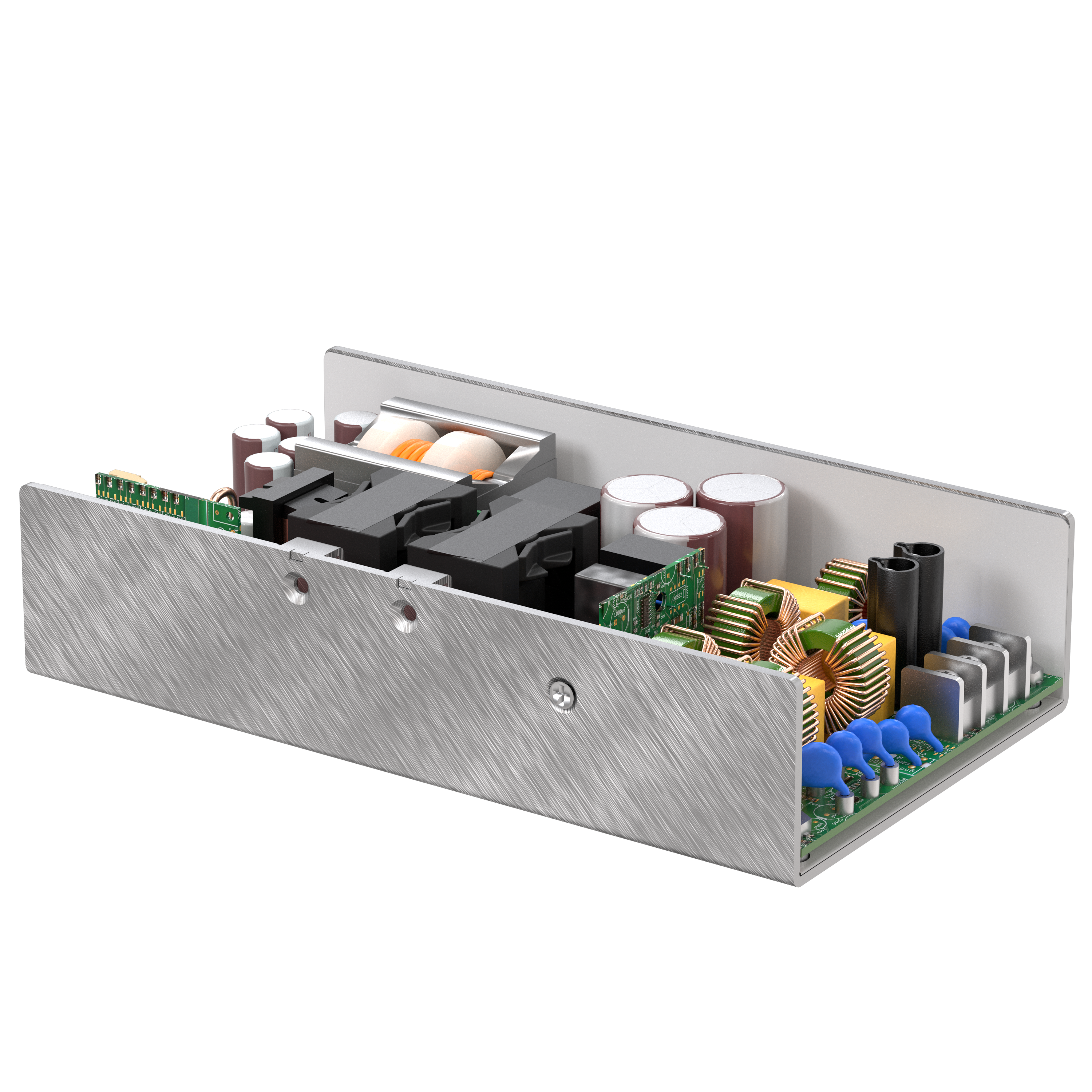

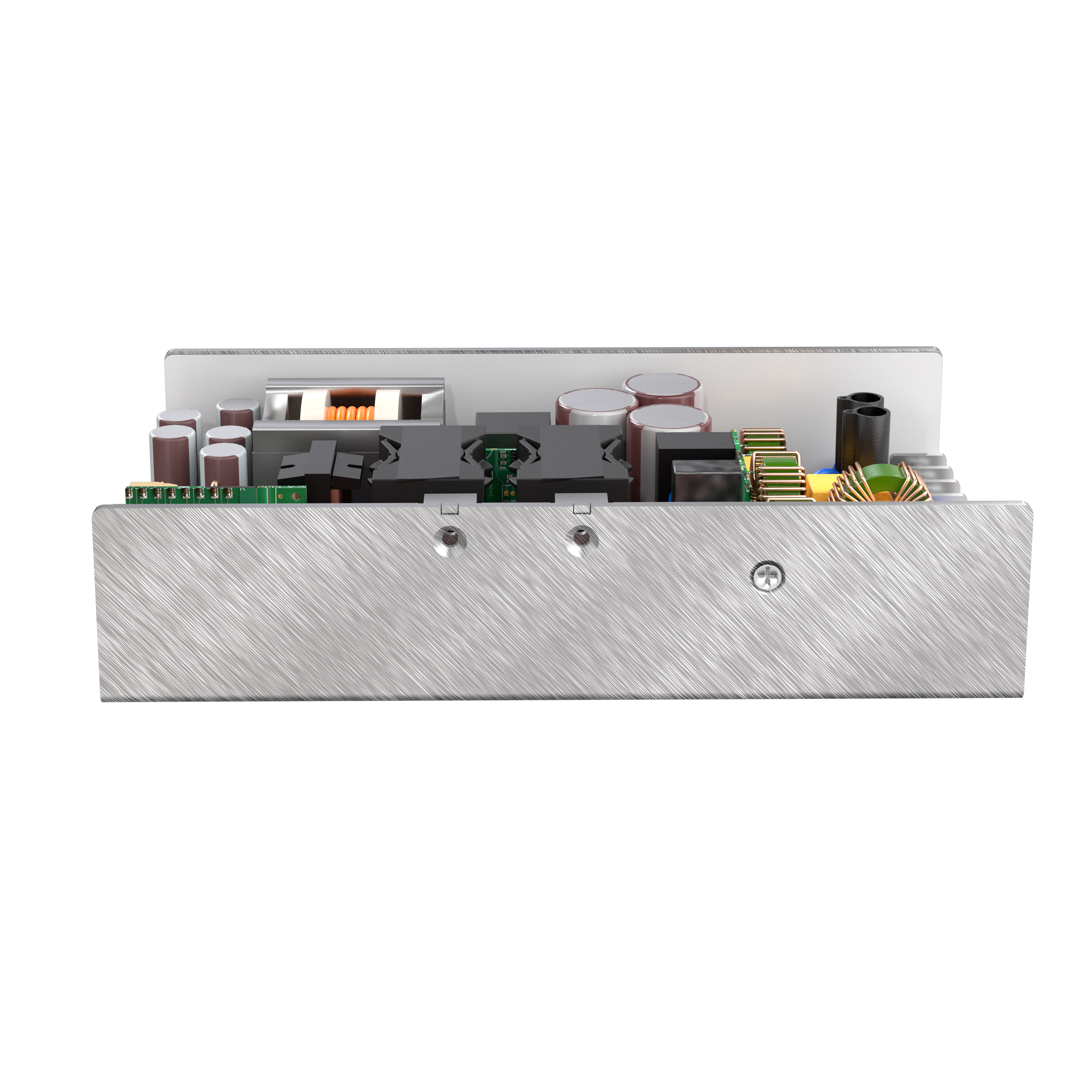

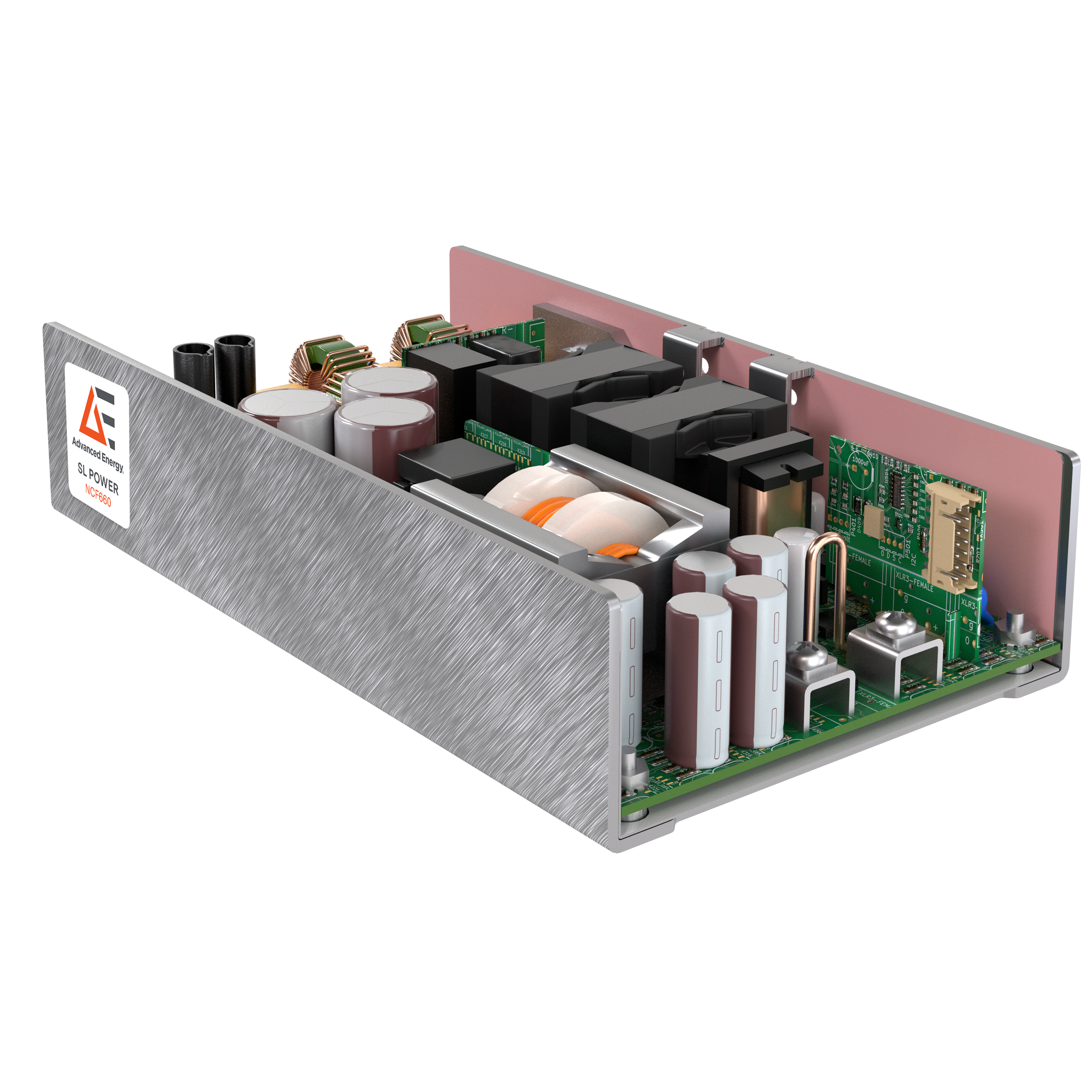

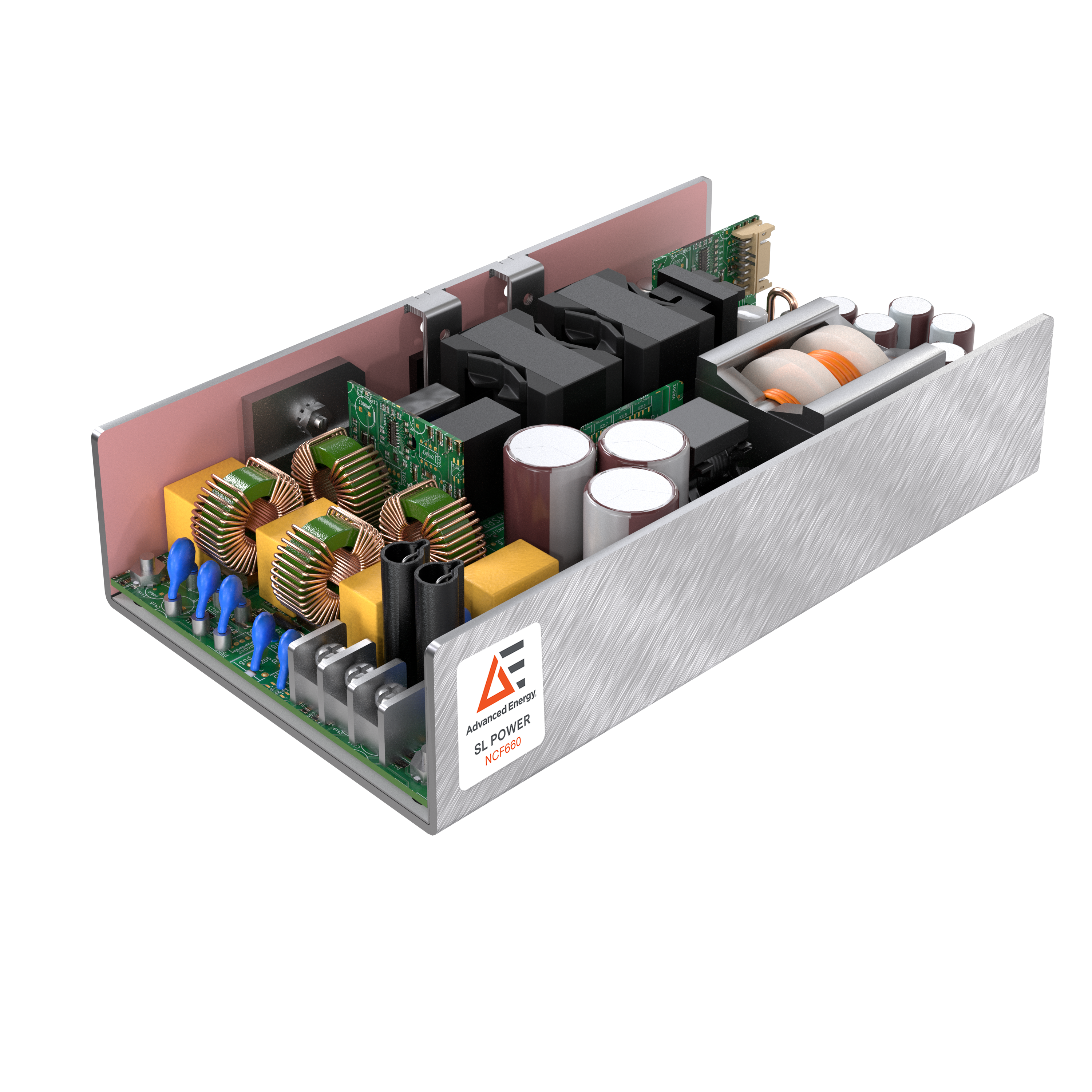

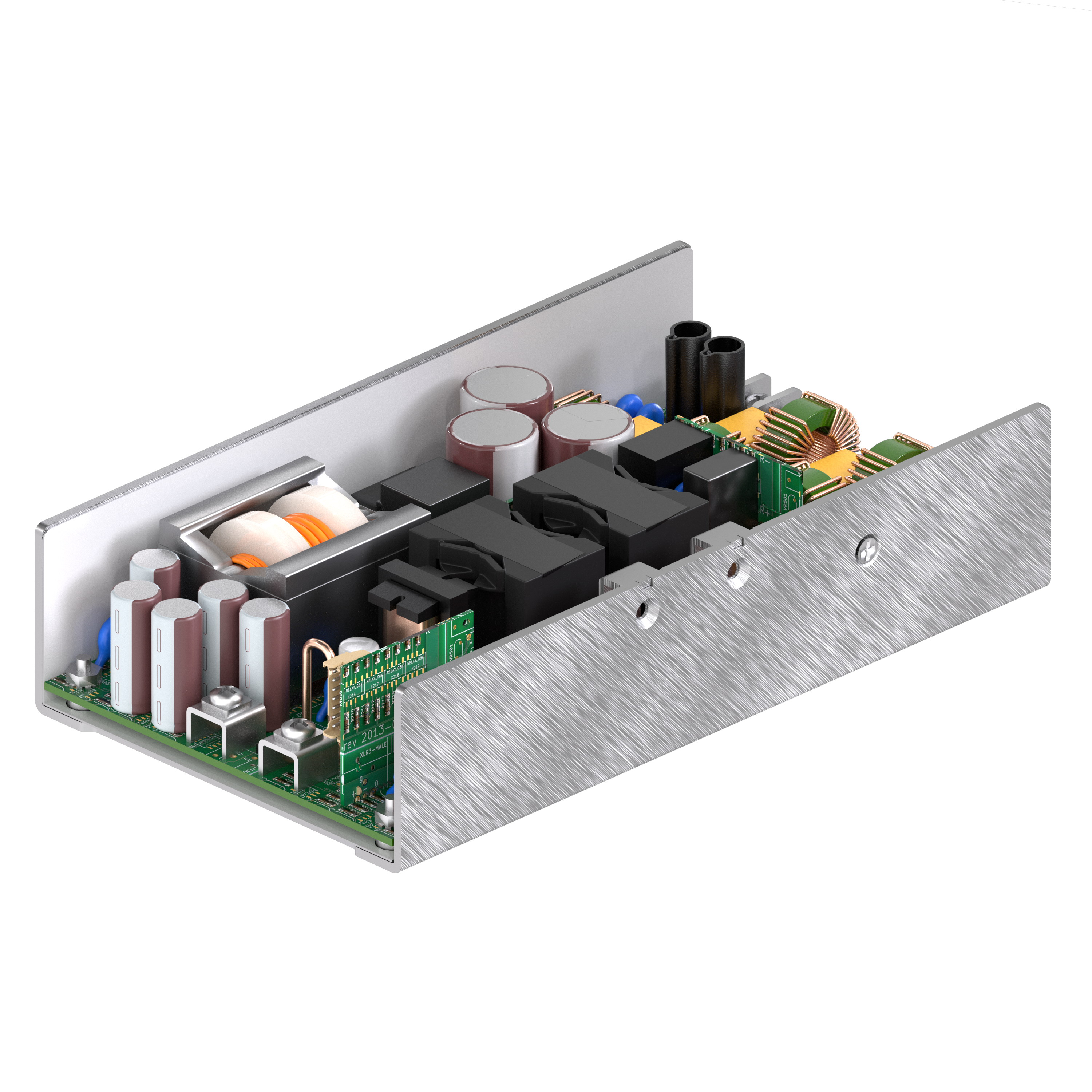

660 Watts CF Rated Medical Power Supply
Advanced Energy’s SL Power NCF660 CF rated medically approved AC-DC power supplies are available with a nominal main output of 12 V, 15 V, 24 V or 48 V. NCF660 series power supplies provide up to 660 W of output power with air flow. All models have output overvoltage, short circuit and overload protection and a 7 x 4 x 1.6 inch form factor.
Features
• CF Rated Leakage Current <10μA
• 5 kV Defibrillator Withstand
• Up to 660 W with Air Flow, 440 W Convection
• Meets Class B Emissions Levels
• 4”W x 7”L x 1.6”H Size
• Universal Input 85 to 264 VAC, Class I
• Includes 5 V Standby Output
• IEC/UL/cUL/EN60601-1, Edition3.2
• 5 kV Defibrillator Withstand
• Up to 660 W with Air Flow, 440 W Convection
• Meets Class B Emissions Levels
• 4”W x 7”L x 1.6”H Size
• Universal Input 85 to 264 VAC, Class I
• Includes 5 V Standby Output
• IEC/UL/cUL/EN60601-1, Edition3.2
Benefits
• Long Life: 7+ Years Electrolycti Capacitor Life
• Ease of Integration: Meets Class B emissions and 4th Edition EMC Requirements
• 3 Years Warranty
• RoHS, REACH Compliant
• Ease of Integration: Meets Class B emissions and 4th Edition EMC Requirements
• 3 Years Warranty
• RoHS, REACH Compliant
Specifications
| Output Power (W): | 660 |
|---|---|
| Length (Inches): | 7 |
| Width (Inches): | 4 |
| Height (Inches): | 1.6 |
| Mounting Type: | U channel |
| Minimum Output Current (A): | 9.1 |
| Maximum Output Current (A): | 46.2 |
| Output Voltage Range (V): | 12V to 48V |
Featured Resources
Technical Documentation
Related Applications
Explore All Applications
Surgical
The surgical laser industry faces various challenges, including finding power supplies that can deliver precise, easily controlled power with low acoustic noise. These power supplies must also be compatible with portable devices, offer multiple output voltages, and preserve a high-power density.
