SL Power™

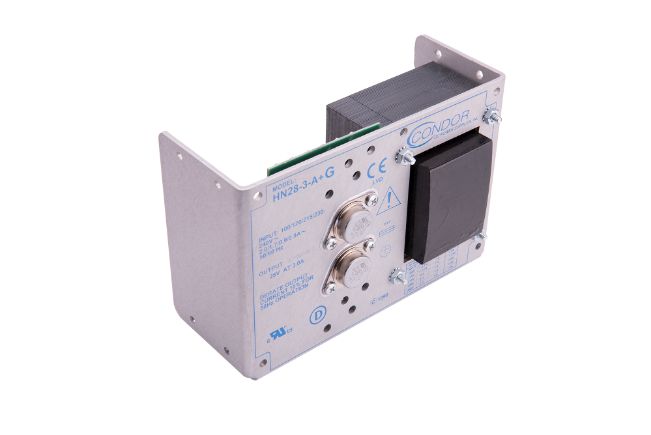

Linear - N Series
Active
Low Noise Linear Technology Power Supply
Advanced Energy’s SL Power linear series power supplies are single output models. The models feature commercial or medical safety approvals and accept a universal input of 100 to 240 VAC. These linear power supplies feature very little output ripple with 3 mV, and low regulation with 0.05% of the output voltages. The power supplies have optional overvoltage protection and short-circuit protection on all models.
Features
- MTBF 200,000+ hours per MIL-HDBK-217D (most units)
- All electrolytic caps rated at 105°C
Benefits
- World-wide ac input ranges and safety standards
- Industry standard packages
- Approved to EN/CSA/IEC/UL62368-1
- Burn-in with cycling; 3-year warranty
- Capacitors have highest CV & ripple current ratings
- Transformer insulation meets Class F (155°C)
- Exceed FCC and CISPR22, Class B conducted emissions
- RoHS Compliant models available (G suffix)
Specifications
| Output Power (W): | 86 |
|---|---|
| Length (Inches): | 7 |
| Width (Inches): | 4.88 |
| Height (Inches): | 2.75 |
| Mounting Type: | Embedded PSU |
| Minimum Output Current (A): | 3 |
| Maximum Output Current (A): | 9 |
| Output Voltage Range (V): | 2 to 28V |
