artesyn™
ORv3 PMC
Active

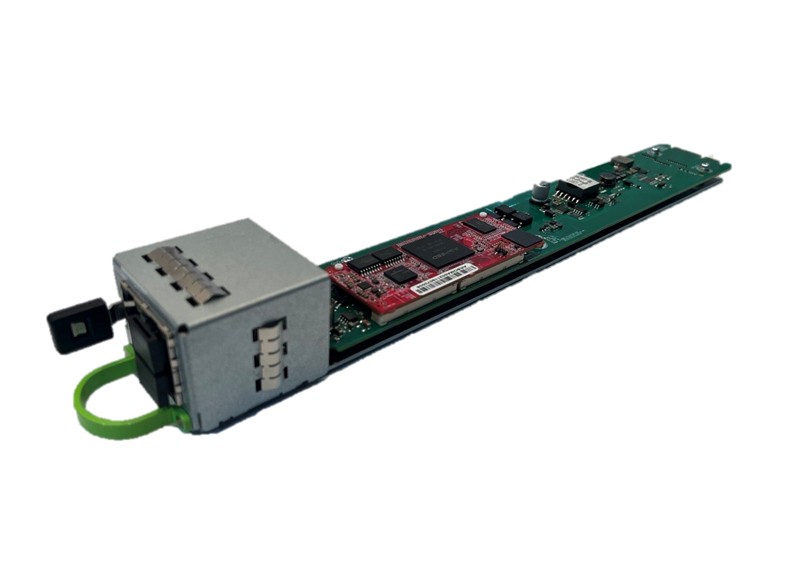

Advanced Energy's Artesyn ORv3 Power Management Controller (PMC) is a hot-pluggable controller that facilitates monitoring and control of the ORv3 power shelf. Communicating via a 10/100/1000MB Base-T Ethernet port connected directly to the rack switch, the PMC aggregates communications with the host controller and communicates with PSUs in the shelf through its backplane connector. The PMC provides ethernet connectivity and communications via the DMTF Redfish interface protocol.
A 4x RJ45 front connector provides one Ethernet port and one RS232 port for debugging and additional ports for daisy chaining in multiple shelf applications. PoE functionality is also provided in the event that 48V power from the shelf bus is lost
A 4x RJ45 front connector provides one Ethernet port and one RS232 port for debugging and additional ports for daisy chaining in multiple shelf applications. PoE functionality is also provided in the event that 48V power from the shelf bus is lost
Features
• Power over Ethernet
• Support for Multiple shelves
• Monitoring and Diagnostics
• Communication: Redfish, SSH and others
• Support for Multiple shelves
• Monitoring and Diagnostics
• Communication: Redfish, SSH and others
Benefits
- Communication with the PMC is enabled by the PoE function even when the 48V bus power is not present
- Multiple ports allow daisy chaining of PMCs with multiple shelves in a rack
- Control and monitoring of power shelves is simplified by using the common Redfish protocol
Specifications
| Length (Inches): | 13.8 |
|---|---|
| Width (Inches): | 1.89 |
| Height (Inches): | 1.57 |
| Mounting Type: | Shelf |
