artesyn™

ORv2 PSU

Active

Open Compute Project (OCP), Open Rack V.2 ORV2

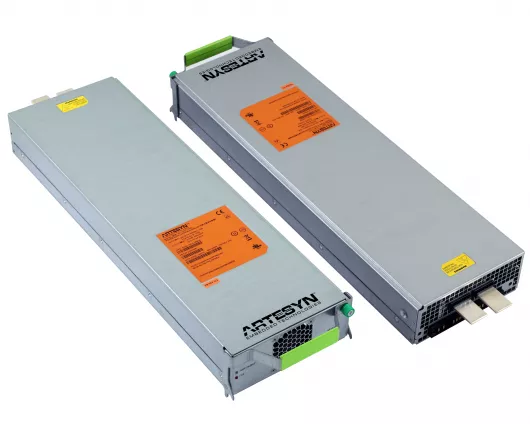

Advanced Energy introduces 6600 W (N+1) V2 power shelf which houses three 3300 W power supplies shown on the left. Each PSU has a 12 V main output and 3300 W rated power and 270W at 52.5V for battery charging.

Features

  • High efficiency, Titanium 80 Plus Compliant PSU
  • Hot pluggable PSU’s
  • Open Compute Project (OCP) compliant PSU’s
  • Digital control for better accuracy
  • Status LEDs for fault reporting

Benefits

  • Houses 3x3300W power modules and 3x3600W Lithium Ion battery back up modules
  • Low power loss and heat load in the rack
  • Droop + active current sharing – load is evenly distributed across PSUs in a shelf Hot swappable for redundant operation – no system down time

Specifications

Output Power (W): 3300
Length (Inches): 20.85
Width (Inches): 6.5
Height (Inches): 2.56
Mounting Type: Rack-mount
Minimum Output Current (A): 0
Maximum Output Current (A): 265
Output Voltage Range (V): 0V to 0V
All Specifications Collapse Specifications

Stock Check

Model Number
Min. Voltage (V) Max. Voltage (V) Current (A) Nominal Voltage (V) Number of Outputs Samples Buy
OCP ORv2 Compliant PSU Active, Contact Us 0 0 0 0 1 Contact Us Buy

Technical Documentation
