artesyn™

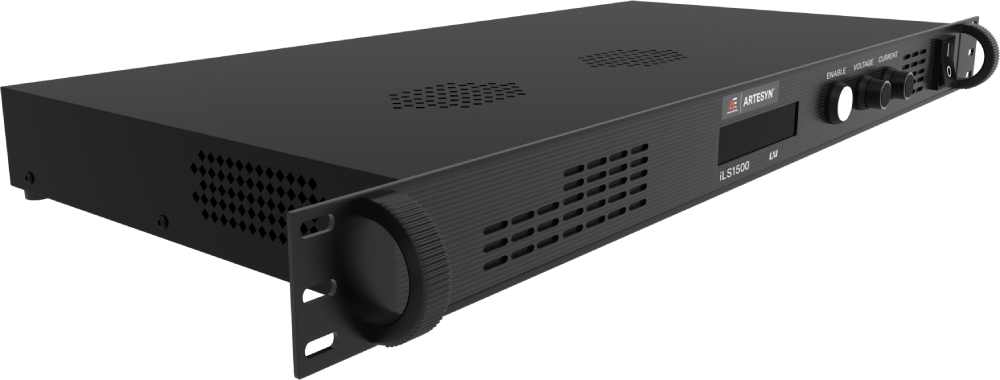

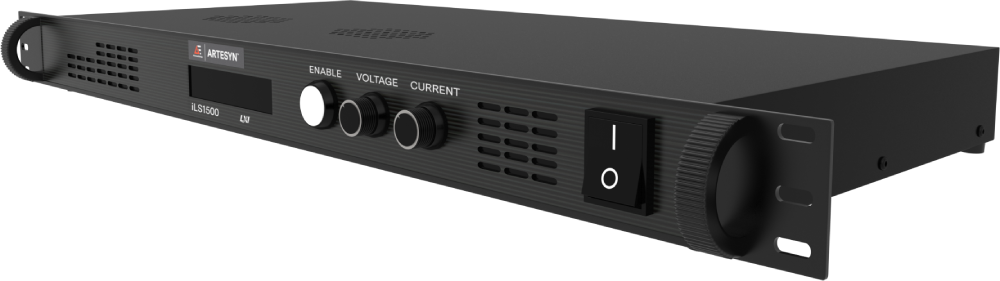

iLS1500 Series
Active
Intelligent Laboratory Power 1500 W Rack Programmable Power Supplies

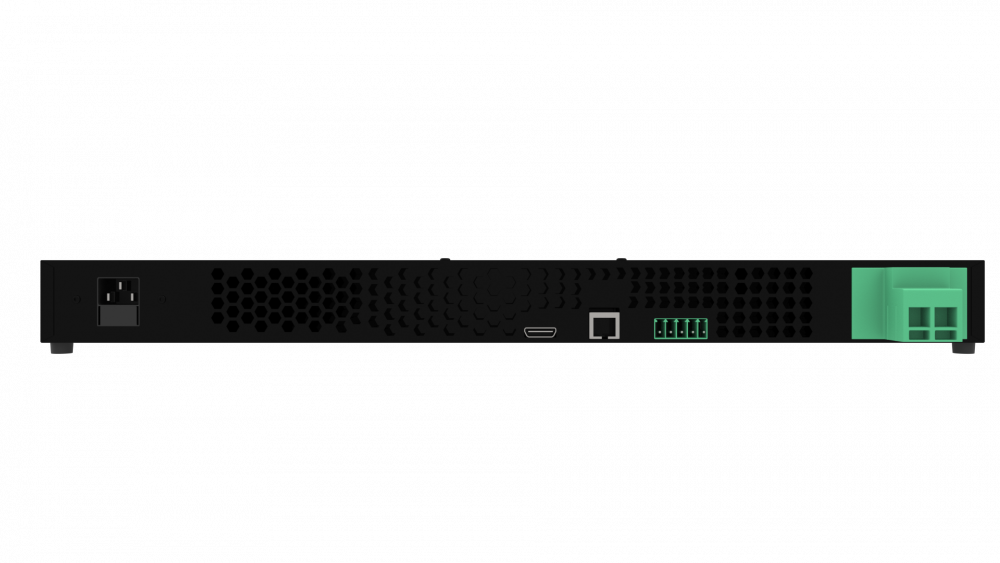

Advanced Energy’s Artesyn iLS1500 series is a programmable DC power supply with a single 1500 W output. With 12-bit D/A & A/D converters embedded, the power supplies come with the capability of reporting voltage and current very accurately. The iLS1500 series provides convenient dynamic rotary controls for voltage and current adjustment. The power supplies also come with rear ports that allow remote control via USB, Ethernet, and analog control inputs and they are designed to offer either bench use or rack mounting. The iLS1500 series is LXI certified, details for using this interface can be found in our Programming Manual.
Features
- 1500W with extended range
- 5 models: up to 400V and 70A
- Small, highdensity 1U package
- Load: 10-90% - Current 0.05 - 0.1%
- Input Voltage 100 - 240 Vac
- Output load regulation 30 - 400 V
- Output Current 5 - 70 A
- RMS Constant Voltage 10 - 100 mV
- P - P Constant Voltage 45 - 300 mV
- Weight 12.8 lbs. (5.8 Kg)
- Total Power 1500 Watts
- Load: 10-90% - Voltage 0.0005
Benefits
- Built-in voltage and current measurement
- Full OCP and OVP protection
- LXI certified
- Series and parallel operation
- Wireless digital remote sense
- # of Outputs Single
Specifications
| Output Power (W): | 1500 |
|---|---|
| Length (Inches): | 15.5 |
| Width (Inches): | 19 |
| Height (Inches): | 1.73 |
| Mounting Type: | Rack-mount |
| Minimum Output Current (A): | 5 |
| Maximum Output Current (A): | 70 |
| Output Voltage Range (V): | 30V to 400V |
Accessories
Technical Documentation
Technical Videos
Intelligent Programmable DC Power Supplies - Advanced Energy’s Artesyn iLS Series
Jul 19, 2021
Advanced Energy’s Artesyn iLS series of intelligent programmable DC power supplies provide an ultra-accurate source and precise measurement of voltage and current for laboratory, test and measurement, automated test equipment, and research and development applications.
