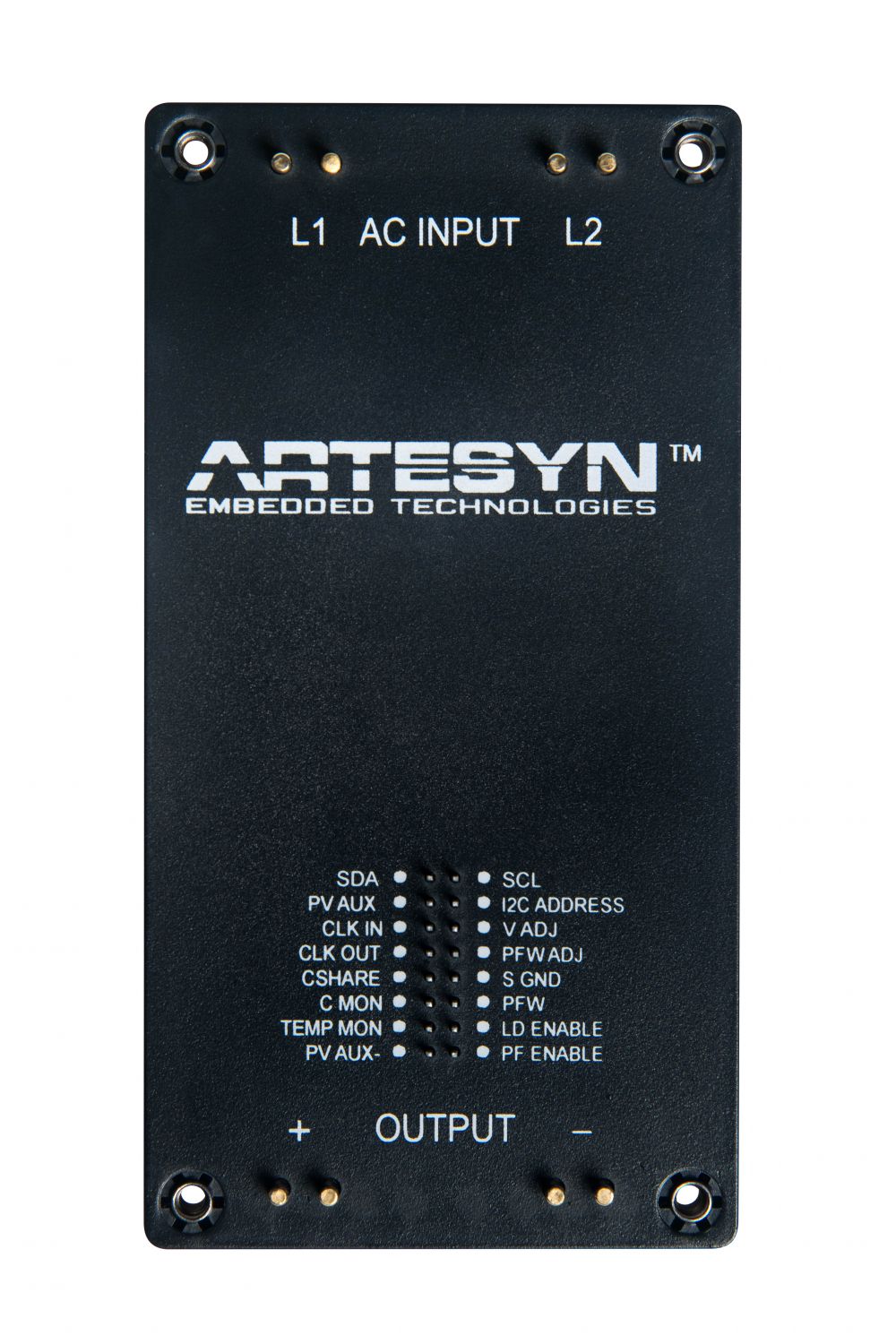

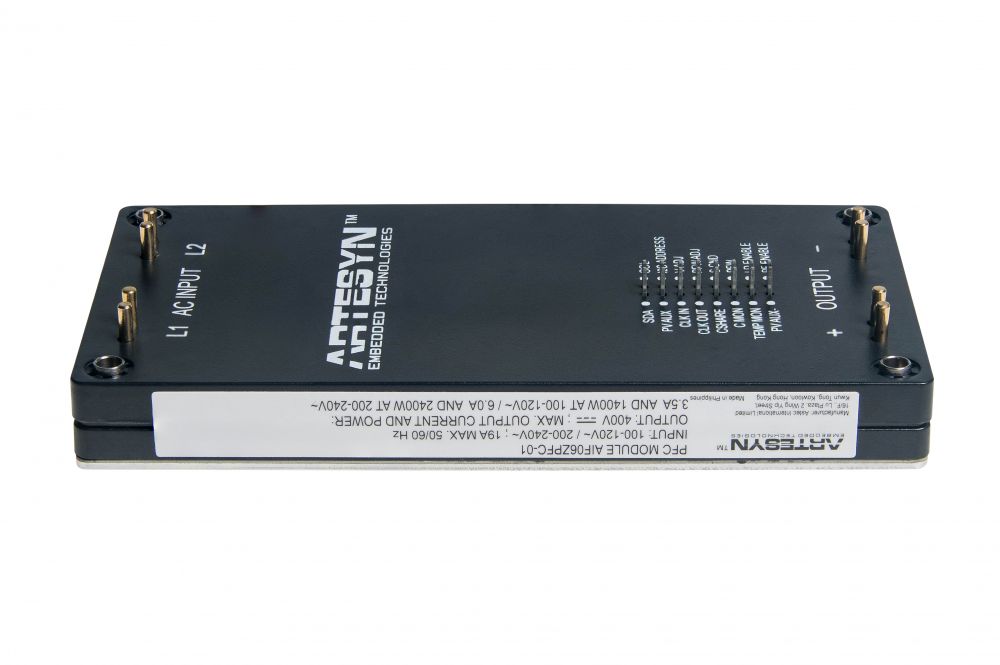

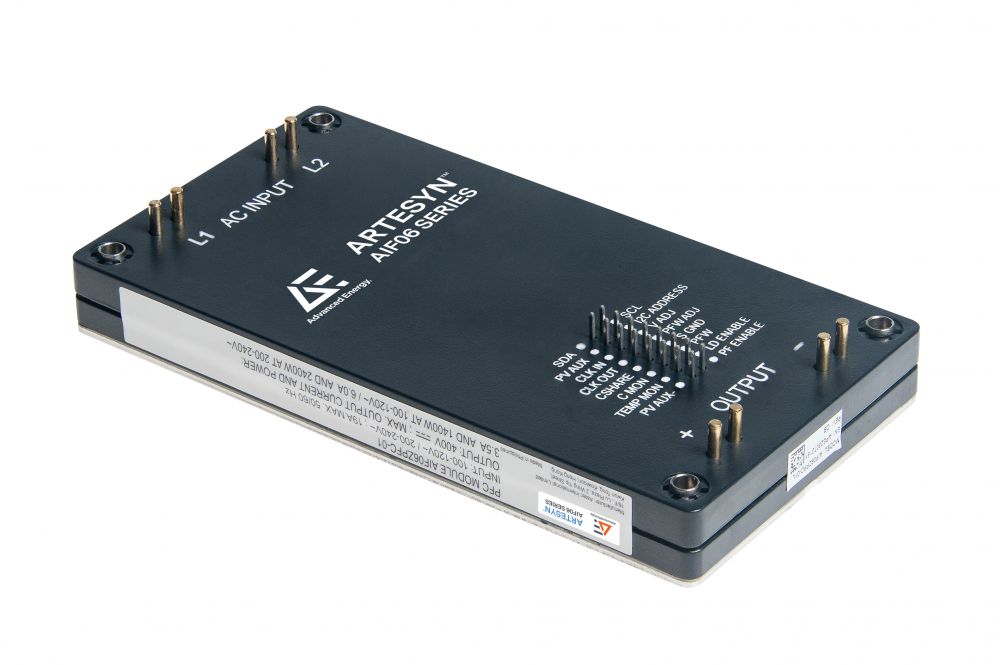

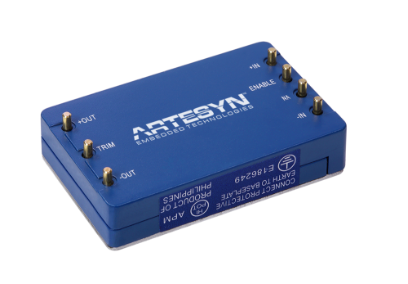

AIF06ZPFC Series
2400 W Full Brick PFC Converter

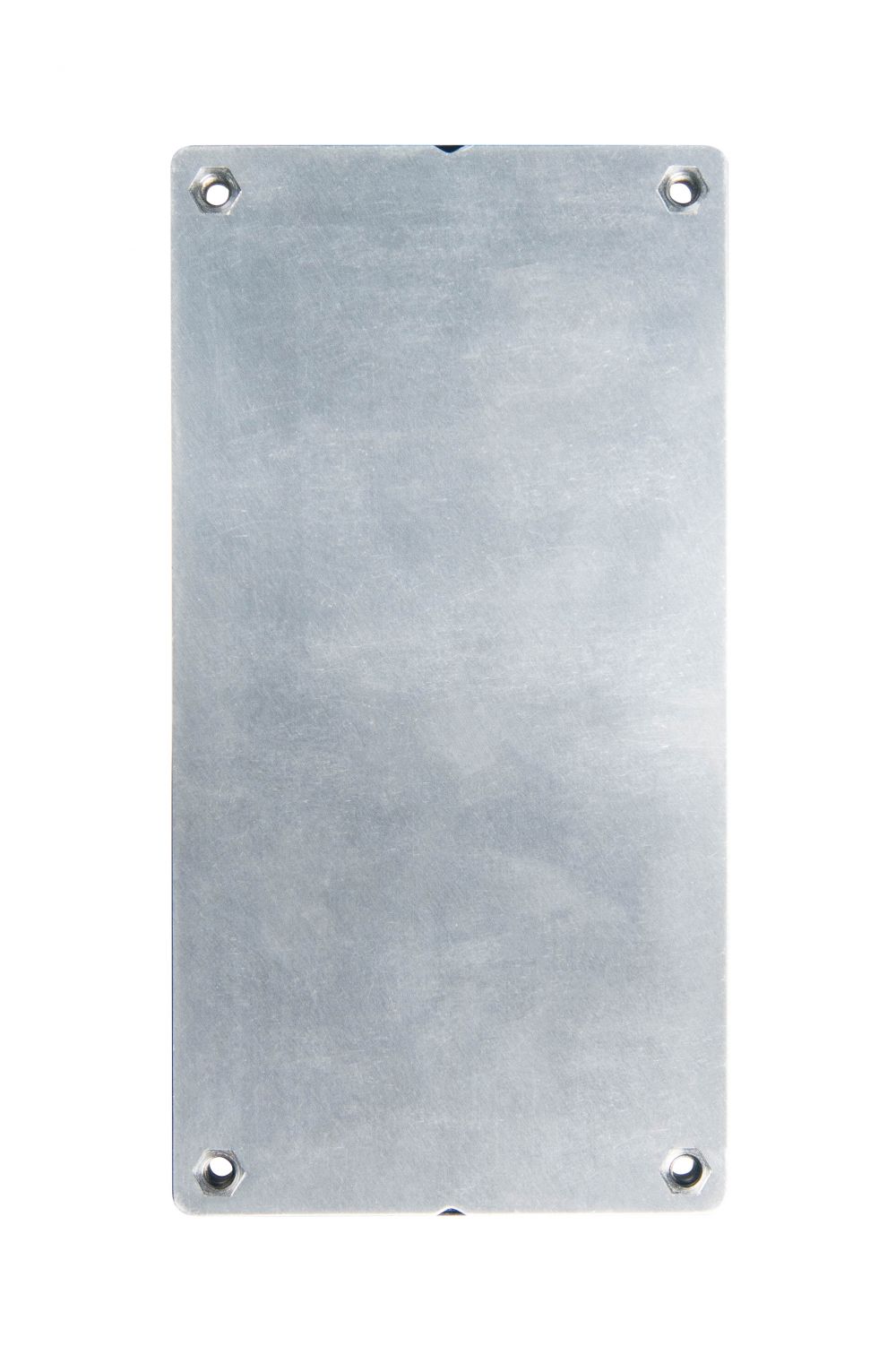

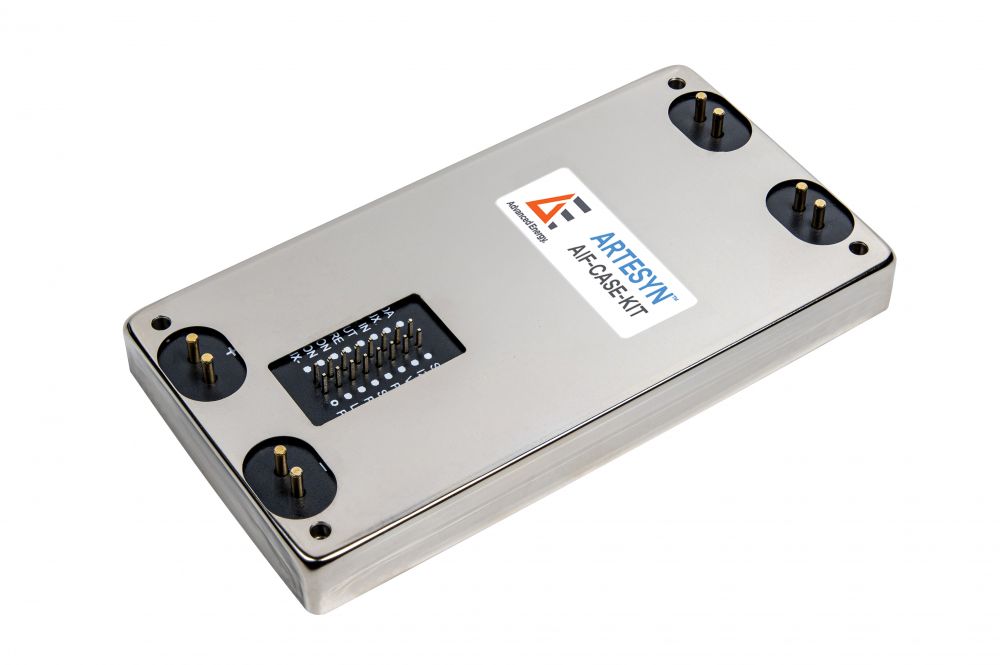

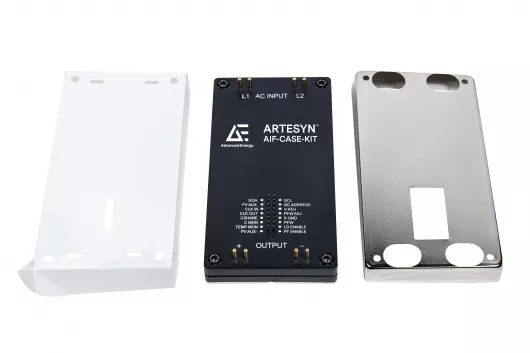

The 2.4 kW AIF06ZPFC series power factor correction module presents a unity power factor from an 85 to 264 VAC input and delivers a high 97.3% conversion efficiency and nominal non-isolated output of 400 VDC. The series features monitoring, protection, and adjustment facilities, a built-in PMBus® interface, internal memory, and internal inrush limiting. Accurate current sharing allows paralleling and a thermal base plate allows a baseplate operating temperature range of -20 to +100℃ with startup from as low as -40℃. Featuring an encapsulated standard 2.4 x 4.6-inch (61 x 116.8 mm) full-brick form factor and an installed height of 0.55 inches (13.7 mm), the series has a power density of 395 W/inch³ (24.1 W/cm³). Insulator-sheet and EMI-shield options are available.
Features
- Input range 85 - 264Vac
- Output current 6 Amps maximum
- Output Voltage 400Vdc nominal
- Output power 1,400W between 85Vac and 180Vac
- Output load regulation 1% Vout load regulation
- Output power 2,200W between 180Vac and 200Vac
- Output power 2400W between 200Vac and 264Vac
- Mechanical 2.4 by 4.6 inch full brick
- Inrush current limit Function provided internal to the AIF06
- Parrallel module -01L can be used with 1 or 2 modules
- Parallel module can be used with 3 to 10 modules
Benefits
- Enable function Positive or negative enable variants
- Isolation Non-isolated.
- Control PMBus interface provided.
Specifications
| Output Power (W): | 2400 |
|---|---|
| Input Voltage (V): | 85 to 264 |
| Operating Temperature (°C): | -40 to +100 |
| Length (Inches): | 4.6 |
| Width (Inches): | 2.4 |
| Height (Inches): | 0.55 |
| Mounting Type: | BMP; Through Hole |
| Minimum Output Current (A): | 0 |
