AIT00ZPFC Series
Active
Three Quarter Brick PFC Modules

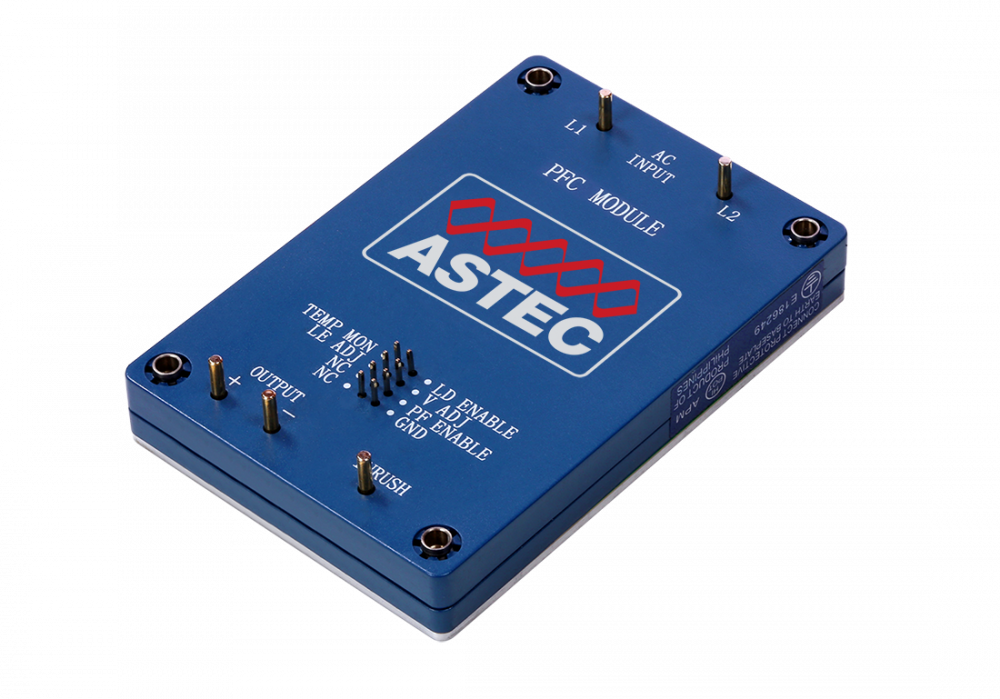

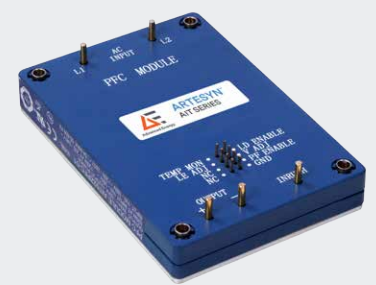

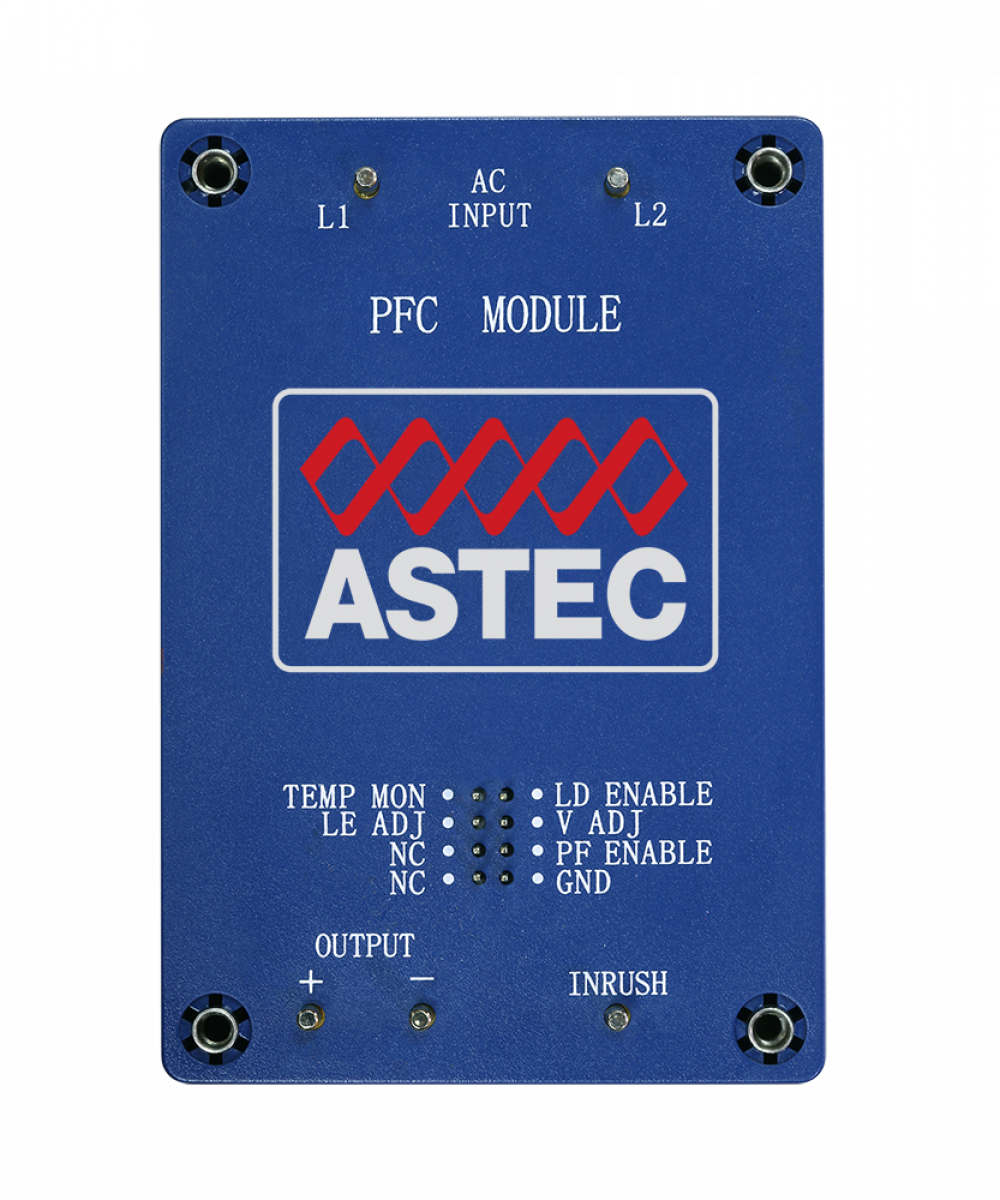

The AIT00ZPFC series of three-quarter-brick power factor correction modules accept a 100 to 122 VAC input and present a unity power factor. They accommodate AC supply frequencies of 50 Hz, 60 Hz or 360 to 800 Hz, and a DC input version is also available. Rated at 150 W, the modules have a high conversion efficiency of 91% and provide a typical output voltage of 393 VDC.
Based on an encapsulated design that incorporates a thermal baseplate, the AIT00ZPFC series PFC module accommodates a baseplate operating temperature range of -20 to 100˚C and can start up from temperatures as low as -40˚C. The module has an industry-standard 2.4 x 3.5 inch (61 x 88.9 mm) footprint and an installed height of only 0.54 inch (13.9 mm).
Advanced Energy’s AIT00ZPFC series PFC modules comply with the RTCA-DO-160 avionics standard and the IEC1000-3-2 harmonics emission standard.
Based on an encapsulated design that incorporates a thermal baseplate, the AIT00ZPFC series PFC module accommodates a baseplate operating temperature range of -20 to 100˚C and can start up from temperatures as low as -40˚C. The module has an industry-standard 2.4 x 3.5 inch (61 x 88.9 mm) footprint and an installed height of only 0.54 inch (13.9 mm).
Advanced Energy’s AIT00ZPFC series PFC modules comply with the RTCA-DO-160 avionics standard and the IEC1000-3-2 harmonics emission standard.
Features
- Unity power factor
- High efficiency - up to 92%
- Civil / Aviation supply frequency range (50 / 60 / 360 to 800 Hz)
- Up to 150 W output power
- Negative enable function
- DC Input option
- Enable output to control DC-DC Converter
- Internal active switch bypassing external inrush current components
Benefits
- RTCA-DO 160 compliant
- IEC1000-3-2 compliance at 50 Hz to 800 Hz input
- 100°C baseplate operating temperature
Specifications
| Output Power (W): | 150 |
|---|---|
| Length (Inches): | 3.5 |
| Width (Inches): | 2.4 |
| Height (Inches): | 0.55 |
| Mounting Type: | BMP; Through Hole |
| Minimum Output Current (A): | 0.34 |
| Maximum Output Current (A): | 0.34 |
| Output Voltage Range (V): | 393V to 393V |
Technical Documentation
