artesyn™
AET 20W Series
Active
20 W Isolated DC-DC Converters

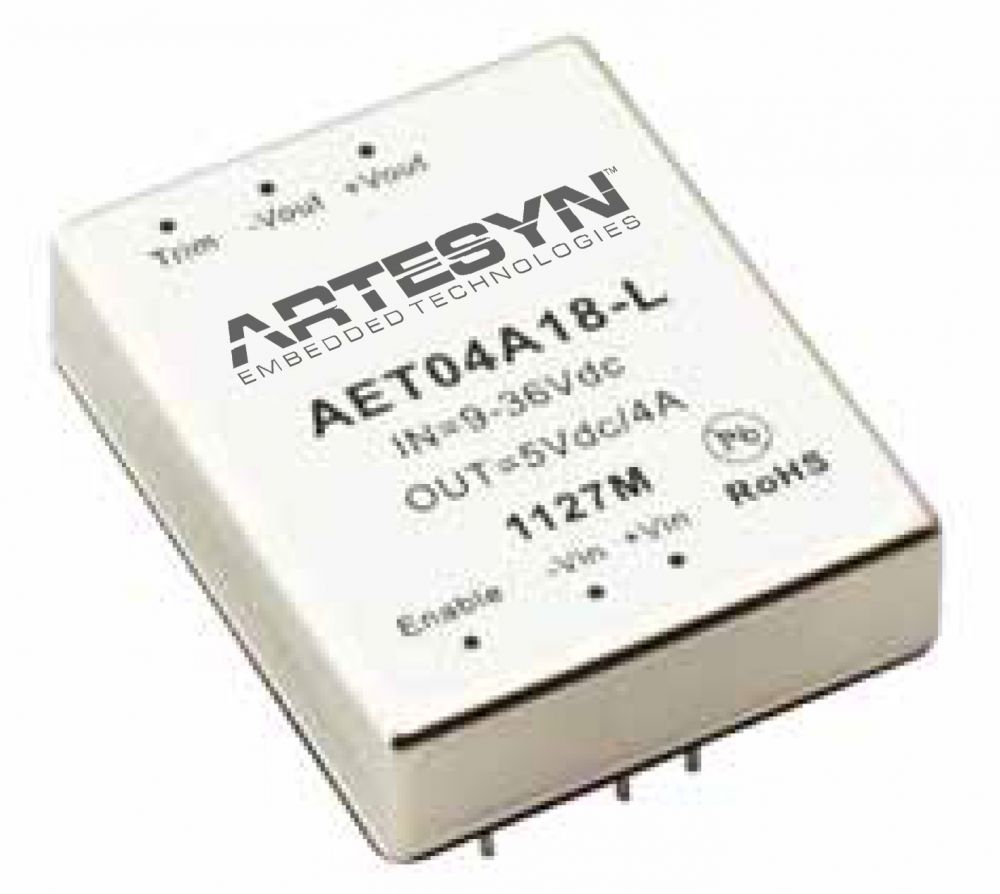

The AET series of 20 W isolated DC-DC converters is available with an ultra wide 9 to 36 VDC or 18 to 75 VDC input. Each of these versions offers a choice of five single output models, with voltages of 2.5 V, 3.3 V, 5 V, 12 V or 15 V, and three dual output models offering +5/-5 V, +12/-12 V or +15/-15 V. The converters are encapsulated in a 2 x 1.6 inch (50.8 x 40.6 mm) metal case and have a height of just 0.48 inch (12.2 mm). They are ideal for ruggedized applications involving harsh environments. Standard features include 1500 VDC input/output isolation, overvoltage protection and short-circuit protection with auto-restart.
AET series converters accommodate an operating temperature range of -40 to 71ËšC without derating and are suitable for diverse applications in areas such as industrial automation, instrumentation, test and measurement, and telecommunications. All models with an output voltage of 5 V or higher have a 20 W power rating.
AET series converters accommodate an operating temperature range of -40 to 71ËšC without derating and are suitable for diverse applications in areas such as industrial automation, instrumentation, test and measurement, and telecommunications. All models with an output voltage of 5 V or higher have a 20 W power rating.
Features
- 1.6" x 2" package
- 1500 Vdc I/O Isolation
- 4:1 Input Range
- Conducted noise: meets EN55022 Class A, FCC level A
- Input Range 9 - 36 VDC; 18 - 75 VDC
- Output Voltage Adjust Range +/- 10% of nominal output
- I/O Isolation 1500 VDC min
- Efficiency 85% @ 12 Vo
Benefits
- Adjustable output
- Encapsulated
- Remote on/off
- Single and Dual output
Specifications
| Output Power (W): | 20 |
|---|---|
| Length (Inches): | 2 |
| Width (Inches): | 1.6 |
| Height (Inches): | 0.48 |
| Mounting Type: | BMP; Through Hole |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 6 |
| Output Voltage Range (V): | 0V to 15V |
