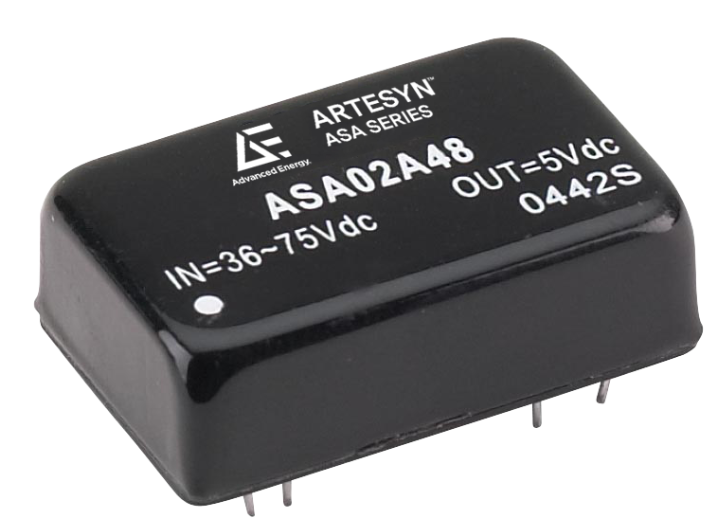

ASA 10W 24Vin Series
Active
10 W Isolated DC-DC Converters (24 VIN)
This version of the ASA series of 10 W isolated DC-DC converters features a wide 2:1 input voltage range of 18 to 36 VDC and is primarily designed for use with nominal 24 V supplies. There is a choice of four single output models, offering voltages of 2.5 V, 3.3 V, 5 V, or 12 V. The converters are fully encapsulated in a compact 1.25 x 0.8 inch (31.7 x 20.3 mm) metal case and have a height of just 0.4 inch (10.2 mm). They are ideal for use ruggedized applications involving harsh environments.
Standard features include 1500 VDC input/output isolation and short-circuit protection with auto-restart. Typical efficiency is 83%. ASA series 10 W converters have an operating temperature range of -40 to 60˚C without derating and are suitable for diverse low power applications in areas such as industrial automation, instrumentation, test and measurement, and telecommunications. The 2.5 V output model has an output power rating of 7.5 W, while all other models are rated at 10 W.
Standard features include 1500 VDC input/output isolation and short-circuit protection with auto-restart. Typical efficiency is 83%. ASA series 10 W converters have an operating temperature range of -40 to 60˚C without derating and are suitable for diverse low power applications in areas such as industrial automation, instrumentation, test and measurement, and telecommunications. The 2.5 V output model has an output power rating of 7.5 W, while all other models are rated at 10 W.
Features
- 1.25" x 0.8" DIP package
- 1500 Vdc I/O isolation
- 2:1 input range
- Input Voltage 36 - 75 Vdc (48 Vdc)
- Isolation Voltage 1500 Vdc
- MTBF (Demonstrated) 1 Million Hours
Benefits
- Encapsulated
- Single output
- UL Approved
Specifications
| Output Power (W): | 10 |
|---|---|
| Length (Inches): | 1.25 |
| Width (Inches): | 0.8 |
| Height (Inches): | 0.4 |
| Mounting Type: | BMP; Through Hole |
| Minimum Output Current (A): | 0.83 |
| Maximum Output Current (A): | 3 |
| Output Voltage Range (V): | 2.5V to 12V |
