artesyn™

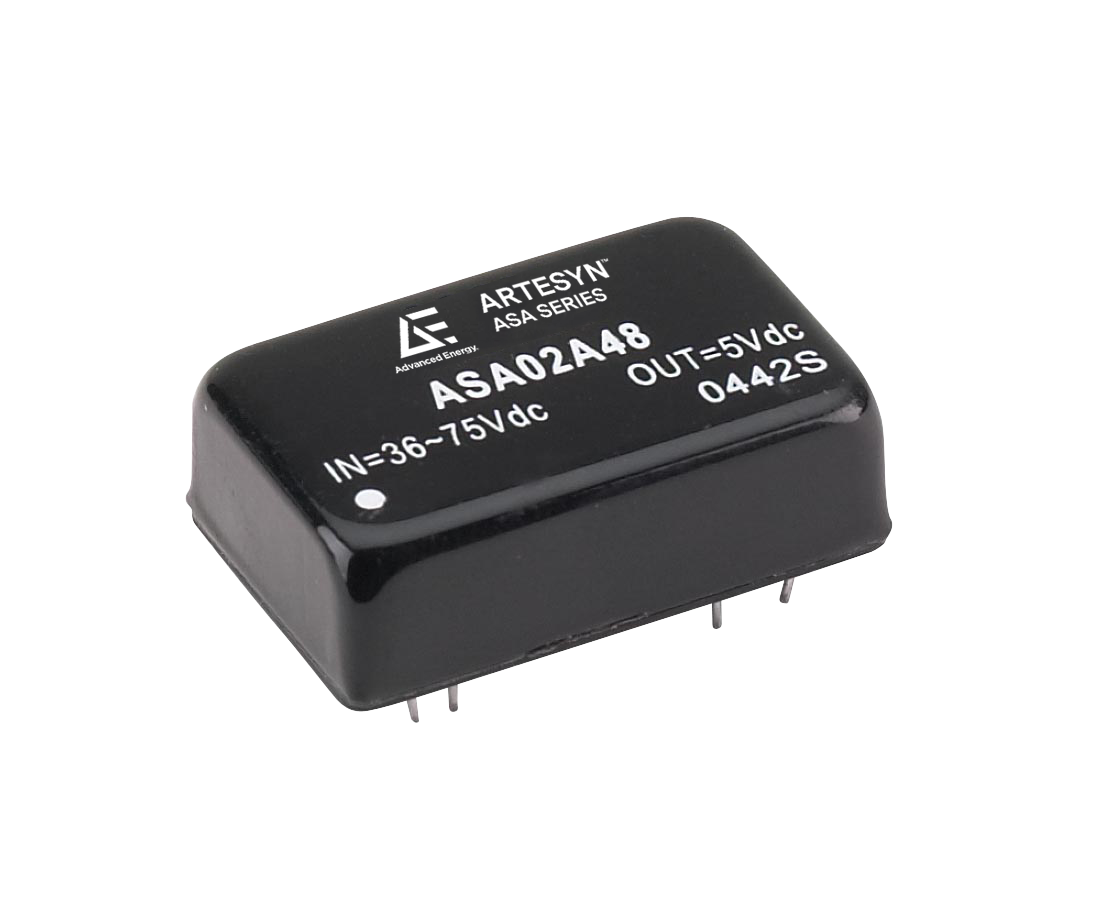

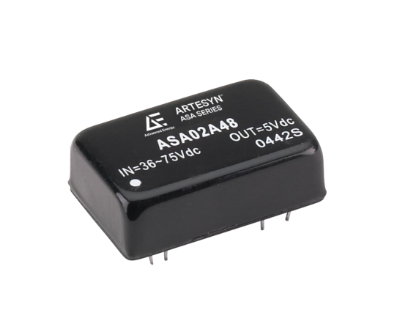

ASA 10W 48Vin Series
Active
10 W Isolated DC-DC Converters (48 Vin)
Designed primarily for use with nominal 48 V supplies, the ASA series of 10 W isolated DC-DC converters features four single-output models (2.5 V, 3.3 V, 5 V, or 12 V) from a wide 2:1 input voltage of 36 to 75 VDC. The converters are fully encapsulated in a compact metal case just 0.4 inch high–making them ideal for ruggedized applications in harsh environments. With a typical efficiency of 83% and an operating temperature range of -40 to 60˚C without derating, the converters are suitable for diverse low-power applications such as industrial automation, instrumentation, test and measurement, and telecommunications. Standard features include 1500 VDC input/output isolation and short-circuit protection with auto-restart.
Features
- 1.25" x 0.8" DIP package
- 1500 Vdc I/O isolation
- 2:1 input range
- Input Voltage 36 - 75 Vdc (48 Vdc)
- Isolation Voltage 1500 Vdc
- MTBF (Demonstrated) 1 Million Hours
Benefits
- Encapsulated
- Single output
- UL Approved
Specifications
| Output Power (W): | 10 |
|---|---|
| Length (Inches): | 1.25 |
| Width (Inches): | 0.8 |
| Height (Inches): | 0.4 |
| Mounting Type: | BMP; Through Hole |
| Minimum Output Current (A): | 0.83 |
| Maximum Output Current (A): | 3 |
| Output Voltage Range (V): | 2.5V to 12V |
