ATA 3 Watt Isolated DC-DC Converter Series
Active
Industrial DC-DC
Advanced Energy’s ATA series 3 W isolated DC-DC converter is offered in 16 variants, available in a mini dual-in-line package for through-hole mounting or a mini surface-mount package. With an assortment of single output models in a variety of voltages, ATA series 3 W converters feature an ultra-wide input range and conversion efficiency. This 3 W DC-DC converter is perfect for low power applications, and suited for data communication, telecommunication, computer peripheral equipment, industrial automation, and mobile battery-powered systems.
Features
- Input voltage range 9V to 36V
- Input voltage range 18V to 75V
- Output voltage (Single) 3v3, 5v, 12v, 15v, 24v
- Output voltage (Dual) +/-5V, +/-12V, +/-15V
- Isolation voltage 1500Vdc
Benefits
- Output voltage Single and Dual O/P versions
- Mechanical Fully potted
- Termination Through Hole or SMT
Specifications
| Output Power (W): | 3 |
|---|---|
| Length (Inches): | 0.94 |
| Width (Inches): | 0.54 |
| Height (Inches): | 0.31 |
| Mounting Type: | BMP; SMT &Through Hole |
| Minimum Output Current (A): | 0.1 |
| Maximum Output Current (A): | 0.6 |
| Output Voltage Range (V): | -15V to 24V |
| Minimum Output Power (W): | 0 |
| Maximum Output Power (W): | 3 |
| Minimum Input Voltage (V): | 9 |
| Maximum Input Voltage (V): | 75 |
| Warranty (Years): | 3 |
Stock Check
|
Model Number
Samples
Buy
|
Min. Voltage (V) | Max. Voltage (V) | Current (A) | Nominal Voltage (V) | Number of Outputs | Samples | Buy |
|---|---|---|---|---|---|---|---|
|

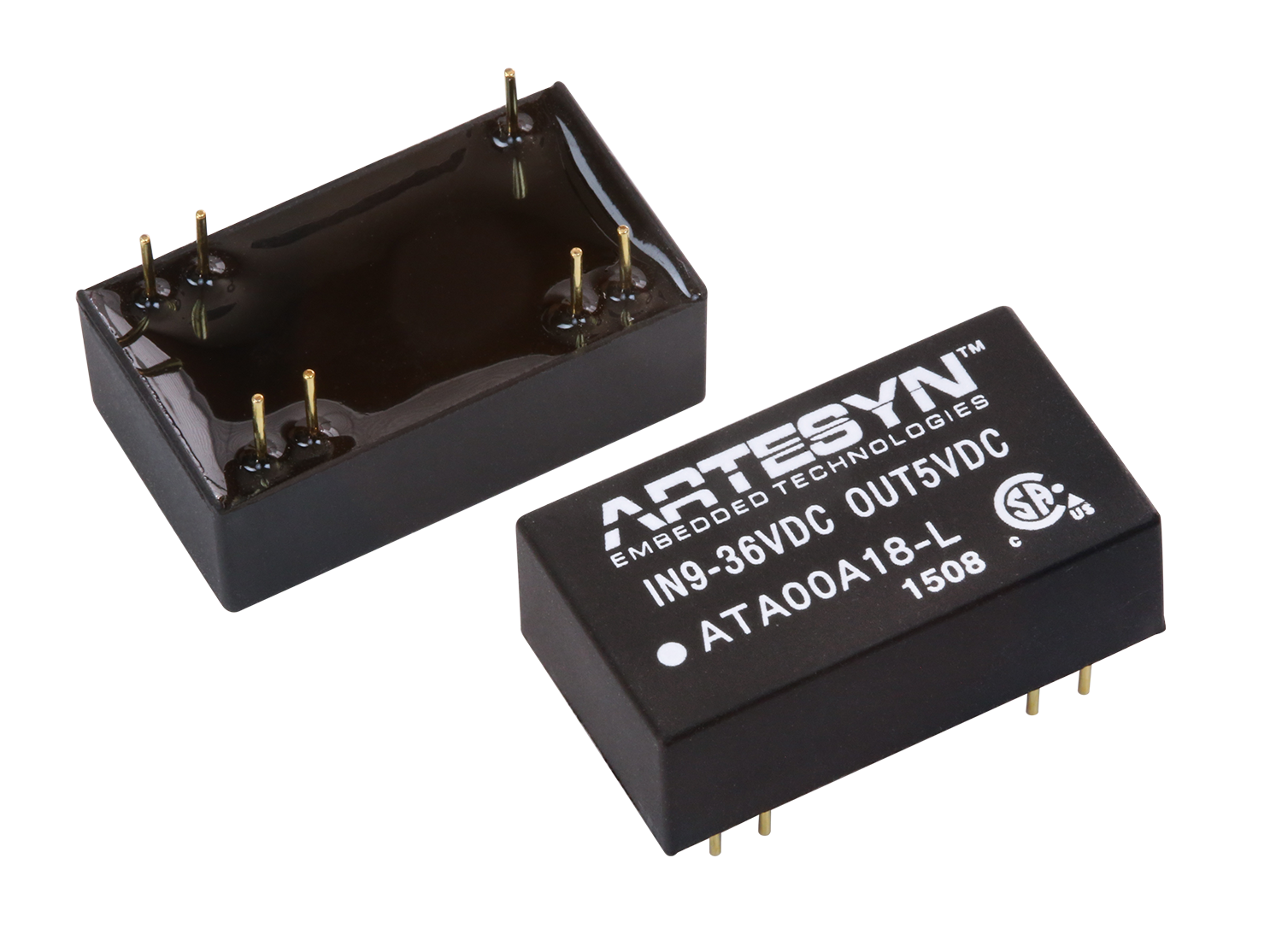

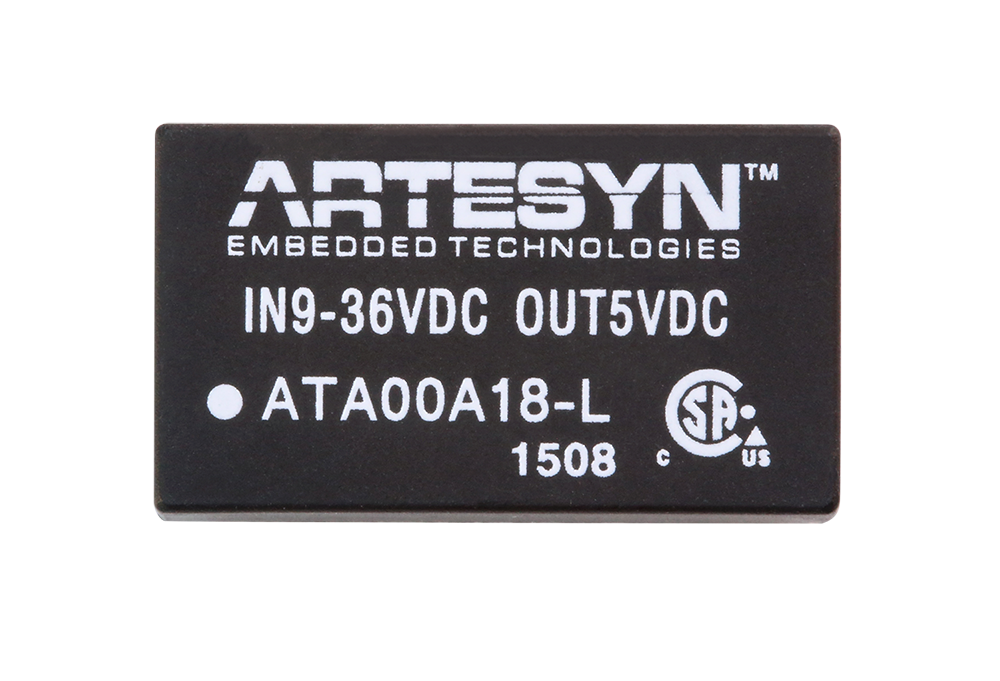

ATA00A18-L
Active, In Stock
9-36Vin, 5V at 600mA DIP
|
5 | 5 | 0.6 | 5 | 1 | Request | Buy |
|

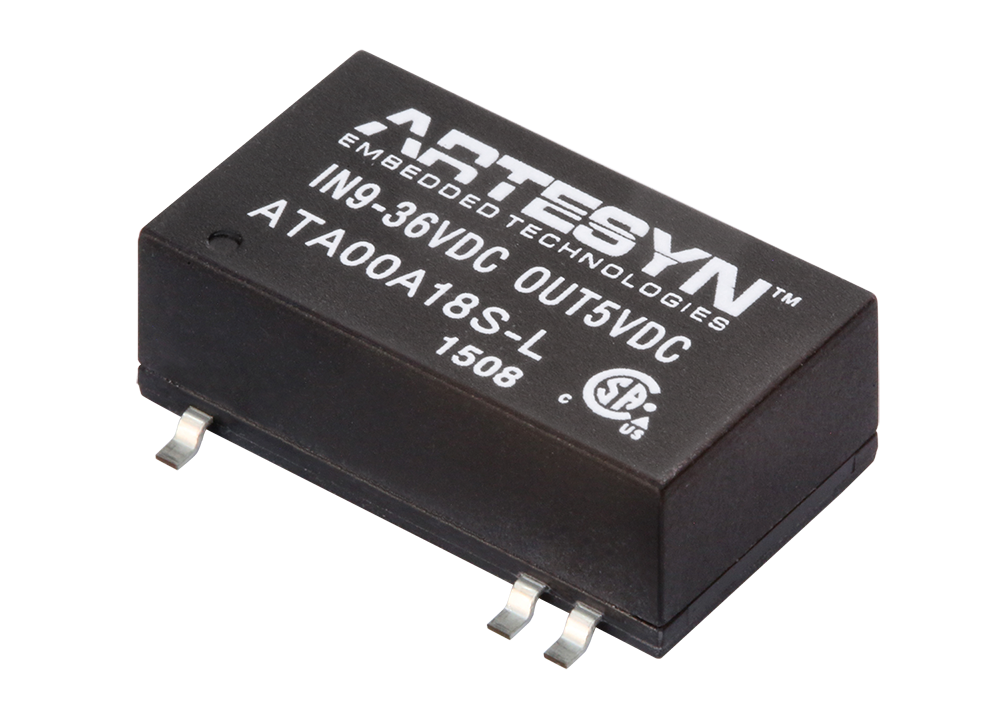

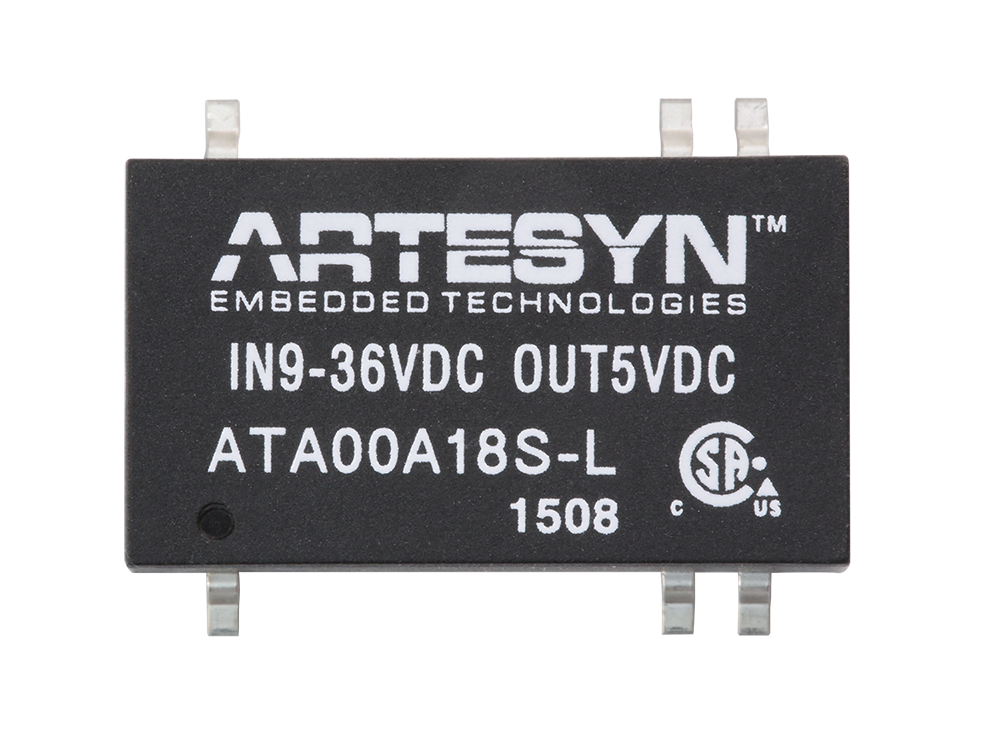

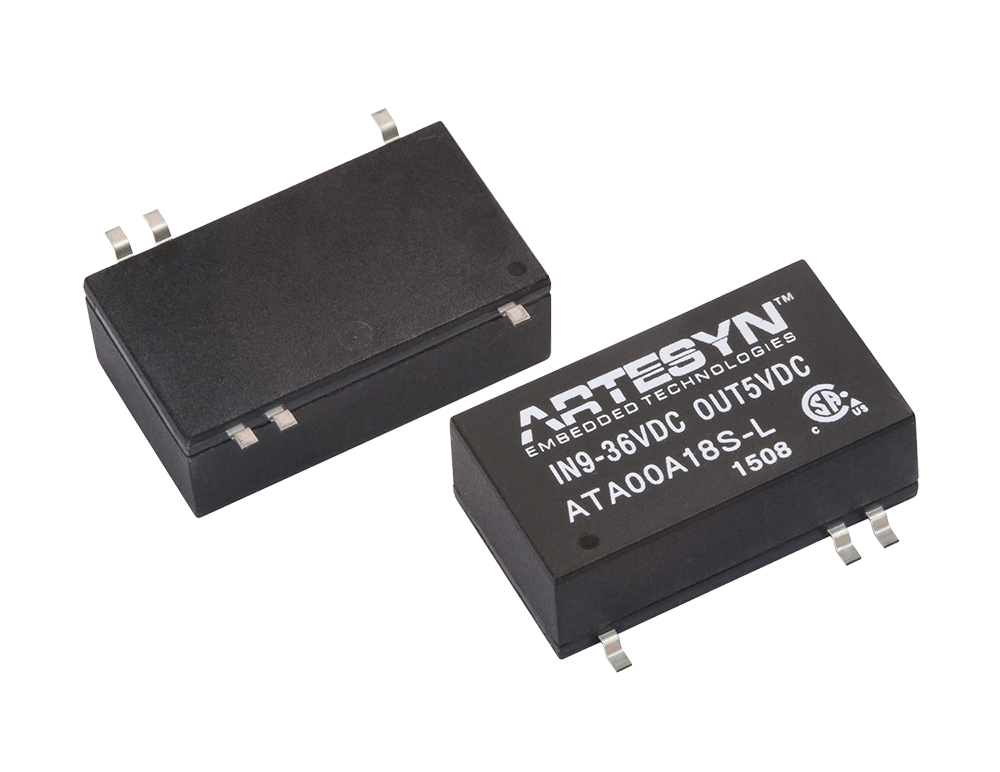

ATA00A18S-L
Active, In Stock
3-36Vin, 5V at 600mA SMT
|
5 | 5 | 0.6 | 5 | 1 | Request | Buy |
|
ATA00A36-L
Active, In Stock
18-75Vin and 5V at 600mA
|
5 | 5 | 0.6 | 5 | 1 | Request | Buy |
|
ATA00A36S-L
Active, In Stock
18-75V, 5V at 600mA SMT
|
5 | 5 | 0.6 | 5 | 1 | Request | Buy |
|
ATA00AA18-L
Active, In Stock
9-36Vin, +/-5V 300mA DIP
|
5 | 5 | 0.3 | 5 | 2 | Request | Buy |
|
ATA00AA18S-L
Active, In Stock
9-36Vin +/-5 300mA SMT
|
5 | 5 | 0.3 | 5 | 2 | Request | Buy |
|
ATA00AA36-L
Active,
Contact Us
18-75Vin +/-5V at 300mA
|
5 | 5 | 0.3 | 5 | 2 | Contact Us | Buy |
|
ATA00AA36S-L
Active, In Stock
18-75V +/-5V at 300mA SMT
|
5 | 5 | 0.3 | 5 | 2 | Request | Buy |
|
ATA00B18-L
Active, In Stock
9-36Vin, 12V at 250mA DIP
|
12 | 12 | 0.25 | 12 | 1 | Request | Buy |
|
ATA00B18S-L
Active, In Stock
9-36Vin, 12V at 250mA SMT
|
12 | 12 | 0.25 | 12 | 1 | Request | Buy |
|
ATA00B36-L
Active, In Stock
18-75Vin and 12V at 250mA
|
12 | 12 | 0.25 | 12 | 1 | Request | Buy |
|
ATA00B36S-L
Active, In Stock
18-75Vin, 12V @ 250mA SMT
|
12 | 12 | 0.25 | 12 | 1 | Request | Buy |
|
ATA00BB18-L
Active, In Stock
9-36Vin, +/-12V 125mA DIP
|
12 | 12 | 0.125 | 12 | 2 | Request | Buy |
|
ATA00BB18S-L
Active, In Stock
9-36Vin +/-12 125mA SMT
|
12 | 12 | 0.125 | 12 | 2 | Request | Buy |
|
ATA00BB36-L
Active,
Contact Us
18-75Vin +/-12V at 125mA
|
12 | 12 | 0.125 | 12 | 2 | Contact Us | Buy |
|
ATA00BB36S-L
Active, In Stock
18-75V +/-12V @ 300mA SMT
|
12 | 12 | 0.125 | 12 | 2 | Request | Buy |
|
ATA00C18-L
Active, In Stock
9-36Vin, 15V at 200mA DIP
|
15 | 15 | 0.2 | 15 | 1 | Request | Buy |
|
ATA00C18S-L
Active, In Stock
9-36Vin, 15Vout 200mA SMT
|
15 | 15 | 0.2 | 15 | 1 | Request | Buy |
|
ATA00C36-L
Active,
Contact Us
18-75Vin and 15V at 200mA
|
15 | 15 | 0.2 | 15 | 1 | Contact Us | Buy |
|
ATA00C36S-L
Active, In Stock
18-75Vin 15V at 200mA SMT
|
15 | 15 | 0.2 | 15 | 1 | Request | Buy |
|
ATA00CC18-L
Active, In Stock
9-36Vin, +/-15 100mA DIP
|
15 | 15 | 0.1 | 15 | 2 | Request | Buy |
|
ATA00CC18S-L
Active, In Stock
9-36Vin, +/-15 100mA SMT
|
15 | 15 | 0.1 | 15 | 2 | Request | Buy |
|
ATA00CC36-L
Active,
Contact Us
18-75Vin +/-15V at 100mA
|
0 | Contact Us | Buy | ||||
|
ATA00CC36S-L
Active,
Contact Us
18-75V +/-15V @ 100mA SMT
|
15 | 15 | 0.1 | 15 | 2 | Contact Us | Buy |
|
ATA00F18-L
Active, In Stock
9-36Vin and 3v3 at 600mA
|
3.3 | 3.3 | 0.6 | 3.3 | 1 | Request | Buy |
|
ATA00F18S-L
Active, In Stock
9-36Vin and 3v3 600mA SMT
|
3.3 | 3.3 | 0.6 | 3.3 | 1 | Request | Buy |
|
ATA00F36-L
Active,
Contact Us
18-75Vin and 3v3 at 600mA
|
3.3 | 3.3 | 0.6 | 3.3 | 1 | Contact Us | Buy |
|
ATA00F36S-L
Active, In Stock
9-36Vin, 3v3 at 600mA SMT
|
3.3 | 3.3 | 0.6 | 3.3 | 1 | Request | Buy |
|
ATA00H18-L
Active, In Stock
9-36Vin, 24V at 125mA DIP
|
24 | 24 | 0.125 | 24 | 1 | Request | Buy |
|
ATA00H18S-L
Active, In Stock
9-36Vin, 24V at 125mA SMT
|
24 | 24 | 0.125 | 24 | 1 | Request | Buy |
|
ATA00H36-L
Active, In Stock
18-75Vin and 24V at 125mA
|
24 | 24 | 0.125 | 24 | 1 | Request | Buy |
|
ATA00H36S-L
Active, In Stock
18-75Vin 15V at 125mA SMT
|
24 | 24 | 0.125 | 24 | 1 | Request | Buy |
Technical Documentation
| Title | Type |
|---|---|
| ATA Series 3W Isolated DC-DC Converters Datasheet (409 KB) | Data Sheet |
| ATA Series REACH COC (217 KB) | Reach Certificate |
| ATA RoHS certificate (101 KB) | RoHS Certificate |
| CSA certificate (491 KB) | Safety Certificate |
| ATA 3W Technical Reference Note (6 MB) | Technical Reference |
| Product Branding Change notice (326 KB) | Technical Reference |
