AXA 20W Single O/P 18-75 Vin Series
Active

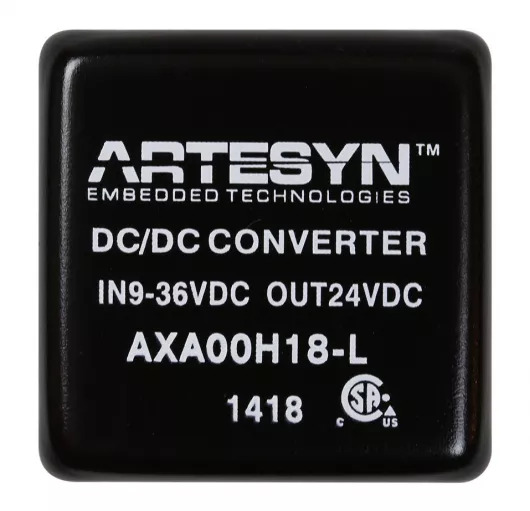

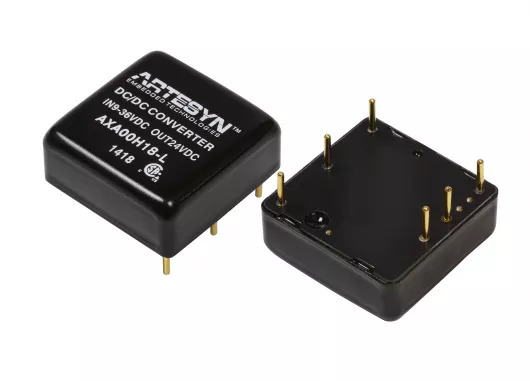

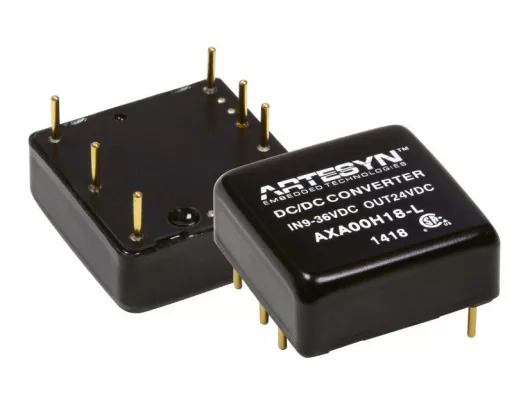

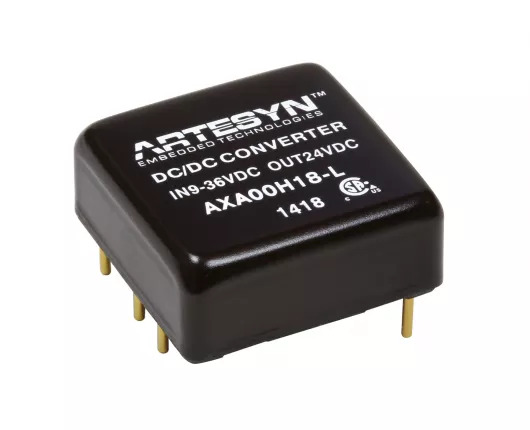

High-Input 20 W Isolated DC-DC Converters
The AXA series of high-input isolated DC-DC converters features an ultra wide 4:1 input voltage range of 18 to 75 VDC and is primarily designed for use with nominal 48 V supplies. There is a choice of five single output models, offering voltages of 3.3 V, 5 V, 12 V, 15 V or 24 V. The converters are fully encapsulated in a compact 1 x 1 inch (25.4 x 25.4 mm) metal case incorporating an isolated baseplate and have a height of just 0.4 inch (10.2 mm). An optional clip-on heatsink is available for convection cooling. Standard features include 1500 VDC input/output isolation, remote On/Off and hiccup mode short-circuit protection.
AXA series converters have an operating temperature range of -40 to 85˚C and are suitable for diverse low power applications in areas such as industrial automation, instrumentation, test and measurement, and telecommunications. They are ideal for ruggedized applications involving harsh environments. The 3.3 VDC output model has a power output rating of 15 W while all other models are rated at 20 W.
AXA series converters have an operating temperature range of -40 to 85˚C and are suitable for diverse low power applications in areas such as industrial automation, instrumentation, test and measurement, and telecommunications. They are ideal for ruggedized applications involving harsh environments. The 3.3 VDC output model has a power output rating of 15 W while all other models are rated at 20 W.
Features
- Input voltage 18Vdc to 75Vdc
- Single output volatges 3V3, 5V, 12V, 15V and 24V
- Dual output voltages +/-12V and +/-15V
- Isolation 1500Vdc
- Size 1 inch by 1 inch
Benefits
- Construction Metal cased, fully potted
- Construction Heatsink option available.
Specifications
| Output Power (W): | 20 |
|---|---|
| Length (Inches): | 1 |
| Width (Inches): | 1 |
| Height (Inches): | 0.4 |
| Mounting Type: | BMP; Through Hole |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 4.5 |
| Output Voltage Range (V): | 3V to 26.4V |
