artesyn™

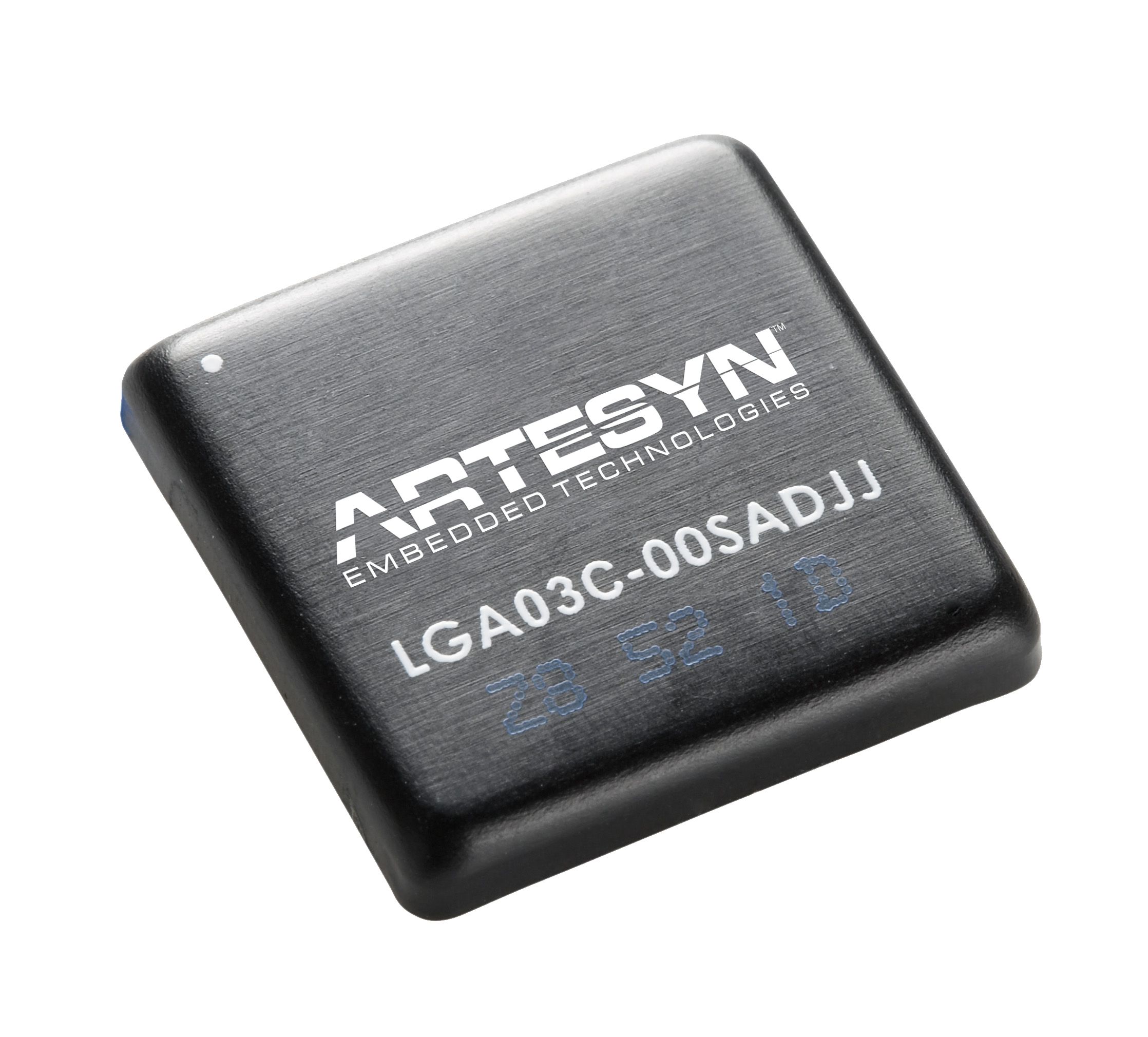

LGA03C Series
Active
15 W (3 A) Non-Isolated DC-DC Converters
The LGA03C series is a 3 A non-isolated DC-DC converter that provides a cost-effective high density power solution in a low profile, surface-mount land grid array package for space sensitive applications. The converter accepts a wide range 3 to 14 VDC input and has a 15 W power output rating. Its output voltage is adjustable from 0.59 to 5.1 VDC to accommodate a wide variety of silicon power needs. Standard features include remote sense, remote enable and voltage margin. LGA03C series converters offer resistor-programmable undervoltage lockout, as well as non-latching short-circuit and overvoltage protection.
Features
- RoHS 6 Compliant
- Efficiency 92% Typ (5 V @ 3 A, 12 Vin)
- Input Voltage 3.4 - 14.0 VDC
- Output Margining ± 33% of Vo or 5.5 VDC max
- Wide Output Adjust 0.59 - 5.1 VDC
Benefits
- Excellent Transient response
- High Efficiency
- Low Profile in a small compact LGA footprint
- Input UVLO
- Enable,
- Output Adjust
- Differential Remote Sense
- Output Margining
- Power Good Signal
- Short Circuit and Overcurrent Protection
- Wide Input Voltage Range
- Wide Output Adjust Range
- Output Enable Positive Logic
- Power Good Open Collector - Positive Logic
Specifications
| Output Power (W): | 15 |
|---|---|
| Length (Inches): | 0.64 |
| Width (Inches): | 0.64 |
| Height (Inches): | 0.129 |
| Mounting Type: | BMP; SMT |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 3 |
| Output Voltage Range (V): | 0.59V to 5.1V |
