artesyn™

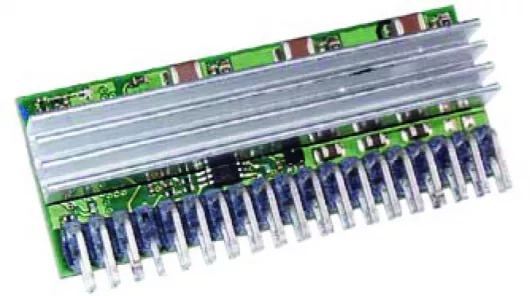

SIL60C2 Series
Active
240 W (60 A) Non-Isolated DC-DC Converters
The SIL60C2 series 60 A non-isolated DC-DC converter is designed for cost- and space-sensitive applications. It is available in a through-hole vertically mounting configuration with dual rows of pins. The converter accepts a wide range 4.5 to 13.8 VDC input and provides an output that is adjustable from 0.8 to 4.0 VDC to accommodate a wide variety of silicon power needs. Rated at 240 W, the SIL60C2 is capable of delivering up to 60 A; it has a typical efficiency of 89% and no minimum load requirement. Standard features include differential remote sense, remote On/Off and remote ‘power good’ indication. This converter also supports phase shedding to save power under light load conditions, and its output voltage can be adjusted to within 1% by a 2-bit VID signal.
Features
- 2 bit VID adjustable output voltage
- Operating ambient temp up to +70°C with suitable derating and forced air cooling
- 0 A minimum load
- EU directive 2002/95/EC compliant for RoHS
Benefits
- Phase shedding for power saving during light loads
- High power density design means reduced board space requirement
- Power good output signal
- Remote ON/OFF (active high)
- Input under-voltage lockout
Specifications
| Output Power (W): | 240 |
|---|---|
| Length (Inches): | 1.98 |
| Width (Inches): | 0.78 |
| Height (Inches): | 0.54 |
| Mounting Type: | BMP; Through Hole |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 60 |
| Output Voltage Range (V): | 0.8V to 4V |
