artesyn™

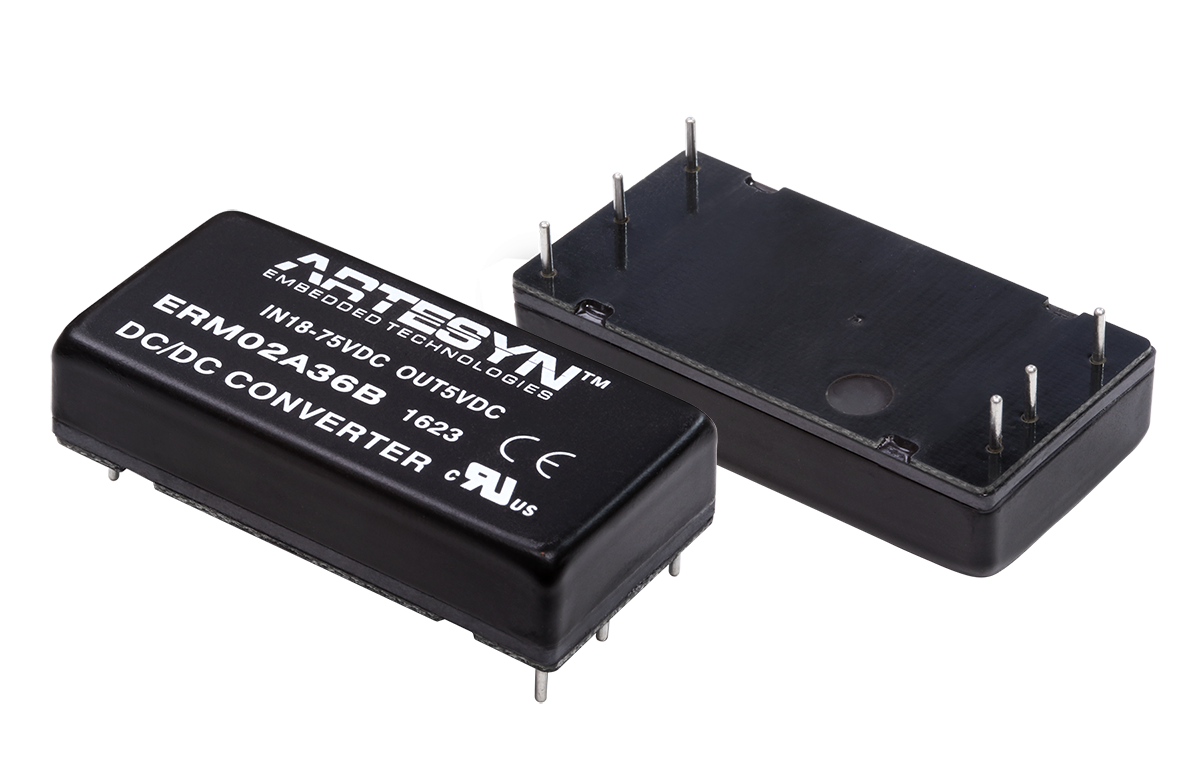

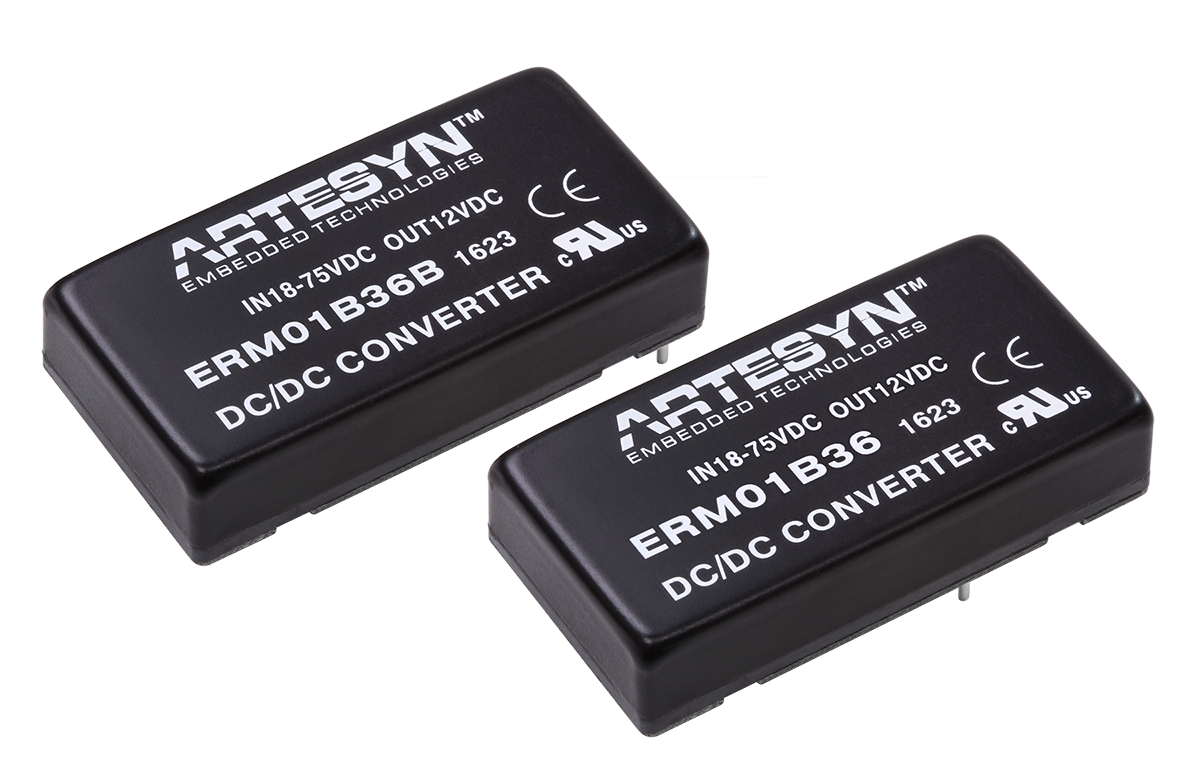

ERM10 Railway DC-DC Series
Active
10 W 2BY1 DC-DC Converter
The 10 W ERM10 series of isolated DC-DC converter modules is designed specifically for railway applications. With three input versions, 9 to 36, 18 to 75, and 40 to 160 VDC, the series features reinforced insulation rated at 3000 VAC RMS and complies with EN61368-1 and EN 50155 safety standards as well as EN50121-3-2 for EMI due to electronic equipment on rolling stock. Models are available for four single outputs of 5, 12, 15, and 24 VDC and dual outputs of ±12 and ±15 VDC.
Standard features include voltage-adjust, remote on/off, undervoltage shutdown, and overload and short-circuit protection. In a fully encapsulated, metal-case construction, the converters have an industry-standard 2 x 1-inch (50.9 x 25.4 mm) footprint with height of just 0.43 inch (11 mm).
Standard features include voltage-adjust, remote on/off, undervoltage shutdown, and overload and short-circuit protection. In a fully encapsulated, metal-case construction, the converters have an industry-standard 2 x 1-inch (50.9 x 25.4 mm) footprint with height of just 0.43 inch (11 mm).
Features
- Input voltage range 9V to 36V
- Input voltage range 18V to 75V
- Input voltage range 40V to 160V
- Output voltage (Dual) +/-15V, +/-12V
- Output voltage (Single) 5v, 12v, 15v, 24v
- Isolation voltage 3000Vac I/O isolation
- Package Industry standard 2by1
- Package Industry standard 2by1 centre pins
Benefits
- Control Enable function
- Control Trim available on single O/P units
Specifications
Output Power (W): | 10 |
---|---|
Length (Inches): | 2 |
Width (Inches): | 1 |
Height (Inches): | 0.4 |
Mounting Type: | BMP; Through Hole |
Minimum Output Current (A): | 0.41 |
Maximum Output Current (A): | 2 |
Output Voltage Range (V): | -15V to 26V |
Minimum Output Power (W): | 10 |
Maximum Output Power (W): | 10 |
Minimum Input Voltage (V): | 9 |
Maximum Input Voltage (V): | 160 |
Warranty (Years): | 2 |
Stock Check
Model Number
Samples
Buy
|
3D Models | Min. Voltage (V) | Max. Voltage (V) | Current (A) | Nominal Voltage (V) | Number of Outputs | Samples | Buy |
---|---|---|---|---|---|---|---|---|
ERM00B110
Active, In Stock
10W, 40-160Vin, 12V O/P
|
10.8 | 13.2 | 0.83 | 12 | 1 | Request | Buy | |
ERM00B18
Active, In Stock
10W, 9-36Vin, 12V output
|
10.8 | 13.2 | 0.83 | 12 | 1 | Request | Buy | |
ERM00B36
Active, In Stock
10W, 18-75Vin, 12V O/P
|
10.8 | 13.2 | 0.83 | 12 | 1 | Request | Buy | |
ERM00BB110
Active,
Contact Us
10W railway 2by1 DCDC
|
12 | 12 | 0.417 | 12 | 2 | Contact Us | Buy | |
ERM00BB18
Active, In Stock
10W railway 2by1 DCDC
|
12 | 12 | 0.417 | 12 | 2 | Request | Buy | |
ERM00BB36
Active,
Contact Us
10W railway 2by1 DCDC
|
12 | 12 | 0.417 | 12 | 2 | Contact Us | Buy | |
ERM00C110
Active,
Contact Us
10W, 40-160Vin, 15V O/P
|
13.5 | 16.5 | 0.67 | 15 | 1 | Contact Us | Buy | |
ERM00C18
Active, In Stock
10W, 9-36Vin, 15V output
|
13.5 | 16.5 | 0.67 | 15 | 1 | Request | Buy | |
ERM00C36
Active, In Stock
10W, 18-75Vin, 15V O/P
|
13.5 | 16.5 | 0.67 | 15 | 1 | Request | Buy | |
ERM00CC110
Active,
Contact Us
10W railway 2by1 DCDC
|
15 | 15 | 0.335 | 15 | 2 | Contact Us | Buy | |
ERM00CC18
Active, In Stock
10W railway 2by1 DCDC
|
15 | 15 | 0.335 | 15 | 2 | Request | Buy | |
ERM00CC36
Active, In Stock
10W railway 2by1 DCDC
|
15 | 15 | 0.335 | 15 | 2 | Request | Buy | |
ERM00H110
Active,
Contact Us
10W, 40-160Vin, 24V O/P
|
22 | 26 | 0.41 | 24 | 1 | Contact Us | Buy | |
ERM00H18
Active, In Stock
10W, 9-36Vin 24V output
|
22 | 26 | 0.41 | 24 | 1 | Request | Buy | |
ERM00H36
Active, In Stock
10W, 18-75Vin, 24V O/P
|
0 | 0 | 0.41 | 24 | 1 | Request | Buy | |
ERM02A110
Active, In Stock
10W, 40-160Vin, 5V output
|
4.5 | 5.5 | 2 | 5 | 1 | Request | Buy | |
ERM02A18
Active,
Contact Us
10W, 9-36Vin, 5V outpt
|
4.5 | 5.5 | 2 | 5 | 1 | Contact Us | Buy | |

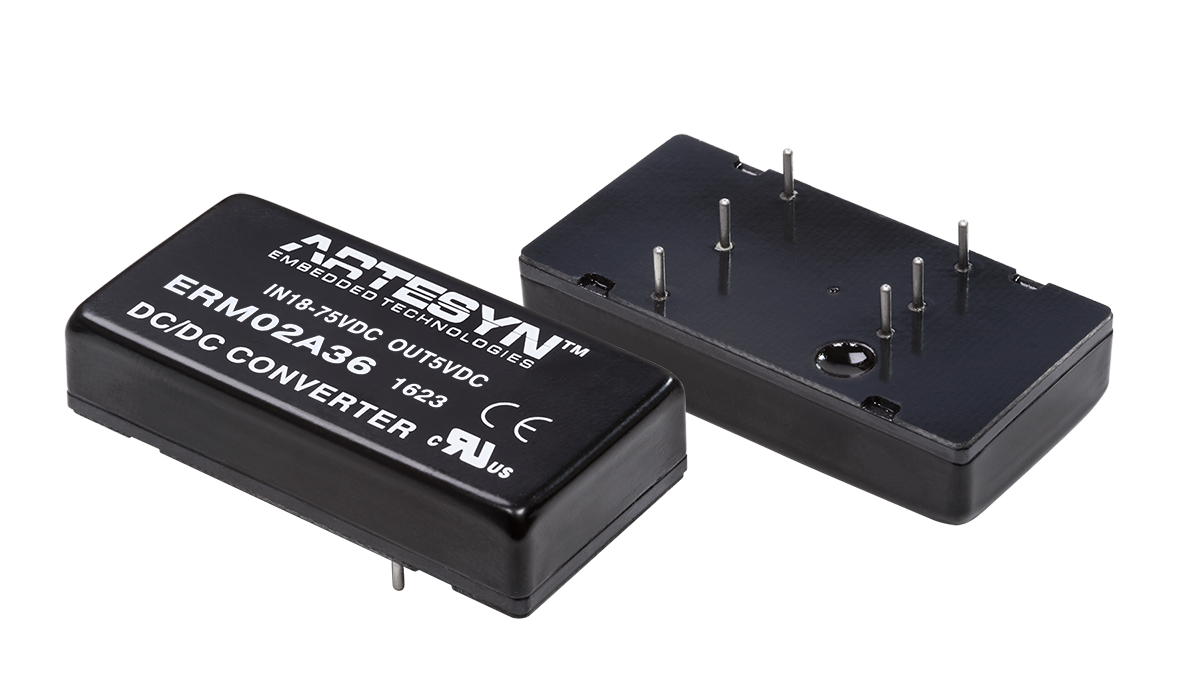

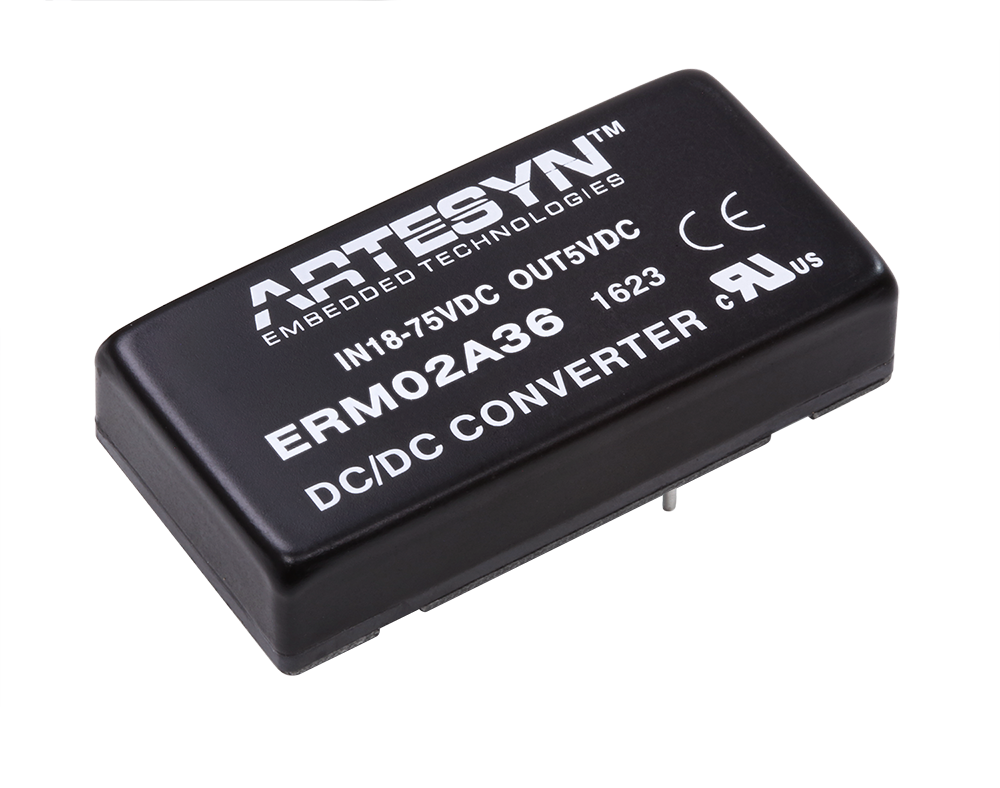

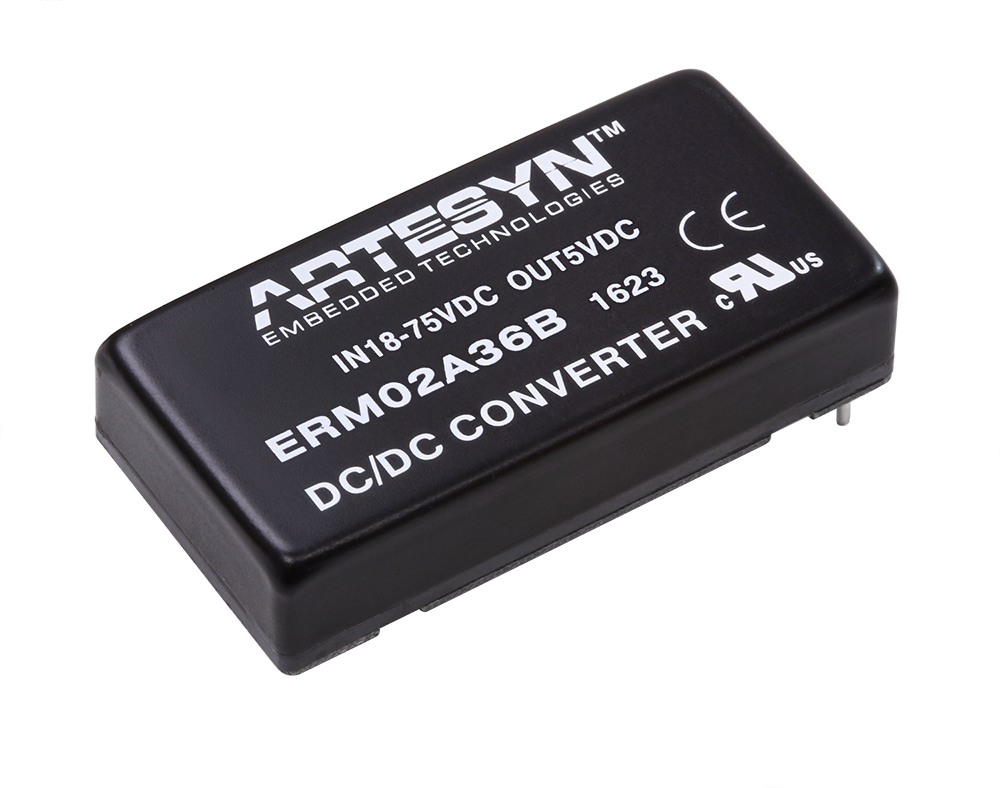

ERM02A36
Active, In Stock
10W, 9-36Vin, 5V output
|
0 | 0 | 2 | 5 | 1 | Request | Buy |
Technical Documentation
Title | Type |
---|---|
ERM 10W Data Sheet (435 KB) | Data Sheet |
ERM 10W CE certificate (222 KB) | Safety Certificate |
ERM 10W UL cert (363 KB) | Safety Certificate |
ERM 10W EMI test report (3 MB) | Technical Reference |
ERM 10W Technical Reference Note (2 MB) | Technical Reference |
ERM 10W Technical Reference Note (5 MB) | Technical Reference |
Product Branding Change notice (326 KB) | Technical Reference |
