ERM50 High Input Range Series
Active
50 W DC-DC Converters (High Input Models)

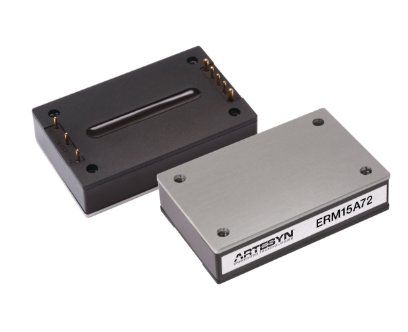

The 50 W ERM50 series isolated DC-DC converter modules for railway and transportation systems feature an input voltage range of 66 to 160 VDC with a choice of four single output models, 5, 12, 15, and 24 VDC. The converters offer up to 92% efficiency and maximum ambient operating temperature of 85℃ with suitable derating. The series complies with EN50155 standard for electronic equipment used on rolling stock. Standard features include 3000 VAC RMS reinforced insulation, differential remote sense, remote On/Off, undervoltage shutdown, and overload and short-circuit protection. The modules are fully encapsulated in metal case with isolated baseplate and have an industry-standard 2.28 x 1.45-inch (57.9 x 36.8 mm) quarter-brick footprint with 0.5-inch (12.7 mm) height.
Features
- Baseplate Vibration and Thermal Shock to EN61373
- High Efficiency up to 92%
- Input Range 66160 Vdc
- Operating Temp. Range 40 °C to +85 °C
- Reinforced Insulation 3000 VACrms
- Safety meets EN609501 and Railway Standard EN50155
- Small 57.9 x 36.8 x12.7 mm package
- Efficiency 92% @ 12 Vo
- Input range 66 - 160 Vdc
- Voltage tolerance ±1.0%
- Noise/ripple 24V model: 150mV, other models: 100mV
- Overload protection 150% typ of Io max, hiccup
- Insulation resistance: 1000Mohm
- Insulation capacitance: 3000pF
- isolation voltage 3000Vac
- Switching frequency 320 KHz
- Mechanical baseplate 1/4 brick encapsulated
Benefits
- Metal Case with Isolated
- No Minimum Load Requirement
- Remote On/Off
- UnderVoltage Shutdown
Specifications
| Output Power (W): | 50 |
|---|---|
| Length (Inches): | 2.28 |
| Width (Inches): | 1.45 |
| Height (Inches): | 0.5 |
| Mounting Type: | BMP; Through Hole |
| Minimum Output Current (A): | 2 |
| Maximum Output Current (A): | 10 |
| Output Voltage Range (V): | 5V to 24V |
